| Drive Shaft Torque at Maximum Pressure | 1699.3 lb/ft 2304 N·m |
| Drive Method | Gerotor Motor - Direct Drive Gerotor Motor - Direct Drive |
| Mounting Bracket Design | 2 Ton Mini Excavator Pin On 2 Ton Mini Excavator Pin On |
| Required Hydraulics | Standard Flow Standard Flow |
| Optimal Hydraulic Flow | 42-83 L/min (11-22 gpm) 42-83 L/min (11-22 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi) |
| Overall Width - With Bracket | 11.1 in 282 mm |
| Overall Length - With Bracket | 11.1 in 282 mm |
| Overall Height | 37.3 in 947 mm |
| Housing Diameter | 11 in 280 mm |
| Swing Range (fore/aft) | 70 degrees 70 degrees |
| Swing Range (L/R) | 76 degrees 76 degrees |
| Weight | 257.9 lb 117 kg |
| Motor Displacement | 38 in³ 629 cm³ |
| Bit Speed at Maximum Flow | 127 rpm 127 rpm |
| Hex Output Shaft Size | 2 in 51 mm |
My Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

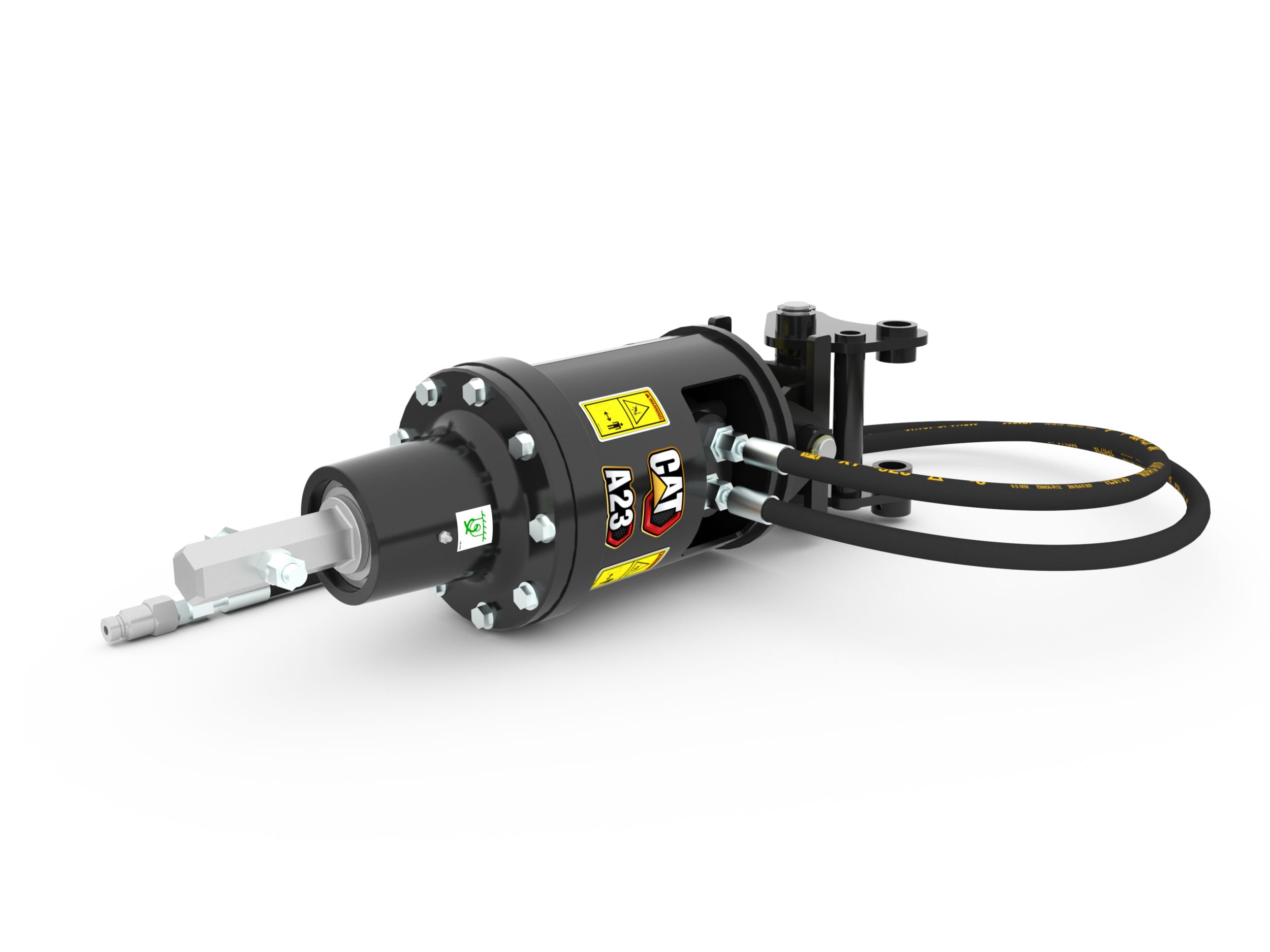

Augers A23
Request A Price Click for PriceKey Specs
- Drive Shaft Torque at Maximum Pressure
- 1699.3 lb/ft
- 2304 N·m
- Drive Method
- Gerotor Motor - Direct Drive
- Gerotor Motor - Direct Drive
- Mounting Bracket Design
- 2 Ton Mini Excavator Pin On
- 2 Ton Mini Excavator Pin On
Overview
Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.
Features At A Glance
- A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
- A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
- A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.
Product Specifications for A23
See how A23 compares against frequently compared products.
Augers
A23
Selected
- Drive Shaft Torque at Maximum Pressure
- 1699.3 lb/ft
- 2304 N·m
- Drive Method
- Gerotor Motor - Direct Drive
- Gerotor Motor - Direct Drive
- Mounting Bracket Design
- 2 Ton Mini Excavator Pin On
- 2 Ton Mini Excavator Pin On
Augers
A23
- Drive Shaft Torque at Maximum Pressure
- 1699.3 lb/ft
- 2304 N·m
- Drive Method
- Gerotor Motor - Direct Drive
- Gerotor Motor - Direct Drive
- Mounting Bracket Design
- Skid Steer Loader Coupler
- Skid Steer Loader Coupler
Augers
A23
- Drive Shaft Torque at Maximum Pressure
- 1699.3 lb/ft
- 2304 N·m
- Drive Method
- Gerotor Motor - Direct Drive
- Gerotor Motor - Direct Drive
- Mounting Bracket Design
- 3 Ton Mini Excavator Pin On
- 3 Ton Mini Excavator Pin On
assignment Product Brochures and More Are Ready to Download!
Full specifications, product brochures and more. Sign up below for additional information. Or for instant access, you can skip this form.
Related Products
Auger Accessories
