| Overall Width | 106.3 in 2700 mm |
| Sweeping Width | 98.4 in 2500 mm |
| Brush Diameter | 27.6 in 700 mm |
| Required Hydraulics | 3rd Valve 3rd Valve |
| Height | 51.2 in 1300 mm |
| Length | 72 in 1830 mm |
| Weight | 1433 lb 650 kg |
| Required Hydraulic Flow | 40-150 L/min (11-40 gpm) 40-150 L/min (11-40 gpm) |
| Optimal Hydraulic Pressure | 150-260 bar (2176-3771 psi) 150-260 bar (2176-3771 psi) |
| Motor Displacement | 11.9 in³/rev 195 cm³/rev |
| Brush Speed at Maximum Flow | 385 RPM 385 RPM |
| Hopper Capacity | 0.9 yd³ 0.66 m³ |
| Voltage | 12V 12V |
| Drive Method | Direct Drive Direct Drive |
| Interface Type | Requires Hook Group Requires Hook Group |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

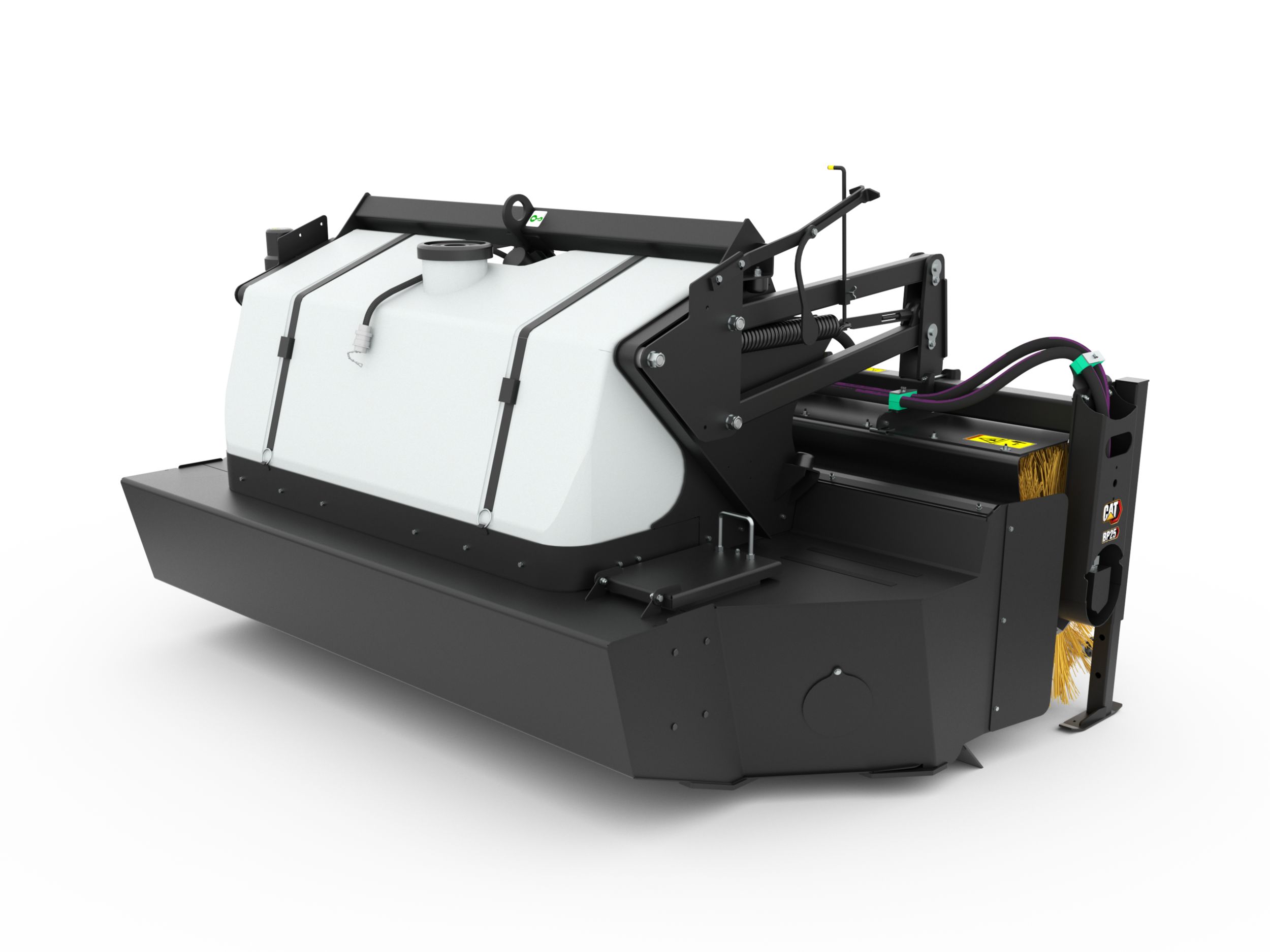

Pickup Brooms BP25
Request A Price Click for PriceKey Specs
- Overall Width
- 106.3 in
- 2700 mm
- Sweeping Width
- 98.4 in
- 2500 mm
- Brush Diameter
- 27.6 in
- 700 mm
Features At A Glance
Product Specifications for BP25
See how BP25 compares against frequently compared products.
Brooms
BP25
Selected
- Overall Width
- 106.3 in
- 2700 mm
- Sweeping Width
- 98.4 in
- 2500 mm
- Brush Diameter
- 27.6 in
- 700 mm
Brooms
BP25
- Overall Width
- 78.3 in
- 2700 mm
- Sweeping Width
- 60 in
- 2500 mm
- Brush Diameter
- 26 in
- 700 mm
Brooms
BP118C
- Overall Width
- 90.4 in
- 2295 mm
- Sweeping Width
- 72 in
- 1829 mm
- Brush Diameter
- 26 in
- 660 mm
