Weights
| Standard Operating Weight with ROPS | 5718 lb 2599 kg |
| Static Linear Load | 61 lb/in 13.1 kg/cm |
| Maximum Operating Weight | 6114 lb 2779 kg |
My Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security
Productive
Providing up to 33% more power with Cat C1.7T engine at 48 hp / 36 kW with optimized hydraulics and multiple ballast options.
Easy to Maintain
CC2.7 provides reduced maintenance tasks, troubleshooting through Cat ET, and a 3-year/3000 hour vibe system service interval.
Simple to Operate
This machine has intuitive operator controls, a simple display, and an ergonomic operator station.

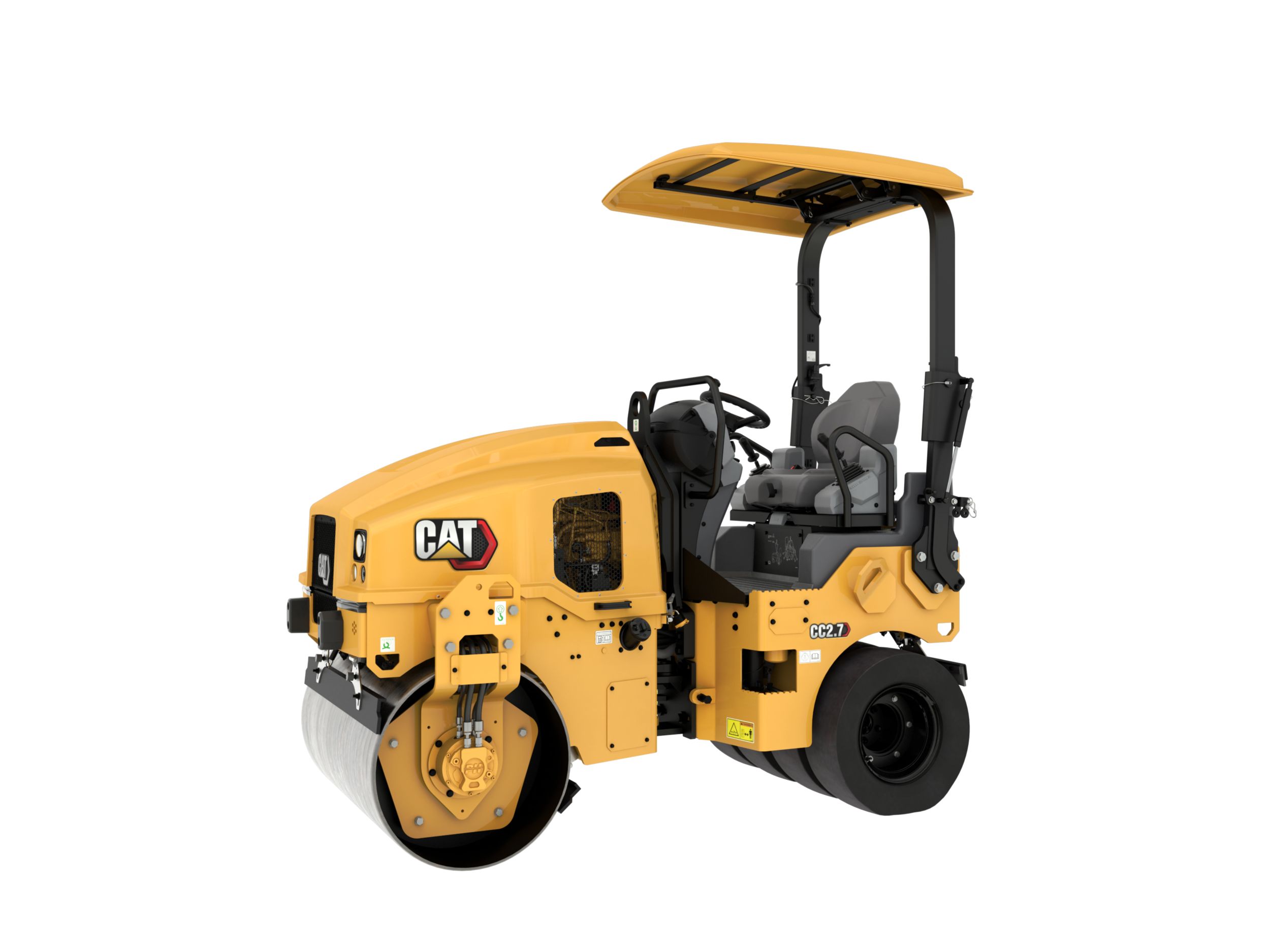

Tandem Vibratory Rollers CC2.7
Request A Price Find DealerKey Specs
- Standard Operating Weight with ROPS
- 5718 lb
- 2599 kg
- Compaction Width
- 47.2 in
- 1200 mm
- Gross Power
- 48.2 hp
- 36 kW
Overview
Productive and Efficient
The CC2.7 is a 3 metric ton machine with a 1200 mm (47 in) front drum and 4 rear wheels. The combination compactor offers versatility with its 4 rubber tires that provide a kneading action for a smooth mat surface.
Benefits
Productive
Providing up to 33% more power with Cat C1.7T engine at 48 hp / 36 kW with optimized hydraulics and multiple ballast options.
Easy to Maintain
CC2.7 provides reduced maintenance tasks, troubleshooting through Cat ET, and a 3-year/3000 hour vibe system service interval.
Simple to Operate
This machine has intuitive operator controls, a simple display, and an ergonomic operator station.
Features At A Glance
Product Specifications for CC2.7
Dimensions
| Compaction Width | 47.2 in 1200 mm |
| Overall Width | 51.7 in 1312 mm |
| Drum Width | 47.2 in 1200 mm |
| Height - ROPS | 109.7 in 2786 mm |
| Wheel Base | 70.9 in 1800 mm |
| Overall Length | 99.2 in 2520 mm |
| Drum Diameter | 28.3 in 720 mm |
Engine
| Gross Power | 48.2 hp 36 kW |
| Net Power - ISO 9249 | 48.2 hp 36 kW |
| Engine Model | C1.7T C1.7T |
Operating Specifications
| Turning Radius - Inside Drum Edge | 100 in 2540 mm |
| Ground Clearance | 11.2 in 285 mm |
| Curb Clearance | 17.8 in 453 mm |
| Travel Speed - Maximum | 6.8 mile/h 11 km/h |
| Static Linear Load | 66.2 lb/in 11.85 kg/cm |
| Drum Offset | 2 in 50 mm |
| Number of Wheels | 4 4 |
| Turning Radius - Outside Drum Edge | 147.2 in 3740 mm |
Vibratory System
| Nominal Amplitude - High | 0.02 in 0.52 mm |
| Minimum Frequency | 3180 VPM 53 Hz |
| Maximum Frequency | 3840 VPM 64 Hz |
| Centrifugal Force per Drum - Maximum | 7929 lb/ft 35 kN |
Service Refill Capacities
| Water Spray Tank Capacity | 42.24 gal (US) 160 l |
| Fuel Tank Capacity | 14.37 Gal 55 l |
CC2.7 Standard Equipment
OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
CC2.7 Optional Equipment
OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 100 kg (220 lb)
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
