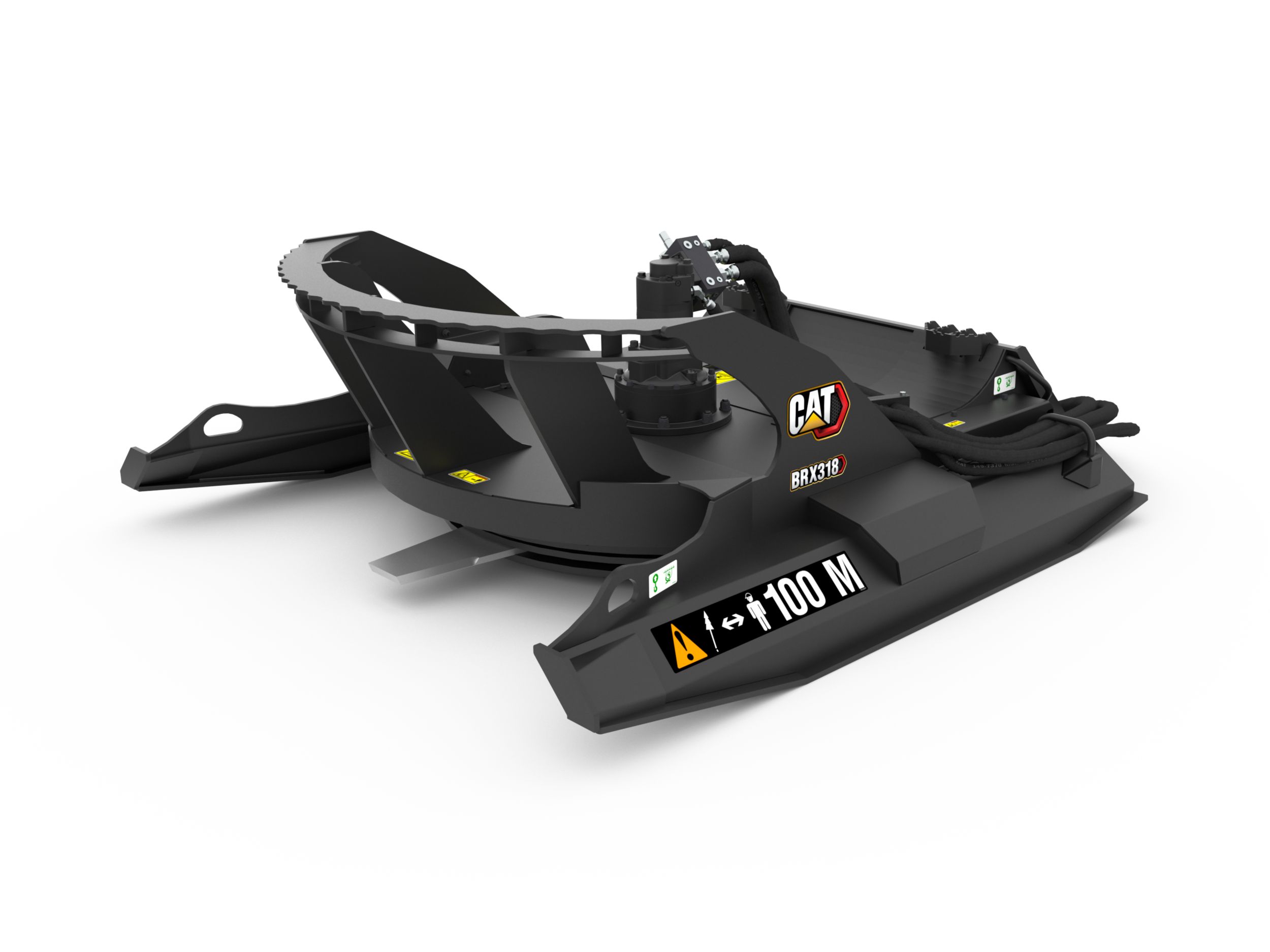

Brushcutters BRX318 Industrial

Request A Price Click for Price

Key Specs

Overall Width: 75.2 in; 1911 mm

Cutting Width: 72 in; 1829 mm

Maximum Cutting Diameter: 8 in; 203 mm

BRX318 Industrial
Change model

Overview

Cat® Industrial Brushcutters are best for right of way maintenance, clearing land and brush cutting.

Features At A Glance

Cat® Industrial Brushcutters are used for clearing overgrowth from highway medians, utility easements and for initial land clearing for housing, parks and recreational areas.

Fully balanced blade carrier holds four blades to prevent unnecessary vibration. Blade carrier weighing 409 kg (900 lb) provides unmatched blade inertia. High inertia energy allows blades to wing through dense brush.

Hardened reversible blades provide aggressive cutting of material and deliver high performance and durability. Blades are attached to blade carrier with three bolts that can easily be torqued from an access panel on the top of frame.

Long Life Motor w/ Anti-Cavitation Valve

Anti-cavitation valve protects vital motor components improving tool life and ensuring adequate machine and tool performance.

Integrated accumulator in hydraulic system works in conjunction with the anti-cavitation valve to reduce pressure spikes to the drive motor. On shut-down, the accumulator discharges oil to the motor to slowly spin down the drivetrain. This reduces noise emitted by the motor and the cavitation.

Heavy-duty skids allow easy movement of brushcutter through uneven terrain while maintaining stability of the work tool and machine.

Control and guide foliage into blades. Push bar extends beyond blades protecting bystanders.

The Industrial Brushcutter is designed to match with standard flow, high flow XPS, and high flow XHP hydraulics. Each hydraulic platform optimizes recovery time and reduces heat load on the carrier to work in high ambient temperature environments.

Improved tool life with reinforced corner gussets to provide strength in critical areas and also mulch cut material. Heavy duty bearing case secures blade carrier to the drive system with a series of eight bolts.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Product Specifications for BRX318 Industrial

Overall Width	75.2 in 1911 mm
Cutting Width	72 in 1829 mm
Maximum Cutting Diameter	8 in 203 mm
Required Hydraulics	High Flow XPS High Flow XPS
Overall Length	85.4 in 2170 mm
Overall Height	28.9 in 733 mm
Weight	2363.4 lb 1072 kg
Optimal Hydraulic Flow	120-125 L/min (31-33 gpm) 120-125 L/min (31-33 gpm)
Optimal Hydraulic Pressure	200-280 bar (2800-4100 psi) 200-280 bar (2800-4100 psi)
Tip Speed (Depends On Flow)	3,180-3,300 mpm (10,433-10,827 fpm) 3,180-3,300 mpm (10,433-10,827 fpm)
Motor Displacement	11.9 in³/rev 195 cm³/rev
Drive Shaft Torque	444-829 N·m (327-611 lb/ft) 444-829 N·m (327-611 lb/ft)

Product Specifications for BRX318 Industrial

Download Print

Overall Width	75.2 in 1911 mm
Cutting Width	72 in 1829 mm
Maximum Cutting Diameter	8 in 203 mm
Required Hydraulics	High Flow XPS High Flow XPS
Overall Length	85.4 in 2170 mm
Overall Height	28.9 in 733 mm
Weight	2363.4 lb 1072 kg
Optimal Hydraulic Flow	120-125 L/min (31-33 gpm) 120-125 L/min (31-33 gpm)
Optimal Hydraulic Pressure	200-280 bar (2800-4100 psi) 200-280 bar (2800-4100 psi)
Tip Speed (Depends On Flow)	3,180-3,300 mpm (10,433-10,827 fpm) 3,180-3,300 mpm (10,433-10,827 fpm)
Motor Displacement	11.9 in³/rev 195 cm³/rev
Drive Shaft Torque	444-829 N·m (327-611 lb/ft) 444-829 N·m (327-611 lb/ft)
