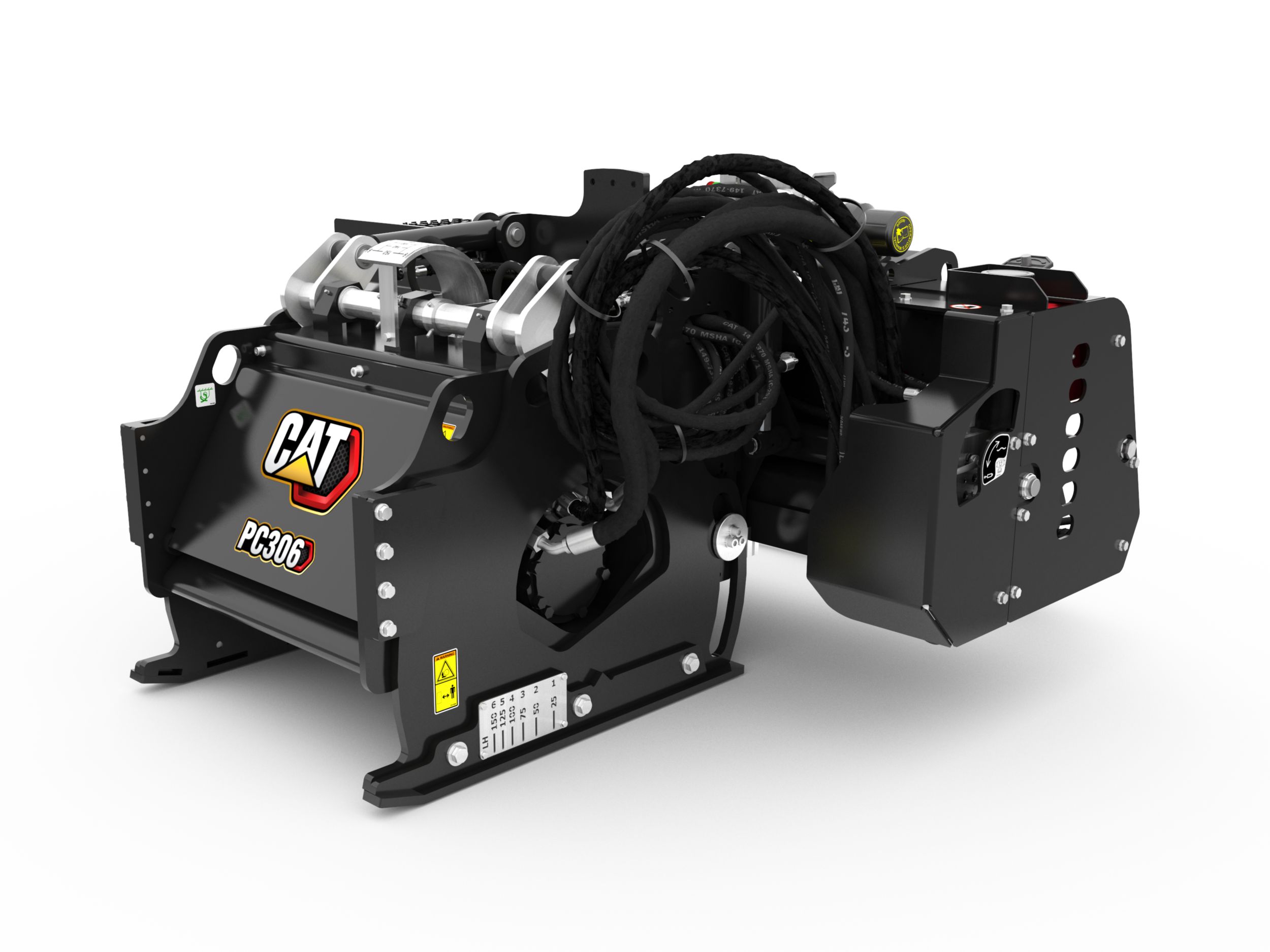

Cold Planers PC306 With Water

Request A Price Click for Price

Key Specs

Working Width: 23.6 in; 600 mm

Maximum Cutting Depth: 6.7 in; 170 mm

Required Hydraulics: High Flow; High Flow

PC306 With Water
Change model

Overview

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

Features At A Glance

Designed for small paving jobs in residential and commercial applications, and are primarily used to economically restore asphalt and concrete surfaces. Ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited.

Self-leveling design automatically levels itself when placed on the ground for consistent depth control without operator adjustments and excellent spoil retention.

Two wear-resistant skid plates remain parallel to the ground for optimum stability.

Hydraulic side shift permits close planing to curbs, walls and other obstructions.

Independent left/right depth control allows maximum drum depths to be adjusted independently on each skid. Gauges are easily viewable from the cab. Independent depth control is mechanical on the PC104 and PC105 models; hydraulic independent depth control is standard on the PC305-PC412 models.

Max Pro Pressure Gauge provides operator feedback to adjust speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on all models.

Direct drive system on the standard flow models features a variable speed, uni-directional, gerotor style hydraulic motor. Direct drive system on high flow and XHP models features a hydraulic radial piston motor to ensure maximum cutting rate and drum torque for optimal production performance and efficiency.

Float enables planers to follow the contour of the surface. Float is activated by a knob and is only available on high flow and XHP planers. Spring tilt and hydraulic tilt enable planers to oscillate for angled cuts. Tilt is hydraulically controlled on high flow models and spring controlled on standard flow planers.

All purpose conical bits are standard. Optional concrete bits, heavy duty concrete bits, and heavy duty asphalt bits are also available. Tools to change out the bits are included.

Indicates contact point of drum with surface based on depth of cut, so an assistant can communicate with the operator when to start and stop the cut.

Indicates center of the drum on the side of the planer.

Fast cut asphalt drums require less power for cutting due to increased spacing between cutting lines on the drum. These drums improve productivity in asphalt applications, and are now standard on all models. Multi-purpose and optional-width drums are also available.

Serrated steps allow for safe and easy access in and out of the cab. A new center step enables even easier access and shorter step lengths by the operator.

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

Coupler frame-mounted water tank provides 160 liters (42 gallons) capacity with a tank level sight gauge. Can be combined with cab-mounted water tank for additional capacity and run time. Sprinkler kit included if cold planer is ordered with a water tank installed. Water tank not available on XD models.

Product Specifications for PC306 With Water

Working Width	23.6 in 600 mm
Maximum Cutting Depth	6.7 in 170 mm
Required Hydraulics	High Flow High Flow
Overall Width	73.1 in 1858 mm
Overall Length	56.4 in 1432 mm
Overall Height	36.6 in 930 mm
Weight	2685.2 lb 1218 kg
Optimal Hydraulic Flow	98-125 L/min (26-33 gpm) 98-125 L/min (26-33 gpm)
Optimal Hydraulic Pressure	230-280 bar (3300-4000 psi) 230-280 bar (3300-4000 psi)
Drum Speed	149 rpm 149 rpm
Optional Drum Widths/Depths	80/200, 150/200, 300/200, 450/200, 600/170 mm (3/8, 6/8, 12/8, 18/8, 24/7 in) 80/200, 150/200, 300/200, 450/200, 600/170 mm (3/8, 6/8, 12/8, 18/8, 24/7 in)
Tilt Angle Range +/-	8 degrees 8 degrees
Side Shift Travel	29.5 in 750 mm
Conical Bits	54 54
Standard Bit Type	All Purpose All Purpose
Water Tank Capacity	42.3 gal (US) 160 l
