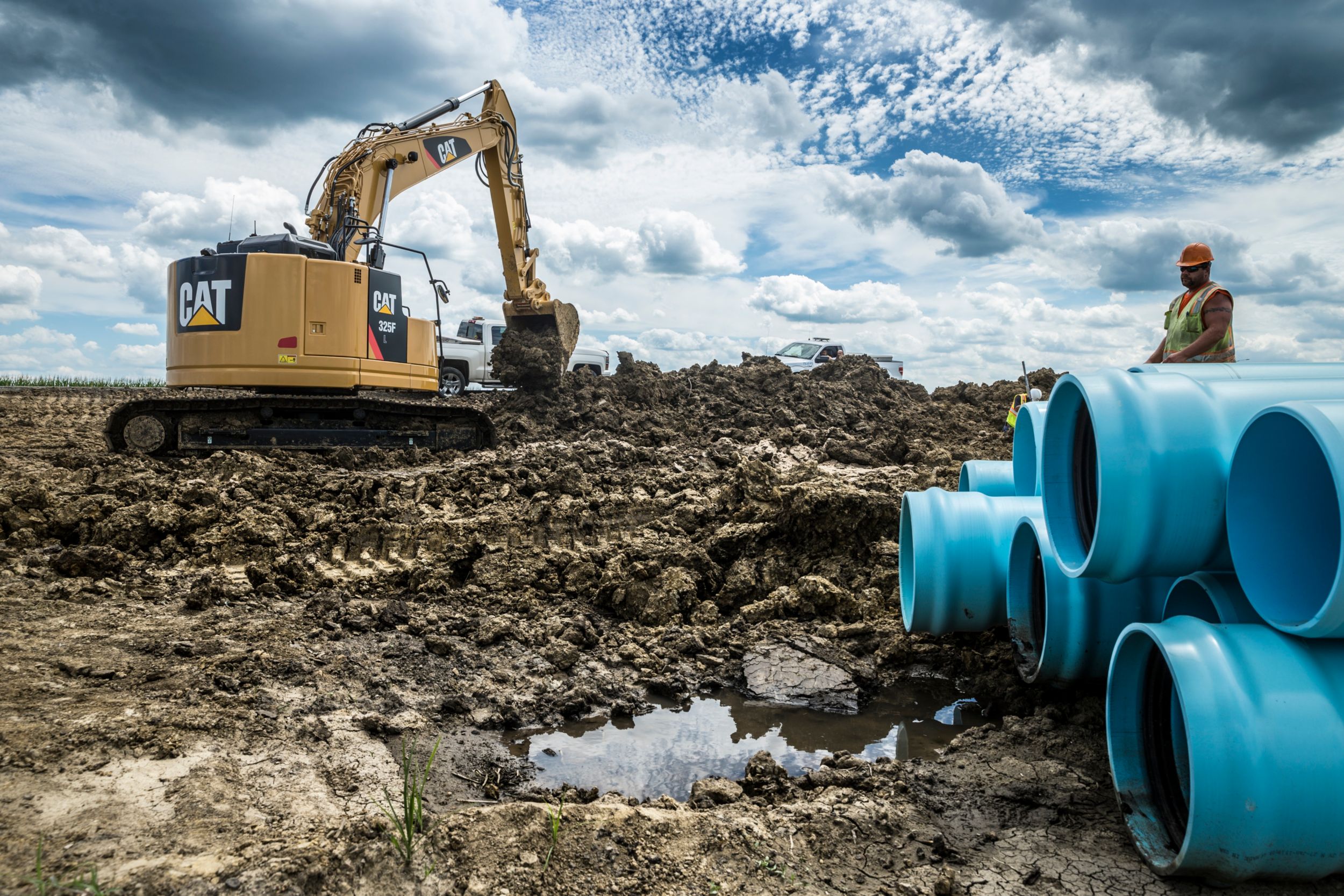

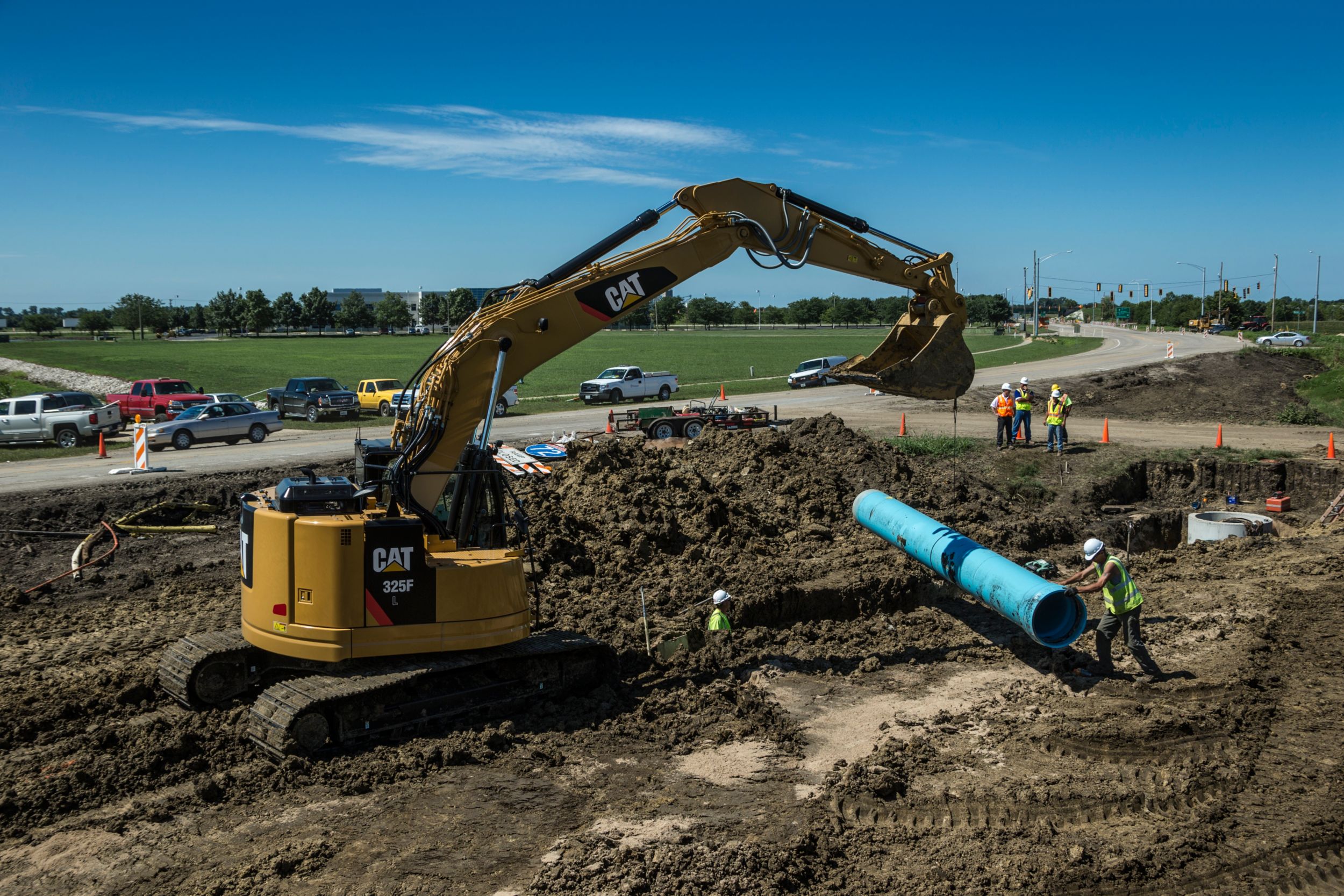

With a front swing radius of 2.34 m (7'8") and a tail swing radius of 1.72 m (5'8"), the machine can dig, swing, and dump within a working space of 4.06 m (13'4"). When rotated 90 degrees and working over the side, just 135 mm (5") of counterweight extends beyond the track width, which allows trucks and jersey barriers to be closer to the machine.

Unlike a standard radius machine, the 325F’s boom is positioned toward the center of the machine. Not only does this help reduce the front swing radius, but it also supports more lift capacity over the front due to greater stability.
