Cat® Longwall System Helps Russian Coal Mine Set Record

Mine owner SUEK is one of world's 10 largest coal companies

The Russian Yalevskogo mine operated by the Siberian Coal Energy Company (SUEK) recently surpassed the national monthly coal production record. The mine produced 1,407.30 metric tonnes of raw coal from one single longwall face (seam No. 50) in May 2017 to set an all-time record, exceeding the national record of 1,050,452 tonnes that it set in August 2016.

The mine is located in the Kuzbass region, the source of much of Russia’s coal exports. In 2016 the Yalevskogo mine had an annual production of more than 4.5 million tonnes of steam coal.

The record performance was obtained without any lost time injuries on the face with full compliance to the national safety laws.

RECORD-BREAKING LONGWALL EQUIPMENT

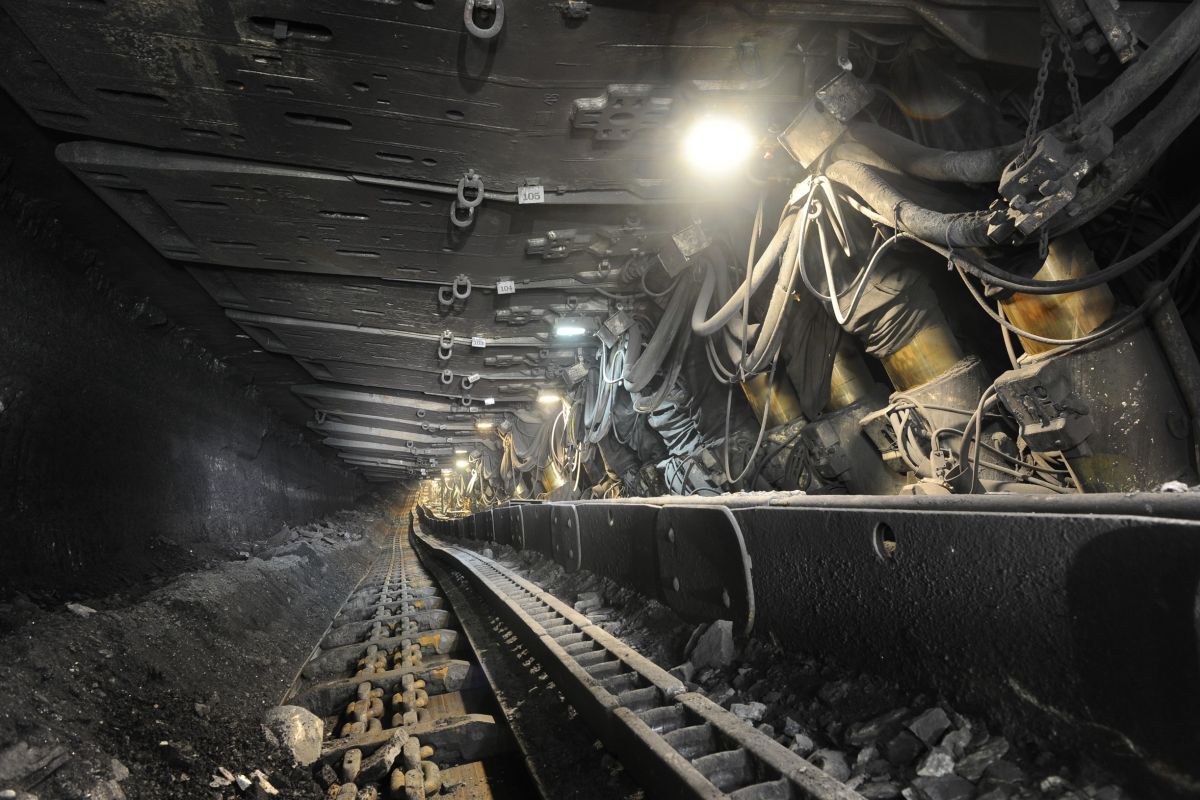

The longwall face at Yalevskogo mine is equipped with customized two-leg Cat roof supports, each with a width of 1.75 meters (5.75 feet) and support capacity of 725 tonnes (800 tons). With an operating range of 2.2 to 4.8 meters (7.2 to 15.7 ft), the supports are used in a seam that is typically about 4 meters (13 ft.) thick. The plating of the hydraulic legs is applied to meet the corrosive environment at the mine.

The longwall system includes a Cat AFCPF6 armored face conveyor (pan width 1142 mm) as well as a Cat BSLPF6 beam stage loader (entry conveyor) – both armed with Cat controlled start transmission CST drives. The beam stage loader includes a SK114 crusher with 400 kW installed power. Pan width is 1.342 mm.

The longwall is fully automated with Cat face automation including Cat programmable mining controls and condition monitoring software, facilitating full automation, monitoring and remote diagnostics for all face equipment. All information can be transferred to the surface in real time to allow maximization of longwall performance.

MEETING THE REQUIREMENTS OF A FACE EXTENSION

In April 2016 SUEK ordered Cat equipment for a face extension from 300 to 410 meters. For this extension the installed power of the face conveyor was upgraded to 3 x 1.000 kW with new Cat CST65 drives which were commissioned in April 2017.

To produce a record amount like 1,407.300 metric tonnes of raw coal from one single face in only one month, a mine requires a customized longwall system which is designed for high availability and efficiency in operation. With face and entry conveyers especially designed for high performance longwalls – and this is exactly what Caterpillar offered to its Russian customer.
