| Width | 60 in 500 mm |
| Capacity | 3.29 yd³ 2.52 m³ |
| Weight | 4628 lb 942 kg |
| Interface | Use as Pin-on or with Cat Pin Grabber Coupler Use as Pin-on or with Cat Pin Grabber Coupler |
| Edge Type | Straight Straight |

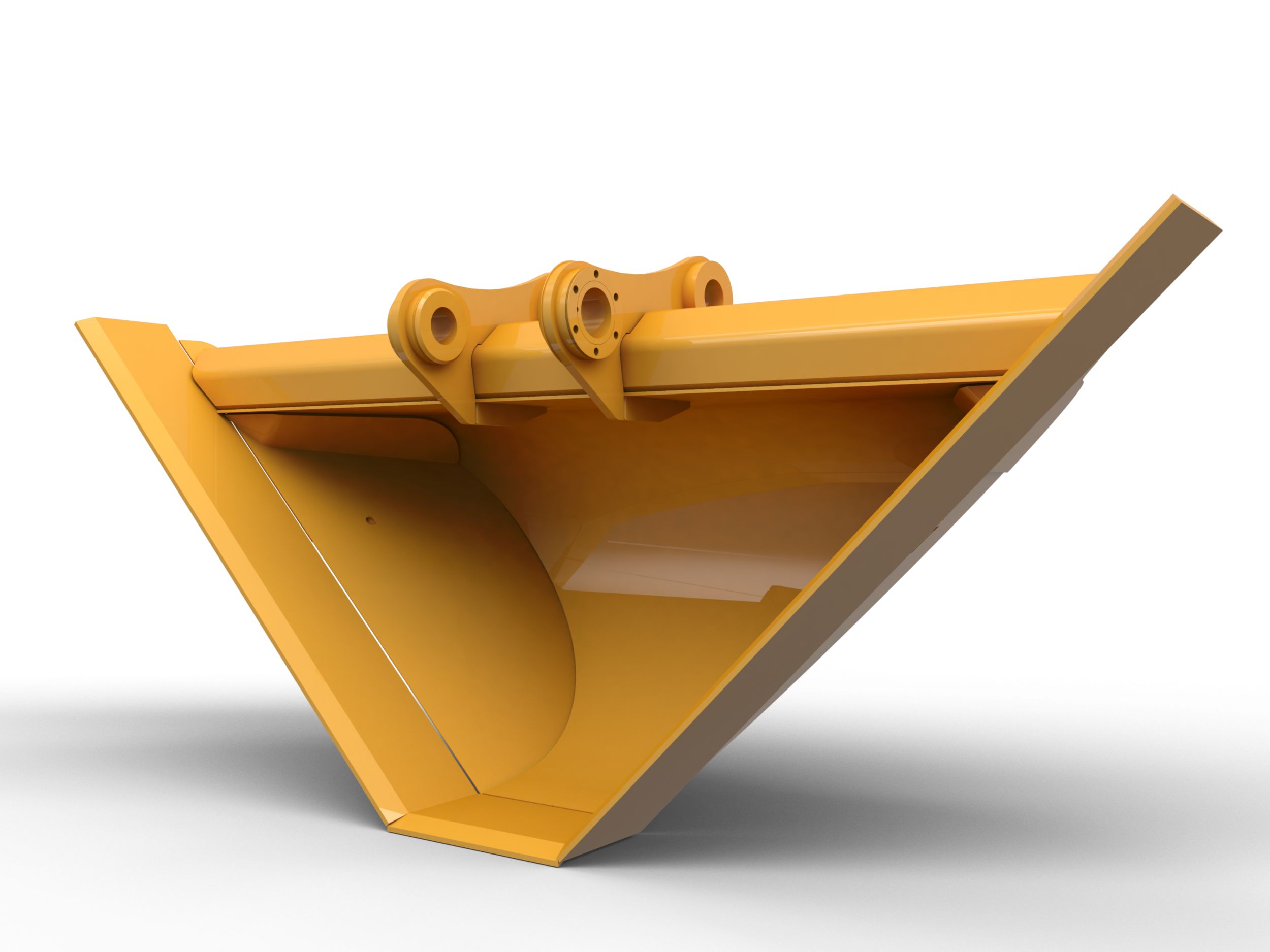

Profile Profile Bucket 500 mm (20 in): 307-6475
Request A Price Find DealerKey Specs
- Width
- 60 in
- 500 mm
- Capacity
- 3.29 yd³
- 2.52 m³
- Weight
- 4628 lb
- 942 kg
Overview
Cat® buckets are more than just an add-on, they are an extension of your Cat machines. Each one is perfectly balanced to our excavators so you can take on heaping loads without compromising fuel efficiency or machine health. We built them to fill faster, retain your load, and fit your task.
Features At A Glance
- Productivity is at its best when you pair your Cat machine with a Cat bucket, which we purpose-design to optimize the breakout force and power of the machine.
- The dual radius shell profile improves material flow into the bucket. The added heel clearance ensures the bottom of the bucket does not drag, reducing maintenance costs.
- Fuel consumption peaks during digging. Cat buckets are designed to cut through material quickly to enhance your machine's overall operating efficiency.
- Load more material in less time. Bucket shape and sidebars keep the most material in your bucket for every load.
- Count on the structural integrity of your bucket long-term. The integrated hinge plate helps distribute force better than a weld-on hinge plate.
- Cat buckets are manufactured with high strength, abrasion-resistant steel, especially in excessive wear components.
- Protect the most important, high-wear areas of your bucket with Cat® Ground Engaging Tools (GET). Sidebar protectors and sidecutters help preserve the parts of the bucket that come into contact and pass through materials the most.
- Reduce maintenance costs by selecting the right GET for your bucket and application combination.
- Bucket tips are available in a variety of options to suit your specific application. Whether you need to leave a clean, level floor or dig hard, abrasive materials, there is a tip solution.
- Managing multiple buckets and other attachments for a fleet is easier with a coupler system. Couplers allow machines of similar sizes to share and attachments can be changed out in seconds without leaving the safety of the cab.
- Buckets capable of being pinned directly to the machine are also compatible with Cat®Pin Grabber Couplers, except Pin Grabber Performance buckets. Pin Grabber Performance buckets have a recessed pin which optimizes breakout force resulting in faster cycle times for your bucket when using with a Cat Pin Grabber Coupler.
- The Cat Pin Grabber Coupler also gives the operator the ability to pick up a bucket in reverse position to clean out and square corners with ease.
- Ensure your attachments are secure with audible and visible cues from the coupler's secondary latch, always in the operator's line of sight.
- Cat Pin Grabber Couplers are compatible with 311-352 tracked excavators and all wheeled excavators. Trenching width couplers are also available.
- Attachments compatible with the CW Dedicated Coupler system use fixed quick coupler hinges. CW Dedicated Couplers feature a wedge-style locking system to keep attachments secure.
- CW Dedicated Couplers are available for all tracked and wheeled excavators.
- Never waste time looking for your buckets again. Cat asset tracking is available on select buckets.
- Track your entire fleet of attachments and machines from one source. Buckets with asset tracking can be viewed within VisionLink® alongside Product Link ™subscribed equipment.
- Keep your assets secure. Buckets with an asset tracker send an alert if they leave an easy-to-setup site boundary.
- Trench digging is an easy task with the use of a Profile bucket. Profile buckets can be fixed or have adjustable wings, allowing the operator to conform to the size and shape of certain trenches.
- Profile buckets with wings are adjustable from 30-45° relative to the plane being dug.
- Profile buckets are compatible with 15 to 20 ton (15,000 to 20,000 kg) excavators.
- You can pin a Profile bucket directly to the machine or use them with a Cat Pin Grabber Coupler or CW Dedicated Coupler.
Product Specifications for Profile Bucket 500 mm (20 in): 307-6475
See how Profile Bucket 500 mm (20 in): 307-6475 compares against frequently compared products.
Buckets - Excavator
Profile Bucket 500 mm (20 in): 307-6475
Selected
- Width
- 60 in
- 500 mm
- Capacity
- 3.29 yd³
- 2.52 m³
- Weight
- 4628 lb
- 942 kg
Buckets - Excavator
Profile Bucket 500 mm (20 in): 326-7406
- Width
- 42 in
- 500 mm
- Capacity
- 2 yd³
- 1.53 m³
- Weight
- 831 lb
- 917 kg
Buckets - Excavator
Profile Bucket 500 mm (20 in): 359-7469
- Width
- 60 in
- 500 mm
- Capacity
- 2.3 yd³
- 1.76 m³
- Weight
- 2743 lb
- 972 kg
