| Working Width | 23.6 in 600 mm |
| Maximum Cutting Depth | 9.8 in 250 mm |
| Required Hydraulics | High Flow XPS High Flow XPS |
| Overall Width | 73.1 in 1858 mm |
| Overall Length | 62 in 1576 mm |
| Overall Height | 43.8 in 1113 mm |
| Weight | 3108.5 lb 1410 kg |
| Optimal Hydraulic Flow | 98-125 L/min (26-33 gpm) 98-125 L/min (26-33 gpm) |
| Optimal Hydraulic Pressure | 230-280 bar (3300-4000 psi) 230-280 bar (3300-4000 psi) |
| Drum Speed | 119 rpm 119 rpm |
| Tilt Angle Range +/- | 5.5 degrees 5.5 degrees |
| Side Shift Travel | 25.6 in 650 mm |
| Conical Bits | 48 48 |
| Standard Bit Type | All Purpose All Purpose |

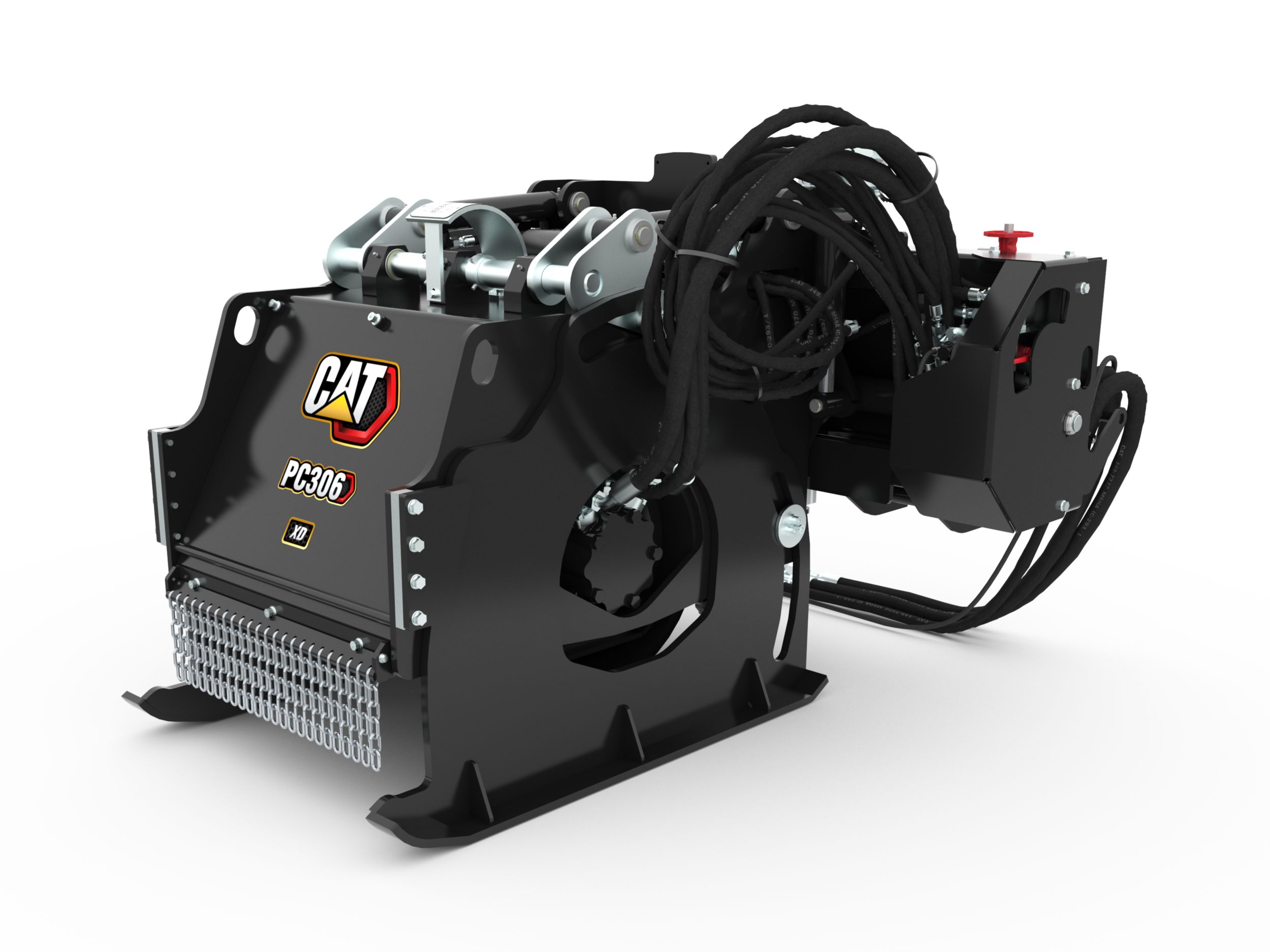

Cold Planers PC306 XD
Request A Price Click for PriceKey Specs
- Working Width
- 23.6 in
- 600 mm
- Maximum Cutting Depth
- 9.8 in
- 250 mm
- Required Hydraulics
- High Flow XPS
- High Flow XPS
Features At A Glance
Product Specifications for PC306 XD
See how PC306 XD compares against frequently compared products.
Cold Planers
PC306 XD
Selected
- Working Width
- 23.6 in
- 600 mm
- Maximum Cutting Depth
- 9.8 in
- 250 mm
- Required Hydraulics
- High Flow XPS
- High Flow XPS
Cold Planers
PC306 With Water
- Working Width
- 23.6 in
- 600 mm
- Maximum Cutting Depth
- 6.7 in
- 170 mm
- Required Hydraulics
- High Flow
- High Flow
Cold Planers
PC310
- Working Width
- 39.4 in
- 1000 mm
- Maximum Cutting Depth
- 5.1 in
- 130 mm
- Required Hydraulics
- High Flow XPS
- High Flow XPS
