| Capacity | 2.00 yd³ 1500 l |
| Maximum Lift Capacity | 44092 lb 20000 kg |
| Shell Type Options | Open, Semi-open, Closed Open, Semi-open, Closed |
| Operating Weight | 7244 lb 3286 kg |
| Tine Count | 5 5 |
| Material Handler Minimum | 40 ton (US) 40 ton (US) |
| Material Handler Maximum | 65 ton (US) 65 ton (US) |
| Excavator Minimum | 30 ton (US) 30 ton (US) |
| Excavator Maximum | 45 ton (US) 45 ton (US) |

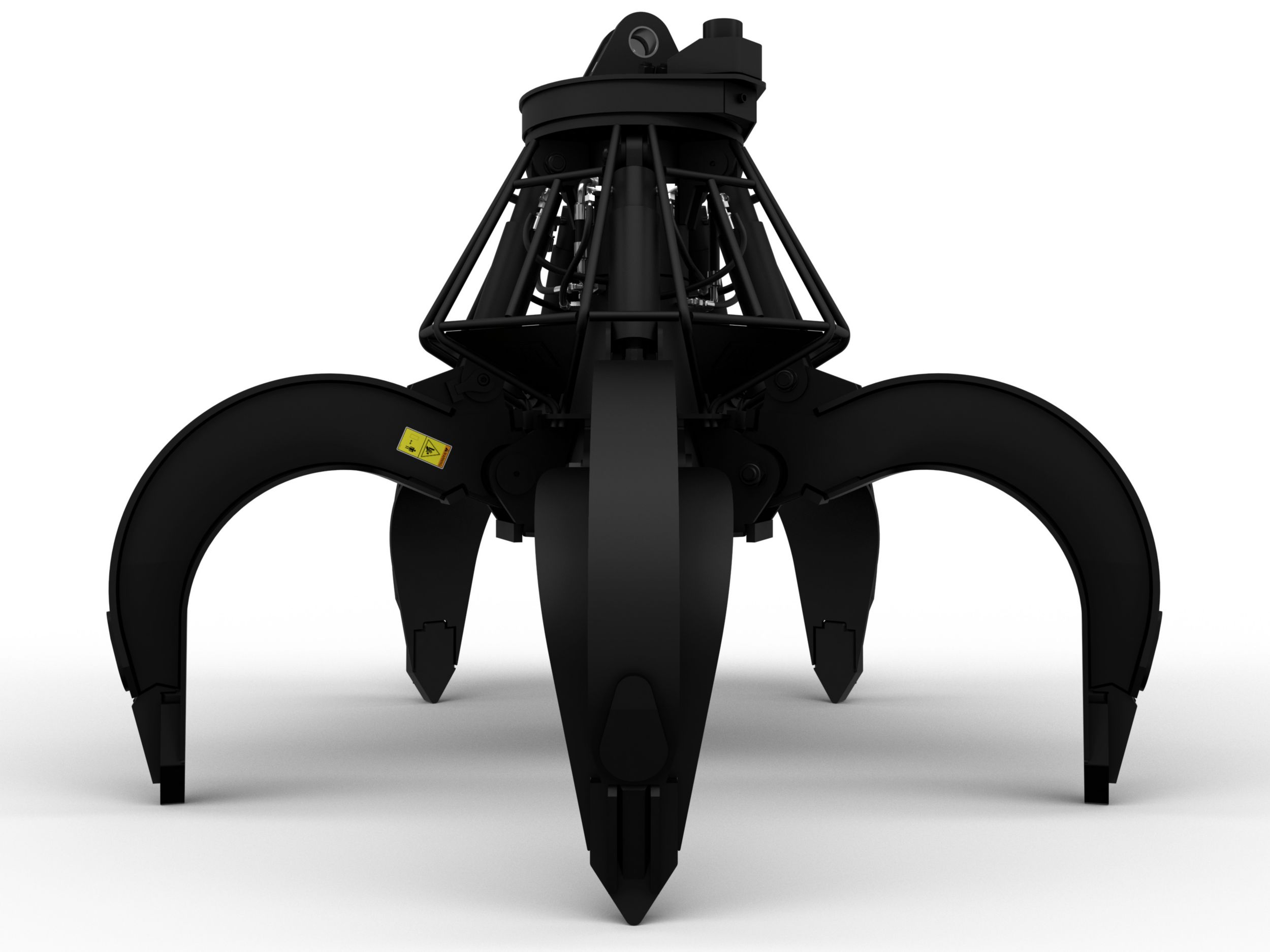

Orange Peel Grapples GSM50 5-Tine, 1500-Liter Orange Peel Grapple
Request A Price Find DealerKey Specs
- Capacity
- 2.00 yd³
- 1500 l
- Maximum Lift Capacity
- 44092 lb
- 20000 kg
- Shell Type Options
- Open, Semi-open, Closed
- Open, Semi-open, Closed
Overview
Cat® GSM Orange Peel Grapples include our largest models and sizes for a wide range of applications. With these large capacities, GSM Grapples allow you to move more while spending less.
Features At A Glance
High Performance with Less Fuel Comsumption
- Move more tons per hour with faster cycle times and larger fill factors.
- Cat Machines are pre-programmed with optimum performance settings for your grapple to maximize the pairing and efficiency of the machine and grapple.
Long and Lasting Quality
- Grapple life is prolonged because of high quality cylinders cushioning the opening of the shells.
- Strength you can count on. Solid construction inner tines and tips are built of high grade steel, resisting abrasion and metal-on-metal wear.
Easy Maintenance
- Integral pivot points are equipped with dust seals to protect some of the most vital parts of the grapple.
- Easy access to the hydraulics makes maintenance quicker, so more time can be spent moving materials.
Options for Your Specific Applications
- Meet your specific needs with open, semi-open, or closed tine style options.
- Open tines are best suited for large materials or scrap pieces.
- Semi-open tines work best for applications where steel scrap or pipes and beams are being moved.
- Closed tines are optimal for smaller, shredded materials.
Product Specifications for GSM50 5-Tine, 1500-Liter Orange Peel Grapple
See how GSM50 5-Tine, 1500-Liter Orange Peel Grapple compares against frequently compared products.
Grapples
GSM50 5-Tine, 1500-Liter Orange Peel Grapple
Selected
- Capacity
- 2.00 yd³
- 1500 l
- Maximum Lift Capacity
- 44092 lb
- 20000 kg
- Shell Type Options
- Open, Semi-open, Closed
- Open, Semi-open, Closed
Grapples
GSM50 5-Tine, 1250-Liter Orange Peel Grapple
- Capacity
- 1.63 yd³
- 1250 l
- Maximum Lift Capacity
- 44092 lb
- 20000 kg
- Shell Type Options
- Open, Semi-open, Closed
- Open, Semi-open, Closed
Grapples
GSM50 5-Tine, 2000-Liter Orange Peel Grapple
- Capacity
- 2.50 yd³
- 2000 l
- Maximum Lift Capacity
- 44092 lb
- 20000 kg
- Shell Type Options
- Open, Semi-open, Closed
- Open, Semi-open, Closed
