Performance
| Cycle Time - Open | 1.9 s 1.9 s |
| Cycle Time - Close | 1.4 s 1.4 s |
| Crushing Force - Primary Cutter | 479 Sh Ton 4265 kN |
| Crushing Force - Tip | 153 Sh Ton 1360 kN |
| Crushing Force - Primary Tooth | 252 Sh Ton 2240 kN |

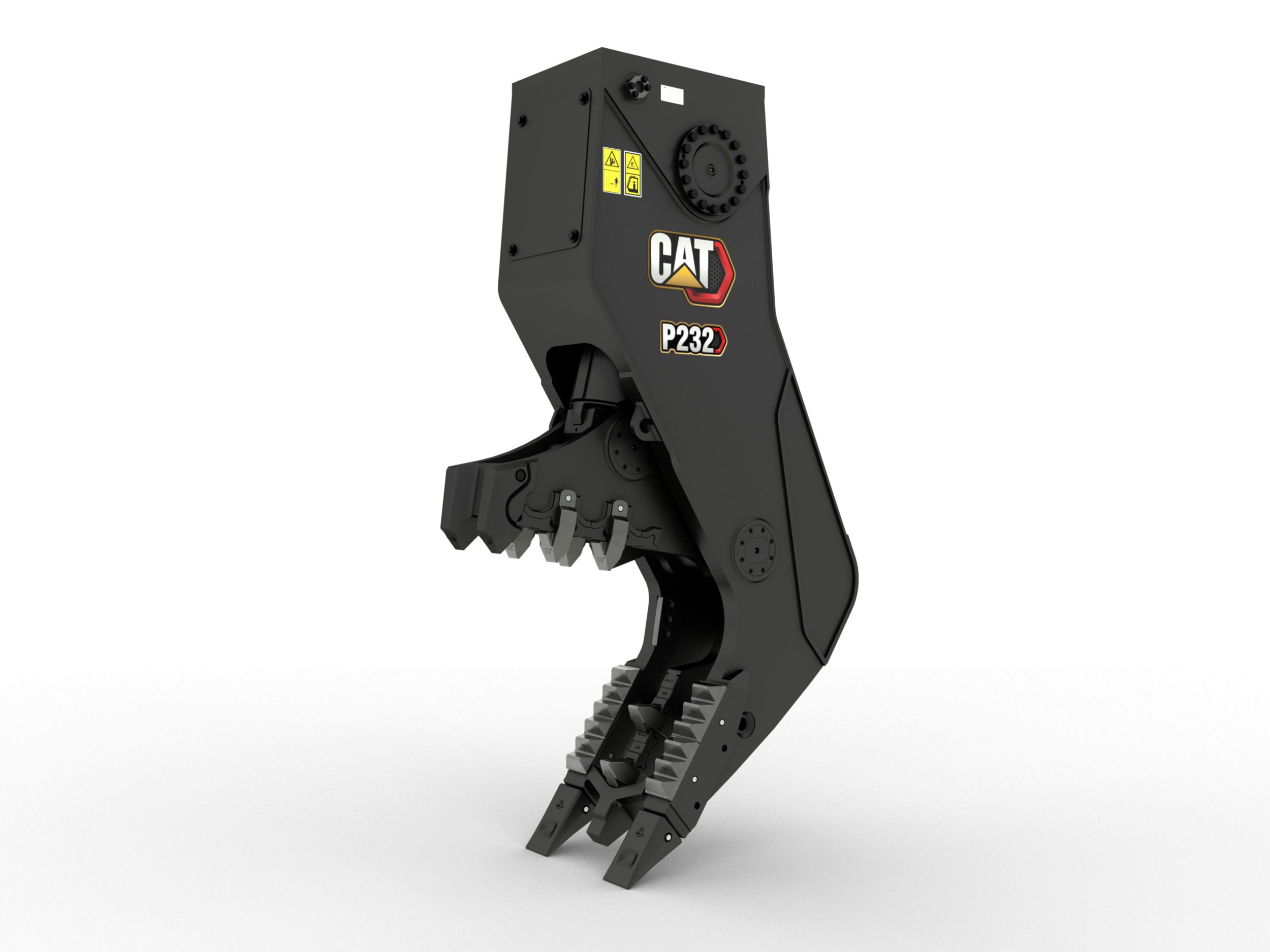

Secondary Pulverizer P232 Secondary Pulverizer
Request A Price Find DealerKey Specs
- Cycle Time - Open
- 1.9 s
- 1.9 s
- Cycle Time - Close
- 1.4 s
- 1.4 s
- Crushing Force - Primary Cutter
- 479 Sh Ton
- 4265 kN
Overview
Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.
Features At A Glance
- Cat pulverizer jaws are designed to cut through material quickly to enhance your machine’s overall operating efficiency and help reduce fuel consumption.
- The oversized cylinder on the non-rotating secondary pulverizer delivers a strong crushing force to reduce concrete and separate rebar.
- The Speed Booster valve actively balances speed and power, delivering fast cycle times and strong closing force to help increase productivity.
- Replaceable wear parts can be swapped quickly in the field and do not require surface welding to help reduce service time.
- Daily wear parts inspection and grease points are accessible from the ground with the pulverizer still mounted on the machine.
- Safely perform maintenance with easy access through one inspection panel.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
- Cat pulverizers are manufactured with high-strength, abrasion-resistant steel, especially in excessive wear areas.
- Reinforced cylinder rod hinges on the moveable jaw are designed to help boost durability and life of the pulverizer.
- The C-shaped cylinder guard provides extra protection against concrete demolition.
- Cat pulverizers have a versatile use across demolition applications, making them your choice for a wide variety of job sites.
- Never waste time looking for your attachments again. Cat asset tracking is available on all pulverizers.
- Track your entire fleet of attachments and machines from one source. Pulverizers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Pulverizers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
- Share pulverizers and other attachments of the same size class across multiple machines by adding a quick coupler.
- Significantly reduce the time it takes to switch attachments when using a quick coupler.
- Quick couplers add a new level of safety to your job site with the ability to switch attachments while the operator stays in the cab with built-in redundancies to keep your attachments secure in the event of a pressure loss.
- A variety of couplers are available to suit your specific needs:
- Cat Pin Grabber Couplers – dedicated pin system
- CW Dedicated Couplers – wedge-style, dedicated system
- S Type Couplers – wedge-style, dedicated system
- Hydraulic Connecting CW Couplers – hydraulic connecting version of the CW coupler with instant hydraulic capability upon connection
- Hydraulic Connecting S Type Couplers – hydraulic connecting version of the S type coupler with instant hydraulic capability upon connection
Product Specifications for P232 Secondary Pulverizer
Hydraulic Requirements
| Jaw Circuit - Max. Oil Pressure | 4786 psi 33000 kPa |
| Jaw Circuit - Max. Oil Flow | 95 gal/min 360 l/min |
Dimensions - Jaw
| Jaw Depth | 36.6 in 930 mm |
| Cutter Length | 7.9 in 200 mm |
| Jaw Opening - Maximum | 50.4 in 1280 mm |
| Jaw Width - Fixed | 26.4 in 670 mm |
| Jaw Width - Moveable | 15 in 380 mm |
Dimensions - Housing + Jaw
| Length | 117.9 in 2995 mm |
| Height | 69.1 in 1755 mm |
| Width | 26.4 in 670 mm |
Weight
| Weight - Housing, Jaw and Bracket | 7628 lb 3460 kg |
Recommended Carrier Weight
| Excavator Minimum | 32000 kg (70500 lb) 32000 kg (70500 lb) |
| Excavator Maximum | 50000 kg (110200 lb) 50000 kg (110200 lb) |
See how P232 Secondary Pulverizer compares against frequently compared products.
Pulverizers
P232 Secondary Pulverizer
Selected
- Cycle Time - Open
- 1.9 s
- 1.9 s
- Cycle Time - Close
- 1.4 s
- 1.4 s
- Crushing Force - Primary Cutter
- 479 Sh Ton
- 4265 kN
Pulverizers
P224 Secondary Pulverizer
- Cycle Time - Open
- 1.9 s
- 1.9 s
- Cycle Time - Close
- 1.3 s
- 1.3 s
- Crushing Force - Primary Cutter
- 409 Sh Ton
- 3640 kN
Pulverizers
P214 Secondary Pulverizer
- Cycle Time - Open
- 1.6 s
- 1.6 s
- Cycle Time - Close
- 1 s
- 1 s
- Crushing Force - Primary Cutter
- 264 Sh Ton
- 2345 kN
