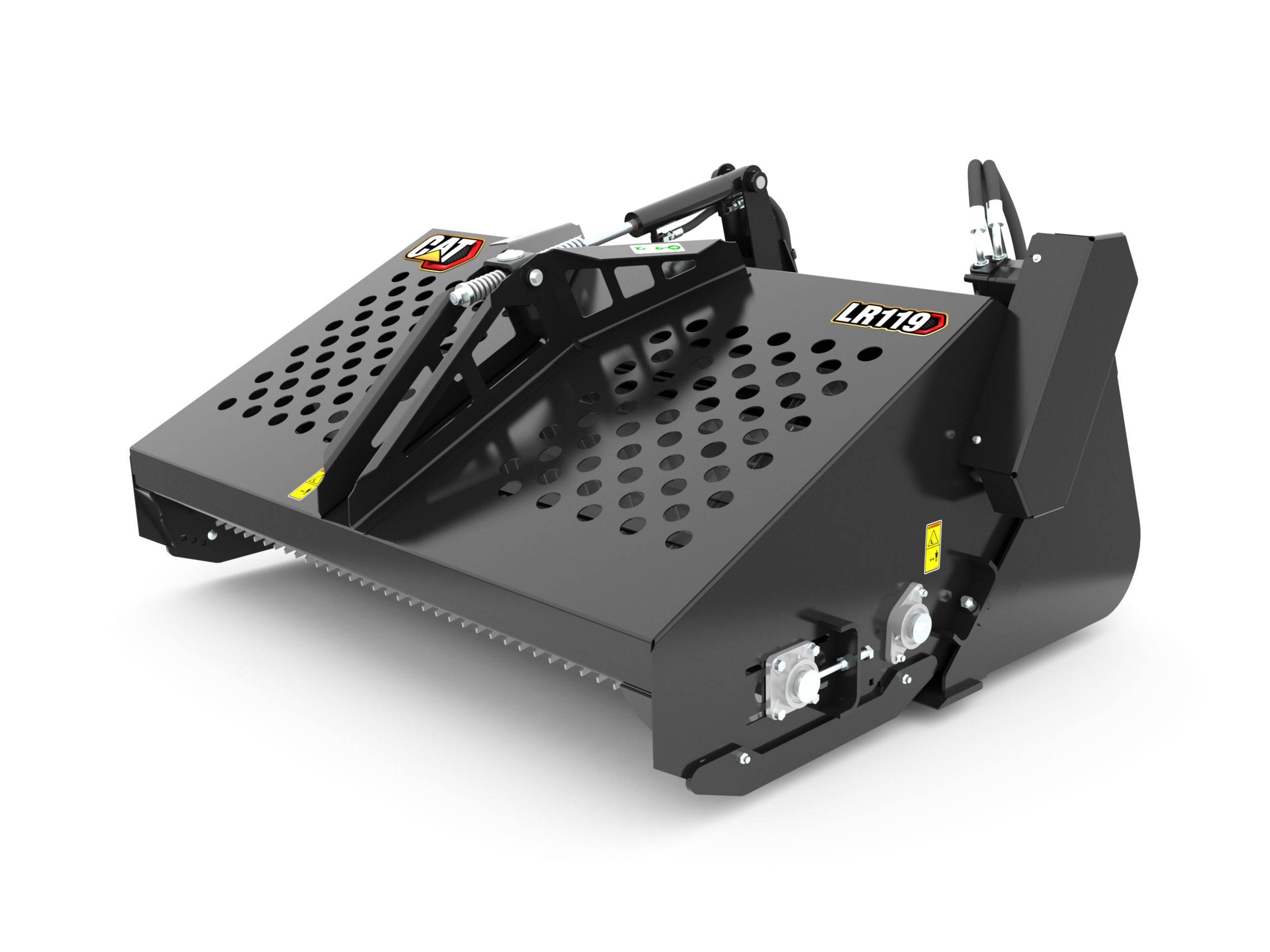

Landscape Rakes LR119

Request A Price Click for Price

Key Specs

Working Width
74.1 in
1883 mm
Bucket Capacity - Struck
0.4 yd³
0.34 m³
Weight
1439.6 lb
653 kg

Overview

For scarifying the soil and collecting debris for easy removal.

Product Specifications for LR119

Working Width 74.1 in 1883 mm
Bucket Capacity - Struck 0.4 yd³ 0.34 m³
Weight 1439.6 lb 653 kg
Raking Width 65.6 in 1665 mm
Overall Width 78.3 in 1990 mm
Height 38.9 in 989 mm
Length 63.8 in 1620 mm
Optimal Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Motor Displacement 19.2 in³/rev 315 cm³/rev
Driven Shaft Speed 165 rpm @ 80 L/min (21 gpm) 165 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines 444 444
Rock Size Range 19-152 mm (0.75-6 in) 19-152 mm (0.75-6 in)
Drive Method Chain Reduction Chain Reduction
Drive Chain #80H #80H
Conveyor Chain #2060H #2060H
Required Hydraulics Standard Flow Standard Flow
