| Straight Width | 60 in 1524 mm |
| Angled Width | 53 in 1346 mm |
| Interface Type | Skid Steer Coupler Skid Steer Coupler |
| V-Width - Scoop Mode | 54 in 1372 mm |
| V-Width - Plow Mode | 58.4 in 1483 mm |
| Weight | 639.3 lb 290 kg |
| Blade Height | 29 in 737 mm |
| Overall Height | 32.5 in 826 mm |
| Length | 52 in 1320 mm |
| Hydraulic Angling - Left/Right of Center | ±35 Degrees ±35 Degrees |
| Float | ±5 Degrees ±5 Degrees |
| Optimal Hydraulic Flow | 57-76 lpm (15-20 gpm) 57-76 lpm (15-20 gpm) |
| Optimal Hydraulic Pressure | 150-230 bar (2176-3340 psi) 150-230 bar (2176-3340 psi) |
| Trip Edge Quantity | 2 2 |
| Trip Edge Type | Steel Steel |
| Trip Edge Height | 4 in 101 mm |
| Trip Edge Pivot Height | 3.3 in 83 mm |
| Required Hydraulics | Standard Flow Standard Flow |

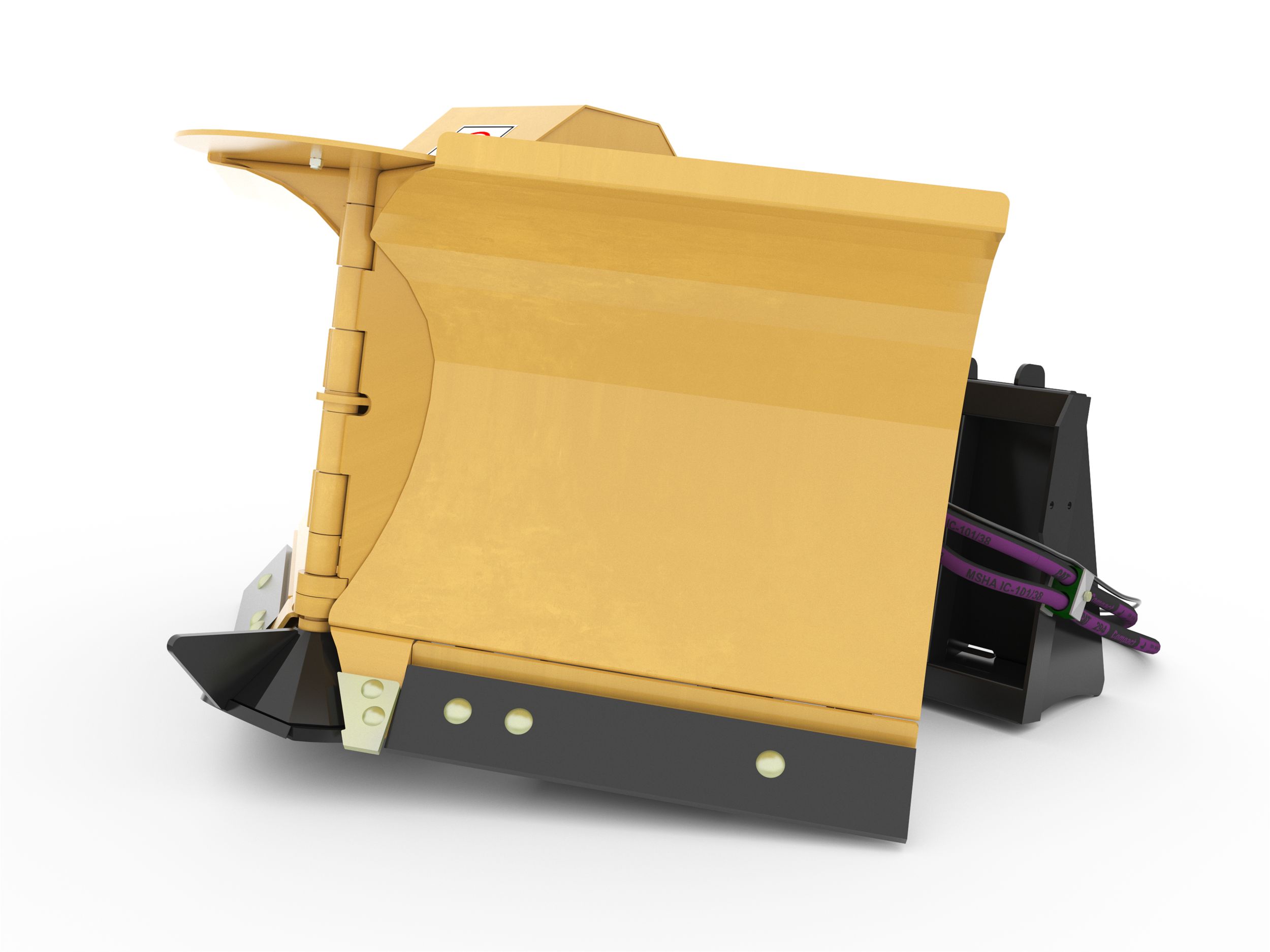

Multi V-Plows 1524 mm (60 in)
Request A Price Click for PriceKey Specs
- Straight Width
- 60 in
- 1524 mm
- Angled Width
- 53 in
- 1346 mm
- Interface Type
- Skid Steer Coupler
- Skid Steer Coupler
Overview
Two independently operating blades that can hydraulically angle into five different blade configurations to move snow with maximum efficiency and power.
Features At A Glance
Product Specifications for 1524 mm (60 in)
See how 1524 mm (60 in) compares against frequently compared products.
Snow Products
1524 mm (60 in)
Selected
- Straight Width
- 60 in
- 1524 mm
- Angled Width
- 53 in
- 1346 mm
- Interface Type
- Skid Steer Coupler
- Skid Steer Coupler
Snow Products
2134 mm (84 in)
- Straight Width
- 84 in
- 2134 mm
- Angled Width
- 73 in
- 1854 mm
- Interface Type
- Skid Steer Coupler
- Skid Steer Coupler
