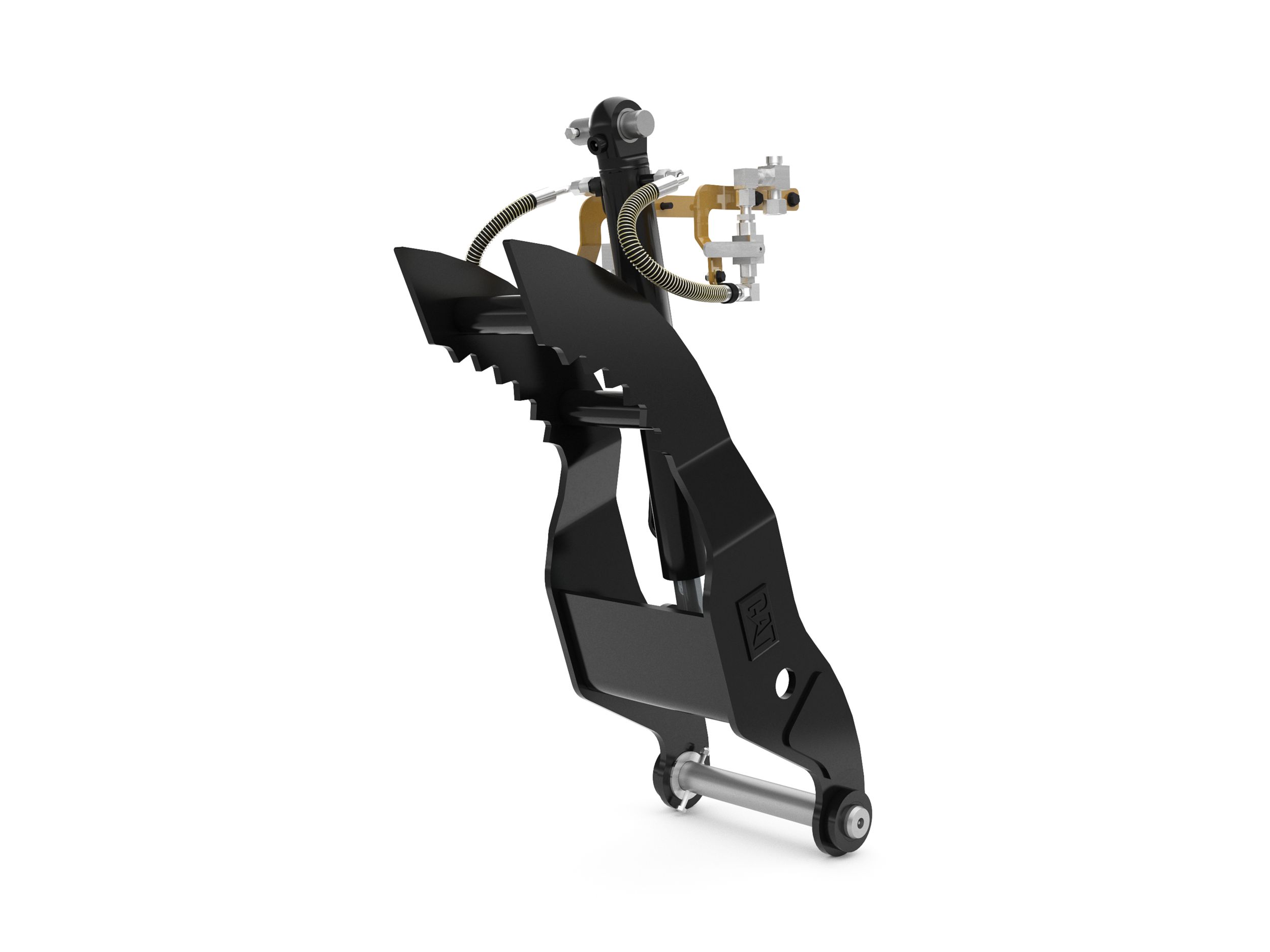

Utility Thumbs offer hydraulic functionality, with maximum interchangeability.
Features At A Glance
Application
Cat® Utility thumbs are utilitarian in design. This style is perfect for the excavator that could benefit from a thumb for handling smaller size and lighter weight material on an occasional basis. They are best suited for the machine that does not handle material all day long.
Versatile
Utility thumbs are universal in that they work well with most all buckets and couplers. They are well-suited for fleets with a mix of machines with varying bucket and coupler combinations.
Easy Installation
An optional bracket can be welded onto the stick allowing for an easy installation if machine was not already fitted with one from the factory.
Cylinder Snubber
A snubber in the thumb cylinder cushions the thumb as it retracts to it's stored position, thus reducing wear on components from unnecessary jolts and frees operator to focus on other tasks.
Shut-Off Valves/Quick Couplings
Allows for attachment of other work tools without removing thumb (ex. Hammer). The shut-off valve also functions as a hydraulic lock when not in use. Quick couplings allow the thumb to be disconnected and another tool used while the thumb is still attached to the stick.
Retractable Thumb
Retractable thumb allows normal bucket loading when not in use.
Cross-Tube Design
Maintains rigidity while offering optimized visibility for better site into bucket when lifting irregular loads.
Thumb Tine Spacing
Optimized tine and bucket tooth spacing allows thumb and bucket to mesh together without interference. Different width buckets can be used with the same thumb for maximum flexibility.
Product Specifications for 457 mm (18 in) 6 Teeth/2 Tines
Length
49.6 in1259 mm
Stored Height
18.6 in472 mm
Overall Width
18 in457 mm
Weight
324.1 lb147 kg
Rotation
132 degrees132 degrees
Number of Teeth/Tines
6/26/2
Tine Spacing
9.9 in252 mm
Tine Thickness
0.6 in16 mm
Tines Included
YesYes
Machine Class
10 Ton Mini Excavators10 Ton Mini Excavators
Interface Type
Pin OnPin On
