| Overall Width | 106.3 in 2700 mm |
| Sweeping Width | 98.4 in 2500 mm |

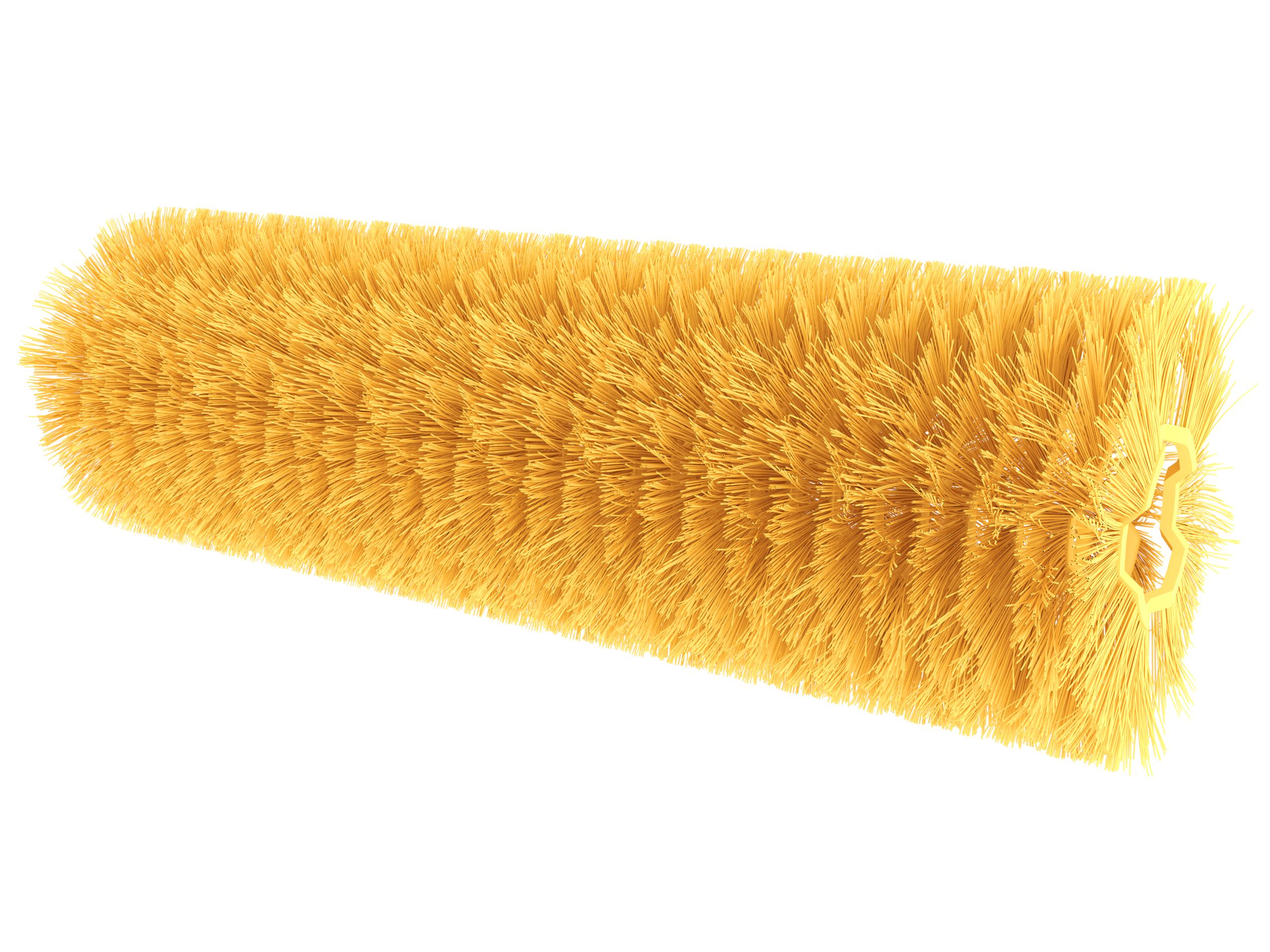

| Brush Diameter | 27.6 in 700 mm |
| Required Hydraulics | 3rd Valve 3rd Valve |
| Height | 51.2 in 1300 mm |
| Length | 72 in 1830 mm |
| Weight | 1433 lb 650 kg |
| Required Hydraulic Flow | 40-150 L/min (11-40 gpm) 40-150 L/min (11-40 gpm) |
| Optimal Hydraulic Pressure | 150-260 bar (2176-3771 psi) 150-260 bar (2176-3771 psi) |
| Motor Displacement | 11.9 in³/rev 195 cm³/rev |
| Brush Speed at Maximum Flow | 385 RPM 385 RPM |

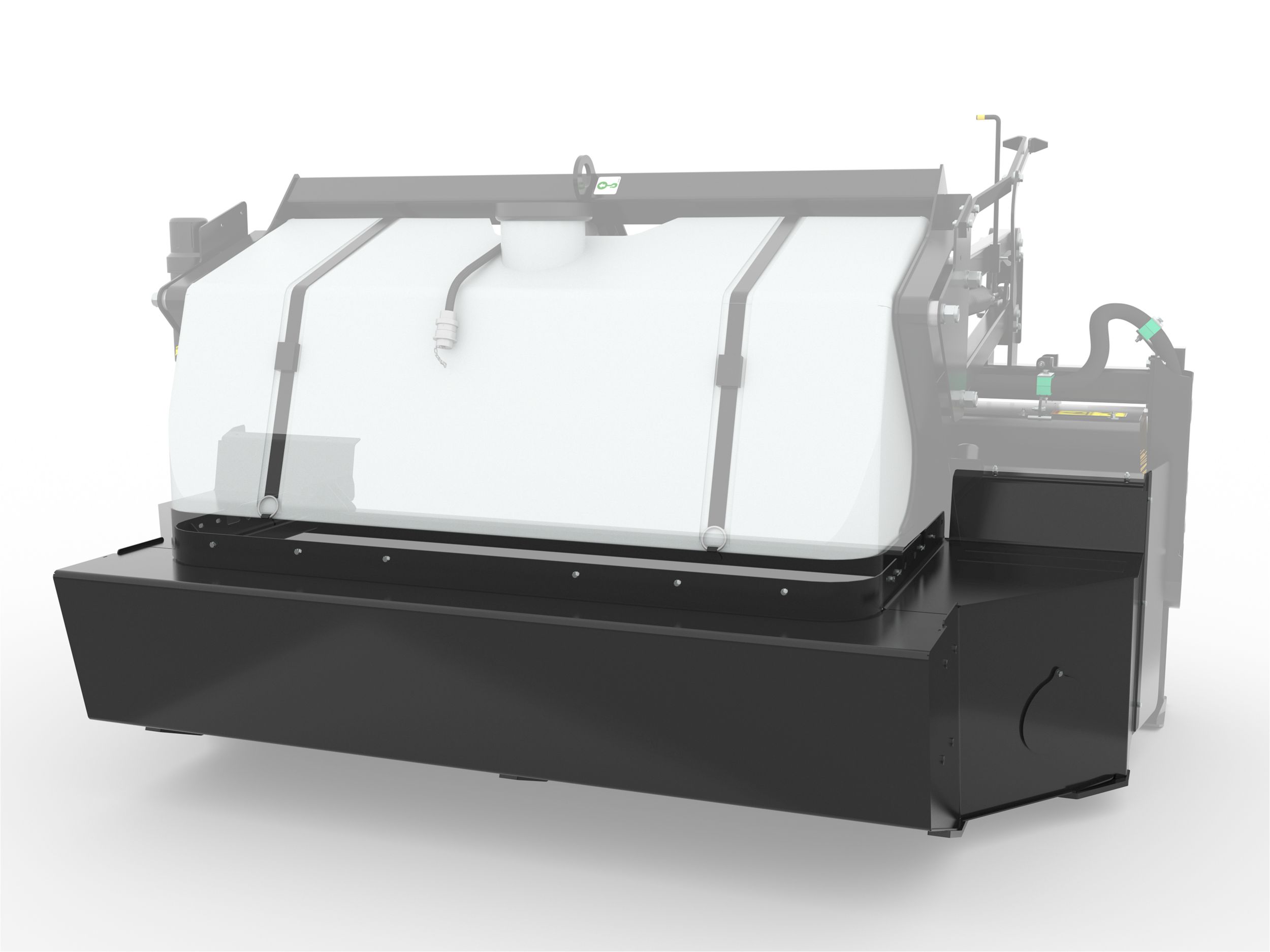

| Hopper Capacity | 0.9 yd³ 0.66 m³ |
| Voltage | 12V 12V |
| Drive Method | Direct Drive Direct Drive |
| Interface Type | Requires Hook Group Requires Hook Group |
Pickup Brooms BP25
Request A Price Click for PriceKey Specs
- Overall Width
- 106.3 in
- 2700 mm
- Sweeping Width
- 98.4 in
- 2500 mm
- Brush Diameter
- 27.6 in
- 700 mm
Features At A Glance
Product Specifications for BP25
See how BP25 compares against frequently compared products.
Brooms
BP25
Selected
- Overall Width
- 106.3 in
- 2700 mm
- Sweeping Width
- 98.4 in
- 2500 mm
- Brush Diameter
- 27.6 in
- 700 mm
Brooms
BP25
- Overall Width
- 78.3 in
- 2700 mm
- Sweeping Width
- 60 in
- 2500 mm
- Brush Diameter
- 26 in
- 700 mm
Brooms
BP118C
- Overall Width
- 90.4 in
- 2295 mm
- Sweeping Width
- 72 in
- 1829 mm
- Brush Diameter
- 26 in
- 660 mm
