Operating Specifications
Standard Compaction Width | 59 in 1500 mm |
Maximum Compaction Width | 65 in 1670 mm |
Travel Speed - Maximum | 7.5 mile/h 12 km/h |
Static Linear Load | 151 lb/in 26.9 kg/cm |
Key Specs

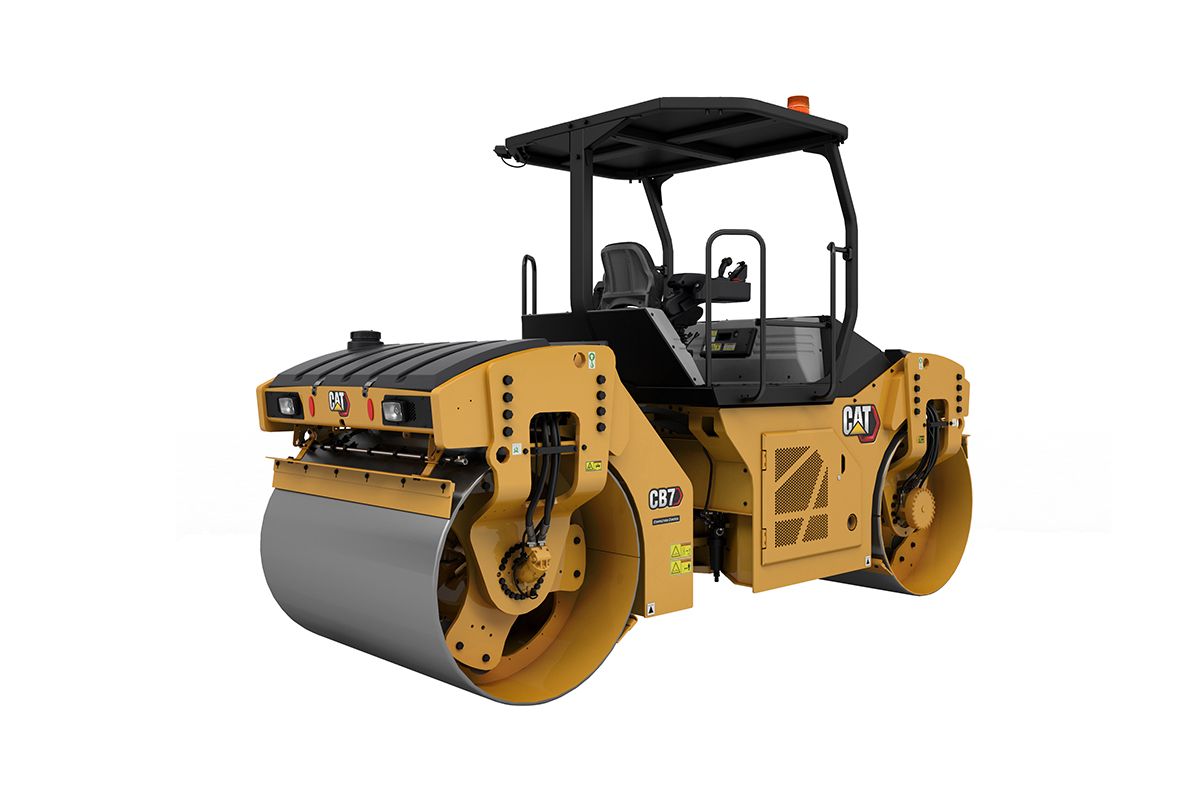

The CB7 is a 7 ton roller with 1500 mm (59") tandem vibratory drums. It excels on a variety of asphalt mix designs as well as other granular materials.
Standard Compaction Width | 59 in 1500 mm |
Maximum Compaction Width | 65 in 1670 mm |
Travel Speed - Maximum | 7.5 mile/h 12 km/h |
Static Linear Load | 151 lb/in 26.9 kg/cm |
Gross Power | 111.5 hp 82 kW |
Engine Model | Cat C4.4 with ACERT Technology Cat C4.4 with ACERT Technology |
Fuel Tank Capacity | 55 gal (US) 208 l |
Water Spray Tank Capacity | 185 gal (US) 700 l |
Drum Width | 59 in 1500 mm |
Vibration Selection | Independent per drum, front only, rear only, both Independent per drum, front only, rear only, both |
Nominal Amplitude - High | 0.026 in 0.64 mm |
Nominal Amplitude - Low | 0.01 in 0.25 mm |
Centrifugal Force per Drum - Maximum | 17288 lb 76.9 kN |
Centrifugal Force per Drum - Minimum | 6789 lb 30.2 kN |
Overall Length | 179 in 4565 mm |
Wheel Base | 130 in 3300 mm |
Height - With ROPS/FOPS | 117 in 2980 mm |
Overall Width | 65 in 1670 mm |
Drum Diameter | 44 in 1108 mm |
Operating Weight | 17615 lb 7990 kg |
Maximum Operating Weight with ROPS | 19224 lb 8720 kg |
Maximum Operating Weight with Cab | 19709 lb 8940 kg |
Standard Operating Weight with ROPS | 17615 lb 7990 kg |
Standard Operating Weight with Cab | 18056 lb 8190 kg |
Use the comparison tool to compare detailed specs of Cat and competitor models.
Compare All ModelsCaterpillar product brochures and other informational documents are available for your growing business.
CB7 Tandem Vibratory Roller
CB7 Tandem Vibratory Roller
Simplified 8 Button Control Panel
Pass Count and Temperature Mapping
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.
VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.
VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
