Weights
| Operating Weight | 18102 lb 8109 kg |
Compact Wheel Loaders 910
Request A Price Find DealerKey Specs
- Maximum Gross Power
- 110 hp
- 82 kW
- Operating Weight
- 18102 lb
- 8109 kg
- Bucket Capacities
- 1.3-3.5 m3 (1.7-4.6 yd3)
- 1.3-3.5 m3 (1.7-4.6 yd3)
Overview
Configured for Success
The Cat® 910 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.
Benefits
Right Size Right Application
10% Power Boost
Big Options Compact Loader
Features At A Glance
- The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Advanced Electro Hydraulic System provides the optimum balance of power and efficiency while giving you the control you need for your precise jobsite requirements.
- Engine Demand Fan is hydraulically driven to provide machine cooling only when needed, improving fuel efficiency and reducing greenhouse gas emissions.
- Hydrostatic Transmission is an efficient way to transfer engine power to the wheels at low speeds versus a torque converter.
- Performance Series Buckets have rounded side boards, a longer floor and open angle to carry more and load quicker so each pass is the most efficient.
- Rimpull Control is a quick way to adjust the torque to the tires for less slipping and tire wear.
- Match the wheel loader to the job using power modes including Eco Mode that reduces engine speed and hydraulic power for applications not requiring full hydraulic power - helping you to reduce fuel consumption and greenhouse gas emissions.
- Programmable sensors and kickouts help you work quicker and more comfortable reducing wear on machine and the attachment
Product Specifications for 910
Buckets
| Bucket Capacities | 1.3-3.5 m3 (1.7-4.6 yd3) 1.3-3.5 m3 (1.7-4.6 yd3) |
| Bucket Capacities - General Purpose | 1.3-1.9 m³ (1.7-2.5 yd³) 1.3-1.9 m³ (1.7-2.5 yd³) |
| Bucket Capacities - Light Material | 2.5-3.5 m³ (3.3-4.6 yd³) 2.5-3.5 m³ (3.3-4.6 yd³) |
Engine
| Maximum Gross Power | 110 hp 82 kW |
| Rated Net Power - Rated Engine Speed | 2200 r/min 2200 r/min |
| Maximum Gross Power - Rated Engine Speed | 1800 r/min 1800 r/min |
| Rated Net Power - SAE J1349 | 99 hp 74 kW |
| Maximum Gross Power - ISO 14396 (metric) | 112 hp 112 hp |
| Rated Net Power - ISO 9249 | 98 hp 73 kW |
| Maximum Gross Torque - SAE J1995 | 335 ft·lbf 454 N·m |
| Maximum Gross Torque - ISO 14396 | 332 ft·lbf 450 N·m |
| Maximum Net Torque - SAE J1349 | 329 ft·lbf 446 N·m |
| Maximum Net Torque - ISO 9249 | 327 ft·lbf 443 N·m |
| Displacement | 220 in³ 3.6 l |
| Bore | 3.85 in 98 mm |
| Stroke | 4.72 in 120 mm |
| Engine Model | Cat C3.6 Cat C3.6 |
| Emissions | Engine meets Tier 4 Final/Stage V emission standards. Engine meets Tier 4 Final/Stage V emission standards. |
| Note | Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Maximum Gross Power - ISO 14396 | 110 hp 82 kW |
Sustainability
| Recyclability | 95% 95% |
Cab
| ROPS | ISO 3471:2008 ISO 3471:2008 |
| FOPS | ISO 3449:2005 ISO 3449:2005 |
| Note (2) | The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A). The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A). |
| Note (3) | The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A). The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A). |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Note (4) | *The measurements were conducted with the cab doors and windows closed. *The measurements were conducted with the cab doors and windows closed. |
Service Refill Capacities
| Cooling System | 5.7 gal (US) 21.5 l |
| Fuel Tank | 43.6 gal (US) 165 l |
| Hydraulic System - Including Tank | 25.9 gal (US) 98 l |
| Hydraulic Tank | 14.5 gal (US) 55 l |
| Transmission | 0.8 gal (US) 3.2 l |
| Note | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. |
| Axles - Front Center Differential | 2 gal (US) 7.5 l |
| Axles - Rear Center Differential | 2 gal (US) 7.5 l |
| Engine Crankcase | 2.6 gal (US) 10 l |
| Diesel Exhaust Fluid (DEF) Tank | 4.8 gal (US) 18 l |
Steering
| Maximum Working Pressure - Steering Pump | 2683 psi 18500 kPa |
| Steering Articulation Angle - Each Direction | 40 ° 40 ° |
| Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed | 3.2 s 3.2 s |
| Maximum Flow - Steering Pump | 17 gal/min 66 l/min |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.75 turns 3.75 turns |
Loader Hydraulic System
| Hydraulic Cycle Time - Dump, at Maximum Reach | 1.4 s 1.4 s |
| Hydraulic Cycle Time - Total Cycle Time | 12.5 s 12.5 s |
| Maximum Working Pressure - Implement Pump | 3408 psi 23500 kPa |
| Relief Pressure - Tilt Cylinder | 4931 psi 34000 kPa |
| Hydraulic Cycle Time - Rackback | 2.2 s 2.2 s |
| Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure | 3046 psi 21000 kPa |
| Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.2 s 5.2 s |
| Maximum Flow - Implement Pump | 32 gal/min 122 l/min |
| Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure | 3046 psi 21000 kPa |
| Maximum Flow - Implement Pump - 4th Function, Maximum Flow | 24 gal/min 90 l/min |
| Maximum Flow - Implement Pump - 3rd Function, Maximum Flow | 24 gal/min 90 l/min |
| Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 3.7 s 3.7 s |
Transmission
| Note | *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1. *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1. |
| Forward and Reverse - Speed Range 3 | 25 mile/h 40 km/h |
| Forward and Reverse - Speed Range 2* | 12.5 mile/h 20 km/h |
| Forward and Reverse - Speed Range 1* | 6.3 mile/h 10 km/h |
Tires
| Note (2) | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. |
| Standard Size | 15.5 R25 L2 XTLA 15.5 R25 L2 XTLA |
| Other Choices Include | 17.5 R25 L2 XTLA; 15.5 R25 L3 XHA2; 17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow 17.5 R25 L2 XTLA; 15.5 R25 L3 XHA2; 17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow |
| Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
| Note (1) | Other tire choices are available. Contact your Cat dealer for details. Other tire choices are available. Contact your Cat dealer for details. |
Axles
| Front | Fixed; Locking differential (standard) Fixed; Locking differential (standard) |
| Rear | Oscillating ±11 degrees; Locking differential (Standard) Oscillating ±11 degrees; Locking differential (Standard) |
See how 910 compares against frequently compared products.
Wheel Loaders
910
Selected
- Maximum Gross Power
- 110 hp
- 82 kW
- Operating Weight
- 18102 lb
- 8109 kg
- Bucket Capacities
- 1.3-3.5 m3 (1.7-4.6 yd3)
- 1.3-3.5 m3 (1.7-4.6 yd3)
Wheel Loaders
908
- Maximum Gross Power
- 75.1 hp
- 60 kW
- Operating Weight
- 14617 lb
- 6632 kg
- Bucket Capacities
- 0.75-1.55 m³ (1.0-2 yd³)
- 0.75-1.55 m³ (1.0-2 yd³)
Wheel Loaders
914
- Maximum Gross Power
- 110 hp
- 82 kW
- Operating Weight
- 19103 lb
- 8668 kg
- Bucket Capacities
- 1.3-3.5 m3 (1.7-4.6 yd3)
- 1.3-3.5 m3 (1.7-4.6 yd3)
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
- 910 Product Brochure Downloadable PDF Opens in a New Tab file_download
- 910, 914, 920 Product Brochure Downloadable PDF Opens in a New Tab file_download
- Attachments for Compact Wheel Loaders Brochure Downloadable PDF Opens in a New Tab file_download
- Retrofit Options and Accessories for Compact Wheel Loaders Downloadable PDF Opens in a New Tab file_download
Media Gallery
Photos
Videos
360 View
Studio Shot

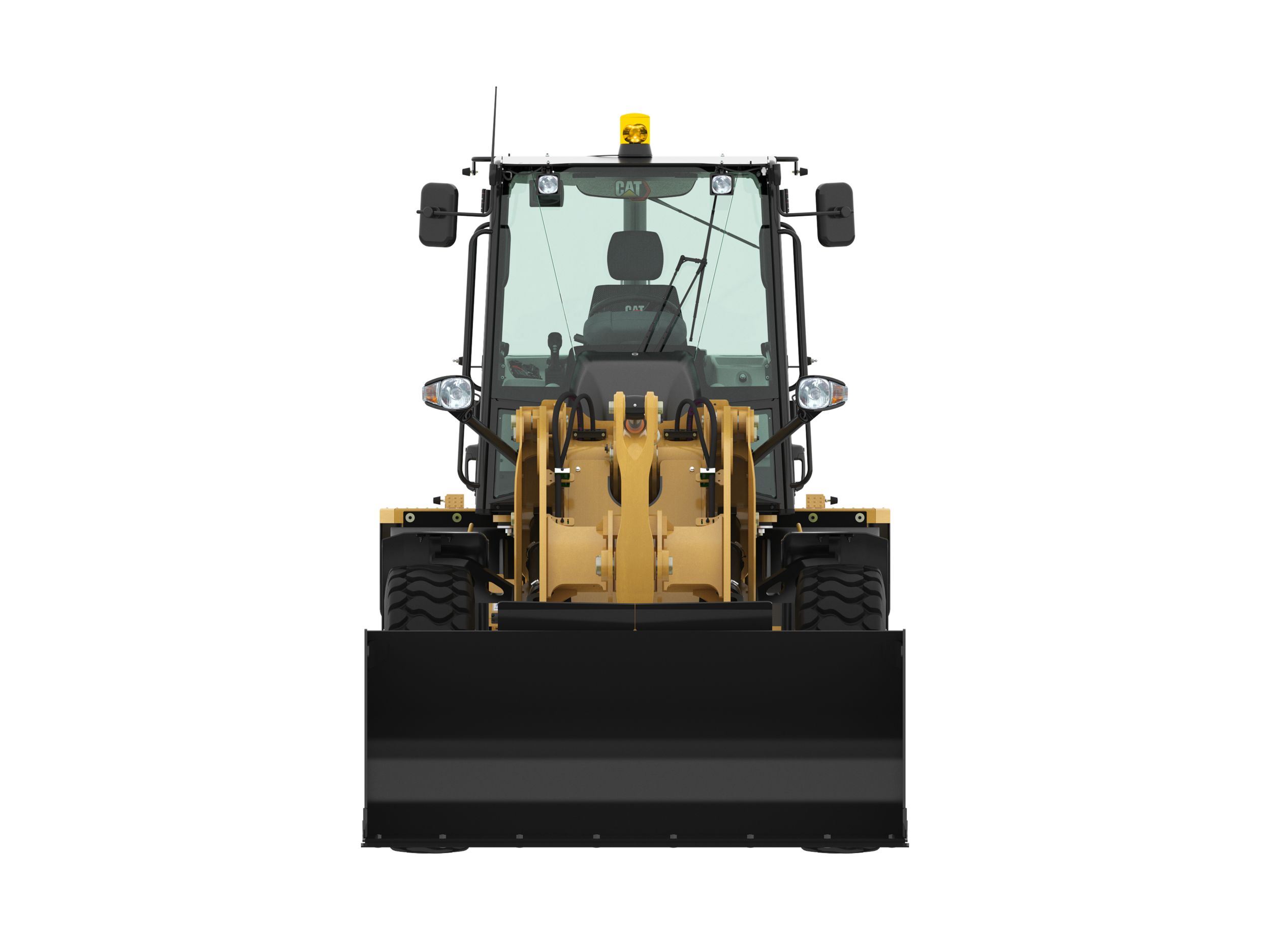

Front View

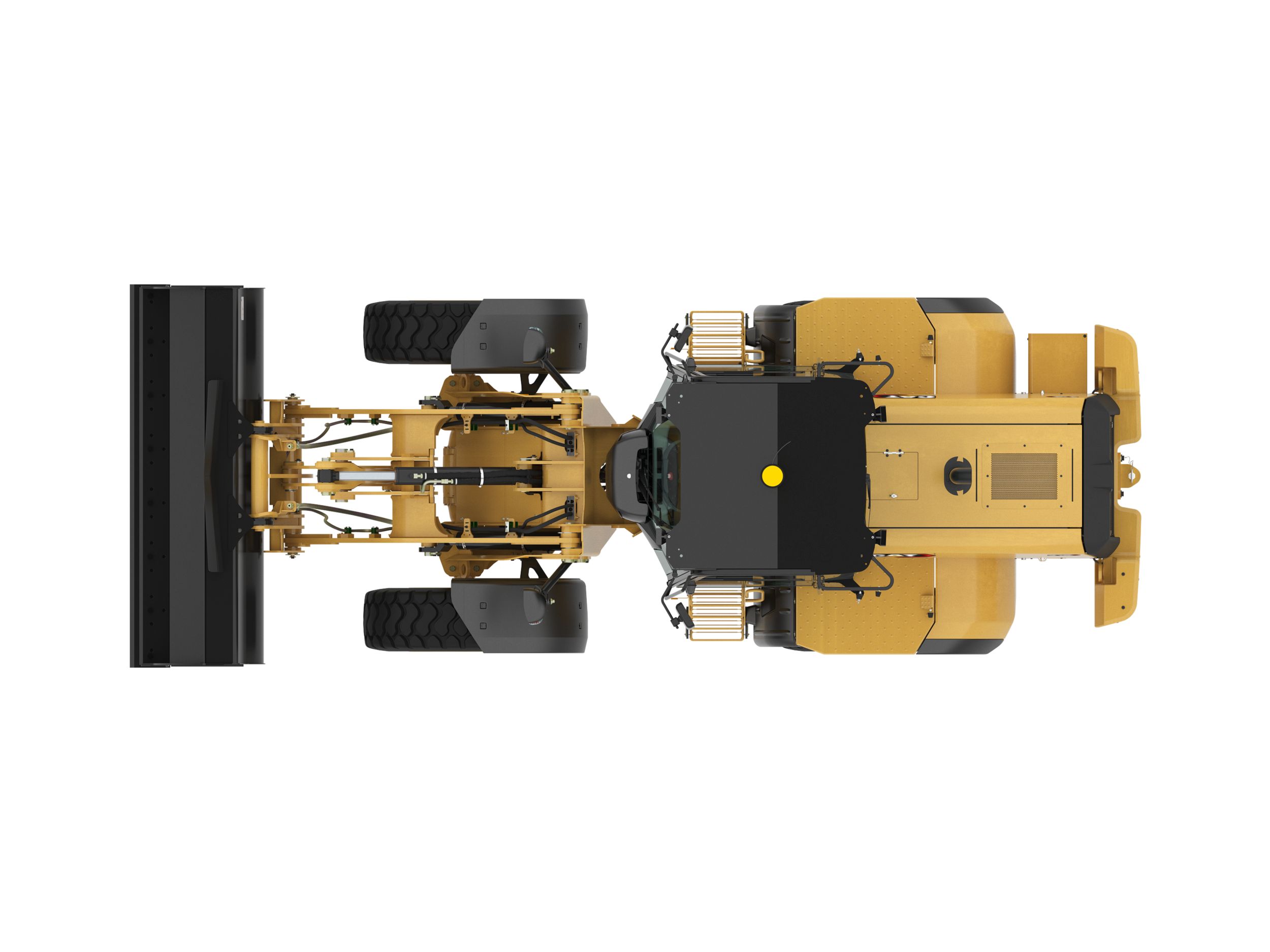

Top View

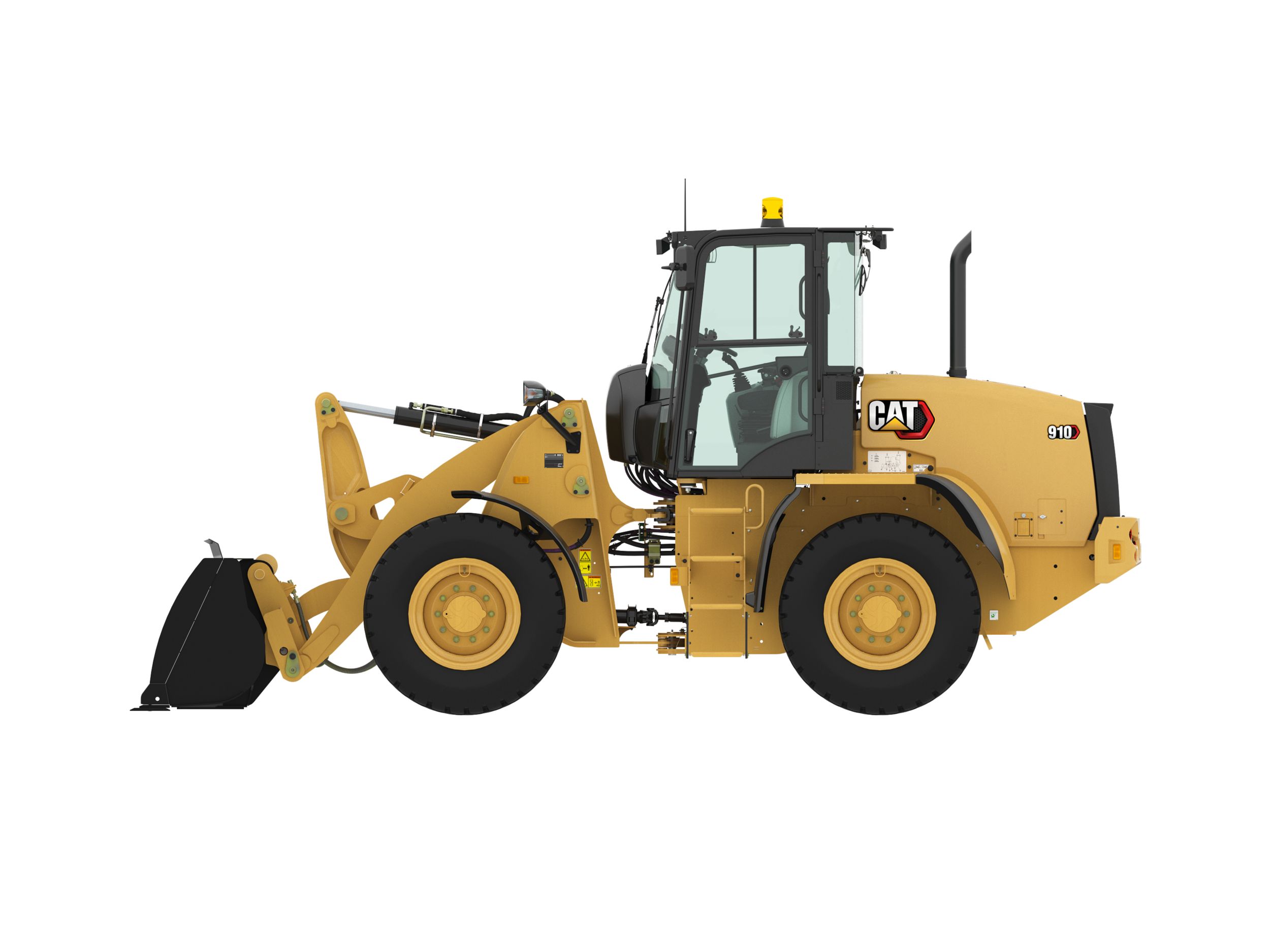

Left View

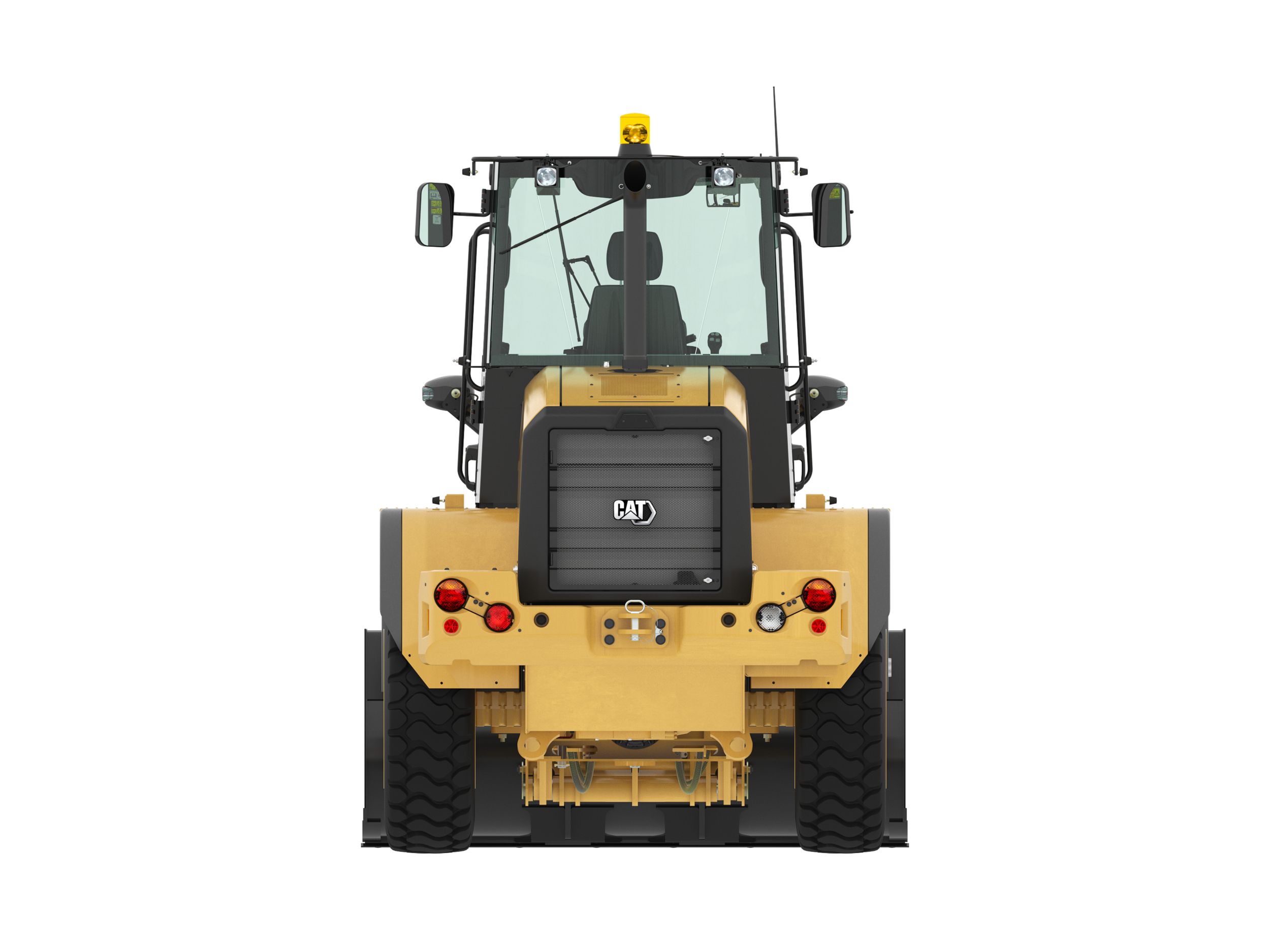

Rear View

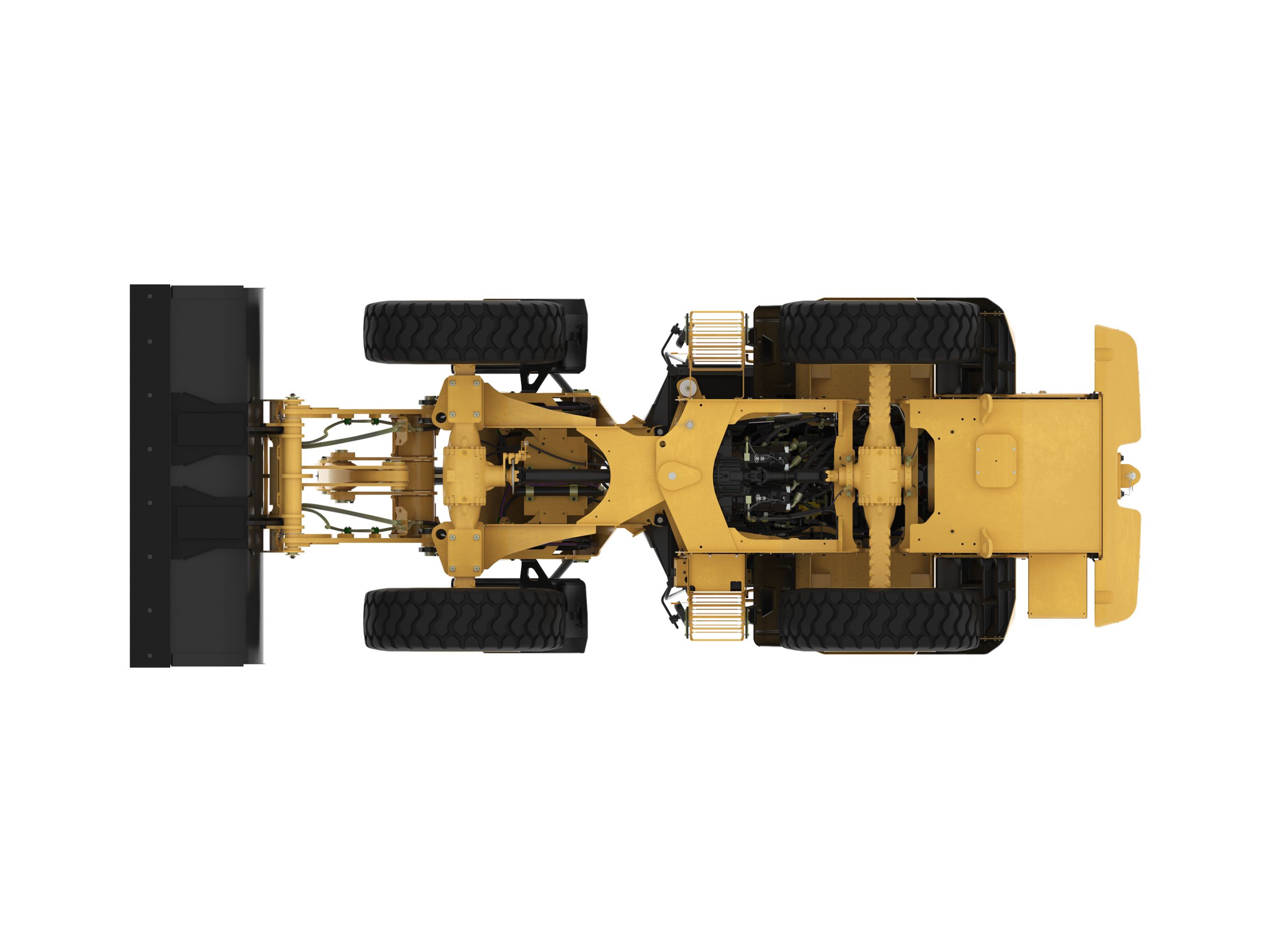

Bottom View

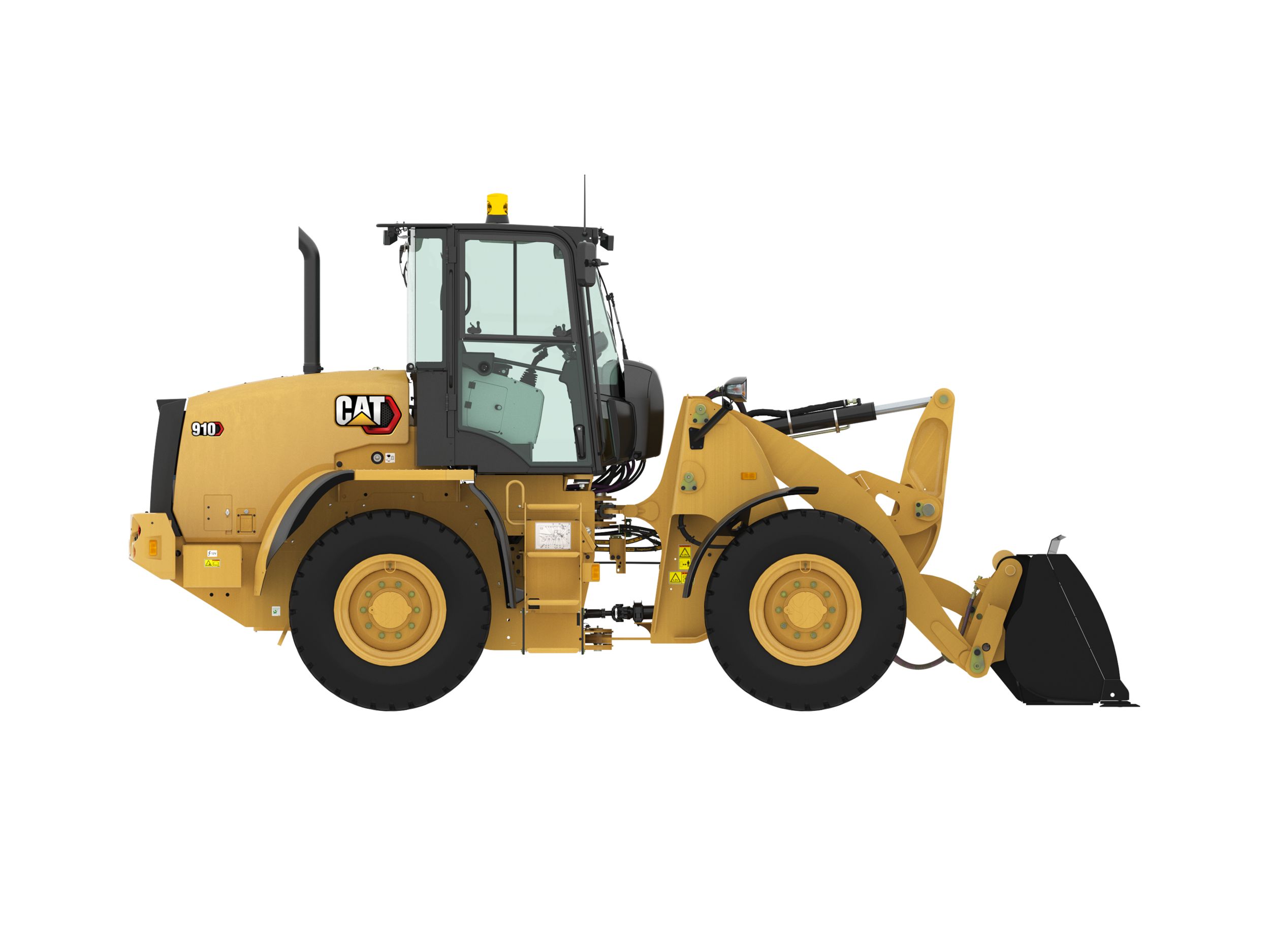

Right View
