Battery Energy Storage Systems XES120 (50 Hz)
Request A Price Find DealerKey Specs
- Nominal Power
- 72 kW (90 kVA)
- 72 kW (90 kVA)
- Energy Storage
- 127.9 kWh
- 127.9 kWh
- Enclosure Rating
- IP55
- IP55
Overview

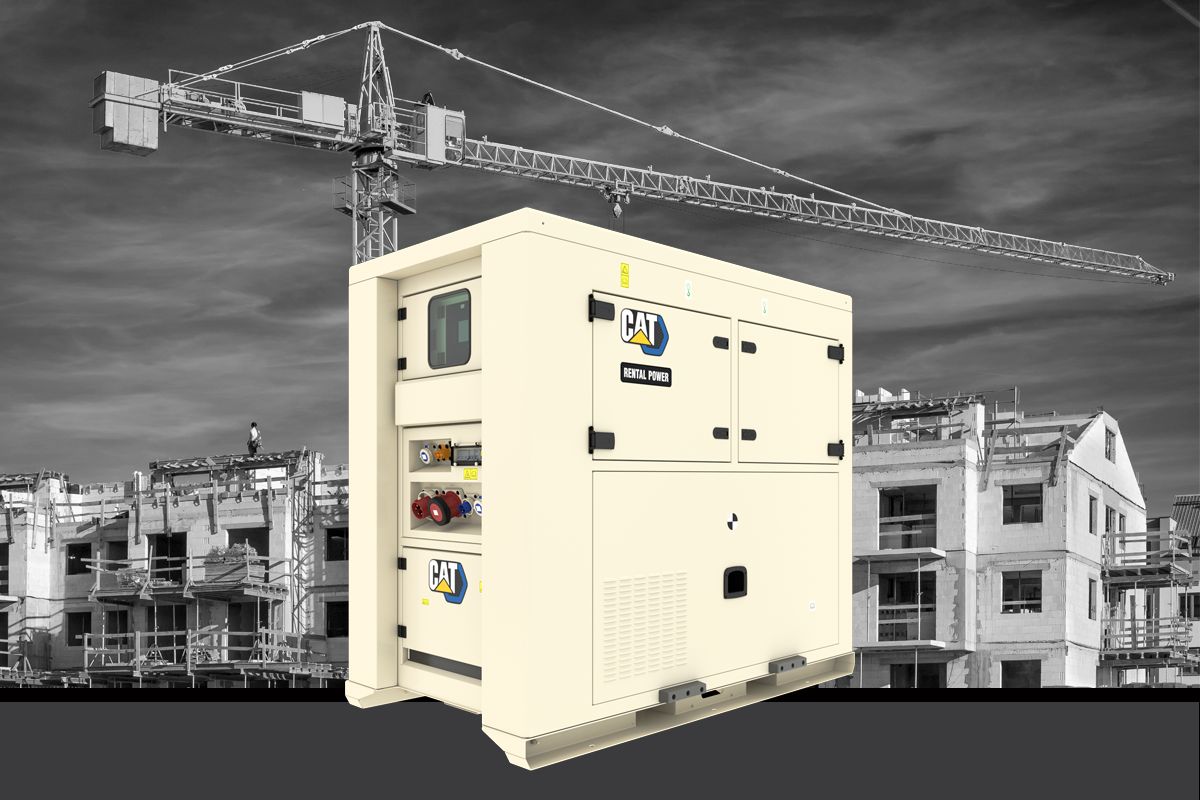

XES120 (50 Hz)
Cat® Compact ESS, is a mobile battery energy storage system that supplements traditional mobile power solutions to reduce noise, enable deployment of renewable energy sources, and, under certain conditions, allow customers to operate their generator more efficiently. Designed for rapid plug-and-play installation and integration, the Cat Compact ESS module can be used with any combination of diesel, natural gas or renewable energy sources such as solar or wind.
Benefits
Easy integration with standard generating set To provide hybrid solution
Energy control module optimizes genset operation which can lead to reduced fuel consumption and lower associated greenhouse gas emissions
Automatic switching between generating set power and stored energy
Avoids low load operation of generating sets
Features At A Glance
- Color graphical display (7 in)
- Simple, user-friendly interface navigation
- Home screen displaying status and real time power distribution
- Generator set, battery, load and solar monitoring
- System information and set-up
- Connectors and busbars for rapid connection to supply and load
- Intuitive set-up using on-board controller
- Automatic switching between generating set power and stored energy
- Rugged galvanized steel baseframe
- Powder coated painted panels
- Lifting eye(s) and fork pockets for easy maneuverability
- Locks on all accLocks on all access doors
- Clear access for service and maintenance
- Exterior emergency stop (E-stop) button
- Includes telematics hardware for remote monitoroing across cellular network
- Two-way communication for remote control and equipment monitoring
- Customer-defined, equipment-based, real-time status updates and alerts
- Flexible and customer-configurable user interface
- Fleet management
- Requires data subscription
Product Specifications for XES120 (50 Hz)
Environmental Parameters
| Enclosure Rating | IP55 IP55 |
| Operating Temperature | 0° to 50°C (32°to 122°F) 0° to 50°C (32°to 122°F) |
| Storage Temperature | -10° to 50°C (14°to 122°F) -10° to 50°C (14°to 122°F) |
XES120 (50 Hz) Standard Equipment
XES120 (50 Hz) Energy Storage System
- 120 kWh Li Ion batteries
- 72 kW (90 kVA) 400/230 V 50 Hz Inverter
- Energy Management System with Color HMI Touchscreen
- Busbar connectors
- CEE-Form Receptacles
- Maintence charge input
- Remote monitoring hardware
- Variable speed forced air cooling
- Weather-proof enclosure
- Lifting Eye
- Fork Pockets
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
See how XES120 (50 Hz) compares against frequently compared products.
Electric Power
XES120 (50 Hz)
Selected
- Nominal Power
- 72 kW (90 kVA)
- 72 kW (90 kVA)
- Energy Storage
- 127.9 kWh
- 127.9 kWh
- Enclosure Rating
- IP55
- IP55
Electric Power
XES60 (60 Hz)
- Nominal Power
- 24 kW (30 kVA)
- 24 kW (30 kVA)
- Energy Storage
- 56.8 kWh
- 56.8 kWh
- Enclosure Rating
- IP55
- IP55
Electric Power
XES120 (60 Hz)
- Nominal Power
- 48 kW (60 kVA)
- 48 kW (60 kVA)
- Energy Storage
- 127.9 kWh
- 127.9 kWh
- Enclosure Rating
- IP55
- IP55
