DE218AE0 (50 Hz) | 200.0 kVA Diesel Generator

Diesel Generator Sets C7.1 | DE218AE0 (50 Hz)

Request A Price Find Dealer

Key Specs

Maximum Rating
200 kVA
200 kVA
Minimum Rating
180 kVA
180 kVA
Emissions/Fuel Strategy
Non-Certified Emissions
Non-Certified Emissions

Overview

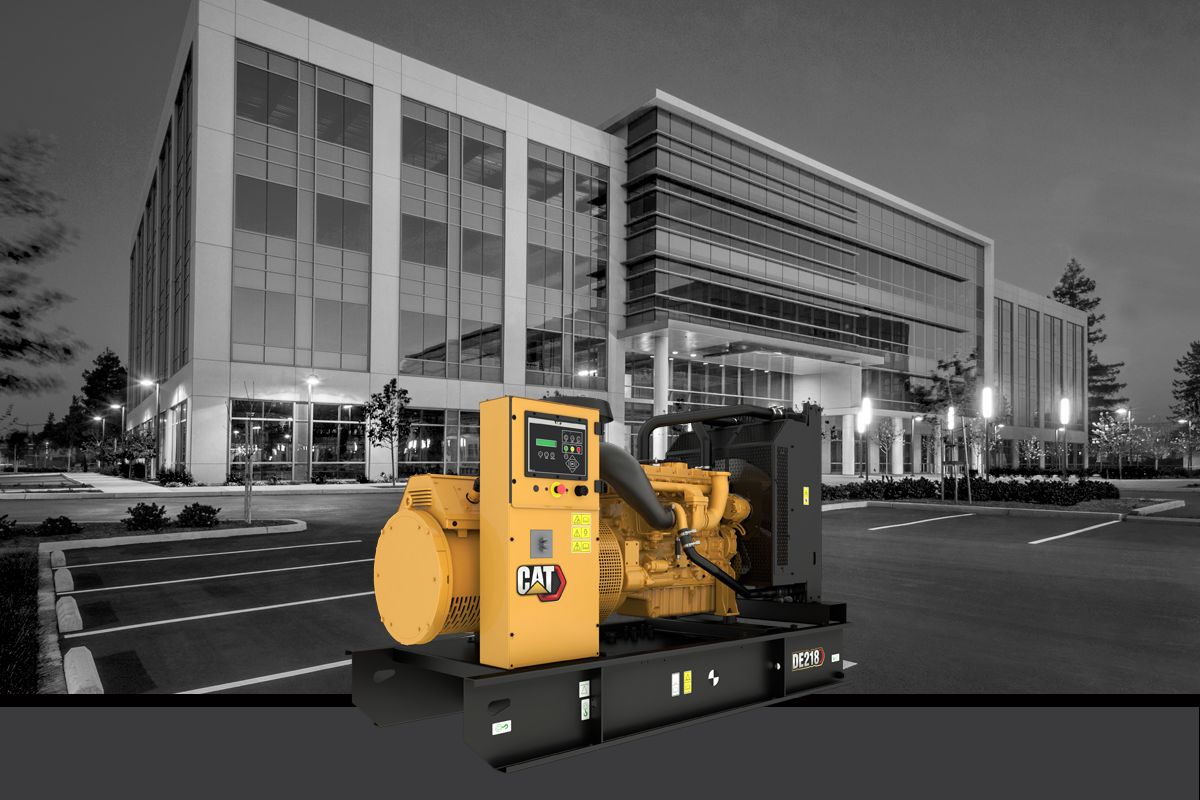

DE218AE0 | 200 kVA Diesel Generator Set

Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.

Product Specifications for C7.1 | DE218AE0 (50 Hz)

Maximum Rating 200 kVA 200 kVA
Minimum Rating 180 kVA 180 kVA
Emissions/Fuel Strategy Non-Certified Emissions Non-Certified Emissions
Voltage 220 to 380 Volts 220 to 380 Volts
Frequency 50 Hz 50 Hz
Speed 1500 rpm 1500 rpm
Duty Cycle Standby, Prime Standby, Prime
Engine Model Cat® C7.1 Cat® C7.1
Bore 4.1 in 105 mm
Stroke 5.3 in 135 mm
Displacement 427.8 in³ 7 l
Compression Ratio 16.0:1 16.0:1
Aspiration Turbocharged Turbocharged
Fuel System Direct Injection Direct Injection
Governor Type Mechanical Mechanical
Length - Maximum 98.8 in 2510 mm
Width - Maximum 1010 mm 39.8 in
Height - Maximum 64.6 in 1640 mm
Dry Weight - Genset (maximum) 3446 lb 1563 kg

C7.1 | DE218AE0 (50 Hz) Standard Equipment

Engine

  • C7.1, Inline 4 Cylinder, 4 Stroke Diesel

Control panel

  • EMCP 4.1 Control panel

Governing system

  • Mechanical governor

Alternator

  • GTA Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

Enclosure

  • Modular easy access acoustic enclosure

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow
