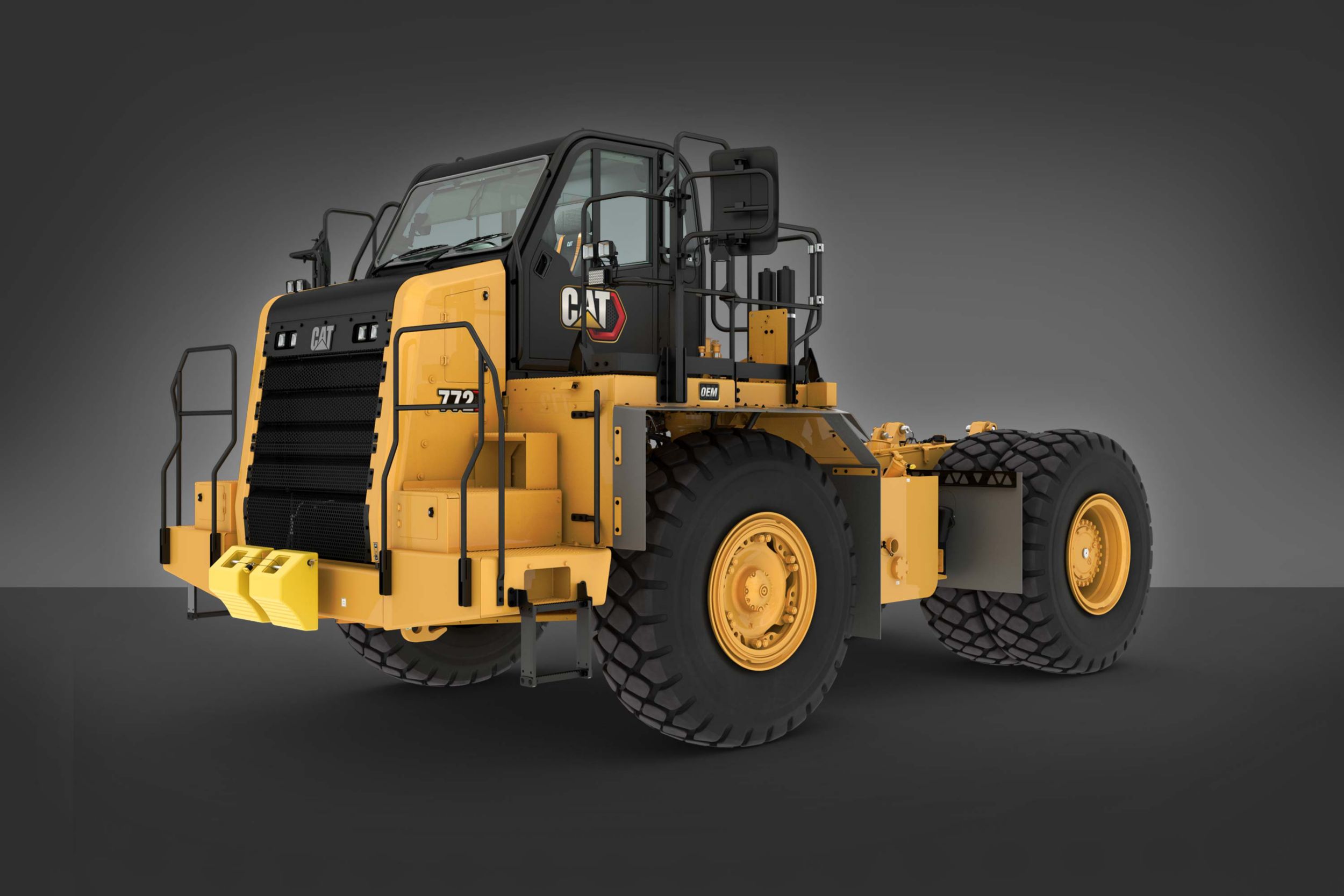

Off-Highway Trucks Bare Chassis 772 Bare Chassis

Product Specifications for 772 Bare Chassis

772 Bare Chassis Standard Equipment

For more information on 772 Bare Chassis options, please contact Caterpillar OEM Solutions at oem_solutions@cat.com.

NOTE

• Standard and optional equipment may vary. Consult your Cat dealer for details.

POWERTRAIN

• Air-To-Air Aftercooler (ATAAC)

• Air cleaner with precleaner (1)

• Automatic cold mode idle control

• Electric start

• Engine idle shutdown

• Ether started aided

• Exhaust muffler

• Global off-highway aluminium radiator

• Braking System: Manual retarder (utilizes rear oil-cooled, multiple disc brakes), Brake release motor (towing), Dry disc brakes (front), Front brake disconnect switch (front), Oil-cooled, multiple disc (rear), Brake wear indicator, Parking, secondary, service brake

• Transmission: 7 speed automatic powershift with electronic clutch pressure control, Advanced productivity electronic control strategy (APECS), Automatic neutral idle, Autostall, Second gear start

ELECTRICAL

• Alarm backup

• Alternator, 120 amp

• Auxiliary jump start receptable

• Batteries, maintenance-free, 12V, 1400 CCA combined

• Electrical system, 25 amp, 24V to 12V converter

• Lighting System: Backup light (halogen), Directional signals/hazard warning (front and rear LED), Engine compartment light, Headlights with dimmer, Side profile lights, Operator access courtesy lights, Stop/tail lights (LED)

• Battery jump start

• Breakers, electrical

• Lockout switch

• Ports, ET and VIMS

• Service lockout switch (power without engine start)

OPERATOR ENVIRONMENT

• Air conditioning/heat

• Ashtray and cigarette lighter

• Automatic tempature control

• Coat hook

• Cup holders (4)

• Diagnostic connection port, 24V

• Entertainment radio ready: 5 amp converter, Speakers, Antenna, Wiring harness

• Gauges and indicators panel: Air cleaner service indicator - electronic, Brake oil temperature gauge, Coolant temperature gauge, Hour meter, Tachometer, Engine overspeed indicator, Fuel level, Speedometer with odometer, Transmission gear indicator

• Hoist lever

• Horn

• Light - dome

• Light - courtesy

• Messenger, display unit

• Mirrors (heated)

• Power port, 24V and 12V

• ROPS cab, insulated/sound suppressed

• Cat Deluxe Seat: full air suspension, heated/ventilated, retractable 4 point seat belt with shoulder harness

• Seat (training) with lap belt

• Steering wheel, padded, tilt and telescopic

• Storage compartment

• Sun visor, tinted glass

• Throttle lock

• Window, sliding, right side (Emergency exit)

• Window, powered, left side

• Windshield wiper (intermittent) and washer

OTHER EQUIPMENT

• Guards: Driveline, Engine crankcase, Fan

• Body down indicator

• Center mounted rims

• Ground level battery disconnect

• Ground level engine shutdown

• Ground level grease fittings

• Rims 13 x 33

• Secondary steering (electric)

• Tie down eyes

• Tow hooks, front/tow pin, rear

• Vandalism protection locks

CAT TECHNOLOGY PRODUCTS

• Product Link Ready

• Economy Modes (standard and adaptive)

• Payload System

• Vital Info Management System (VIMS)

• Tire monitoring system (TKPH/TMPH)

FLUIDS & FILTERS

• Extended life coolant, -35° C (-30° F)

• Grouped ground-level filters

772 Bare Chassis Optional Equipment

OTHER EQUIPMENT

• Auto Lube

• Rear vision camera (WAVS)

• Wheel chocks

• Payload readout

• Payload indicator (display)

CAT TECHNOLOGY PRODUCTS

• Product Link

• Traction Control System
