Generator Set Specifications
| Maximum Rating | 500 kVA 500 kVA |
| Minimum Rating | 500 kVA 500 kVA |
| Emissions/Fuel Strategy | India CPCB/MoEF India CPCB/MoEF |
| Voltage | 415 Volts 415 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 RPM 1500 RPM |
| Duty Cycle | Prime Prime |
Diesel Generator Sets DE500 (50 Hz) India Market Only
Request A Price Find DealerKey Specs
- Maximum Rating
- 500 kVA
- 500 kVA
- Minimum Rating
- 500 kVA
- 500 kVA
- Emissions/Fuel Strategy
- India CPCB/MoEF
- India CPCB/MoEF
Overview

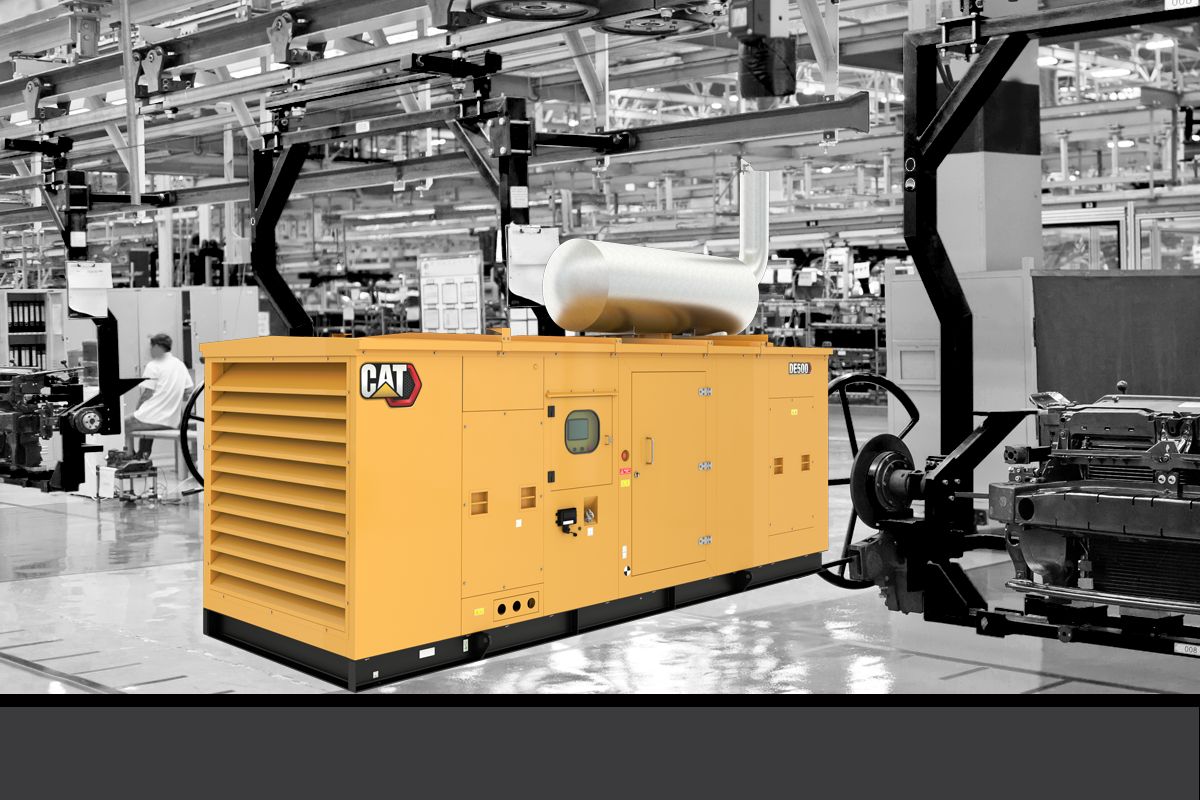

500 kVA Diesel Generator Set
The C18 diesel generator sets have been developed for your prime applications. Producing reliable power from 500 to 500 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The gensets are certified for latest India CPCB emission standards CPCB IV+ Emissions / Fuel Strategy.
Benefits
Designed Specifically for India Regulations
Remote Connectivity 24/7/365 Monitoring
Cat Connect option ensures your generator set is always ready to start and perform as expected
Integrated Cat® Product Link™ Control System
- Track Genset Health and Operation Parameters
- Genset Utilization and Performance Tracking
Features At A Glance
- Cat generator set packages have been fully prototype tested
- Conform to ISO 8528-5 steady state and transient response requirements
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Product Specifications for DE500 (50 Hz) India Market Only
Engine Specifications
| Engine Model | C18 ATAAC, I-6, 4-Stroke Diesel C18 ATAAC, I-6, 4-Stroke Diesel |
| Bore | 5.71 in 145 mm |
| Stroke | 7.2 in 183 mm |
| Displacement | 1106.4 in³ 18.1 l |
| Compression Ratio | 18:1 18:1 |
| Aspiration | Air to Air Aftercooled Air to Air Aftercooled |
| Fuel System | MEUI MEUI |
| Governor Type | Adem™A6 Adem™A6 |
DE500 (50 Hz) India Market Only Standard Equipment
Cooling System
- Radiator
Exhaust System
- Exhaust flange outlet
Power Termination
- Busbar
Control Panel
- Local design and source
- GCCP 1.3
General
- Paint - Caterpillar yellow except rails and radiators gloss black
DE500 (50 Hz) India Market Only Optional Equipment
Air Inlet System
- Heavy duty air cleaner
Control Panel
- GCCP 1.4
