Key Specs

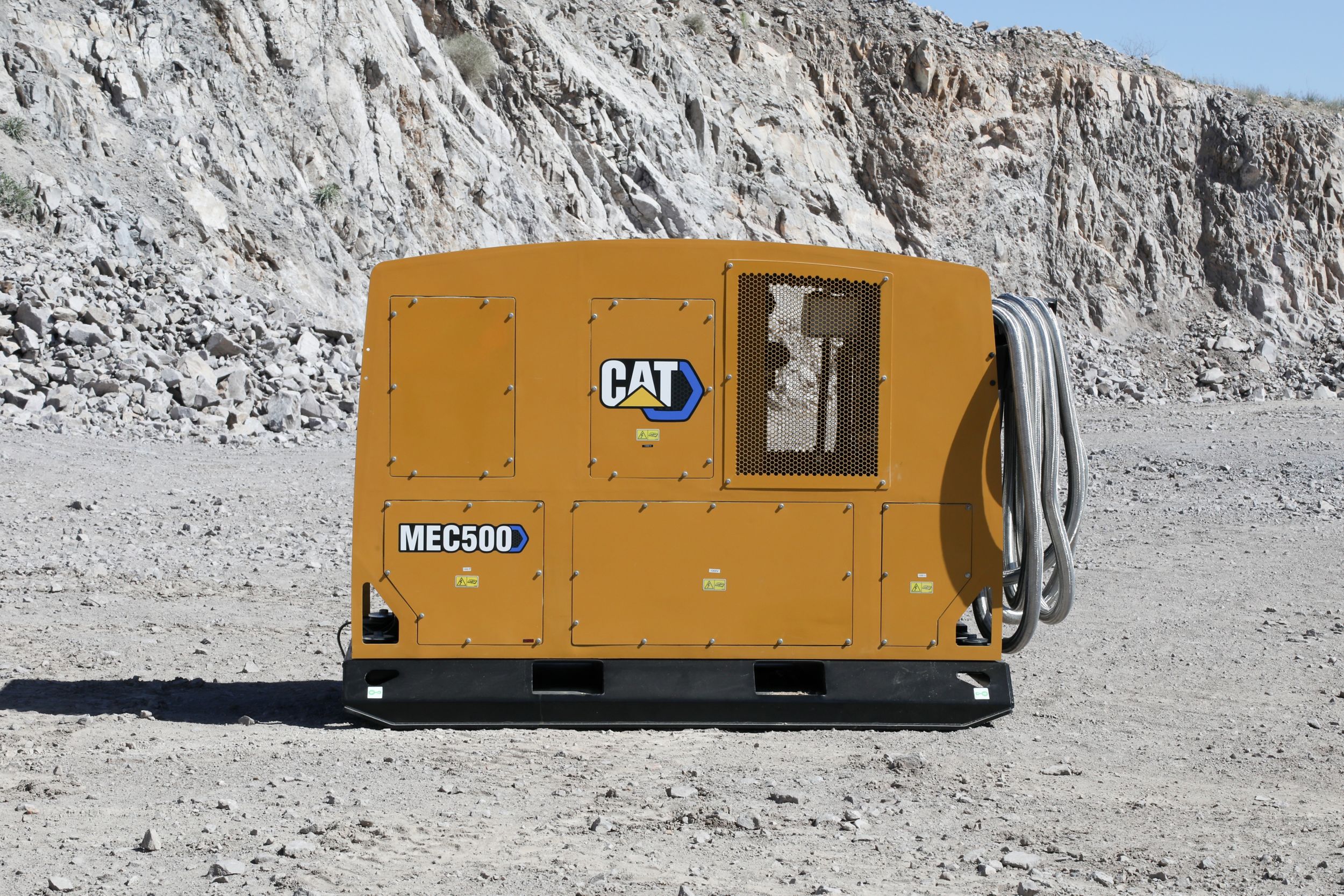

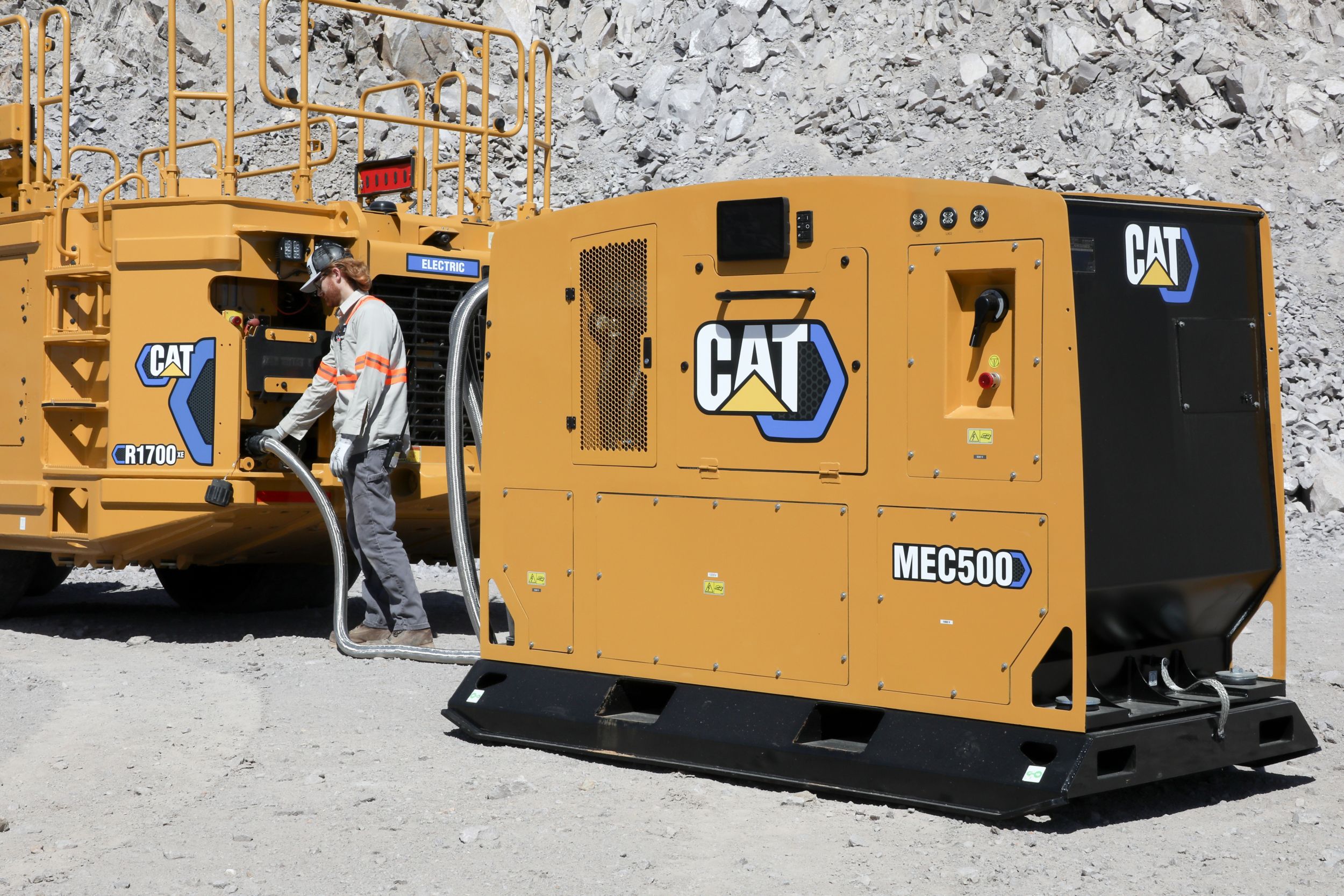

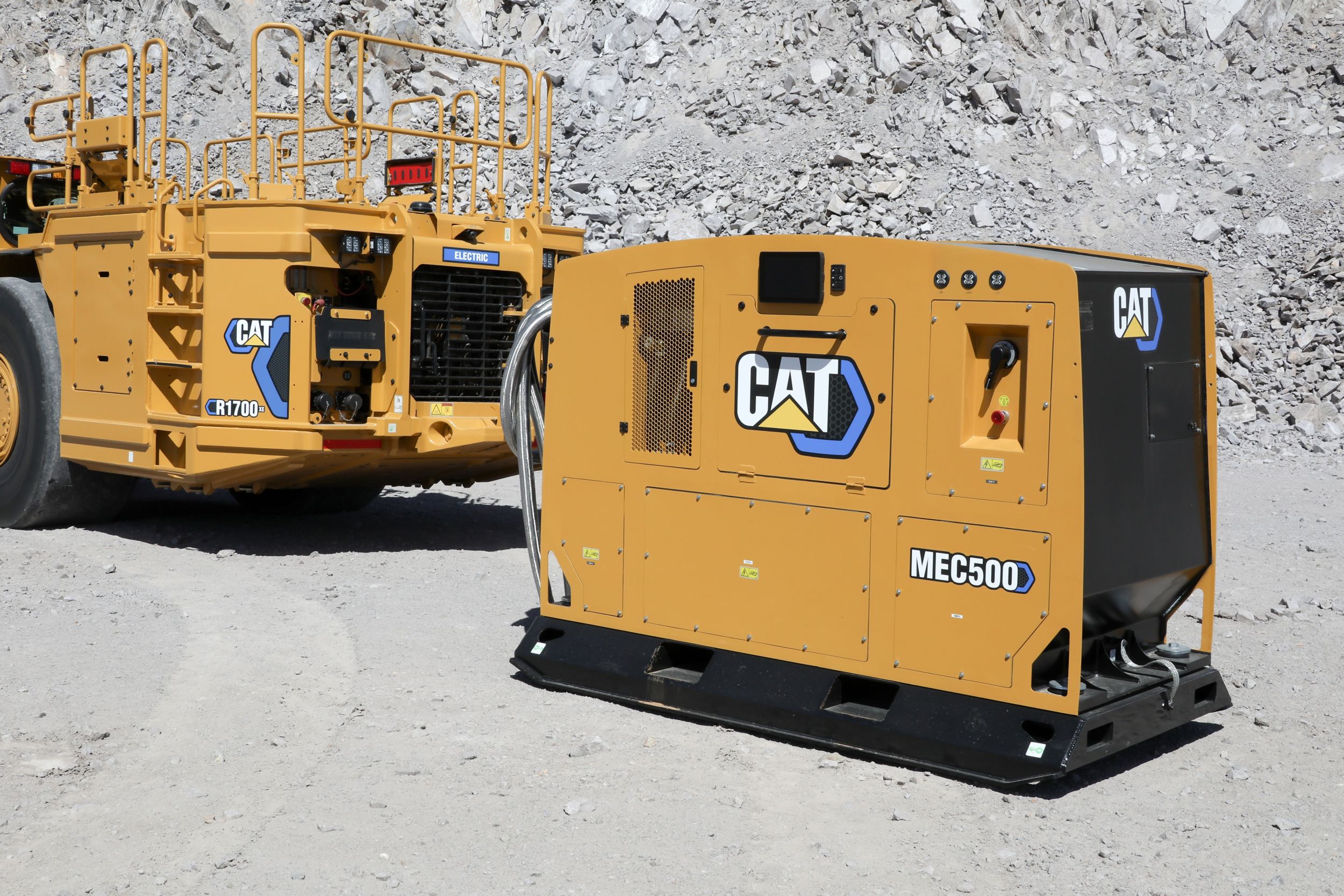

A first of its kind for the mining industry, the Cat® MEC500 Mobile Equipment Charger is a standalone fast charging system designed to charge quickly and safely wherever it’s needed.
Designed to meet the IP66 standard, critical components are protected from both water and dust infiltration. The charger also meets ISO 2867 standards, offering protection from minor rockfalls. Key components are Isolation mounted against vibration or seismic activity.

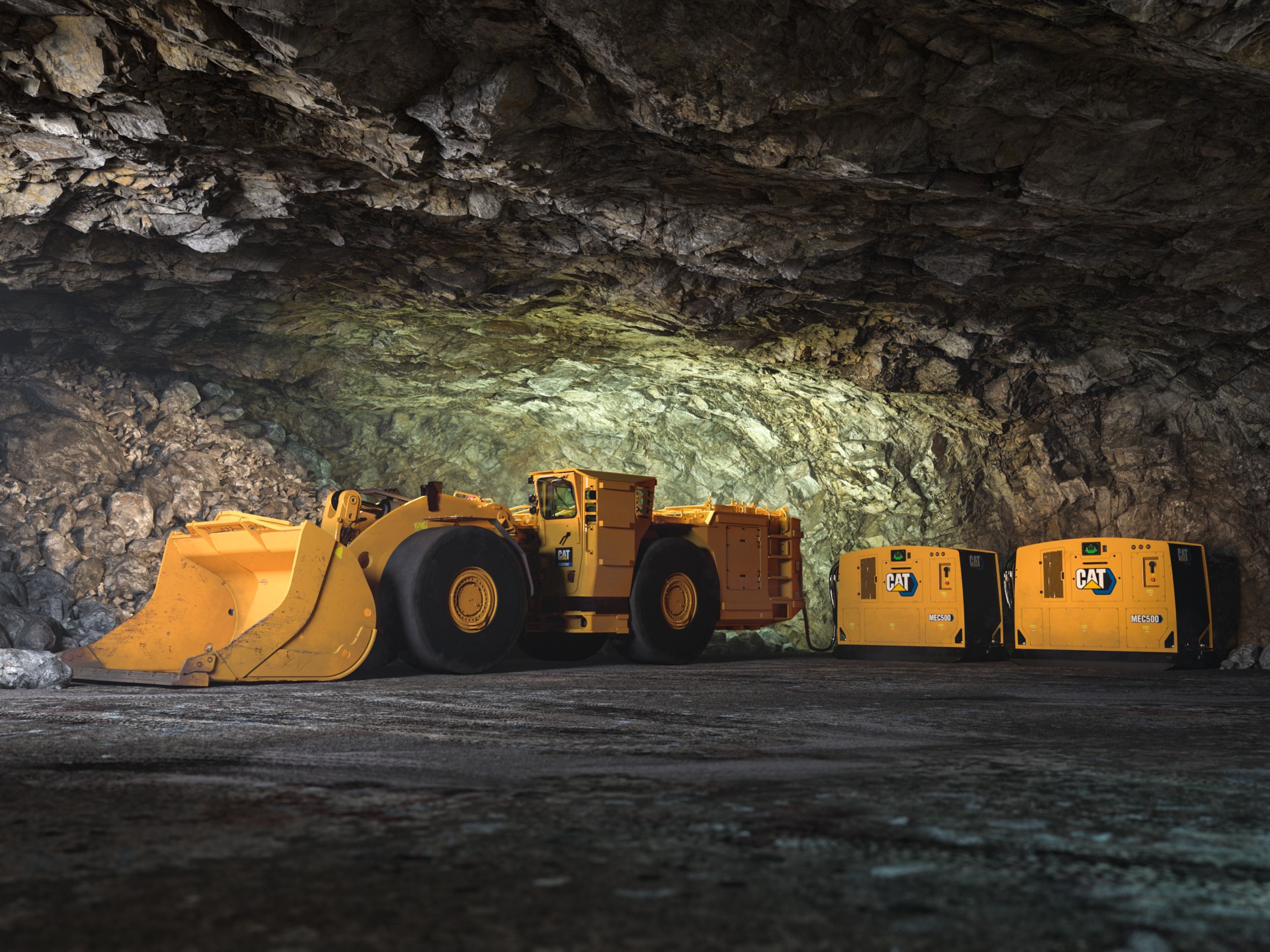

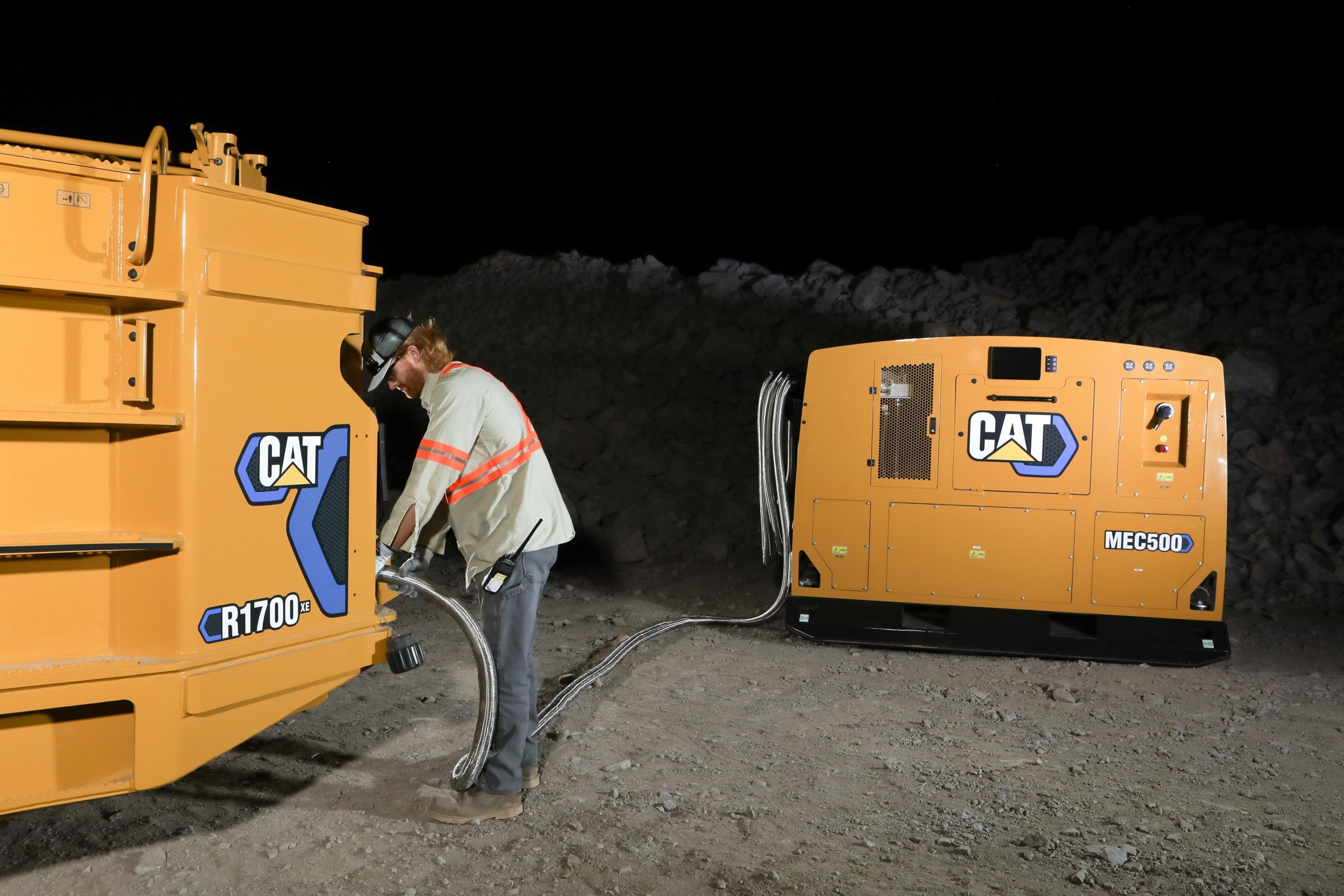

The MEC500 offered high-power, fast Opportunity Charging where needed. ultrafast battery charging is achieved by connecting two units in parallel to charge the LHD in less than 20 minutes.

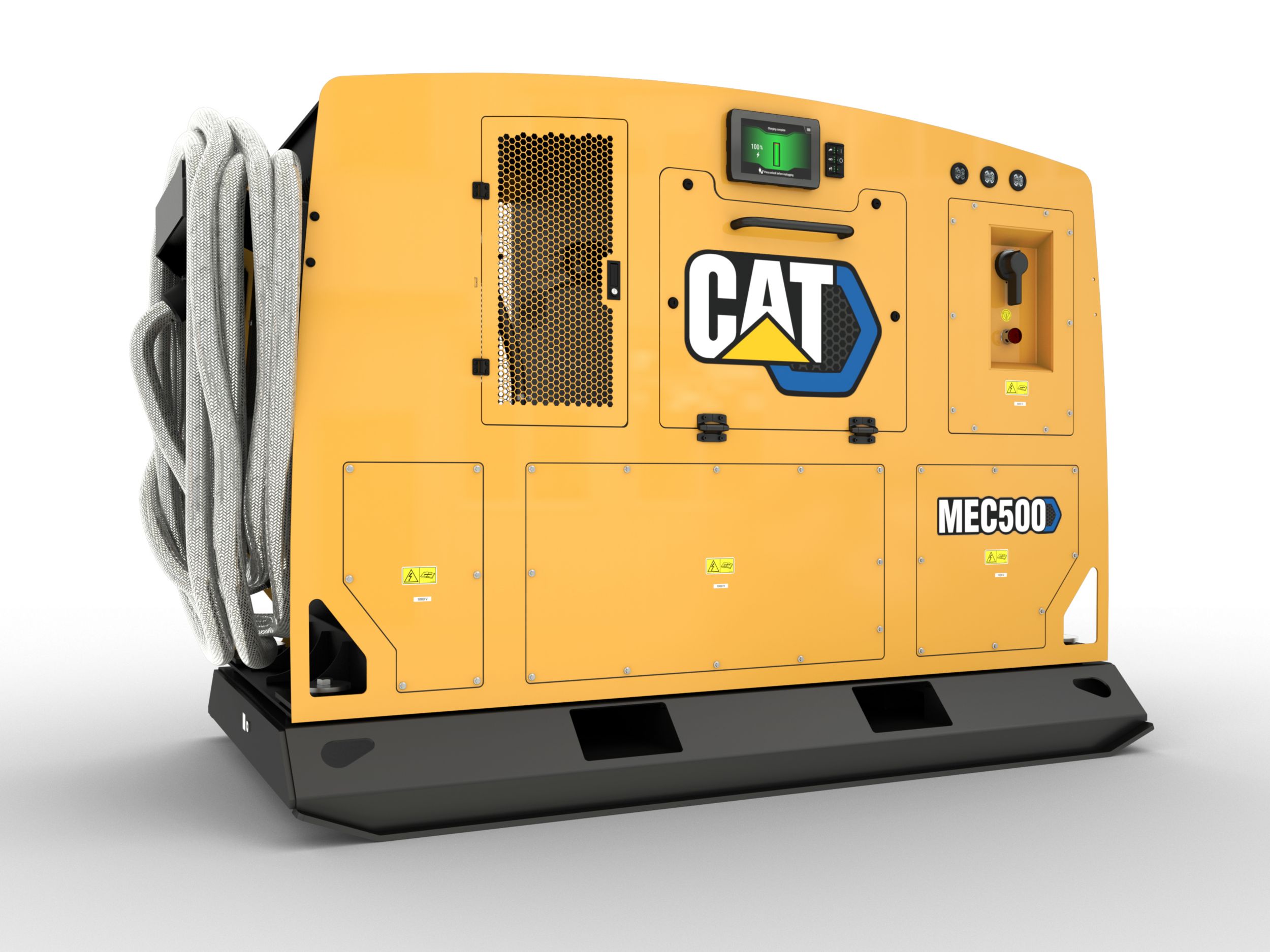

Equipped with a durable skid mount and integrated forklift eyes, the charger is efficiently moved to where the equipment is working via towing or fork truck.
| Rated Power (AC Input) | 500 kW 500 kW |
| Voltage Range (AC Input) | 400-660 VAC 400-660 VAC |
| Frequency Range | 50 or 60 Hz 50 or 60 Hz |
| Input Supply (AC Input) | 3-Phase Insulated Terra (IT) 3-Phase Insulated Terra (IT) |
| Voltage Output | 300-1,000 VDC 300-1,000 VDC |
| Rated Current (DC Output) | 700 Amps 700 Amps |
| Cable Output - Cat Proprietary Connector | 700 Amp 700 Amp |
| Ambient Operating Temperature Range | -25° to +50° C (-13° to 122° F) -25° to +50° C (-13° to 122° F) |
| Storage | -40° to +80° C (-40° to +176° F) -40° to +80° C (-40° to +176° F) |
| Control Interface | CAN CAN |
| Control Type | IEC 61851-23/24 (with CAN) IEC 61851-23/24 (with CAN) |
| Compliance and Safety | CSA M421; UL2202 (under development) CSA M421; UL2202 (under development) |
| MEC500 | 3650 lb 1656 kg |
| MEC500 with Optional Skid | 4490 lb 2037 kg |
