Bale Spears 890 mm (35 in)

Request A Price Click for Price

Key Specs

Overall Width: 50.6 in; 1285 mm

Overall Height: 22.4 in; 570 mm

Capacity: 2004 lb; 909 kg

890 mm (35 in)
Change model

Overview

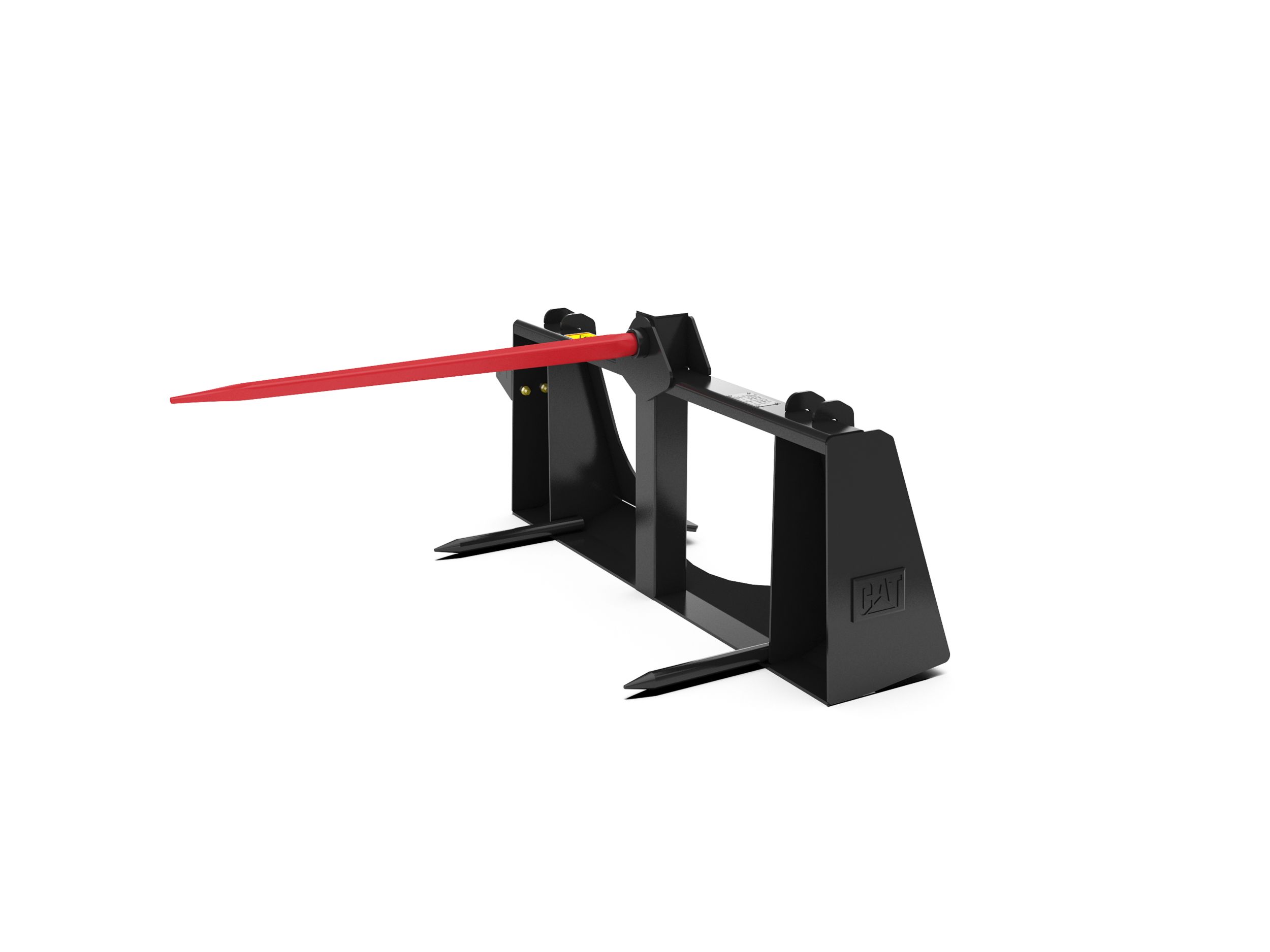

Cat® Bale Spears are ideal for hay bales, both round and square as well as other baled material in agriculture applications.

Features At A Glance

Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.

Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.

Single Bale Spear has two additional stabilizer spears located on the bottom of the frame, ensuring the security of baled material when traveling and loading.

A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.

Product Specifications for 890 mm (35 in)

Overall Width	50.6 in 1285 mm
Overall Height	22.4 in 570 mm
Capacity	2004 lb 909 kg
Usable Tine Length	35 in 890 mm
Overall Depth	46.7 in 1186 mm
Weight	154.3 lb 70 kg
Tine Spacing	31.5 in 800 mm
Stabilizer Tine Length	11.1 in 281 mm

Product Specifications for 890 mm (35 in)

Download Print

Overall Width	50.6 in 1285 mm
Overall Height	22.4 in 570 mm
Capacity	2004 lb 909 kg
Usable Tine Length	35 in 890 mm
Overall Depth	46.7 in 1186 mm
Weight	154.3 lb 70 kg
Tine Spacing	31.5 in 800 mm
Stabilizer Tine Length	11.1 in 281 mm
