| Bucket Group Part Number | 561-1775 561-1775 |
| Machine Model | R1700 and R1700 XE R1700 and R1700 XE |
| Ground Engaging Tool (GET) System | Modular Weld-on, Bolt-on Half Arrow (BOHA), Durilock Modular Weld-on, Bolt-on Half Arrow (BOHA), Durilock |
| Bucket Capacity | 8.9 yd³ 6.8 m³ |
| Weight - Base Bucket | 9370 lb 4250 kg |
| Width - Base Bucket | 121.9 in 3096 mm |
| Height - Base Bucket | 73.2 in 1860 mm |
| Depth - Base Bucket | 63 in 1600 mm |
| Weight - Bucket with MWO GET | 13591 lb 6165 kg |
| Width - Bucket with MWO GET | 121.9 in 3096 mm |
| Height - Bucket with MWO GET | 77.5 in 1969 mm |
| Depth - Bucket with MWO GET | 105.2 in 2673 mm |
| Weight - Bucket with BOHA GET | 13900 lb 6305 kg |
| Width - Bucket with BOHA GET | 121.9 in 3096 mm |
| Height - Bucket with BOHA GET | 76.9 in 1952 mm |
| Depth - Bucket with BOHA GET | 103.5 in 2630 mm |
| Weight - Bucket with Durilock D50S GET | 14010 lb 6355 kg |
| Width - Bucket with Durilock D50S GET | 121.9 in 3096 mm |
| Height - Bucket with Durilock D50S GET | 76.3 in 1938 mm |
| Depth - Bucket with Durilock D50S GET | 105 in 2668 mm |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

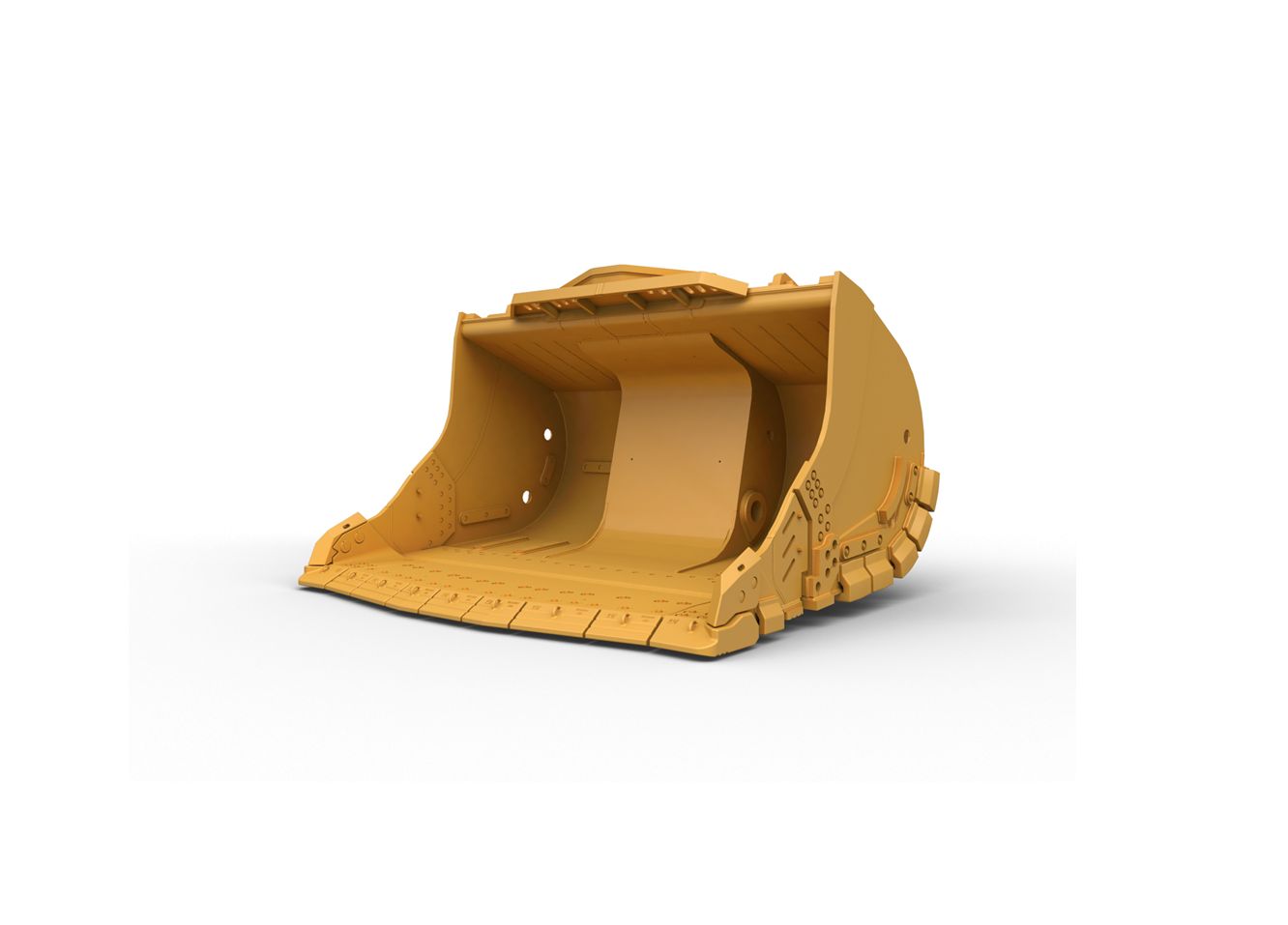

Bolt Together Bucket 6.8m3 (8.9 yds3) for R1700 and R1700 XE
Request A Price Find DealerKey Specs
- Bucket Group Part Number
- 561-1775
- 561-1775
- Machine Model
- R1700 and R1700 XE
- R1700 and R1700 XE
- Ground Engaging Tool (GET) System
- Modular Weld-on, Bolt-on Half Arrow (BOHA), Durilock
- Modular Weld-on, Bolt-on Half Arrow (BOHA), Durilock
Overview
Bolt-Together Convenience for Shaft Mines
Designed specifically to reduce time and costs associated with transportation, assembly and rework procedures for underground mining, the Cat® bolt-together bucket is the solution to lower repair costs, reduced machine down time and higher machine productivity.
Benefits
Operational Safety
The Cat bolt-together bucket requires no skilled maintenance operators for underground welding, resulting in lowered safety risks and quicker repair times.
Higher Durability
Bucket materials, design and fabrication are specially made for
the demanding underground environment and abrasive materials
to be moved.
Modularity Benefits
Buckets are modular design and can be assembled quicker.
Features At A Glance
- The Cat bolt-together bucket has the same strength and toughness you would expect of any Cat standard bucket, but requires no skilled maintenance operators for underground welding, resulting in lowered safety risks and quicker repair times.
- Multiple components allow for ease of the bucket transportation and assembly.
- Less frequency of bucket replacement, due to the higher wearing consumables e.g., edges, shrouds easier to replace as they simply bolt on.
- Bucket materials, design and fabrication are specially made for the demanding underground environment and abrasive materials to be moved.
- Improved thicknesses on the bucket design provides improved strength and an increase in rigidity to the bucket assembly, aiding edge installation and removal.
- Higher grade material (400BHN) is used for the bucket assembly components.
- Higher grade wear protection Ground Engaging Tools (GET) on the removable shroud assembly.
- This bucket allows for more edge replacement cycles before the bucket assembly for major repairs. Improved wear life leads to improvement in cost saving and productivity.
- Bucket design also takes bucket weight into consideration, targeting a stronger bucket and balanced weight for overall machine performance improvements.
- Cat GET also offer great competitive advantages.
- Buckets are modular design and can be assembled quicker.
- Multiple Cat GET and attachments available with this bucket. Three Edge Options (Bolt-on Half Arrow [BOHA], Modular Weld-on [MWO], Durilock [Three Segment Options]) and shroud segments, resulting in reduced downtime and accelerated repair. The rock guard reduces rock spillages over the back of the bucket, therefore reduces the chances of damaging the boom / lift arm and components etc..
- Caterpillar offers the bucket and a full suite of GET options. Caterpillar and our Cat dealers offer one stop shop which means less accounts.
- All these GET and attachments are modular design – easy and quick to install and remove.
- Cat branded buckets are built in the same factory as our machines and go through the same strict quality controls.
- Best suit Cat machine balance, support better machine performance – penetrating, loading, support high breakout force.
- Multiple offerings to suit your unique mining application. The Cat bolt-together buckets are currently available for the Cat R1600H (R1600G), R1700G, R1700 and R1700 XE loaders.
- The Cat bucket is supported by Cat Global dealer network.
