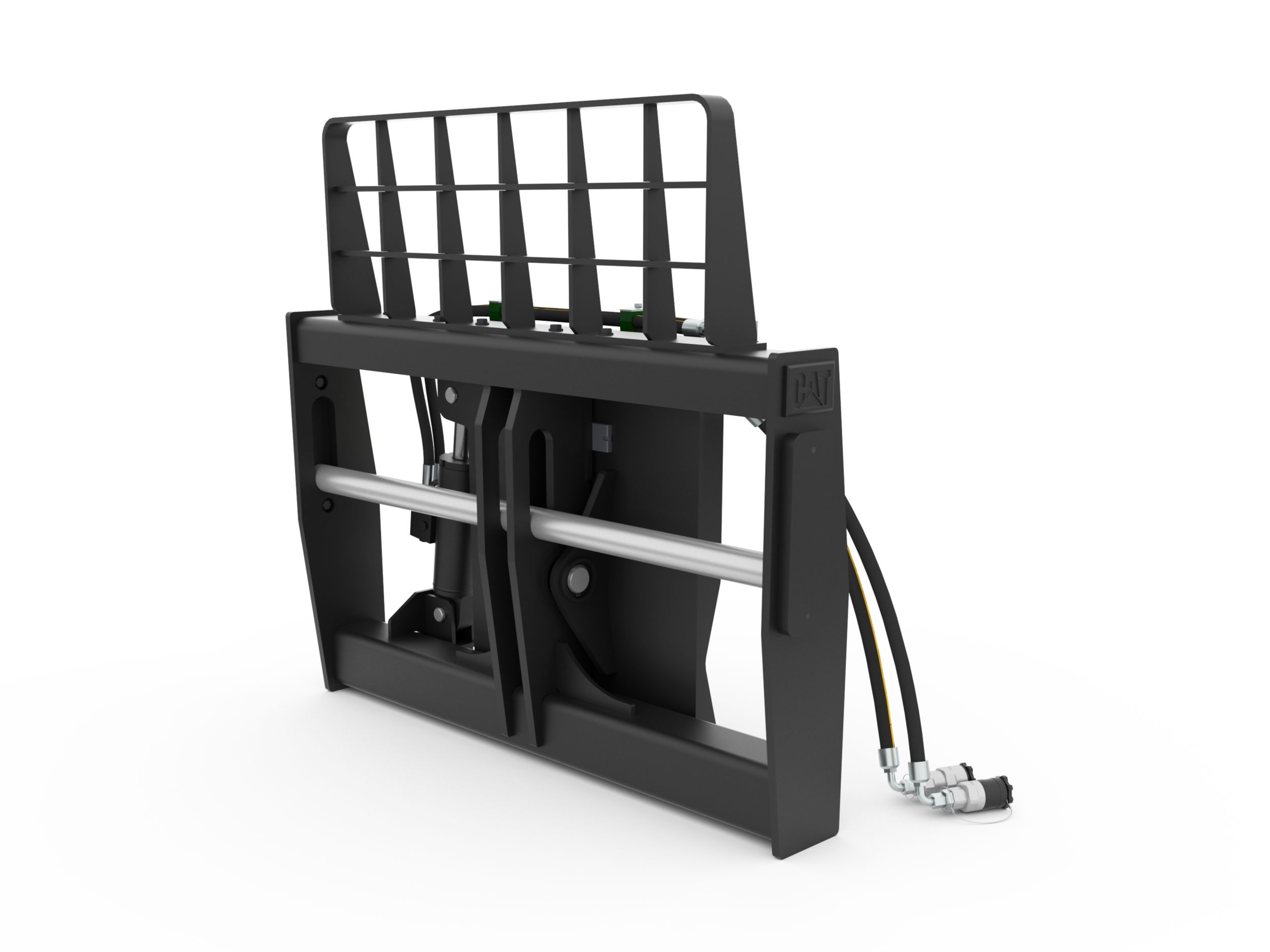

Side Tilt-Rotate Carriages allow for precise positioning of a load, even when on uneven terrain.
Features At A Glance
Tilt Frame
Along with the floating fork bar, this carriage will also hydraulically tilt left to right 10 degrees to further assist in placing materials on uneven surfaces like pitched roofs.
Manually Adjustable Forks
Adjustable fork positions enable the operator to move various sized pallets and bales of material.
Replaceable Wear Pads
Wear pads provide additional durability for the carriage and extend overall life of the attachment.
Product Specifications for 1270 mm (50 in), TH Coupler
Height
47 in1194 mm
Width
50 in1270 mm
Overall Width
53 in1346 mm
Weight
1347 lb611 kg
Length
15.1 in384 mm
Tine Spacing
229-1145 mm (9-45 in)229-1145 mm (9-45 in)
Tilt Angle Range
11° Left/Right11° Left/Right
Load Capacity
12000 lb5443.1 kg
Interface Type
Standard TH CouplerStandard TH Coupler
Product Specifications for 1270 mm (50 in), TH Coupler
