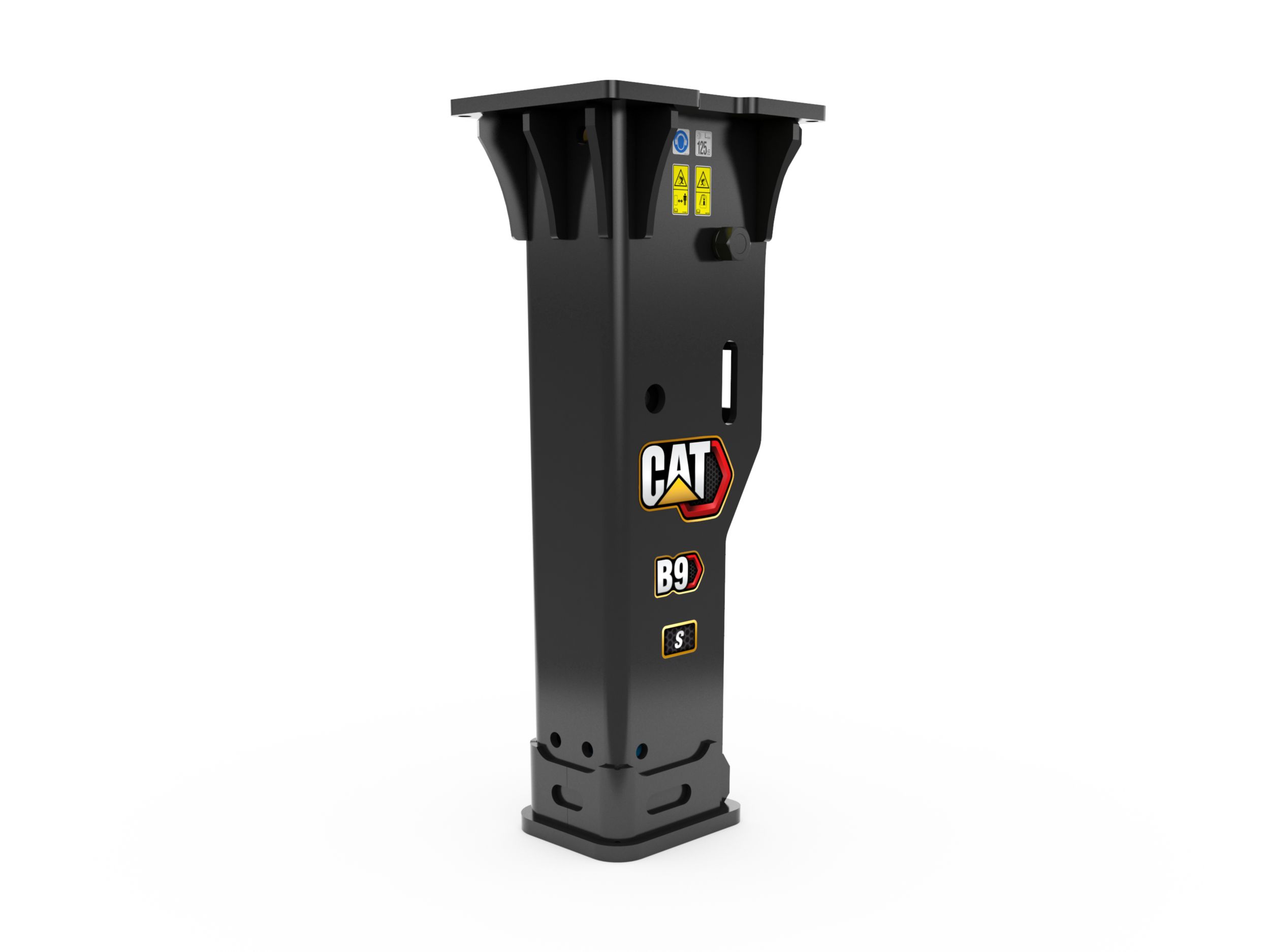

Hammers B9s

Request A Price Click for Price

Key Specs

Operating Weight - With Tool: 1142 lb; 518 kg

Energy Class: 958.8 ft·lbf; 1300 J

Machine Class: 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift); 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)

B9s
Change model

Overview

Used for demolition and construction applications.

Features At A Glance

Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breaker's condition.

Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360°, lower bushing has two positions and can be rotated 90°.

Every B Series Hammer comes with:

Tool Kit w/Storage Box
2 Tools (1 x Conical and 1 x Transverse Chisel)
Maintenance Kit

Product Specifications for B9s

Operating Weight - With Tool	1142 lb 518 kg
Energy Class	958.8 ft·lbf 1300 J
Machine Class	7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift) 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Tool Shaft Diameter	3.3 in 85 mm
Impact Frequency	400-800 bpm 400-800 bpm
Minimum Operating Pressure	1846 psi 12728 kPa
Minimum Carrier Weight	18150.6 lb 8233 kg
Optimal Hydraulic Flow	60-100 lpm (15.9-26.4 gpm) 60-100 lpm (15.9-26.4 gpm)
Overall Width	15.7 in 400 mm
Overall Length	20.9 in 530 mm
Overall Height	68.2 in 1733 mm
Height - Without Tool	51 in 1296 mm
Sound Level	125 dB 125 dB
Mounting Bracket Size	Extra Large Extra Large

Product Specifications for B9s

Download Print

Operating Weight - With Tool	1142 lb 518 kg
Energy Class	958.8 ft·lbf 1300 J
Machine Class	7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift) 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Tool Shaft Diameter	3.3 in 85 mm
Impact Frequency	400-800 bpm 400-800 bpm
Minimum Operating Pressure	1846 psi 12728 kPa
Minimum Carrier Weight	18150.6 lb 8233 kg
Optimal Hydraulic Flow	60-100 lpm (15.9-26.4 gpm) 60-100 lpm (15.9-26.4 gpm)
Overall Width	15.7 in 400 mm
Overall Length	20.9 in 530 mm
Overall Height	68.2 in 1733 mm
Height - Without Tool	51 in 1296 mm
Sound Level	125 dB 125 dB
Mounting Bracket Size	Extra Large Extra Large
