Performance
| Cycle Time - Open | 1.6 s 1.6 s |
| Cycle Time - Close | 1 s 1 s |
| Crushing Force - Primary Cutter | 264 Sh Ton 2345 kN |
| Crushing Force - Tip | 74 Sh Ton 655 kN |
| Crushing Force - Primary Tooth | 148 Sh Ton 1320 kN |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security
Secondary Pulverizer P214 Secondary Pulverizer
Request A Price Find DealerKey Specs
- Cycle Time - Open
- 1.6 s
- 1.6 s
- Cycle Time - Close
- 1 s
- 1 s
- Crushing Force - Primary Cutter
- 264 Sh Ton
- 2345 kN
Overview
Cat P200 Series Secondary Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.
Features At A Glance
- Cat pulverizer jaws are designed to cut through material quickly to enhance your machine’s overall operating efficiency and help reduce fuel consumption.
- The oversized cylinder on the non-rotating secondary pulverizer delivers a strong crushing force to reduce concrete and separate rebar.
- The Speed Booster valve actively balances speed and power, delivering fast cycle times and strong closing force to help increase productivity.
- Replaceable wear parts can be swapped quickly in the field and do not require surface welding to help reduce service time.
- Daily wear parts inspection and grease points are accessible from the ground with the pulverizer still mounted on the machine.
- Safely perform maintenance with easy access through one inspection panel.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
- Cat pulverizers are manufactured with high-strength, abrasion-resistant steel, especially in excessive wear areas.
- Reinforced cylinder rod hinges on the moveable jaw are designed to help boost durability and life of the pulverizer.
- The C-shaped cylinder guard provides extra protection against concrete demolition.
- Cat pulverizers have a versatile use across demolition applications, making them your choice for a wide variety of job sites.
- Never waste time looking for your attachments again. Cat asset tracking is available on all pulverizers.
- Track your entire fleet of attachments and machines from one source. Pulverizers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Pulverizers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
- Share pulverizers and other attachments of the same size class across multiple machines by adding a quick coupler.
- Significantly reduce the time it takes to switch attachments when using a quick coupler.
- Quick couplers add a new level of safety to your job site with the ability to switch attachments while the operator stays in the cab with built-in redundancies to keep your attachments secure in the event of a pressure loss.
- A variety of couplers are available to suit your specific needs:
- Cat Pin Grabber Couplers – dedicated pin system
- CW Dedicated Couplers – wedge-style, dedicated system
- S Type Couplers – wedge-style, dedicated system
- Hydraulic Connecting CW Couplers – hydraulic connecting version of the CW coupler with instant hydraulic capability upon connection
- Hydraulic Connecting S Type Couplers – hydraulic connecting version of the S type coupler with instant hydraulic capability upon connection
Product Specifications for P214 Secondary Pulverizer
Hydraulic Requirements
| Jaw Circuit - Max. Oil Pressure | 4786 psi 33000 kPa |
| Jaw Circuit - Max. Oil Flow | 40 gal/min 150 l/min |
Dimensions - Jaw
| Jaw Depth | 25.6 in 650 mm |
| Cutter Length | 4.5 in 115 mm |
| Jaw Opening - Maximum | 34.8 in 885 mm |
| Jaw Width - Fixed | 21.9 in 555 mm |
| Jaw Width - Moveable | 12.2 in 310 mm |
Dimensions - Housing + Jaw
| Length | 87 in 2210 mm |
| Height | 51.6 in 1310 mm |
| Width | 21.9 in 555 mm |
Weight
| Weight - Housing, Jaw and Bracket | 3285 lb 1490 kg |
Recommended Carrier Weight
| Excavator Minimum | 14000 kg (30900 lb) 14000 kg (30900 lb) |
| Excavator Maximum | 19000 kg (41900 lb) 19000 kg (41900 lb) |
See how P214 Secondary Pulverizer compares against frequently compared products.
Pulverizers
P214 Secondary Pulverizer
Selected
- Cycle Time - Open
- 1.6 s
- 1.6 s
- Cycle Time - Close
- 1 s
- 1 s
- Crushing Force - Primary Cutter
- 264 Sh Ton
- 2345 kN
Pulverizers
P232 Secondary Pulverizer
- Cycle Time - Open
- 1.9 s
- 1.9 s
- Cycle Time - Close
- 1.4 s
- 1.4 s
- Crushing Force - Primary Cutter
- 479 Sh Ton
- 4265 kN
Pulverizers
P245 Secondary Pulverizer
- Cycle Time - Open
- 2.1 s
- 2.1 s
- Cycle Time - Close
- 1.6 s
- 1.6 s
- Crushing Force - Primary Cutter
- 729 Sh Ton
- 6485 kN
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
- Cat Pulverizers - Product Brochure (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am) Downloadable PDF Opens in a New Tab file_download
- Cat Pulverizers - Key Features and Benefits (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am) Downloadable PDF Opens in a New Tab file_download
- Cat Pulverizers - Technical Specifications (Afr-ME, Aus-NZ, Eur, Eurasia, Japan, N Am, S Am) Downloadable PDF Opens in a New Tab file_download
Media Gallery
Photos

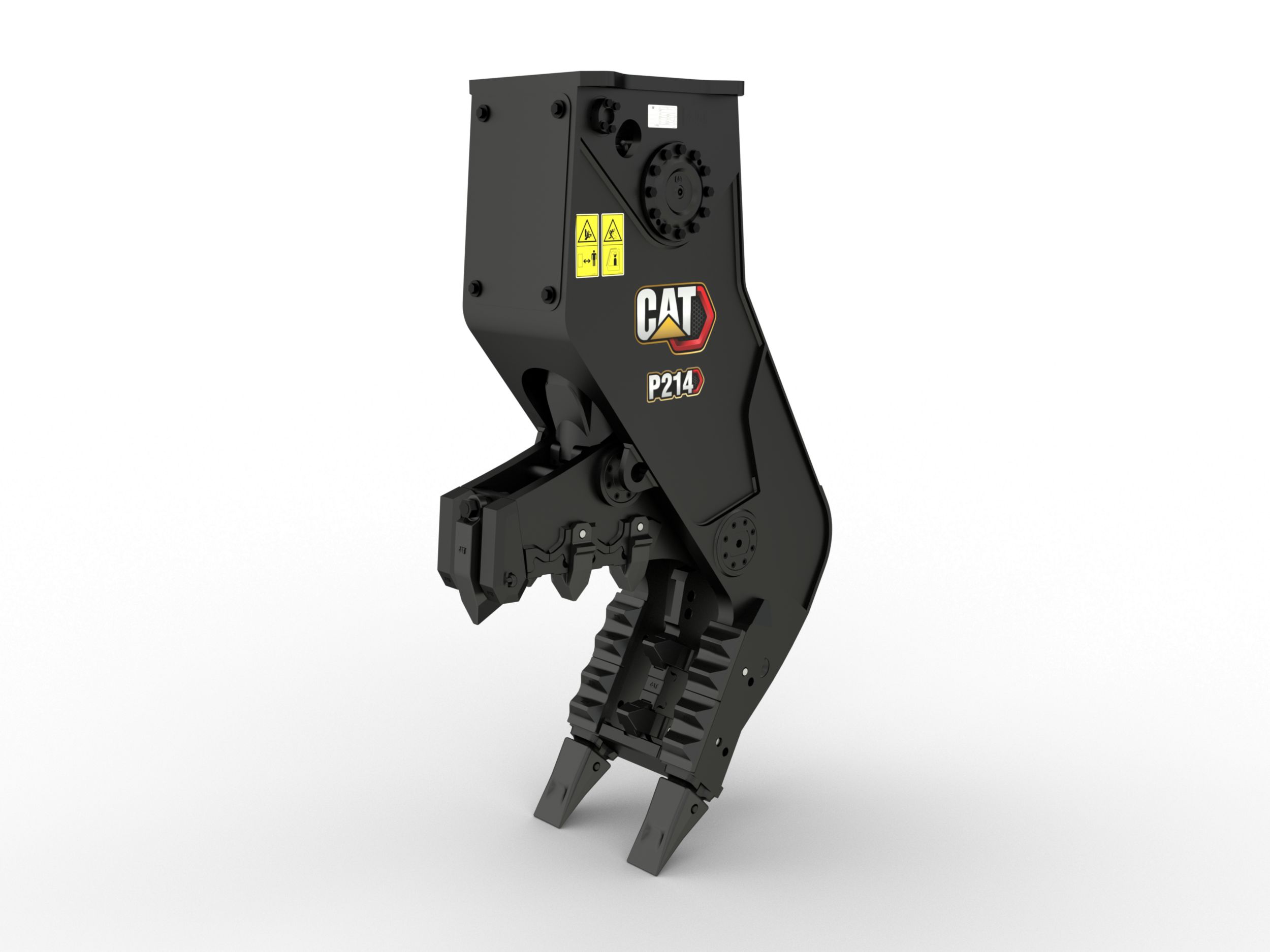

Cat P214 Secondary Pulverizer
