| Width | 100.7 in 2559 mm |
| Tine Length | 60 in 1524 mm |
| Weight | 3505.3 lb 1590 kg |
| Interface Type | Fusion™ Coupler Fusion™ Coupler |
| Required Hydraulics | 3rd Function 3rd Function |
| Carriage Height - Closed Clamp | 52 in 1321 mm |
| Carriage Height - Open Clamp | 112.3 in 2852 mm |
| Tine Spacing - Maximum Width | 96 in 2438 mm |
| Tine Width | 6 in 152 mm |
| Tine Thickness | 2.5 in 64 mm |
| Load Capacity | 5158.8 lb 2340 kg |

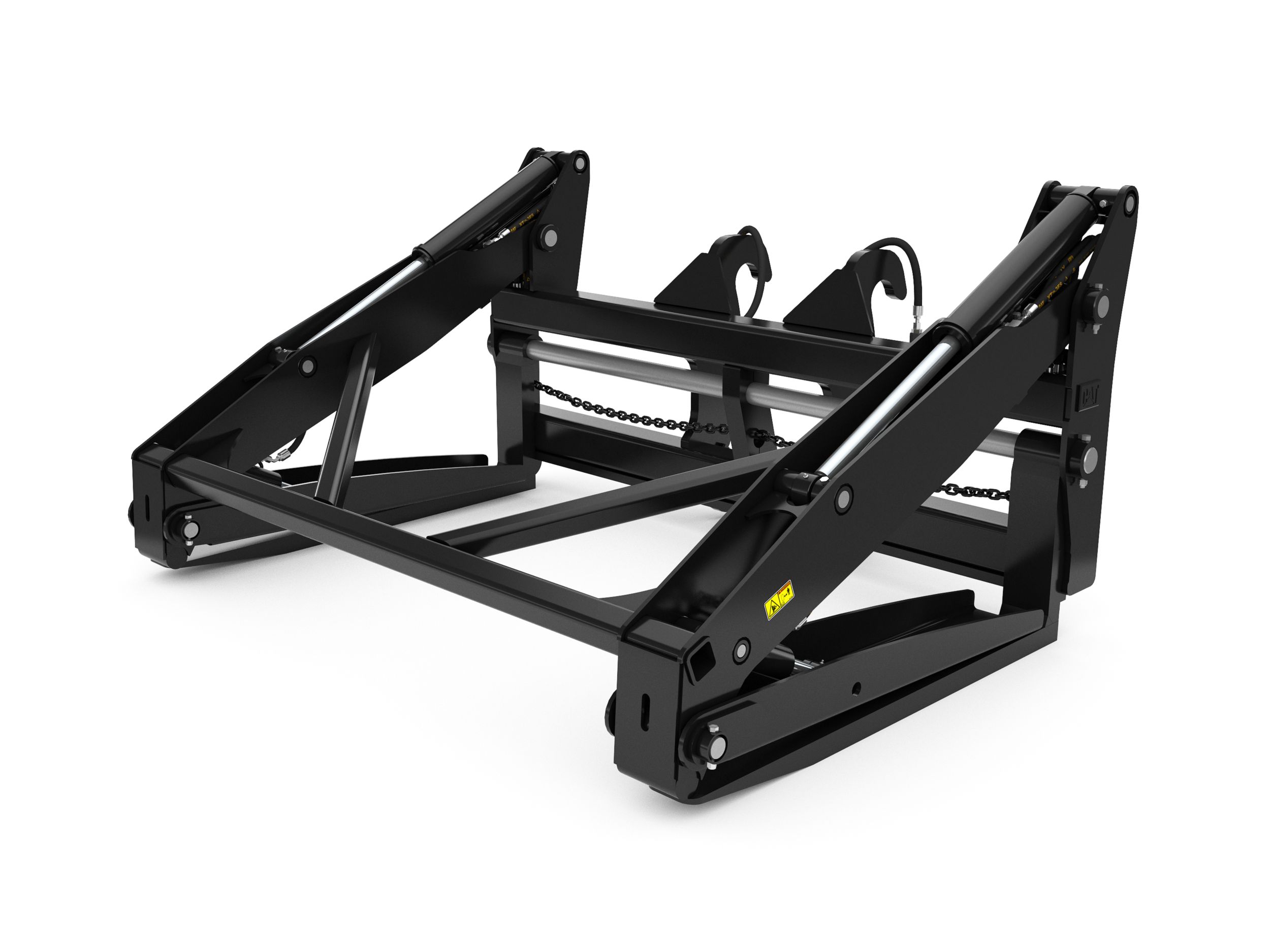

Pipe & Pole Forks 1524 mm (60 in)
Request A Price Click for PriceKey Specs
- Width
- 100.7 in
- 2559 mm
- Tine Length
- 60 in
- 1524 mm
- Weight
- 3505.3 lb
- 1590 kg
Overview
Cat® Pipe & Pole Forks are designed and built for use in oil and gas field drilling, pipe line construction and above-ground utilities work.
Features At A Glance
- Robust carriage and top clamp ensure high levels of production
- Wide two-piece clamp holds pipe in place against tines and carriage
- Clamp can be positioned for desirable diameter of materials
- Single stems or multiple pieces, at the same diameter, can be transported at the same time, increasing productivity
- Tines width can be adjusted to better fit at application requirements
- No tools required for adjustment
Product Specifications for 1524 mm (60 in)
See how 1524 mm (60 in) compares against frequently compared products.
Forks
1524 mm (60 in)
Selected
- Width
- 100.7 in
- 2559 mm
- Tine Length
- 60 in
- 1524 mm
- Weight
- 3505.3 lb
- 1590 kg
Forks
1829 mm (72 in)
- Width
- 100.7 in
- 2559 mm
- Tine Length
- 72 in
- 1829 mm
- Weight
- 4301.2 lb
- 1951 kg
