Small Wheel Loaders 938

Request A Price Find Dealer

Key Specs

Rated Engine Power - ISO 14396: 188 hp; 140 kW

Operating Weight: 33948 lb; 15399 kg

Bucket Capacities: 2.5-5 m3 (3.3-6.5 yd3); 2.5-5 m3 (3.3-6.5 yd3)

938
Change model

Overview

Configured for Success

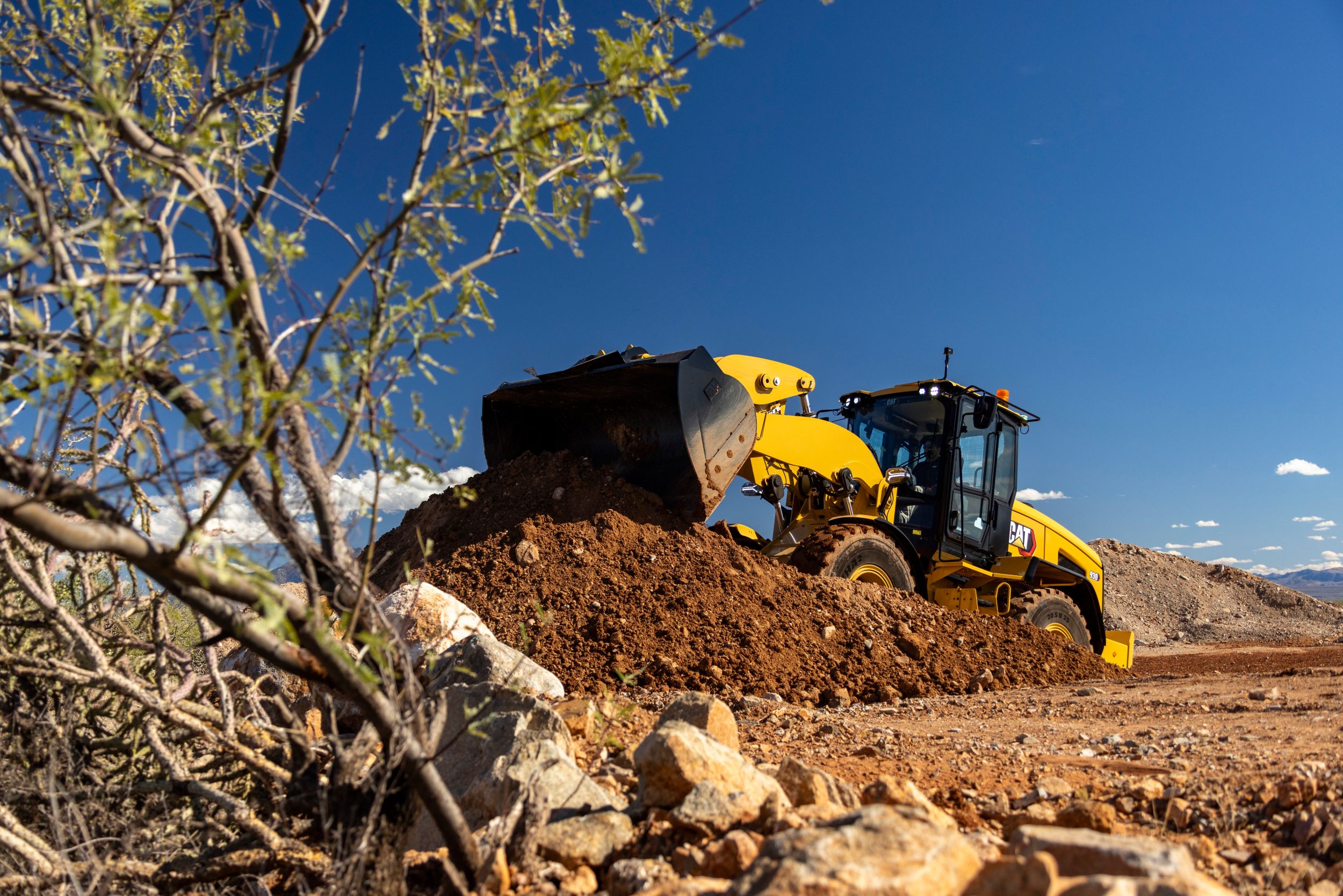

The Cat® 938 Small Wheel Loader sets the standard for productivity, fuel efficiency, operator comfort and low operating costs. Experience the industry benchmark.

Features At A Glance

Have a seat in the new Cat small wheel loader and enjoy automatic temperature control, class leading sound levels, enhanced all-around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on your jobsite.
An upgrade to multi-view camera and rear object detection gives you an extra eye on the jobsite while the new optional force feedback joystick steering keeps you feeling confident on those long shifts. The operator not present function helps to isolate the machine if you leave the environment; while seat belt notifications give you a gentle reminder to buckle up.

Experience the difference with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed working in combination with a new auto engine RPM mode. This provides efficiency as standard with a boost in power when you need it. Optimize traction and minimize wheel slip with a new Auto Wheel Torque system tuned to provide peak performance while maximizing tire life and keeping operating costs low. Track your production and accurately hit your load targets with Cat Payload.

Move more with the Caterpillar patented quick loading performance series buckets and optimized Z-bar linkage with enhanced forward visibility that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift and high tilt forces throughout the working range allow you to confidently handle loads with precise control.
Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer, and drive without compromise. Upgrade to autolube to make service easy and get to work quicker. Light the way with auto roading lights that come on at night fall.

Meet your application requirements and individual preferences with Caterpillar industry first Hystat™ Operator Modes featuring four unique power train settings. Select classic torque converter for smooth rollout, conventional hystat for aggressive engine braking, an ice mode that maximizes your control on slippery underfoot, and an all new single pedal mode for simplified use.
Fine tune machine performance with adjustments at your fingertips through programmable joysticks, soft touch buttons, and a new jog dial that works in combination with a standard touch screen display. Quickly recall attachment profiles that maintain key settings for versatility onthe jobsite and optimal efficiency.

Enjoy a full range of upgrades and accessories to configure your small wheel loader for a broader range of applications.
Utilize readily available services and maintenance parts including a range of self-service options (SSO) and dealer installed kits.

Specifications Standard Equipment Optional Equipment

Product Specifications for 938

Engine

Rated Engine Power - ISO 14396	188 hp 140 kW
Engine Model	Cat C7.1* Cat C7.1*
Performance Mode	Automatic Automatic
Rated Gross Power - Rated Engine Speed	1800 r/min 1800 r/min
Rated Engine Power - ISO 14396 (DIN)	190 mhp 190 mhp
Rated Net Power - SAE J1349 at Minimum Fan Speed	182 hp 136 kW
Rated Net Power - ISO 9249 at Minimum Fan Speed	182 hp 136 kW
Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed	188 mhp 188 mhp
Maximum Gross Torque - Engine Speed	1400 r/min 1400 r/min
Maximum Gross Torque - ISO 14396	672 ft·lbf 912 N·m
Maximum Net Torque - SAE J1349	646 ft·lbf 876 N·m
Maximum Net Torque - ISO 9249	653 ft·lbf 886 N·m
Displacement	427 in³ 7.01 l
Bore	4 in 105 mm
Stroke	5 in 135 mm
Note	Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed.

Weights

Operating Weight	33948 lb 15399 kg
Operating Weight - High Lift	34426 lb 15615 kg

Buckets

Bucket Capacities

2.5-5 m3 (3.3-6.5 yd3) 2.5-5 m3 (3.3-6.5 yd3)

Steering

Steering Cylinder - Bore Diameter	3.1 in 80 mm
Steering Cylinder - Rod Diameter	2 in 50 mm
Steering Cylinder - Stroke	15.7 in 399 mm
Maximum Flow - Steering Pump	34 gal/min 130 l/min
Maximum Working Pressure - Steering Pump	3500 psi 24130 kPa
Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited	3.1 s 3.1 s
Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed	2.3 s 2.3 s

Loader Hydraulic System

Maximum Flow - Implement Pump	50 gal/min 190 l/min
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*	50 gal/min 190 l/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow*	42 gal/min 160 l/min
Maximum Working Pressure - Implement Pump	4061 psi 28000 kPa
Relief Pressure - Tilt Cylinder	4351 psi 30000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure	4061 psi 28000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure	4351 psi 30000 kPa
Lift Cylinder: Standard Lift Linkage - Bore Diameter	4.7 in 120 mm
Lift Cylinder: Standard Lift Linkage - Rod Diameter	2.6 in 65 mm
Lift Cylinder: Standard Lift Linkage - Stroke	31.1 in 789 mm
Tilt Cylinder: Standard Lift Linkage - Bore Diameter	5.9 in 150 mm
Tilt Cylinder: Standard Lift Linkage - Rod Diameter	3.5 in 90 mm
Tilt Cylinder: Standard Lift Linkage - Stroke	21.9 in 555 mm
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift	5.5 s 5.5 s
Hydraulic Cycle Time - Dump (at Maximum Lift Height)	1.5 s 1.5 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level	2.7 s 2.7 s
Hydraulic Cycle Time - Total Cycle Time	9.7 s 9.7 s
Note	3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.

Service Refill Capacities

Fuel Tank	51.5 gal (US) 195 l
Cooling System	8.5 gal (US) 32 l
Engine Crankcase	5.2 gal (US) 19.5 l
Transmission - Gear Box	2.2 gal (US) 8.5 l
Front Axles	9.2 gal (US) 35 l
Rear Axles	9.2 gal (US) 35 l
Hydraulic System - Including Tank	45 gal (US) 170 l
Hydraulic Tank	23.8 gal (US) 90 l

Transmission

Forward and Reverse - Range 1*	1-13 km/h (0.6-8 mph) 1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2	8 mile/h 13 km/h
Forward and Reverse - Range 3	17 mile/h 27 km/h
Forward and Reverse - Range 4	25 mile/h 40 km/h
Note	Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).

Tires

Standard Size	20.5 R25, radial (L-3) 20.5 R25, radial (L-3)
Other Choices Include	20.5 R25, radial (L-5), 20.5-25 16 PR (L-3), 23.5-25, radial (L-3) 20.5 R25, radial (L-5), 20.5-25 16 PR (L-3), 23.5-25, radial (L-3)
Note (1)	Other tire choices are available. Contact your Cat dealer for details. Other tire choices are available. Contact your Cat dealer for details.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 LEVEL II ISO 3449:2005 LEVEL II

Axles

Front	Fixed; Open differential (standard); Locking differential (optional) Fixed; Open differential (standard); Locking differential (optional)
Rear	Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional)

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons).

Sound

Operator Sound Pressure (ISO 6396:2008)	68 dB(A) 68 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	101 dB(A) 101 dB(A)
Note (1)	Measurements were conducted with properly installed and maintained cab doors and windows closed. Measurements were conducted with properly installed and maintained cab doors and windows closed.

Sustainability

Recyclability

96% 96%

Dimensions with Bucket - Standard Lift

Height - Ground to Cab**	131.5 in 3340 mm
Height - Ground to Beacon**	146 in 3707 mm
Height - Ground to Axle Center**	26.9 in 685 mm
Height - Ground Clearance**	15.1 in 386 mm
Length - Overall*	301.8 in 7666 mm
Length - Rear Axle to Bumper	77.4 in 1968 mm
Length - Hitch to Front Axle	60 in 1525 mm
Length - Wheel Base	120 in 3050 mm
Clearance - Bucket at 45°*	111.1 in 2822 mm
Clearance - Load over Height**	132 in 3354 mm
Clearance - Level Bucket**	143.3 in 3642 mm
Height - Bucket Pin**	156.2 in 3969 mm
Height - Overall**	208.7 in 5301 mm
Reach - Bucket at 45°*	45.1 in 1146 mm
Carry Height - Bucket Pin	16.4 in 418 mm
Dig Depth**	3.9 in 100 mm
Width - Bucket	108.2 in 2750 mm
Width - Tread Center	82 in 2083 mm
Turning Radius - Over Bucket	241.2 in 6127 mm
Width - Over Tires	106 in 2693 mm
Turning Radius - Outside of Tires	218.3 in 5546 mm
Turning Radius - Inside of Tires	111.9 in 2843 mm
Rack Angle at Full Lift	54 ° 54 °
Dump Angle at Full Lift	49 ° 49 °
Rack Angle at Carry	44 ° 44 °
Departure Angle	33 ° 33 °
Articulation Angle	40 ° 40 °
Tipping Load - Straight (ISO 14397-1:2007)*	26017 lb 11801 kg
Tipping Load - Full Turn (ISO 14397-1:2007)*	22318 lb 10123 kg
Breakout*	28841 lb 13082 kg
Operating Weight	33948 lb 15399 kg
Note (1)	Vary with bucket. Vary with bucket.
Note (2)	Vary with tire. Vary with tire.
Note (3)	Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge.

Dimensions with Bucket - High Lift

Height - Ground to Cab**	131.5 in 3340 mm
Height - Ground to Beacon**	146 in 3707 mm
Height - Ground to Axle Center**	26.9 in 685 mm
Height - Ground Clearance**	15.1 in 386 mm
Length - Overall*	331 in 8406 mm
Length - Rear Axle to Bumper	77.4 in 1968 mm
Length - Hitch to Front Axle	60 in 1525 mm
Length - Wheel Base	120 in 3050 mm
Clearance - Bucket at 45°*	134 in 3403 mm
Clearance - Load over Height**	132.3 in 3561 mm
Clearance - Level Bucket**	166.2 in 4223 mm
Height - Bucket Pin**	179.1 in 4550 mm
Height - Overall**	231.5 in 5881 mm
Reach - Bucket at 45°*	55.6 in 1413 mm
Carry Height - Bucket Pin	24.9 in 633 mm
Dig Depth**	5.3 in 135 mm
Width - Bucket	108.2 in 2750 mm
Width - Tread Center	82 in 2083 mm
Turning Radius - Over Bucket	255.4 in 6488 mm
Width - Over Tires	106 in 2693 mm
Turning Radius - Outside of Tires	218.3 in 5546 mm
Turning Radius - Inside of Tires	111.9 in 2843 mm
Rack Angle at Full Lift	53 ° 53 °
Dump Angle at Full Lift	47 ° 47 °
Rack Angle at Carry	49 ° 49 °
Departure Angle	33 ° 33 °
Articulation Angle	40 ° 40 °
Tipping Load - Straight (ISO 14397-1:2007)*	19392 lb 8796 kg
Tipping Load - Full Turn (ISO 14397-1:2007)*	16484 lb 7477 kg
Breakout*	27723 lb 12575 kg
Operating Weight	34426 lb 15616 kg
Note (1)	Vary with bucket. Vary with bucket.
Note (2)	Vary with tire. Vary with tire.
Note (3)	Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge.

938 Standard Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

75 mm (3 in) retractable seatbelt

Automatic temperature control

Cab, enclosed ROPS/FOPS pressurized and sound suppressed

Push to Start

8 Inch Touch Screen

Programmable Joystick

Cup holders

External mirrors with lower parabolic

Ground level cab door release

Hydraulic control lockout

Interior cab lighting, door

Lunch box storage

Radio ready speakers

Seat mounted electronic implement controls, adjustable

Sliding glass on side window

Column mounted multi function control lights, wipers, turn signal

Suspension seat, fabric

Tilt steering wheel

Tinted front glass

Wet arm wiper/washer, 2-speed and intermittent, front

Wet arm wiper washer, rear

Mounting Provision

Digital hour meter, odometer and tachometer

Digital ground speedometer and direction indicator

Engine coolant temperature gauge

Fuel and diesel exhaust fluid levels

Hydraulic oil temperature gauge

Fuel and diesel exhaust fluid levels

Hydraulic oil temperature gauge

POWER TRAIN

Cat C7.1 engine

Auto idle shut down feature

Auto Engine RPM

Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

Turbocharged and aftercooled

Filtered crankcase breather

Power Modes (standard and performance)

Dry type air cleaner

Coolant protection to –34 °C (–29 °F)

Fuel priming pump, automatic

Fuel water separator

Axle seal guards

Enclosed wet disc full hydraulic brakes

Parking brake, electric

Lubed for life driveshafts

Hydrostatic transmission with electronic control

Operator modes (TC, Hystat, Single Pedal and Ice)

Directional shift aggressiveness (fast, medium, slow)

Auto Wheel Torque control, adjust wheel torque

Creeper control, adjust ground speed

Single plane cooling package, wide 6 fins per inch density

Hydraulically driven demand cooling fan

Scheduled Oil Sampling (S·O·SSM) port, engine, coolant, transmission

HYDRAULICS

Automatic lift and bucket kickouts, adjustable in-cab

Bucket and fork modes, adjustable in-cab

Cylinder damping at kickout and mechanical end stops

Fine mode control (fast, medium, slow)

Hydraulic response setting (fast, medium, slow)

Hydraulic diagnostic connectors and S·O·S ports

Hydraulic sight gauge, visible

Load sensing hydraulics and steering

Seat mounted hydraulic joystick controls

ELECTRICAL

Alternator, 115-amp, heavy duty

12V power supply in cab (2)

Batteries, 1,000 CCA (2) 24-volt system, disconnect switch

Back up alarm

Emergency shutdown switch

LED rear stop and turn lights

Heavy duty gear reduction starter

Product Link™

Remote jump start post

Resettable main and critical function breakers

Roading lights front and rear

OTHER

Large-access enclosure doors with adjustable close/open force

Parallel lift loader linkage

Recovery hitch with pin

Remote mounted lubrication points

Lockable compartments

938 Optional Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

Joystick steering – 25 mph (40 kph) capable

Radio packages

Telescoping Steering Column

Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest

Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.

Rear Object Detection

Multi View Camera

Front View Camera, roof mounted

Heated external Mirrors (2)

Electrically adjustable and heated external mirrors (2)

Internal Mirrors (2)

Sunscreen, front and rear

Operator Not Present sytem

Powered precleaned for cab air

Cab guarding

POWER TRAIN

Differential, limited slip, rear

Differntial lock in front axle

Powertrain Guarding

Range of Tire Options

Fenders (extended cover and full coverage)

HYDRAULICS

Auxiliary flow, third and fourth function

Connect Under Pressure Disconnects

Ride Control System, adjustable via display

Autolube, integrated in display

Debris packages (low, medium, high)

ELECTRICAL

Cold start package

Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total)

Lights, auxiliary, halogen or LED with engine compartment lights

Beacon light, strobe

Light Guarding

OTHER OPTIONAL EQUIPMENT

Coupler (Fusion)

Heavy Counterweight

Cat Payload Printer

Cylinder Guarding

Range of Work Tool Attachments

Product Specifications for 938

Download Print

Engine

Rated Engine Power - ISO 14396	188 hp 140 kW
Engine Model	Cat C7.1* Cat C7.1*
Performance Mode	Automatic Automatic
Rated Gross Power - Rated Engine Speed	1800 r/min 1800 r/min
Rated Engine Power - ISO 14396 (DIN)	190 mhp 190 mhp
Rated Net Power - SAE J1349 at Minimum Fan Speed	182 hp 136 kW
Rated Net Power - ISO 9249 at Minimum Fan Speed	182 hp 136 kW
Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed	188 mhp 188 mhp
Maximum Gross Torque - Engine Speed	1400 r/min 1400 r/min
Maximum Gross Torque - ISO 14396	672 ft·lbf 912 N·m
Maximum Net Torque - SAE J1349	646 ft·lbf 876 N·m
Maximum Net Torque - ISO 9249	653 ft·lbf 886 N·m
Displacement	427 in³ 7.01 l
Bore	4 in 105 mm
Stroke	5 in 135 mm
Note	Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed.

Weights

Operating Weight	33948 lb 15399 kg
Operating Weight - High Lift	34426 lb 15615 kg

Buckets

Bucket Capacities

2.5-5 m3 (3.3-6.5 yd3) 2.5-5 m3 (3.3-6.5 yd3)

Steering

Steering Cylinder - Bore Diameter	3.1 in 80 mm
Steering Cylinder - Rod Diameter	2 in 50 mm
Steering Cylinder - Stroke	15.7 in 399 mm
Maximum Flow - Steering Pump	34 gal/min 130 l/min
Maximum Working Pressure - Steering Pump	3500 psi 24130 kPa
Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited	3.1 s 3.1 s
Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed	2.3 s 2.3 s

Loader Hydraulic System

Maximum Flow - Implement Pump	50 gal/min 190 l/min
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*	50 gal/min 190 l/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow*	42 gal/min 160 l/min
Maximum Working Pressure - Implement Pump	4061 psi 28000 kPa
Relief Pressure - Tilt Cylinder	4351 psi 30000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure	4061 psi 28000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure	4351 psi 30000 kPa
Lift Cylinder: Standard Lift Linkage - Bore Diameter	4.7 in 120 mm
Lift Cylinder: Standard Lift Linkage - Rod Diameter	2.6 in 65 mm
Lift Cylinder: Standard Lift Linkage - Stroke	31.1 in 789 mm
Tilt Cylinder: Standard Lift Linkage - Bore Diameter	5.9 in 150 mm
Tilt Cylinder: Standard Lift Linkage - Rod Diameter	3.5 in 90 mm
Tilt Cylinder: Standard Lift Linkage - Stroke	21.9 in 555 mm
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift	5.5 s 5.5 s
Hydraulic Cycle Time - Dump (at Maximum Lift Height)	1.5 s 1.5 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level	2.7 s 2.7 s
Hydraulic Cycle Time - Total Cycle Time	9.7 s 9.7 s
Note	3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.

Service Refill Capacities

Fuel Tank	51.5 gal (US) 195 l
Cooling System	8.5 gal (US) 32 l
Engine Crankcase	5.2 gal (US) 19.5 l
Transmission - Gear Box	2.2 gal (US) 8.5 l
Front Axles	9.2 gal (US) 35 l
Rear Axles	9.2 gal (US) 35 l
Hydraulic System - Including Tank	45 gal (US) 170 l
Hydraulic Tank	23.8 gal (US) 90 l

Transmission

Forward and Reverse - Range 1*	1-13 km/h (0.6-8 mph) 1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2	8 mile/h 13 km/h
Forward and Reverse - Range 3	17 mile/h 27 km/h
Forward and Reverse - Range 4	25 mile/h 40 km/h
Note	Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).

Tires

Standard Size	20.5 R25, radial (L-3) 20.5 R25, radial (L-3)
Other Choices Include	20.5 R25, radial (L-5), 20.5-25 16 PR (L-3), 23.5-25, radial (L-3) 20.5 R25, radial (L-5), 20.5-25 16 PR (L-3), 23.5-25, radial (L-3)
Note (1)	Other tire choices are available. Contact your Cat dealer for details. Other tire choices are available. Contact your Cat dealer for details.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 LEVEL II ISO 3449:2005 LEVEL II

Axles

Front	Fixed; Open differential (standard); Locking differential (optional) Fixed; Open differential (standard); Locking differential (optional)
Rear	Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional)

Air Conditioning System

Air Conditioning

Sound

Operator Sound Pressure (ISO 6396:2008)	68 dB(A) 68 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	101 dB(A) 101 dB(A)
Note (1)	Measurements were conducted with properly installed and maintained cab doors and windows closed. Measurements were conducted with properly installed and maintained cab doors and windows closed.

Sustainability

Recyclability

96% 96%

Dimensions with Bucket - Standard Lift

Height - Ground to Cab**	131.5 in 3340 mm
Height - Ground to Beacon**	146 in 3707 mm
Height - Ground to Axle Center**	26.9 in 685 mm
Height - Ground Clearance**	15.1 in 386 mm
Length - Overall*	301.8 in 7666 mm
Length - Rear Axle to Bumper	77.4 in 1968 mm
Length - Hitch to Front Axle	60 in 1525 mm
Length - Wheel Base	120 in 3050 mm
Clearance - Bucket at 45°*	111.1 in 2822 mm
Clearance - Load over Height**	132 in 3354 mm
Clearance - Level Bucket**	143.3 in 3642 mm
Height - Bucket Pin**	156.2 in 3969 mm
Height - Overall**	208.7 in 5301 mm
Reach - Bucket at 45°*	45.1 in 1146 mm
Carry Height - Bucket Pin	16.4 in 418 mm
Dig Depth**	3.9 in 100 mm
Width - Bucket	108.2 in 2750 mm
Width - Tread Center	82 in 2083 mm
Turning Radius - Over Bucket	241.2 in 6127 mm
Width - Over Tires	106 in 2693 mm
Turning Radius - Outside of Tires	218.3 in 5546 mm
Turning Radius - Inside of Tires	111.9 in 2843 mm
Rack Angle at Full Lift	54 ° 54 °
Dump Angle at Full Lift	49 ° 49 °
Rack Angle at Carry	44 ° 44 °
Departure Angle	33 ° 33 °
Articulation Angle	40 ° 40 °
Tipping Load - Straight (ISO 14397-1:2007)*	26017 lb 11801 kg
Tipping Load - Full Turn (ISO 14397-1:2007)*	22318 lb 10123 kg
Breakout*	28841 lb 13082 kg
Operating Weight	33948 lb 15399 kg
Note (1)	Vary with bucket. Vary with bucket.
Note (2)	Vary with tire. Vary with tire.
Note (3)	Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge.

Dimensions with Bucket - High Lift

Height - Ground to Cab**	131.5 in 3340 mm
Height - Ground to Beacon**	146 in 3707 mm
Height - Ground to Axle Center**	26.9 in 685 mm
Height - Ground Clearance**	15.1 in 386 mm
Length - Overall*	331 in 8406 mm
Length - Rear Axle to Bumper	77.4 in 1968 mm
Length - Hitch to Front Axle	60 in 1525 mm
Length - Wheel Base	120 in 3050 mm
Clearance - Bucket at 45°*	134 in 3403 mm
Clearance - Load over Height**	132.3 in 3561 mm
Clearance - Level Bucket**	166.2 in 4223 mm
Height - Bucket Pin**	179.1 in 4550 mm
Height - Overall**	231.5 in 5881 mm
Reach - Bucket at 45°*	55.6 in 1413 mm
Carry Height - Bucket Pin	24.9 in 633 mm
Dig Depth**	5.3 in 135 mm
Width - Bucket	108.2 in 2750 mm
Width - Tread Center	82 in 2083 mm
Turning Radius - Over Bucket	255.4 in 6488 mm
Width - Over Tires	106 in 2693 mm
Turning Radius - Outside of Tires	218.3 in 5546 mm
Turning Radius - Inside of Tires	111.9 in 2843 mm
Rack Angle at Full Lift	53 ° 53 °
Dump Angle at Full Lift	47 ° 47 °
Rack Angle at Carry	49 ° 49 °
Departure Angle	33 ° 33 °
Articulation Angle	40 ° 40 °
Tipping Load - Straight (ISO 14397-1:2007)*	19392 lb 8796 kg
Tipping Load - Full Turn (ISO 14397-1:2007)*	16484 lb 7477 kg
Breakout*	27723 lb 12575 kg
Operating Weight	34426 lb 15616 kg
Note (1)	Vary with bucket. Vary with bucket.
Note (2)	Vary with tire. Vary with tire.
Note (3)	Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge. Dimensions listed are for a machine configured with heavy counterweights, Michelin 20.5 R25 (L-3) XHA2 tires, 80 kg (176 lb) operator, and power train guard. Values are listed for a 2.7 m3 (3.5 yd3) pin on, general purpose performance series bucket with bolt-on cutting edge.

938 Standard Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

75 mm (3 in) retractable seatbelt

Automatic temperature control

Cab, enclosed ROPS/FOPS pressurized and sound suppressed

Push to Start

8 Inch Touch Screen

Programmable Joystick

Cup holders

External mirrors with lower parabolic

Ground level cab door release

Hydraulic control lockout

Interior cab lighting, door

Lunch box storage

Radio ready speakers

Seat mounted electronic implement controls, adjustable

Sliding glass on side window

Column mounted multi function control lights, wipers, turn signal

Suspension seat, fabric

Tilt steering wheel

Tinted front glass

Wet arm wiper/washer, 2-speed and intermittent, front

Wet arm wiper washer, rear

Mounting Provision

Digital hour meter, odometer and tachometer

Digital ground speedometer and direction indicator

Engine coolant temperature gauge

Fuel and diesel exhaust fluid levels

Hydraulic oil temperature gauge

Fuel and diesel exhaust fluid levels

Hydraulic oil temperature gauge

POWER TRAIN

Cat C7.1 engine

Auto idle shut down feature

Auto Engine RPM

Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

Turbocharged and aftercooled

Filtered crankcase breather

Power Modes (standard and performance)

Dry type air cleaner

Coolant protection to –34 °C (–29 °F)

Fuel priming pump, automatic

Fuel water separator

Axle seal guards

Enclosed wet disc full hydraulic brakes

Parking brake, electric

Lubed for life driveshafts

Hydrostatic transmission with electronic control

Operator modes (TC, Hystat, Single Pedal and Ice)

Directional shift aggressiveness (fast, medium, slow)

Auto Wheel Torque control, adjust wheel torque

Creeper control, adjust ground speed

Single plane cooling package, wide 6 fins per inch density

Hydraulically driven demand cooling fan

Scheduled Oil Sampling (S·O·SSM) port, engine, coolant, transmission

HYDRAULICS

Automatic lift and bucket kickouts, adjustable in-cab

Bucket and fork modes, adjustable in-cab

Cylinder damping at kickout and mechanical end stops

Fine mode control (fast, medium, slow)

Hydraulic response setting (fast, medium, slow)

Hydraulic diagnostic connectors and S·O·S ports

Hydraulic sight gauge, visible

Load sensing hydraulics and steering

Seat mounted hydraulic joystick controls

ELECTRICAL

Alternator, 115-amp, heavy duty

12V power supply in cab (2)

Batteries, 1,000 CCA (2) 24-volt system, disconnect switch

Back up alarm

Emergency shutdown switch

LED rear stop and turn lights

Heavy duty gear reduction starter

Product Link™

Remote jump start post

Resettable main and critical function breakers

Roading lights front and rear

OTHER

Large-access enclosure doors with adjustable close/open force

Parallel lift loader linkage

Recovery hitch with pin

Remote mounted lubrication points

Lockable compartments

938 Optional Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

Joystick steering – 25 mph (40 kph) capable

Radio packages

Telescoping Steering Column

Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest

Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.

Rear Object Detection

Multi View Camera

Front View Camera, roof mounted

Heated external Mirrors (2)

Electrically adjustable and heated external mirrors (2)

Internal Mirrors (2)

Sunscreen, front and rear

Operator Not Present sytem

Powered precleaned for cab air

Cab guarding

POWER TRAIN

Differential, limited slip, rear

Differntial lock in front axle

Powertrain Guarding

Range of Tire Options

Fenders (extended cover and full coverage)

HYDRAULICS

Auxiliary flow, third and fourth function

Connect Under Pressure Disconnects

Ride Control System, adjustable via display

Autolube, integrated in display

Debris packages (low, medium, high)

ELECTRICAL

Cold start package

Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total)

Lights, auxiliary, halogen or LED with engine compartment lights

Beacon light, strobe

Light Guarding

OTHER OPTIONAL EQUIPMENT

Coupler (Fusion)

Heavy Counterweight

Cat Payload Printer

Cylinder Guarding

Range of Work Tool Attachments

See how 938 compares against frequently compared products.

Wheel Loaders

Selected

938

Rated Engine Power - ISO 14396: 188 hp; 140 kW
Operating Weight: 33948 lb; 15399 kg
Bucket Capacities: 2.5-5 m3 (3.3-6.5 yd3); 2.5-5 m3 (3.3-6.5 yd3)

Wheel Loaders

930

Rated Engine Power - ISO 14396: 160 hp; 119 kW
Operating Weight: 29202 lb; 13246 kg
Bucket Capacities: 1.9-5 m3 (2.5-6.5 yd3); 1.9-5 m3 (2.5-6.5 yd3)

View Details

Wheel Loaders

924K

Maximum Gross Power: 143 hp; 105 kW
Operating Weight: 26004 lb; 11795 kg
Bucket Capacities: 1.7-5 m3 (2.2-6.5 yd3); 1.7-5 m3 (2.2-6.5 yd3)

View Details

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

360 View

Studio Shot

Front View

Top View

Left View

Rear View

Bottom View

Right View

Enable Cookies

Enable Cookies

Small Wheel Loaders 938

Overview

Configured for Success

Features At A Glance

Product Specifications for 938

Engine

Weights

Buckets

Steering

Loader Hydraulic System

Service Refill Capacities

Transmission

Tires

Cab

Axles

Air Conditioning System

Sound

Sustainability

Dimensions with Bucket - Standard Lift

Dimensions with Bucket - High Lift

938 Standard Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

POWER TRAIN

HYDRAULICS

ELECTRICAL

OTHER

938 Optional Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

POWER TRAIN

HYDRAULICS

ELECTRICAL

OTHER OPTIONAL EQUIPMENT

Product Specifications for 938

Engine

Weights

Buckets

Steering

Loader Hydraulic System

Service Refill Capacities

Transmission

Tires

Cab

Axles

Air Conditioning System

Sound

Sustainability

Dimensions with Bucket - Standard Lift

Dimensions with Bucket - High Lift

938 Standard Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

POWER TRAIN

HYDRAULICS

ELECTRICAL

OTHER

938 Optional Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

POWER TRAIN

HYDRAULICS

ELECTRICAL

OTHER OPTIONAL EQUIPMENT

See how 938 compares against frequently compared products.

Tools And Expert Help At Every Turn

Payment Calculator

Current Offers

Rental Options

Used Options

Find Dealer

assignment Product Brochures and More Are Ready to Download!

Media Gallery

Photos

360 View

Related Products

Brooms

Angle Brooms

Product Brochures and More Are Ready to Download!
