Side Dump Buckets 1.91 m3 (2.5 yd3), Fusion™ Coupler

Request A Price Click for Price

Key Specs

Capacity: 2.5 yd³; 1.91 m³

Weight: 3728 lb; 1691 kg

Dump Side: Left; Left

1.91 m3 (2.5 yd3), Fusion™ Coupler
Change model

Overview

For heavy duty rock loading, side dump buckets with rock rack and V-type cutting edges and teeth are available.

Features At A Glance

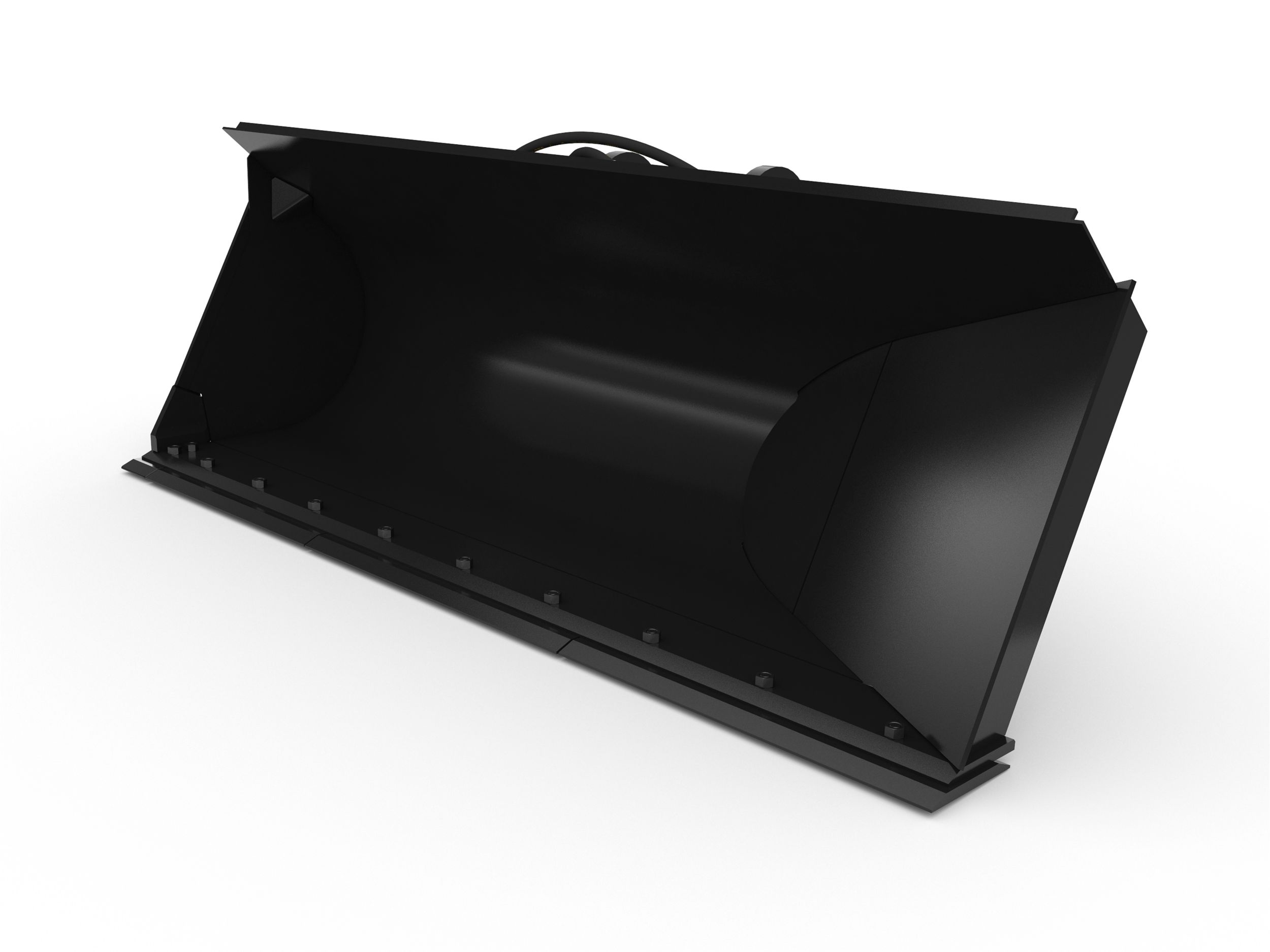

Designed for loading, carrying, leveling, back-filling and dumping in a variety of applications and materials. Cat® Side Dump buckets are capable of dumping forward or to the left side and provide the versatility required in tight work areas and congested environments.

Easily load and unload material from both directions (side way or forward).

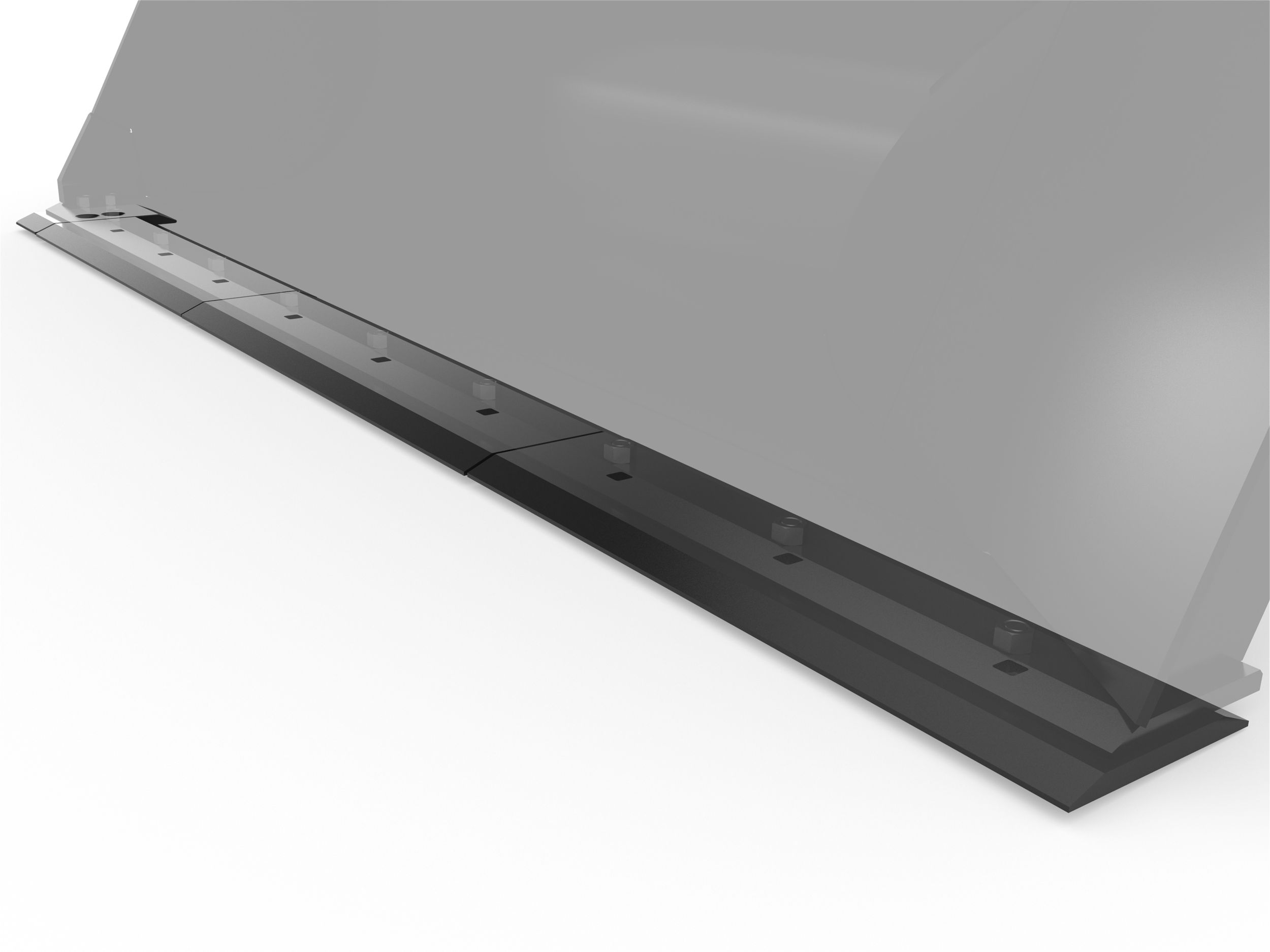

Segmented cutting edges provide a reduced operation cost, are easy to transport as a replaceable part, and easy to replace according to localized wear on each portion of the cutting edge.

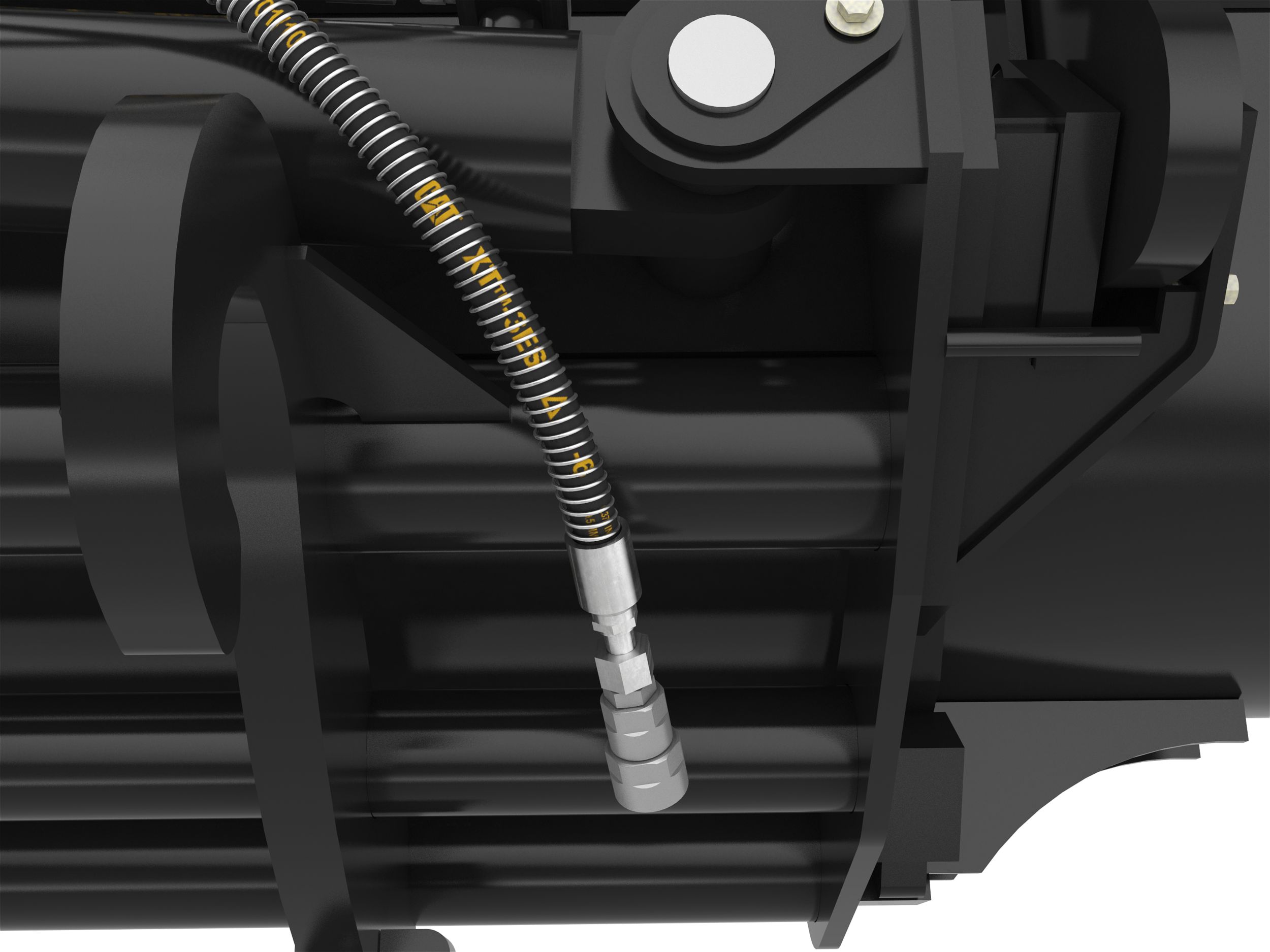

While the synthetic rubber outer cover is oil, weather, and abrasion resistant, these hoses provide easier installation, long life and excellent dependability.

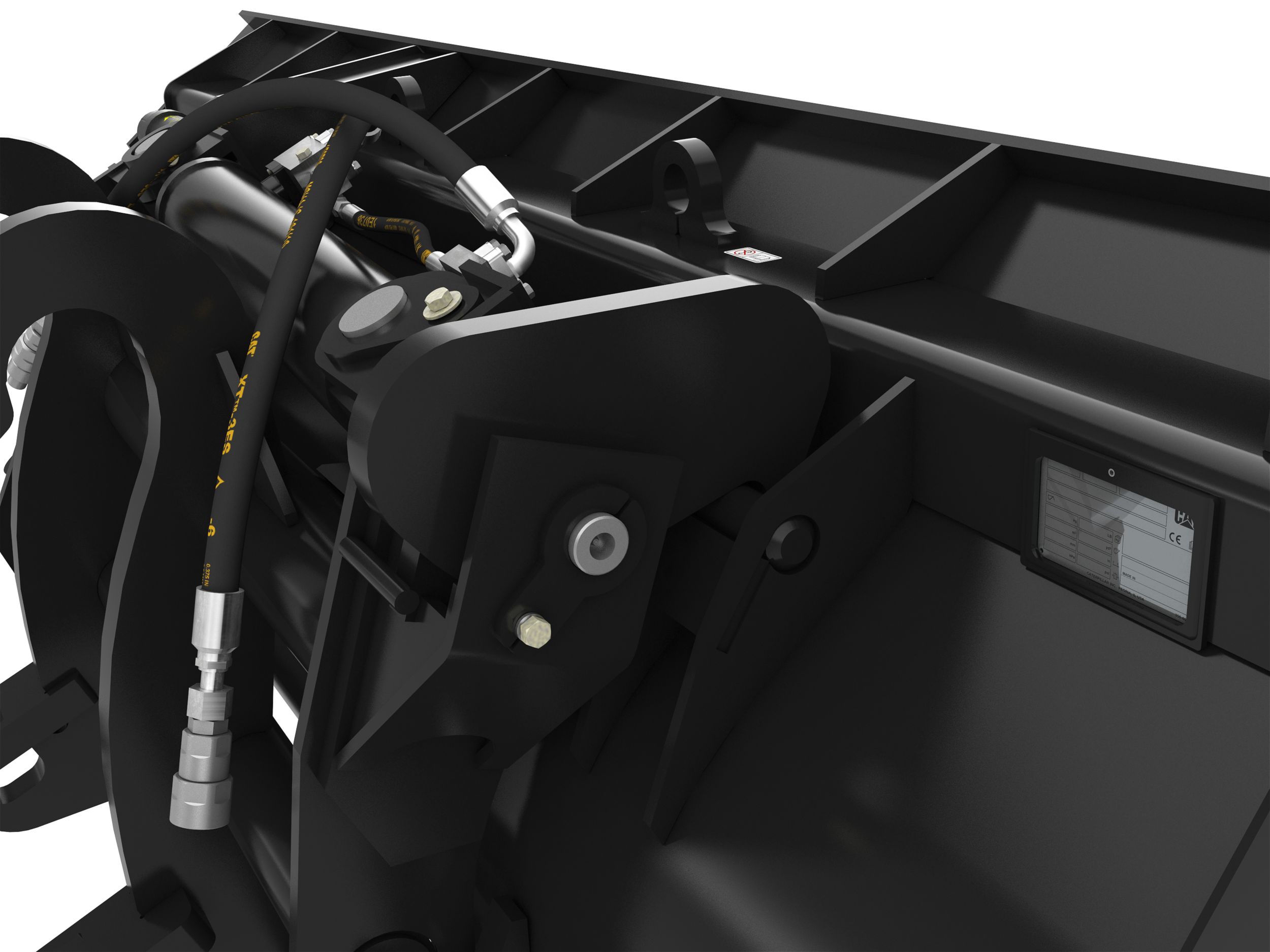

An automatic lockout is available to lock the side dump movement at the moment to dumb forward, avoiding unexpected movements.

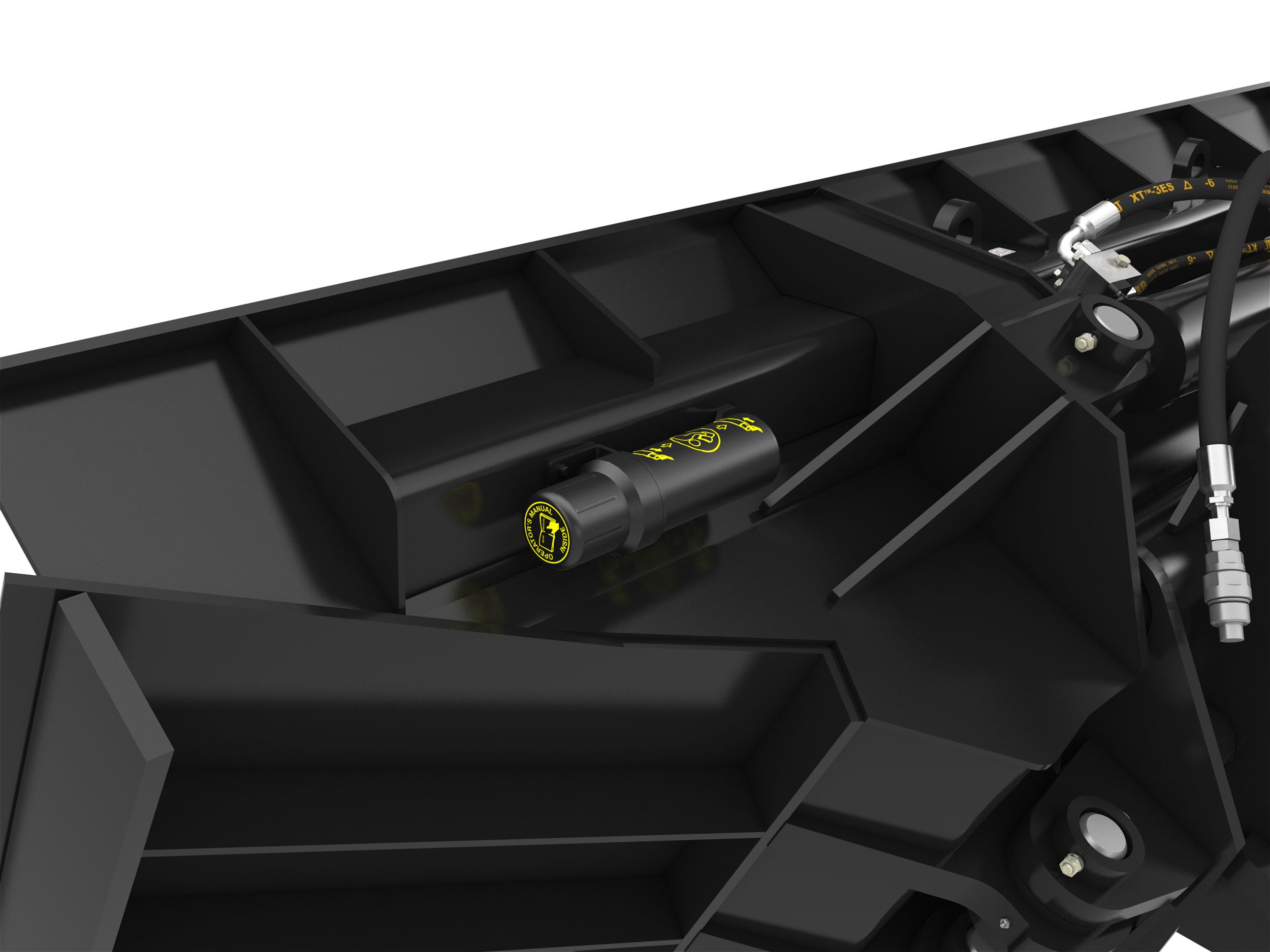

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Product Specifications for 1.91 m3 (2.5 yd3), Fusion™ Coupler

Capacity	2.5 yd³ 1.91 m³
Weight	3728 lb 1691 kg
Dump Side	Left Left
Overall Width	122.2 in 3105 mm
Overall Length	54.6 in 1388 mm
Overall Height	43.2 in 1097 mm
Dump Angle	75 Degrees 75 Degrees
Quick Connect Type	Twist On/Off Twist On/Off
Interface Type	Fusion™ Coupler Fusion™ Coupler
Required Hydraulics	3rd Function 3rd Function

Product Specifications for 1.91 m3 (2.5 yd3), Fusion™ Coupler

Download Print

Capacity	2.5 yd³ 1.91 m³
Weight	3728 lb 1691 kg
Dump Side	Left Left
Overall Width	122.2 in 3105 mm
Overall Length	54.6 in 1388 mm
Overall Height	43.2 in 1097 mm
Dump Angle	75 Degrees 75 Degrees
Quick Connect Type	Twist On/Off Twist On/Off
Interface Type	Fusion™ Coupler Fusion™ Coupler
Required Hydraulics	3rd Function 3rd Function

Tools And Expert Help At Every Turn

Payment Calculator

Current Offers

Rental Options

Used Options

Find Dealer

Media Gallery

Photos

Videos

Studio Shot

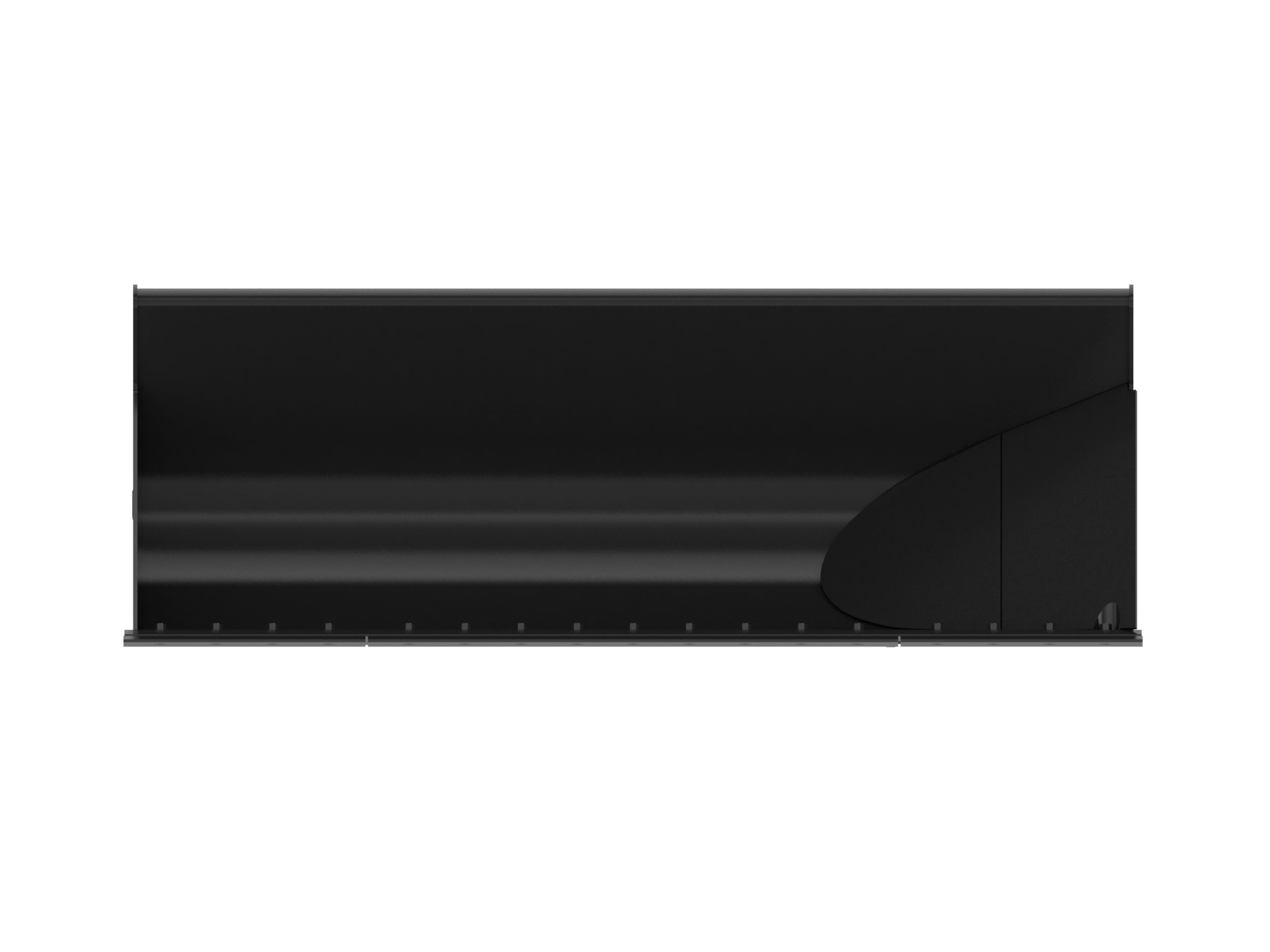

Front View

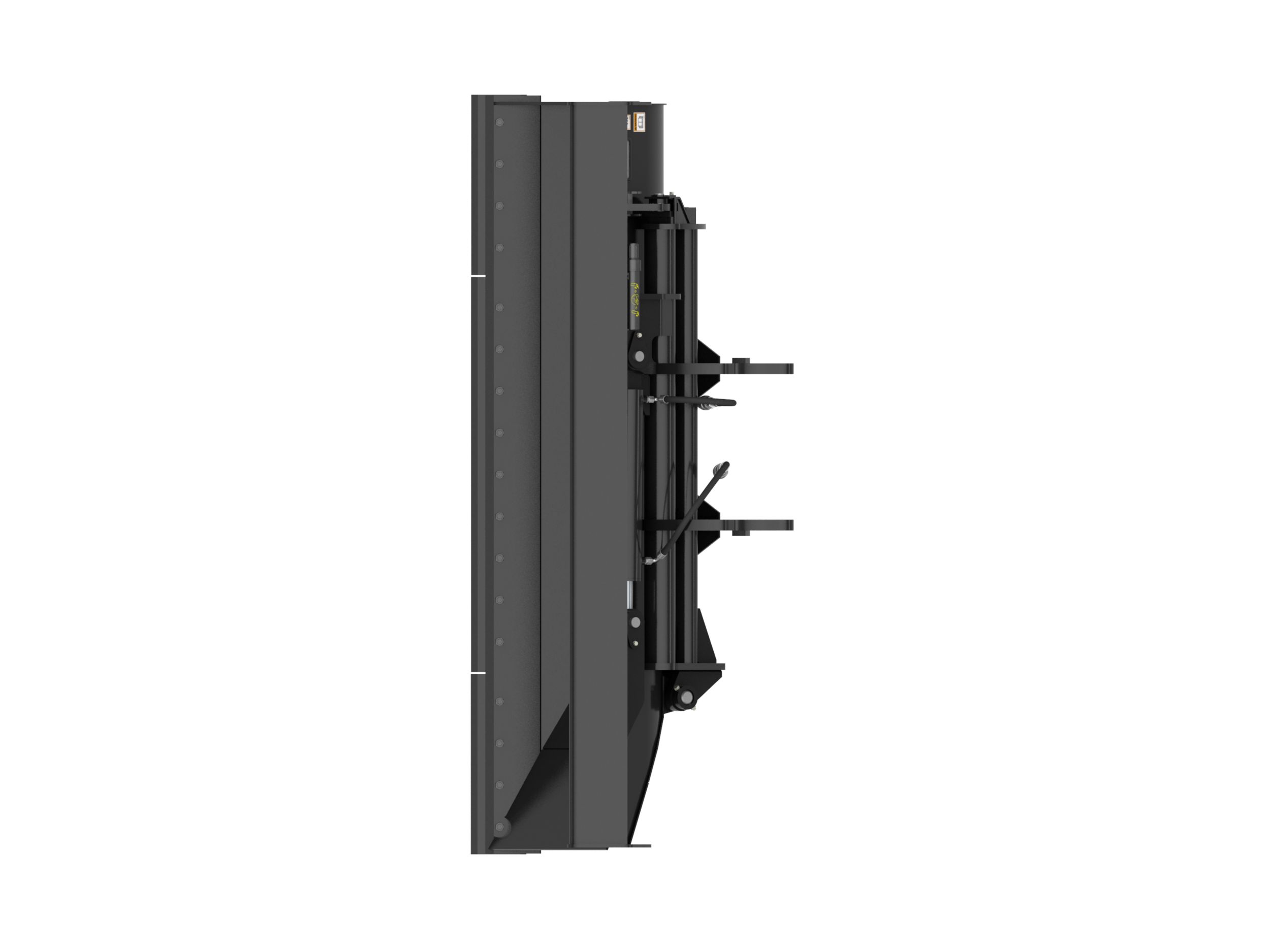

Top View

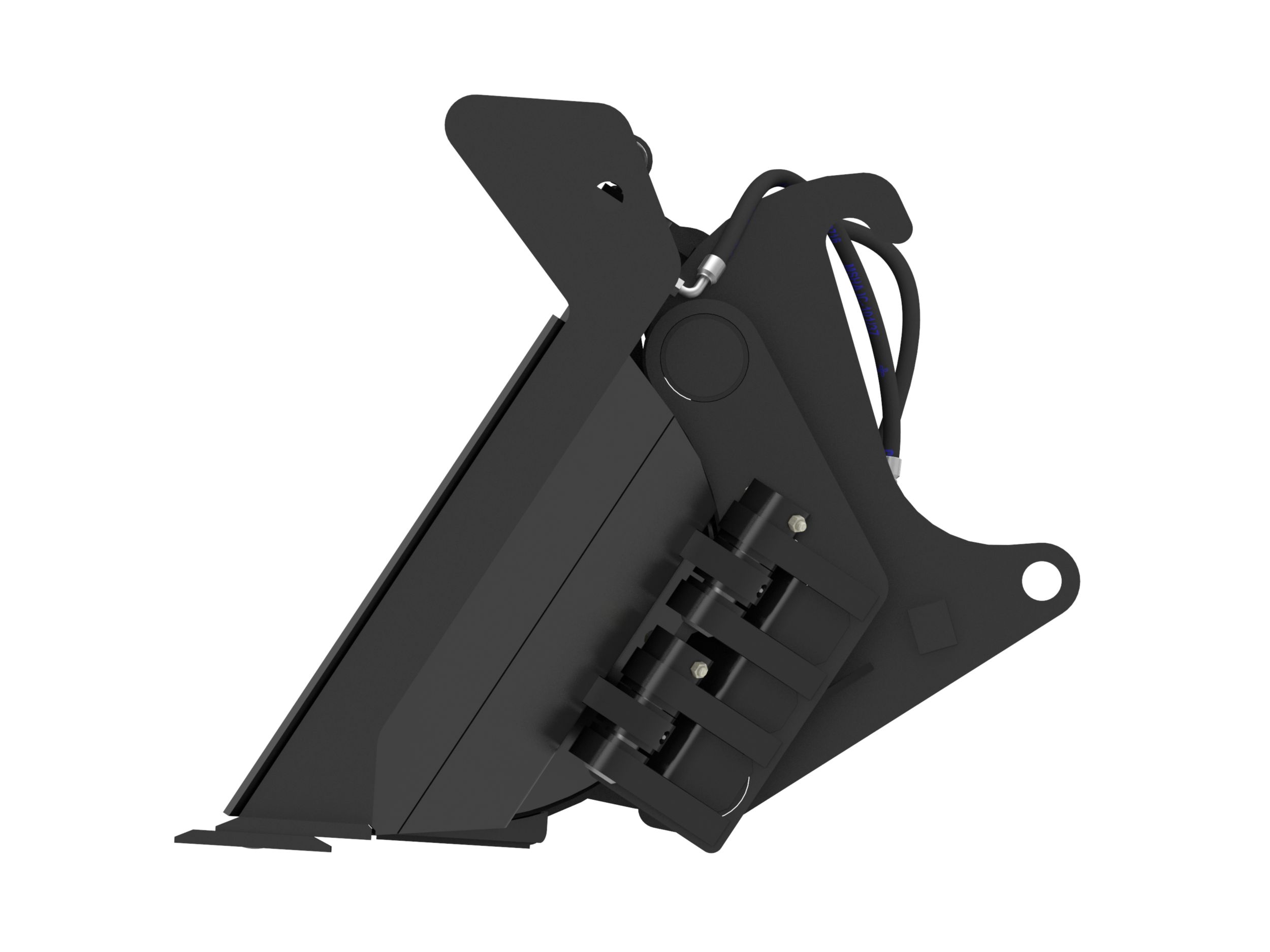

Left View

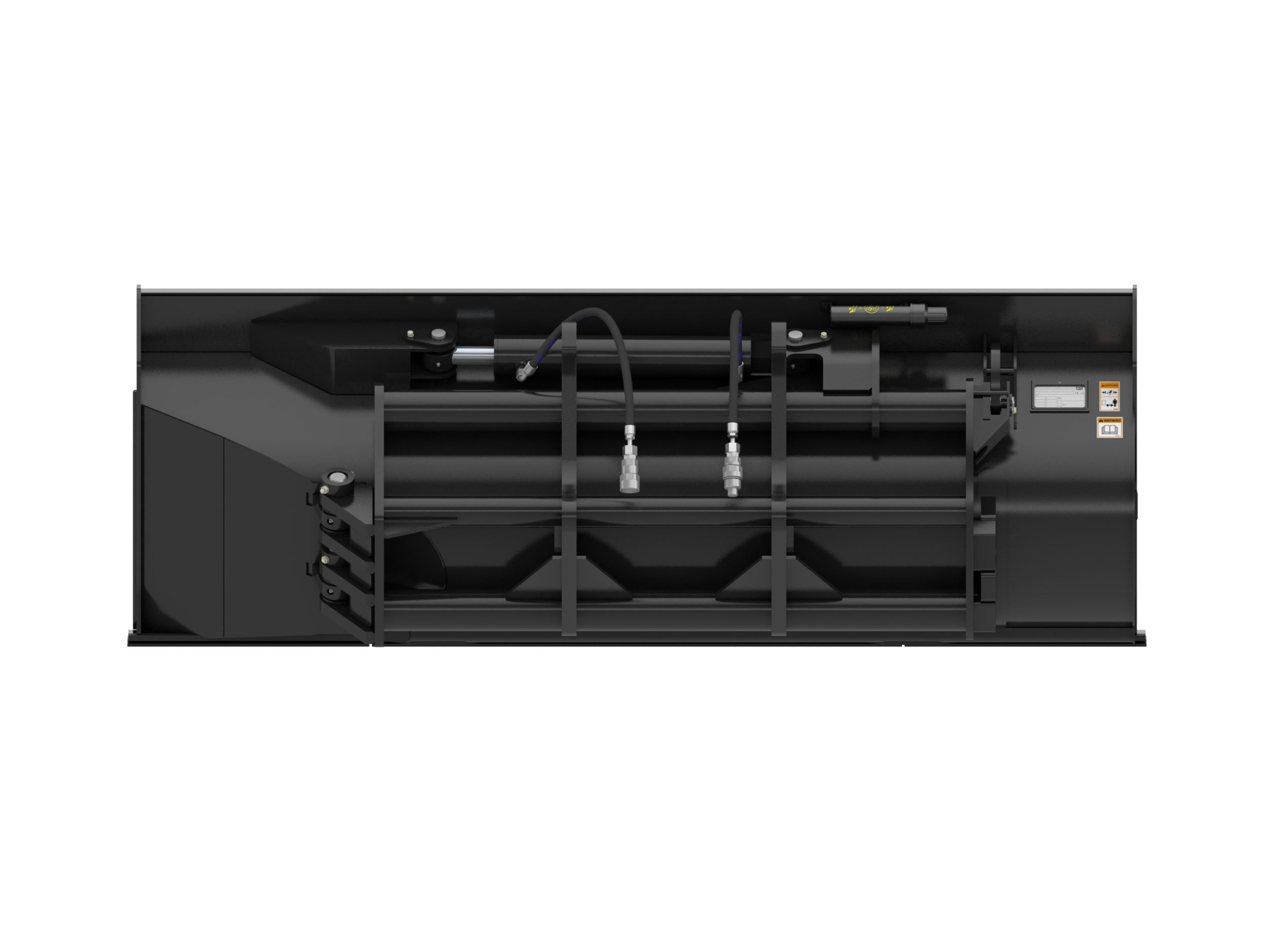

Rear View

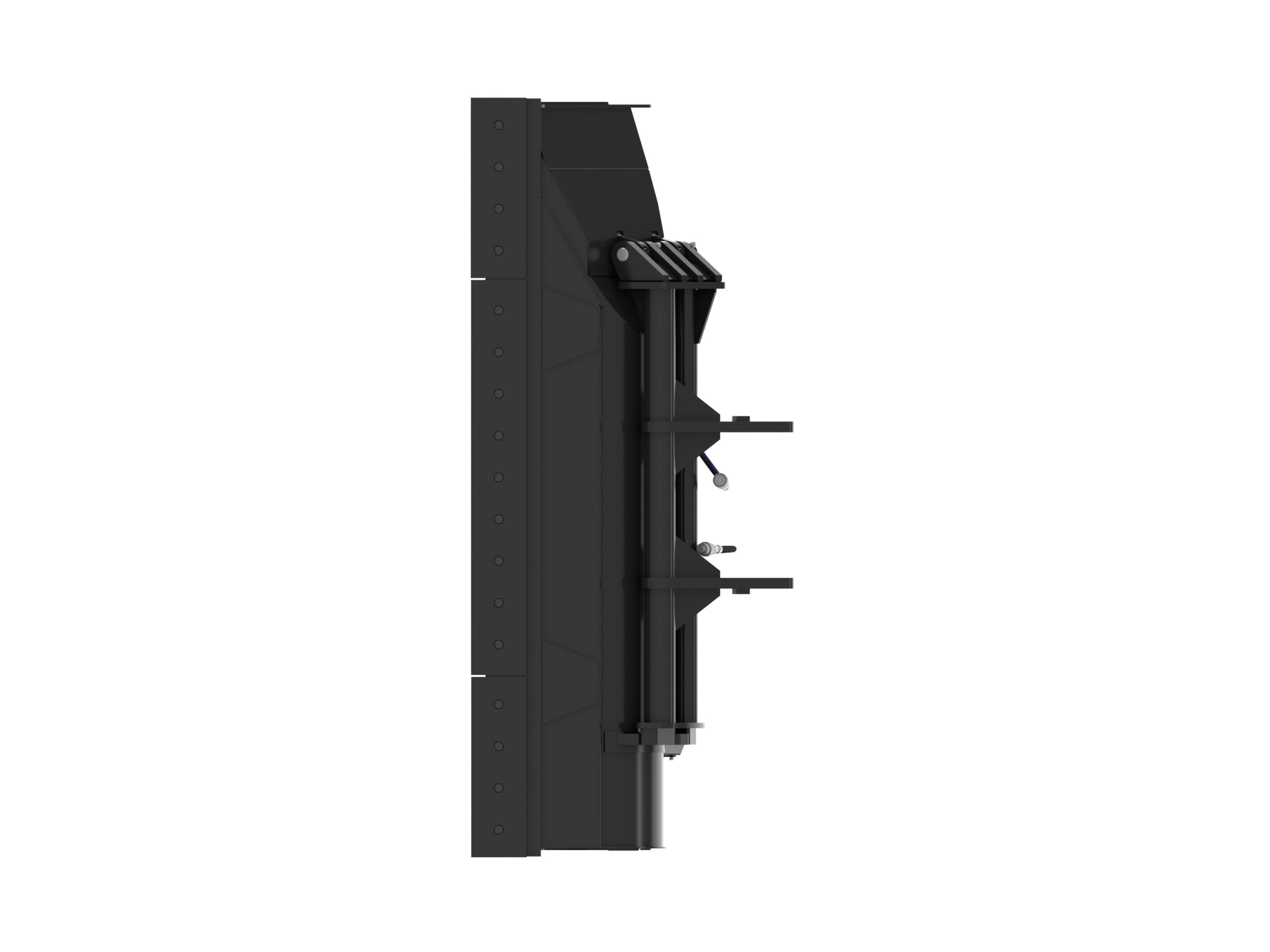

Bottom View

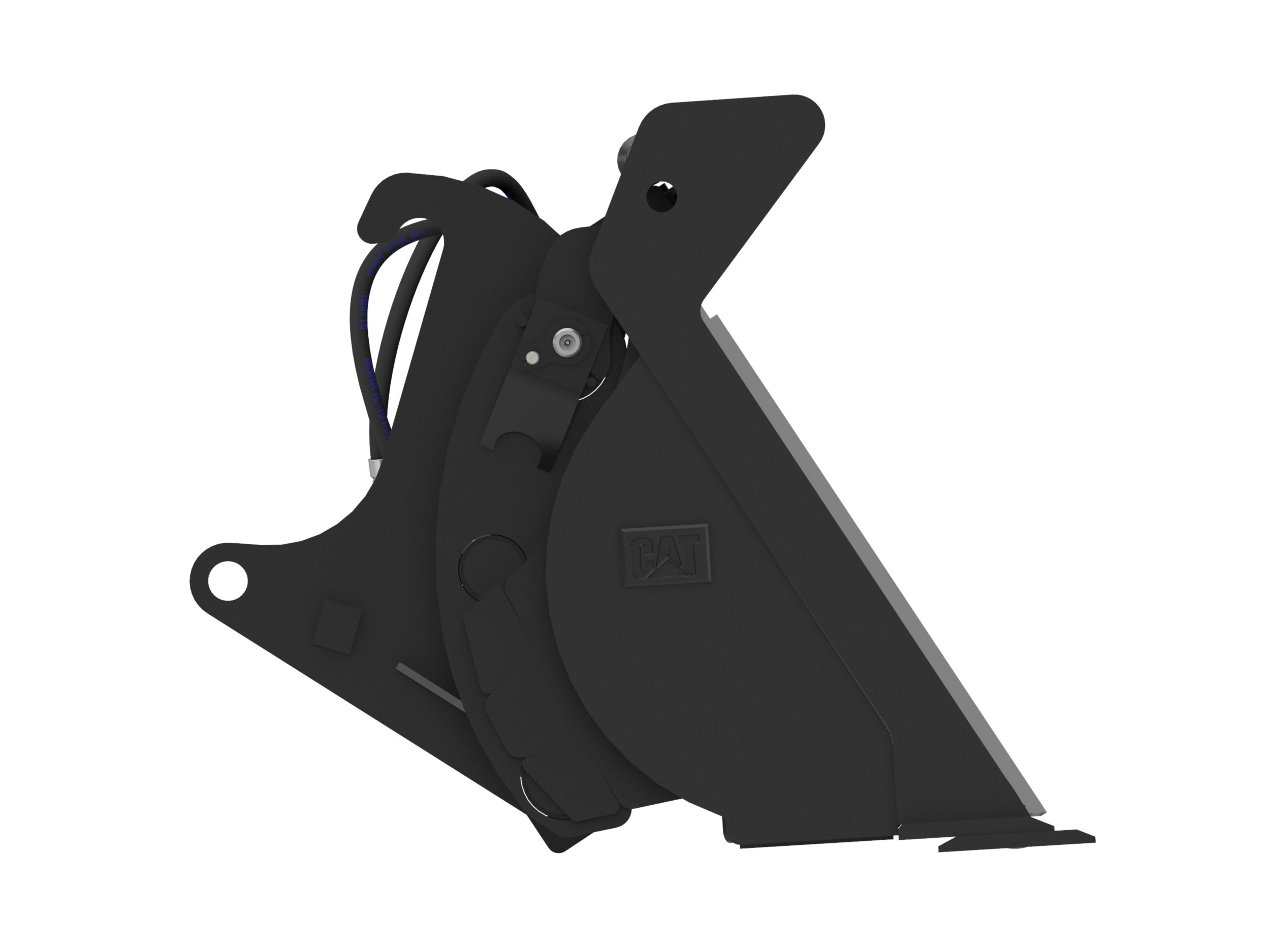

Right View

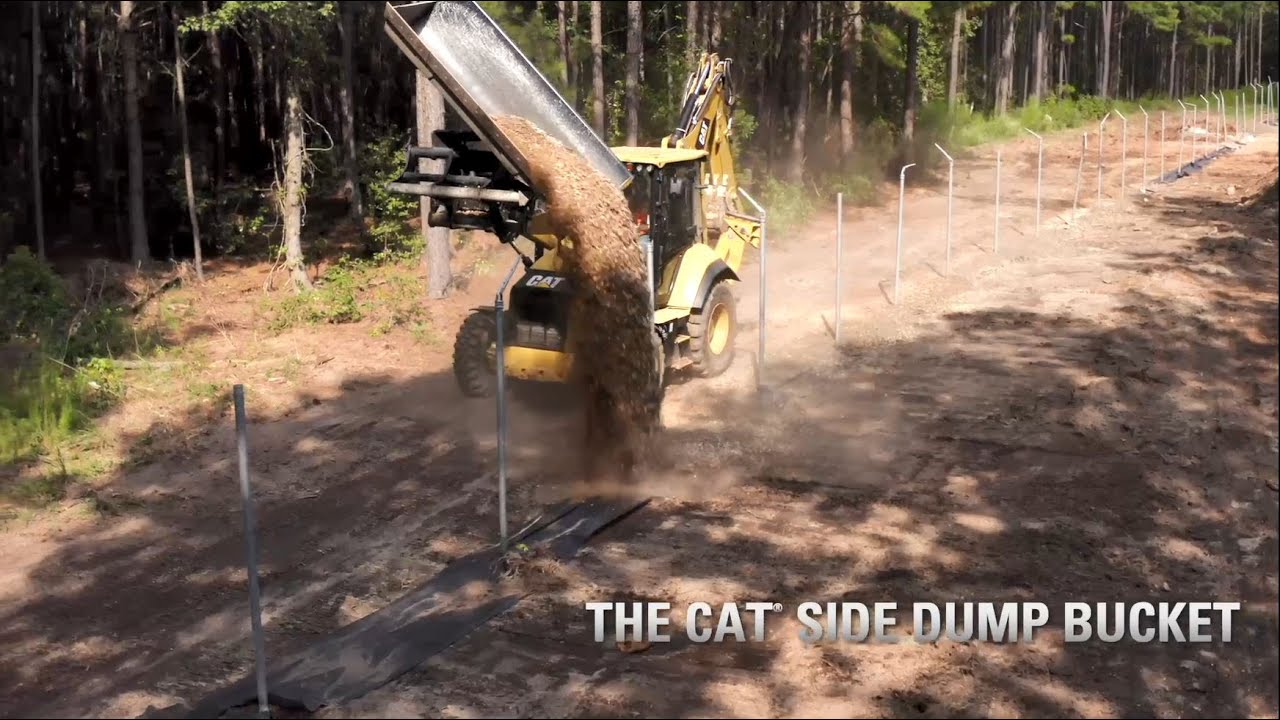

Cat® Side Dump Bucket at Work
