XQ425 340 kW (425 kVA)

Mobile Generator Sets XQ425 Tier 4 Final

Request A Price Find Dealer

Key Specs

Rating Prime
340 ekW (425 kVA)
340 ekW (425 kVA)
Frequency
50/60 Hz
50/60 Hz
Voltage
120 - 600 V
120 - 600 V

Overview

425 kVA Mobile Diesel Generator Set

The Cat® XQ425 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C13 Tier 4 Final engine compliant equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ425 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.

Benefits

Environmentally friendly 110% spill containment of all engine fluids

Minimizes possibility for environmental damage on site

Integral 520 gal (1970 L) double wall fuel tank

Maximizes run time between fuel fills

Solar powered battery maintainer

Ensures generator set is always ready to start

Product Specifications for XQ425 Tier 4 Final

Rating Prime 340 ekW (425 kVA) 340 ekW (425 kVA)
Frequency 50/60 Hz 50/60 Hz
Voltage 120 - 600 V 120 - 600 V
Rating Standby 375 ekW (469 kVA) 375 ekW (469 kVA)
Engine C13 C13
Fuel Diesel Diesel
Height - Without Trailer 60 in 1524 mm
Length - Without Trailer 208.7 in 5080 mm
Width - Without Trailer 104 in 2642 mm
Weight with Lube Oil and Coolant, Without Trailer 14700 lb 6667 kg
100% Load 60Hz 23.1 gal/hr 88 l/hr
75% Load 60Hz 17.7 gal/hr 67.9 l/hr
50% Load 60Hz 12.7 gal/hr 48.6 l/hr
100% Load 60Hz 25.1 gal/hr 95.7 l/hr
75% Load 60Hz 19.2 gal/hr 73.4 l/hr
50% Load 60Hz 13.6 gal/hr 52.3 l/hr
Sound Power @ 7 meters (23 feet) @ All Ratings 74 dB(A) 74 dB(A)

XQ425 Tier 4 Final Standard Equipment

CAT C13 Diesel Engine

  • Heavy-duty.
    Turbocharged.
    After treatment

Generator

  • SR4B - 450 Frame

Control Panel

  • Digital EMCP4.2 set mounted controller

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected

Product Brochures and More Are Ready to Download!

See how XQ425 Tier 4 Final compares against frequently compared products.

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Media Gallery

XQ425 Tier 4 Final

XQ425 Tier 4 Final

XQ425 Tier 4 Final

XQ425 Tier 4 Final

XQ425 Tier 4 Final
XQ425 Tier 4 Final
XQ425 Tier 4 Final
XQ425 Tier 4 Final

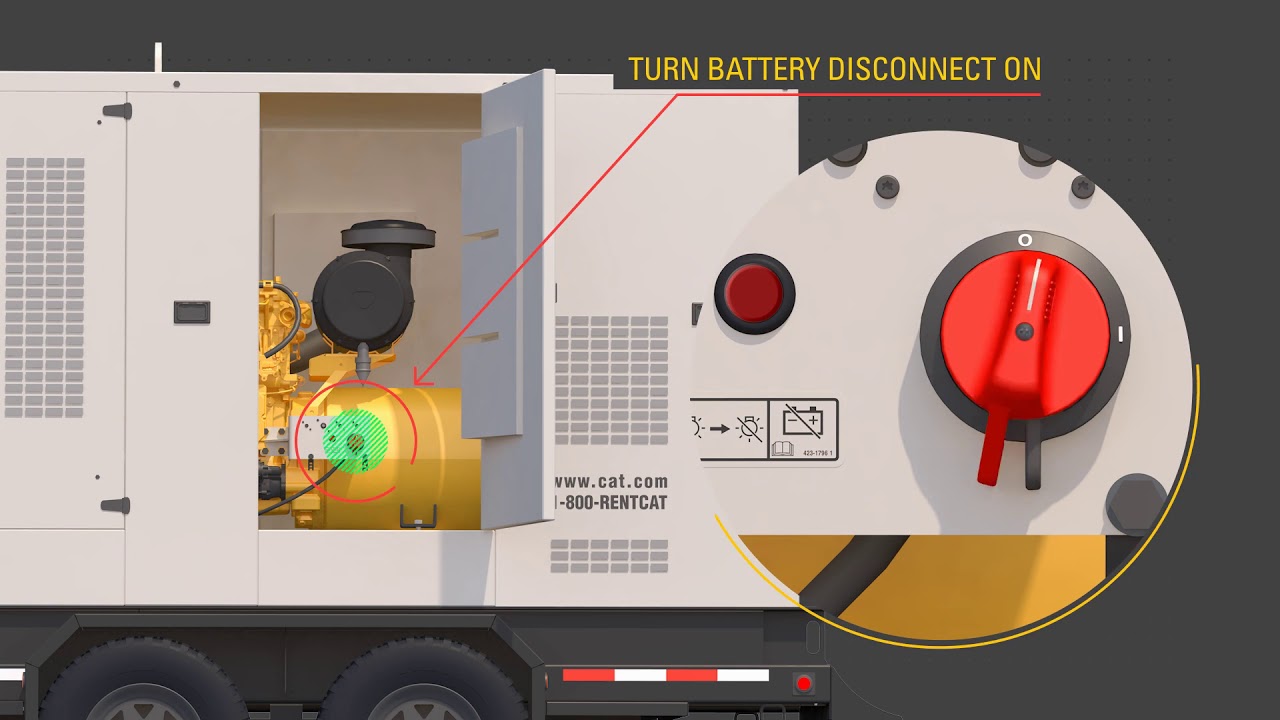

Cat XQ425 Mobile Generator Start/Stop Training

Emergency Stop Your Cat Mobile Generator

Cat XQ425 Mobile Generator Start/Stop Training
Emergency Stop Your Cat Mobile Generator

360 View

Take the interactive virtual product tour to explore the great features and benefits of the XQ425 Tier 4 Final

Start XQ425 Tier 4 Final Tour
