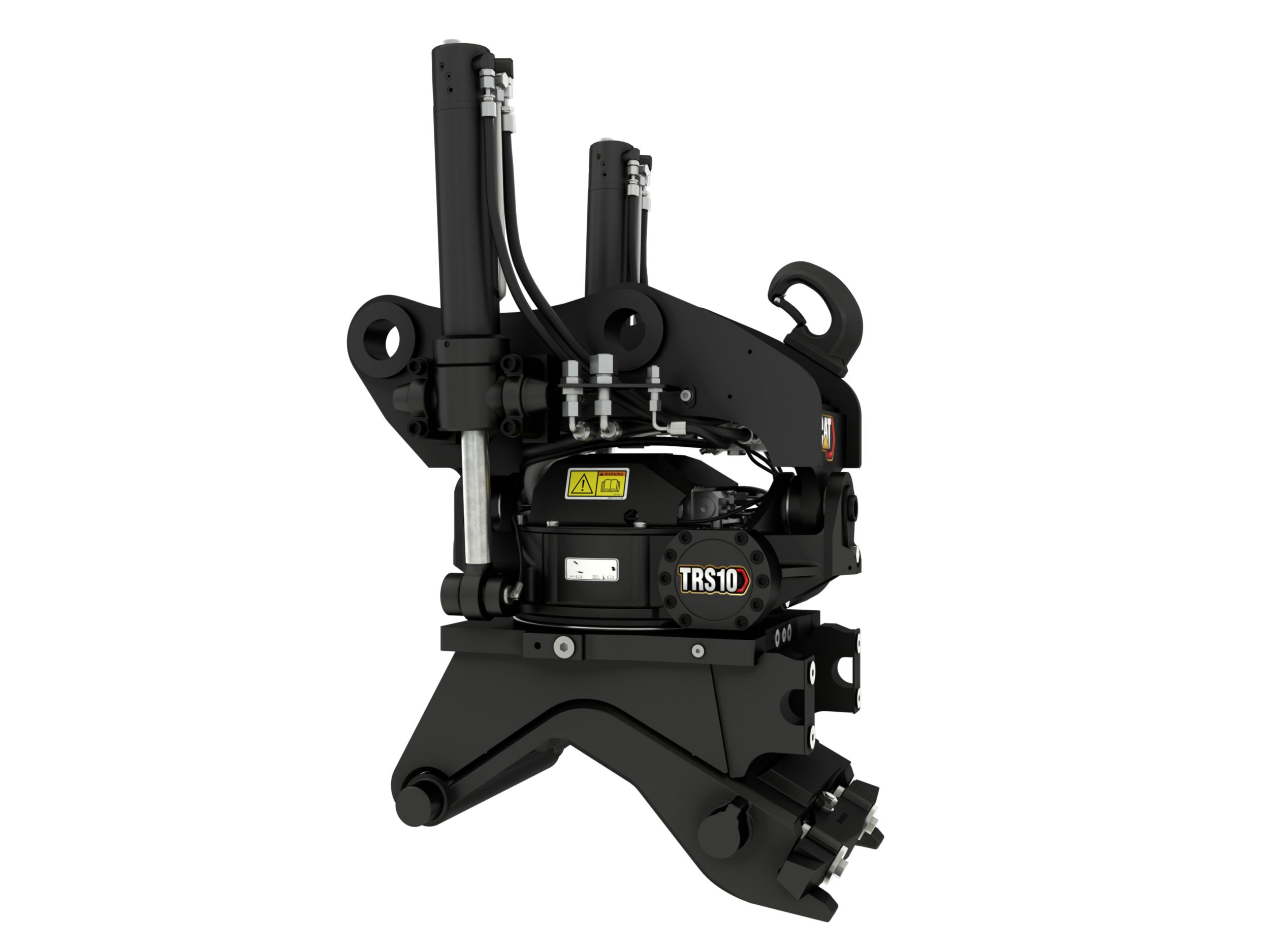

TRS10 - Pin-on top, CW-20s bottom configuration

Tilt Rotate Systems TRS10 Tiltrotator: 555-1564

Request A Price Find Dealer

Key Specs

Machine Class: 11-16 ton Excavators; 11-16 ton Excavators

Weight: 1226 lb; 556 kg

Interface Options: Top-Bottom: Pin-on / CW-20s; Pin-on / CW-20s

TRS10 Tiltrotator: 555-1564
Change model

Overview

Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Features At A Glance

Tiltrotators connect to the machine’s HP2 circuit leaving the HP1 circuit for an additional attachment, ensuring smooth hydraulic flow to both
Display function integrates into the machine’s monitor
Positioning system connects to Cat GRADE with 3D

Controls allow for simultaneous tilt, rotation, and machine movement
Short height maintains consistent breakout force for digging
Hydraulic quick connect changes attachments in seconds
Do more work with less attachments and machines

Machine joysticks include Tiltrotator controls, preventing delay between operator command and action
Oil-filled gear box keeps gears constantly lubricated, extending the life of the rotor
Lubrication System has one grease point, which can be attached to the machine’s greasing
Innovative Control System has four unique operator settings

40⁰ left and right tilt, plus 360° rotation adds capability to fixed attachments
Use grapple module without removing bottom attachment
Mixed configurations enable use of multiple attachment interfaces
Innovative Control system has settings for four unique operators

Curl to Unlock technology verifies the operator has the coupler or tiltrotator curled in the correct position before it is allowed to unlock during the process of switching attachments. This helps keep your attachments secure while working and connected to the coupler during the uncoupling process.
Grapple module is faster and safer than people manually moving heavy objects
Operator stays in cab while switching attachments
Hydraulic quick connect does not require manual hose change
Double acting tilt cylinders have built-in load holding valves in the event of pressure loss

Meet your usage and attachment interface needs with a variety of top and bottom configuration options for your tiltrotator depending on your preferred coupler system.
Tiltrotators with a pin-on top are ideal when the tiltrotator is used regularly and compatible attachments are switched out on the bottom side.
Options with a specific coupler interface on top are used with a standard coupler so the tiltrotator can be detached and larger or higher flow requirement attachments can be used with the standard coupler.
Specific coupler interfaces may require attachments or brackets for attachments with that interface.
The following are the current available interfaces for tiltrotators:
- Pin-on
- CW Dedicated
- S Type
- Hydraulic Connecting S Type

Product Specifications for TRS10 Tiltrotator: 555-1564

Machine Class	11-16 ton Excavators 11-16 ton Excavators
Weight	1226 lb 556 kg
Interface Options: Top-Bottom	Pin-on / CW-20s Pin-on / CW-20s
Overall Height	48.43 in 1230 mm
Length	31.30 in 795 mm
Overall Width	27.17 in 690 mm
Rotation Speed	7 seconds, per 1 full rotation 7 seconds, per 1 full rotation
Tilt Angle Range +/-	40° Left/Right 40° Left/Right
Maximum Bucket Capacity	1.05 yd³ 0.80 m³
Maximum Bucket Width	63 in 1600 mm

Product Specifications for TRS10 Tiltrotator: 555-1564

Download Print

Machine Class	11-16 ton Excavators 11-16 ton Excavators
Weight	1226 lb 556 kg
Interface Options: Top-Bottom	Pin-on / CW-20s Pin-on / CW-20s
Overall Height	48.43 in 1230 mm
Length	31.30 in 795 mm
Overall Width	27.17 in 690 mm
Rotation Speed	7 seconds, per 1 full rotation 7 seconds, per 1 full rotation
Tilt Angle Range +/-	40° Left/Right 40° Left/Right
Maximum Bucket Capacity	1.05 yd³ 0.80 m³
Maximum Bucket Width	63 in 1600 mm

See how TRS10 Tiltrotator: 555-1564 compares against frequently compared products.

Tilt Rotate Systems

Selected

TRS10 Tiltrotator: 555-1564

Machine Class: 11-16 ton Excavators; 11-16 ton Excavators
Weight: 1226 lb; 556 kg
Interface Options: Top-Bottom: Pin-on / CW-20s; Pin-on / CW-20s

Tilt Rotate Systems

TRS10 Tiltrotator: 544-1342

Machine Class: 11-16 ton Excavators; 11-16 ton Excavators
Weight: 1201 lb; 545 kg
Interface Options: Top-Bottom: Pin-on / CW-20; Pin-on / CW-20

View Details

Tilt Rotate Systems

TRS10 Tiltrotator: 567-0389

Machine Class: 11-16 ton Excavators; 11-16 ton Excavators
Weight: 1248 lb; 566 kg
Interface Options: Top-Bottom: CW-20s / CW-20s; CW-20s / CW-20s

View Details
