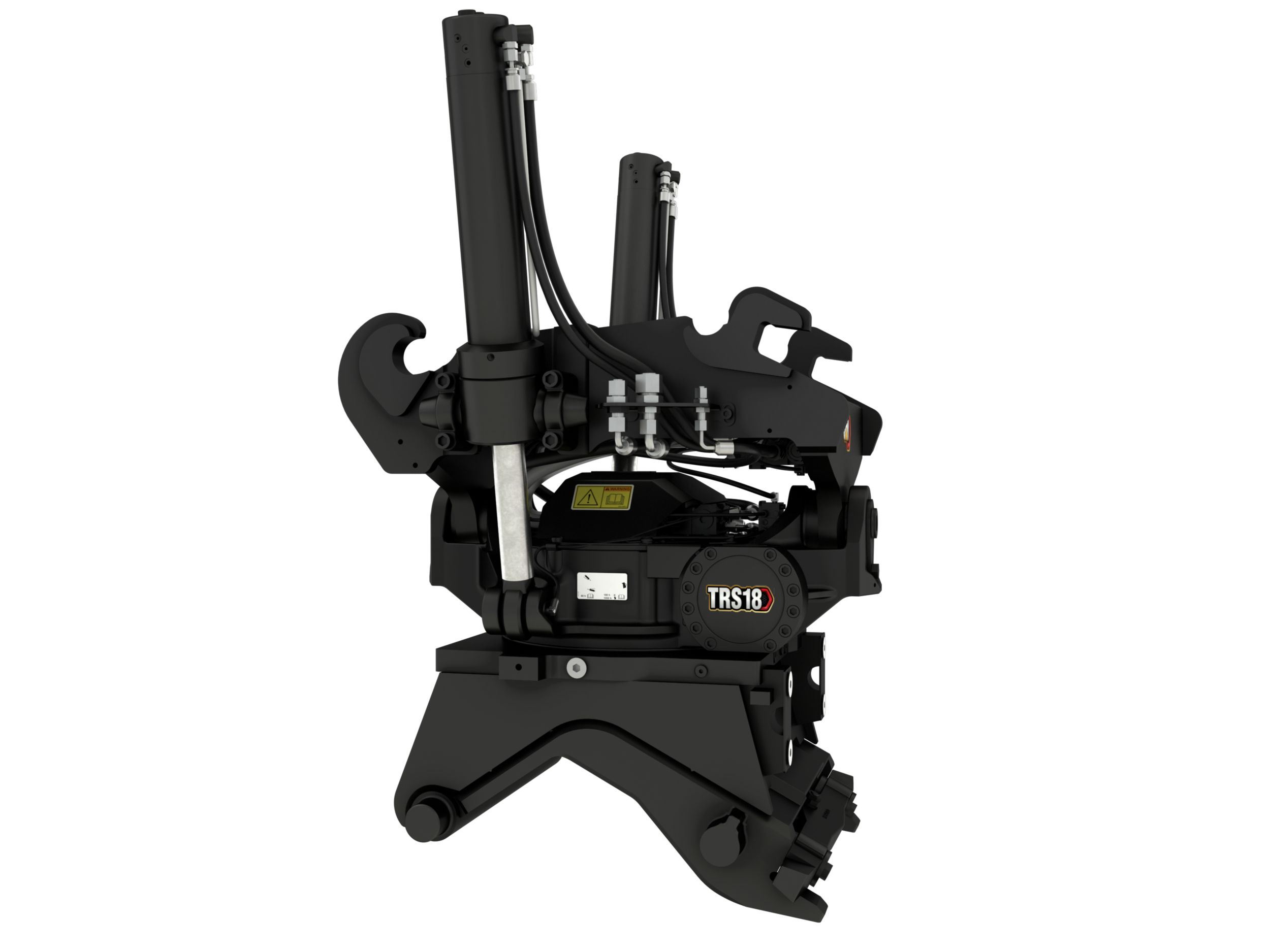

TRS18 - CW-30 top, CW-30 bottom configuration

Tilt Rotate Systems TRS18 Tiltrotator: 567-0392

Request A Price Find Dealer

Key Specs

Machine Class: 18-24 ton Excavators; 18-24 ton Excavators

Weight: 1649 lb; 748 kg

Interface Options: Top-Bottom: CW-30 / CW-30; CW-30 / CW-30

TRS18 Tiltrotator: 567-0392
Change model

Overview

Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Features At A Glance

Tiltrotators connect to the machine’s HP2 circuit leaving the HP1 circuit for an additional attachment, ensuring smooth hydraulic flow to both
Display function integrates into the machine’s monitor
Positioning system connects to Cat GRADE with 3D

Controls allow for simultaneous tilt, rotation, and machine movement
Short height maintains consistent breakout force for digging
Hydraulic quick connect changes attachments in seconds
Do more work with less attachments and machines

Machine joysticks include Tiltrotator controls, preventing delay between operator command and action
Oil-filled gear box keeps gears constantly lubricated, extending the life of the rotor
Lubrication System has one grease point, which can be attached to the machine’s greasing
Innovative Control System has four unique operator settings

40⁰ left and right tilt, plus 360° rotation adds capability to fixed attachments
Use grapple module without removing bottom attachment
Mixed configurations enable use of multiple attachment interfaces
Innovative Control system has settings for four unique operators

Curl to Unlock technology verifies the operator has the coupler or tiltrotator curled in the correct position before it is allowed to unlock during the process of switching attachments. This helps keep your attachments secure while working and connected to the coupler during the uncoupling process.
Grapple module is faster and safer than people manually moving heavy objects
Operator stays in cab while switching attachments
Hydraulic quick connect does not require manual hose change
Double acting tilt cylinders have built-in load holding valves in the event of pressure loss

Meet your usage and attachment interface needs with a variety of top and bottom configuration options for your tiltrotator depending on your preferred coupler system.
Tiltrotators with a pin-on top are ideal when the tiltrotator is used regularly and compatible attachments are switched out on the bottom side.
Options with a specific coupler interface on top are used with a standard coupler so the tiltrotator can be detached and larger or higher flow requirement attachments can be used with the standard coupler.
Specific coupler interfaces may require attachments or brackets for attachments with that interface.
The following are the current available interfaces for tiltrotators:
- Pin-on
- CW Dedicated
- S Type
- Hydraulic Connecting S Type

Product Specifications for TRS18 Tiltrotator: 567-0392

Machine Class	18-24 ton Excavators 18-24 ton Excavators
Weight	1649 lb 748 kg
Interface Options: Top-Bottom	CW-30 / CW-30 CW-30 / CW-30
Overall Height	52.24 in 1327 mm
Length	32.83 in 834 mm
Overall Width	40.47 in 1028 mm
Rotation Speed	7 seconds, per 1 full rotation 7 seconds, per 1 full rotation
Tilt Angle Range +/-	40° Left/Right 40° Left/Right
Maximum Bucket Capacity	1.44 yd³ 1.10 m³
Maximum Bucket Width	71 in 1800 mm

Product Specifications for TRS18 Tiltrotator: 567-0392

Download Print

Machine Class	18-24 ton Excavators 18-24 ton Excavators
Weight	1649 lb 748 kg
Interface Options: Top-Bottom	CW-30 / CW-30 CW-30 / CW-30
Overall Height	52.24 in 1327 mm
Length	32.83 in 834 mm
Overall Width	40.47 in 1028 mm
Rotation Speed	7 seconds, per 1 full rotation 7 seconds, per 1 full rotation
Tilt Angle Range +/-	40° Left/Right 40° Left/Right
Maximum Bucket Capacity	1.44 yd³ 1.10 m³
Maximum Bucket Width	71 in 1800 mm
