| Machine Class | 23-30 ton Excavators 23-30 ton Excavators |
| Weight | 2059 lb 934 kg |
| Interface Options: Top-Bottom | Pin-on / CW-40 Pin-on / CW-40 |
| Overall Height | 56.65 in 1439 mm |
| Length | 38.94 in 989 mm |
| Overall Width | 38.19 in 970 mm |
| Rotation Speed | 7 seconds, per 1 full rotation 7 seconds, per 1 full rotation |
| Tilt Angle Range +/- | 40° Left/Right 40° Left/Right |
| Maximum Bucket Capacity | 2.09 yd³ 1.60 m³ |
| Maximum Bucket Width | 79 in 2000 mm |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

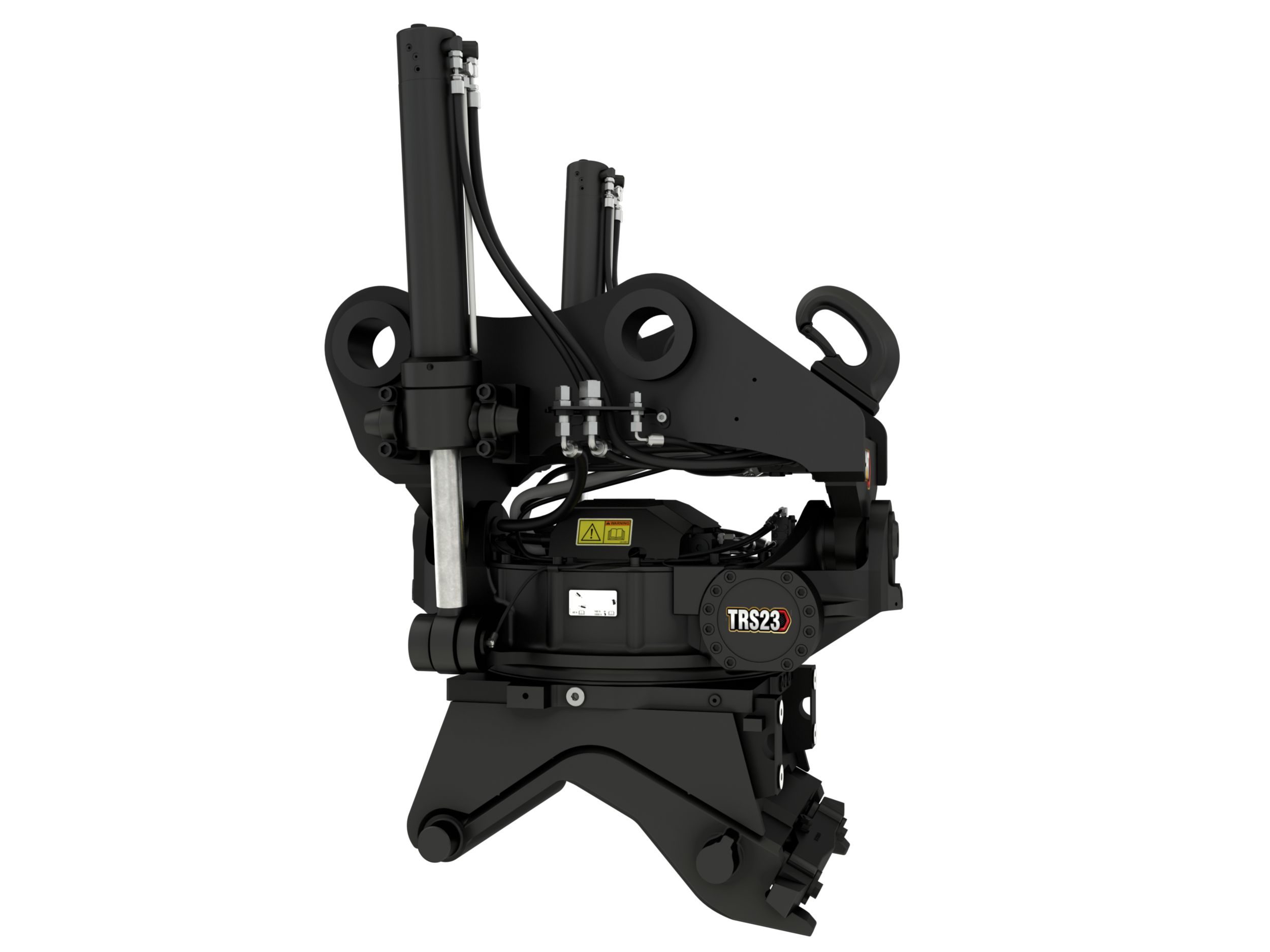

Tilt Rotate Systems TRS23 Tiltrotator: 567-6087
