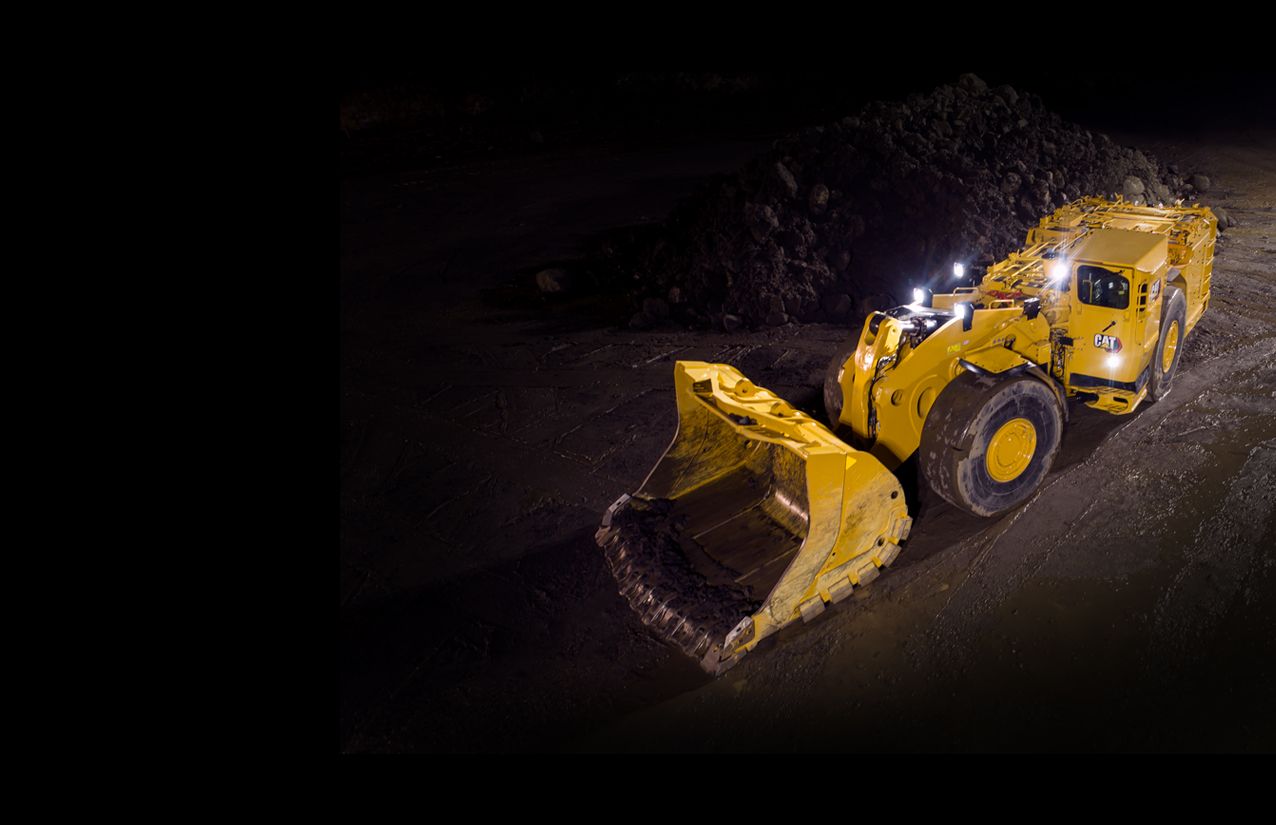

Undergronud Loaders
Undergronud Loaders

CAT® HARD ROCK UNDERGROUND LOADERS



In order to keep material moving, you need a quick, precise method of loading material. Cat underground loaders have the strength and durability to work in tough conditions, but it’s their precise controls and efficient operation that set them apart.

Our underground loaders are built to stand up to the harsh, unique challenges of underground mining, doing everything from increasing productivity and efficiency to improving safety. With a wide variety of size classes, configurations and ground engaging tools, we offer a loader that is just right for your specific application, helping you turn those challenges into opportunities.

We even offer the industry's first battery electric loader, a zero-emission vehicle that can help you reduce ventilation costs and improve performance without a significant impact on your mine's electrical infrastructure.

of
Our commitment runs deep



UNDERGROUND LOADER MODELS

CHARGE FAST. CHARGE SAFELY. CHARGE WHERE THE WORK IS.

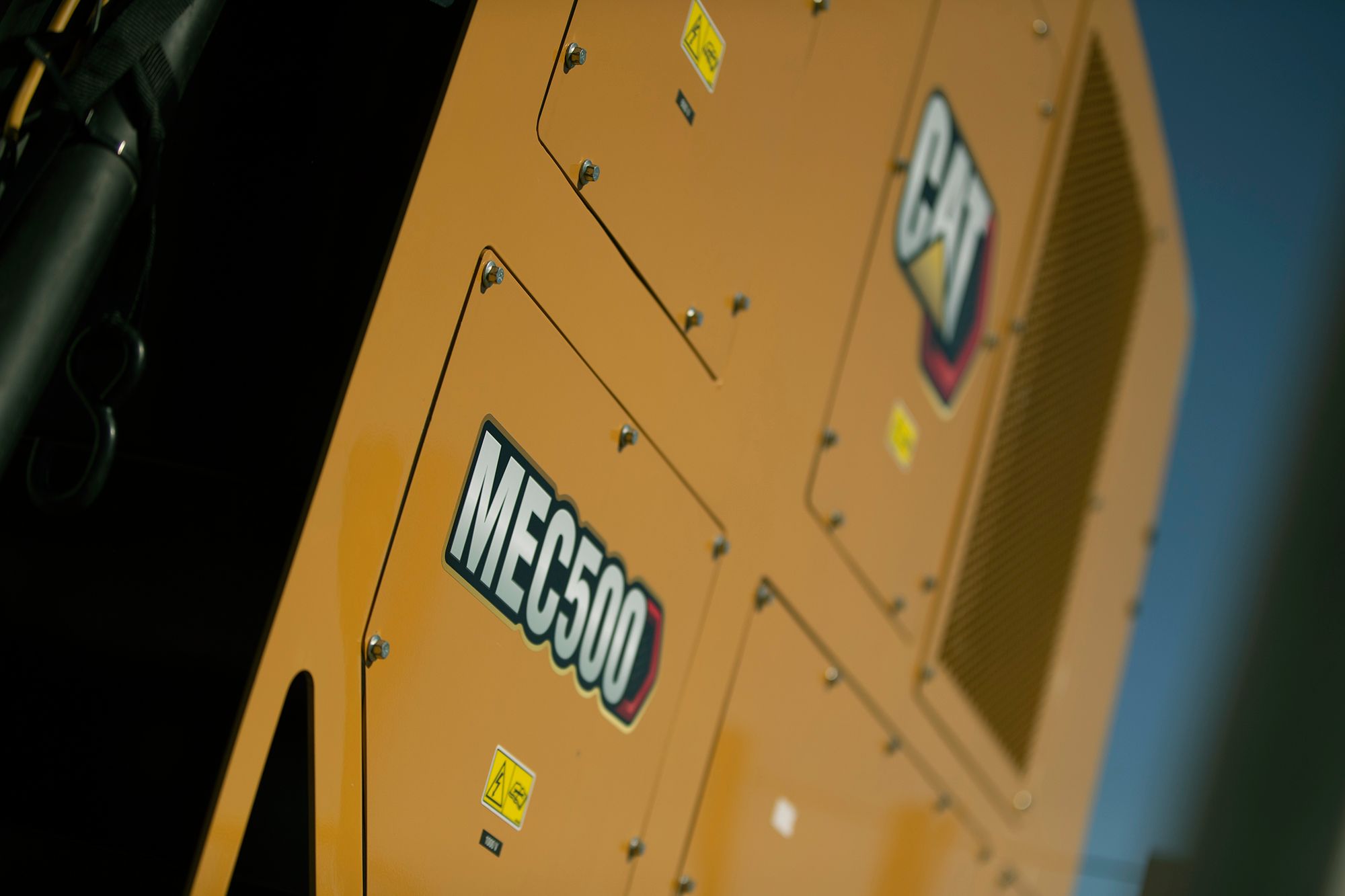

A first of its kind for the mining industry, the Cat MEC500 Mobile Equipment Charger is a standalone fast charging system designed to charge quickly and safely wherever it’s needed. It can be towed, dragged or fork-lifted — providing an alternative to expensive static charging station infrastructure, the need for additional batteries, and battery handling and swapping. And it can fully charge the Cat® R1700 XE LHD in less than 30 minutes, or in 20 minutes when used in tandem.

Learn More
MEC500
MEC500





WHY CHOOSE A CAT UNDERGROUND LOADER?

Cat underground hard rock loaders are enhanced by industry-leading technologies that help make them safer, more efficient and more productive. Standard and optional features can help drive down costs and drive up production across your operation. Please note that not all features are available on all models. Contact your Cat dealer for more on your specific needs.

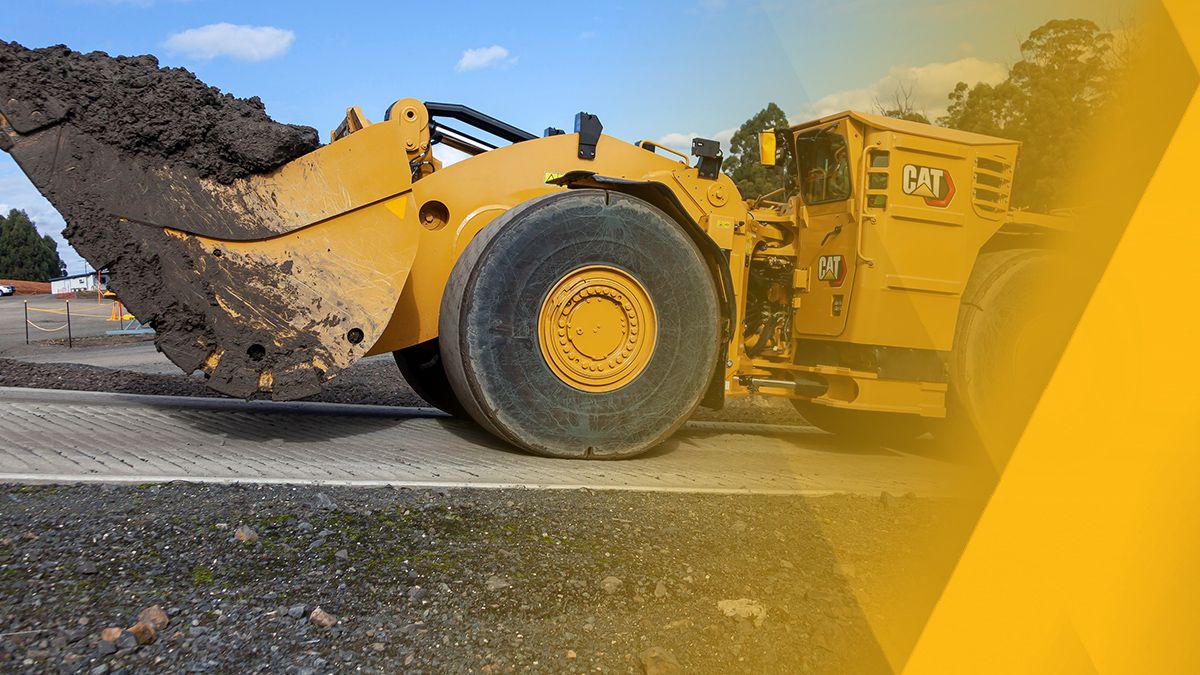

CPM PAYLOAD WEIGHING SYSTEM

CPM includes an integrated onboard payload scale with material management, cycle count and time recording, as well as wireless production detail reporting capability. Reports can be sent wirelessly or over a wired connection between the loader and a computer for analysis in VIMSpc.

of
R1700 XE Payload

AutoDig

AutoDig is a software-enabled attachment that controls the implement system during bucket loading for accurate, repeatable performance and reduced operator fatigue. It is ideal for inexperienced operators and for remote operation. Autodig is not compatible with third-party remote systems.

Traction Control

Traction control maximizes tire life for increased machine uptime and reduced maintenance costs.

OPERATOR PRESENT SYSTEM

The Operator Present System helps protect the machine and operator from uncontrolled movements. The system automatically engages the parking brake, neutralizes the steering implement and transmission control and shuts down the engine if the operator fails to apply the park brake before exiting the cab. The engine shutdown configuration can be changed by your Cat dealer using Cat Electronic Technician.

of
Operator Present System

TIRE PRESSURE MONITORING SYSTEM

This system provides early warning when tires lose pressure. Wireless sensors inside each tire provide real-time, temperature-compensated pressure values, and will trigger alerts in the event of under-inflation or rapid decompression. Compatible with Electronic Technician and Product Link.

PRODUCT LINK™ ELITE — MACHINE HEALTH INFORMATION

Product Link™ Elite boosts connectivity and increases the availability of data provided by the machine. The onboard hardware collects and transmits data to local or cloud-hosted applications like MineStar™ Health Office, Health Equipment Insights, Equipment Care Advisor or Vision Link.

This system opens the door for industry-leading equipment health and condition monitoring services from Caterpillar and your Cat dealer.

of
Product Link Elite

Monitoring System and Diagnostics

The CMPD multi-screen display and the Cat Electronic Technician (Cat ET) service tool enable quick electronic diagnosis of machine performance and gather key diagnostic data for effective maintenance and repairs.




UNDERGROUND CHALLENGES. INNOVATIVE SOLUTIONS.

Caterpillar is committed to listening to your challenges and collaborating with you to find new ways to improve the way you mine. Learn more about our offerings in this brochure.

Download PDF
Brochure
Brochure

Hard Rock Vehicles Product Catalog

Learn more about the features and benefits of underground mining hard rock vehicles.

Download PDF
UG Vehicles Brochure
UG Vehicles Brochure

TOGETHER, WE'RE MINING BETTER

Integrating autonomy and a new underground fleet in Tasmania

To help the Rosebery mine in Tasmania mine better, we worked with Cat dealer William Adams to provide a solution that incorporated a breadth of our offerings.

Rosebery Mine



CAT MINESTAR™ SOLUTIONS FOR UNDERGROUND

It’s no secret that underground mining presents special challenges when it comes to safe, efficient operation. That’s why we tailor Cat MineStar Solutions to the unique needs of your environment. Cat MineStar is the mining industry’s most comprehensive and thoroughly integrated suite of technology offerings. No matter the size, type or complexity of your underground operation, Cat MineStar can help you deal with the challenges you face every day.

Learn More
Technology
Technology

AUTODIG

Consistently filling buckets with the correct amount of material can help you improve productivity, reduce wear and tear and your machines and keep your underground mining operation moving smoothly and efficiently — and AutoDig can help. By automating the digging cycle, AutoDig helps operators load the right payload every time. Join Product Application Specialist Gordon Wilkin for an overview of how this technology works and how it can help you get more out of your underground mining operation.

WATCH VIDEO
AutoDig
AutoDig



PARTS AND SERVICE

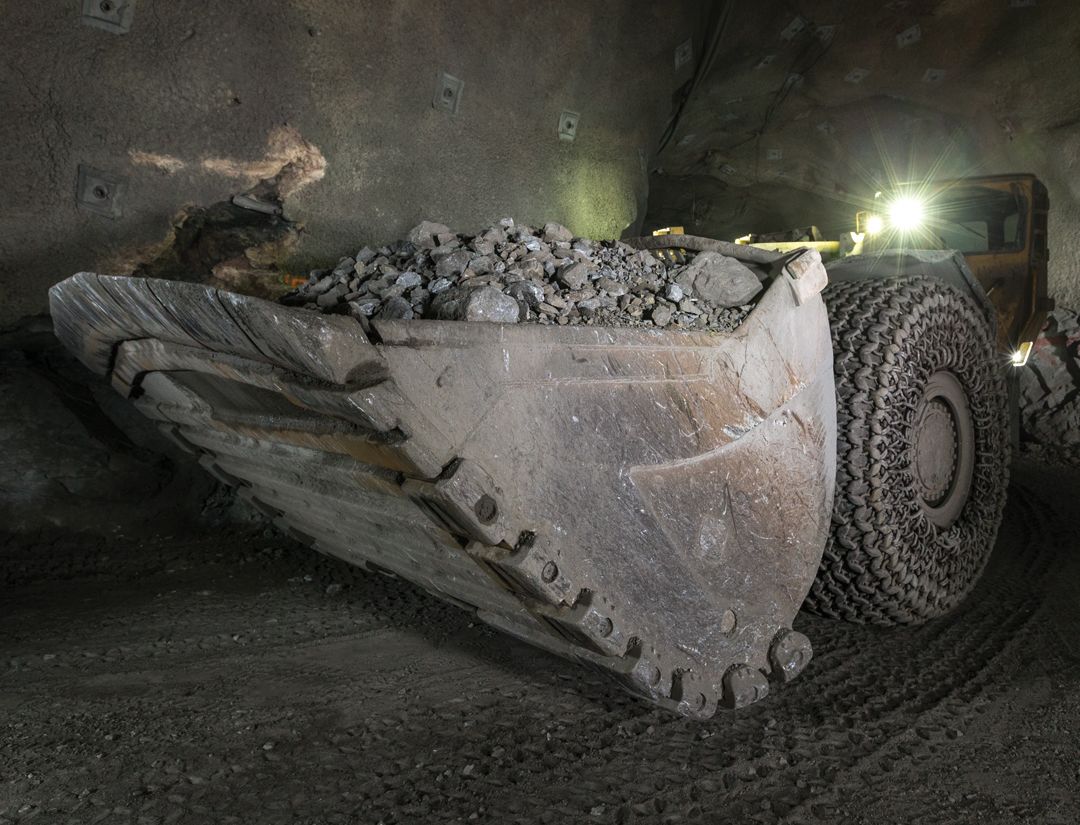

GROUND ENGAGING TOOLS

Along with our new and updated underground machines, Caterpillar continues to innovate with new tools that improve efficiency. Learn more about our offerings in this brochure.

Download PDF
GET
GET

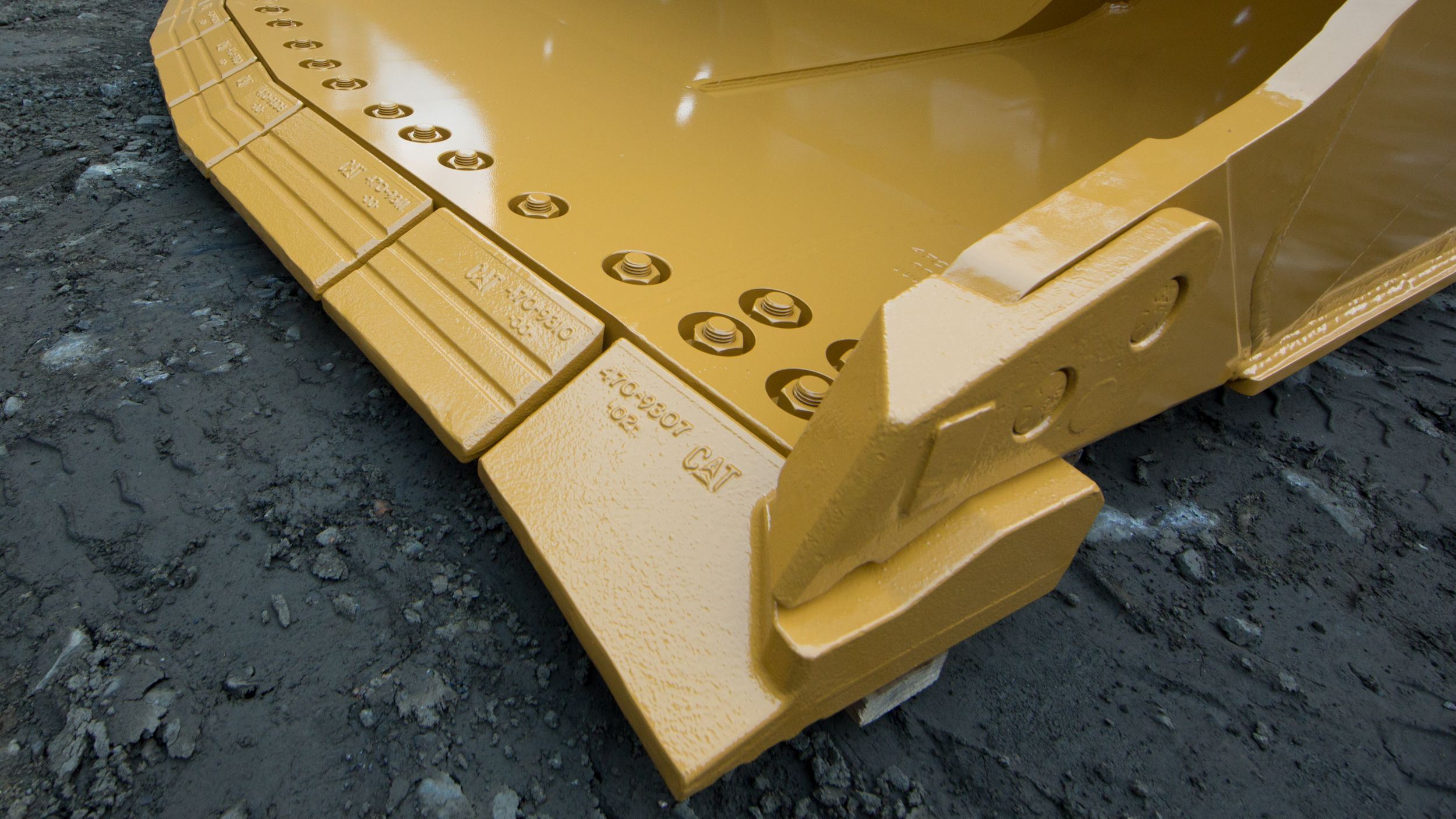

INTRODUCING BOLT-ON, HALF-ARROW GET

Our new line of bolt-on, half-arrow GET can be changed faster without the use of specialized tools — and they allow your machines to perform even better in heavy, hard-digging rock conditions.

Learn More
BOHA
BOHA
