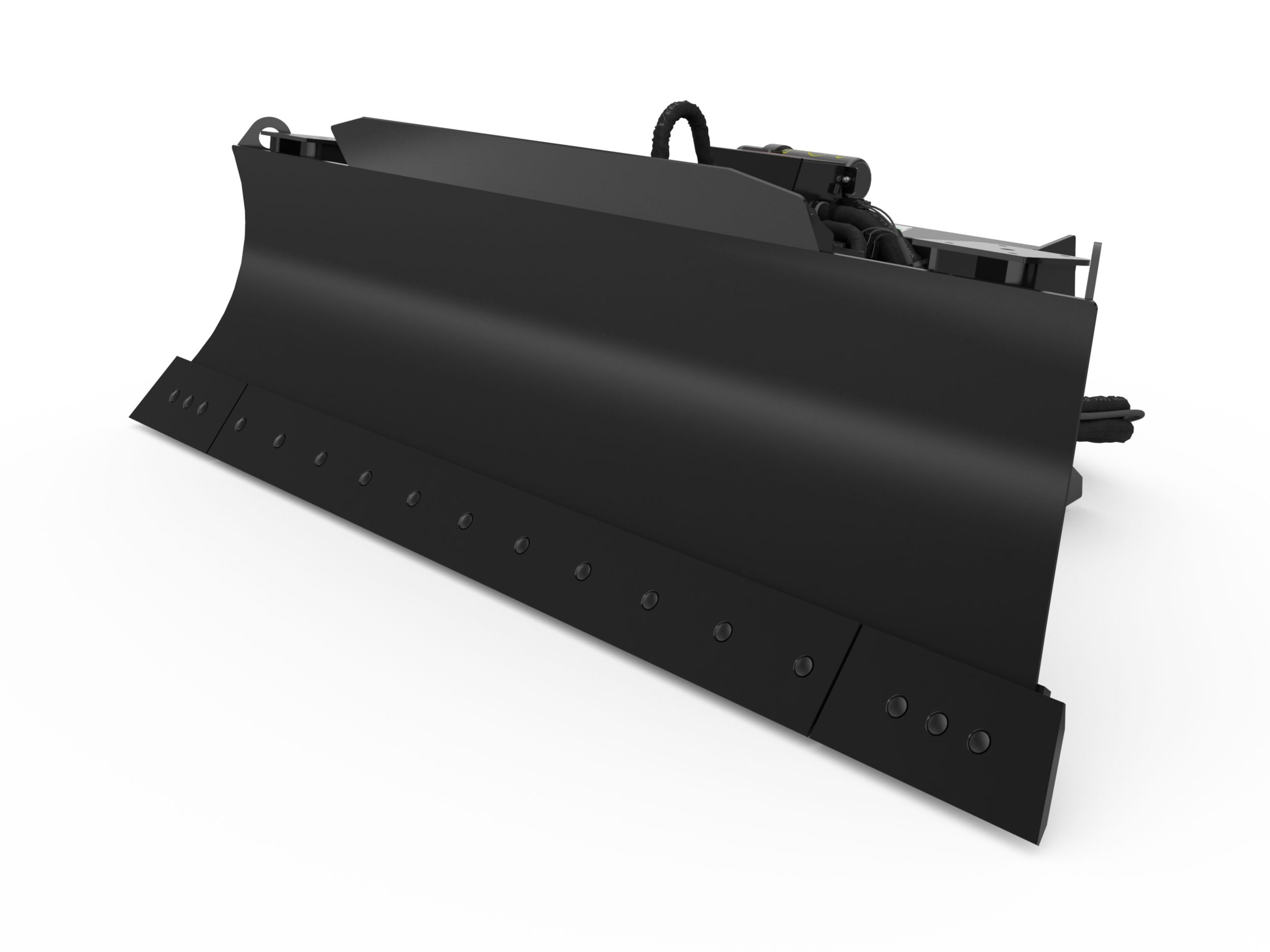

Dozer Blades 2337 mm (92 in)

Request A Price Click for Price

Key Specs

Blade Width: 92 in; 2337 mm

Width - Fully Angled: 80.7 in; 2049 mm

Maximum Blade Angle - Right/Left of Center: 30 degrees; 30 degrees

2337 mm (92 in)
Change model

Overview

Designed for rough and finish grading in dirt, gravel, and light dozing.

Features At A Glance

Designed for rough and finish grading in dirt and gravel as well as for light dozing.

Track-type tractor variable power angle tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.

Three-piece, replaceable, bolt-on, hardened cutting edge delivers long life and high performance.

An integrated spill guard prevents material from spilling over the top of the blade in full blade scenarios.

Modeled after track-type tractor blades, this allows flush cutting against a vertical surface when the blade is fully tilted.

To accept external reference masts for use by GPS, Laser, or other leveling systems.

Allows for adjustment of trunnion due to interface wear during normal usage.

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

Product Specifications for 2337 mm (92 in)

Blade Width	92 in 2337 mm
Width - Fully Angled	80.7 in 2049 mm
Maximum Blade Angle - Right/Left of Center	30 degrees 30 degrees
Tilt Angle Range +/-	10 degrees 10 degrees
Blade Height	24.4 in 619 mm
Overall Height	25.1 in 637 mm
Length	40.5 in 1028 mm
Weight	1085 lb 492 kg
Cutting Edge Thickness	0.6 in 16 mm
Required Hydraulics	Standard Flow Standard Flow
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Interface Type	Skid Steer Coupler Skid Steer Coupler

Product Specifications for 2337 mm (92 in)

Download Print

Blade Width	92 in 2337 mm
Width - Fully Angled	80.7 in 2049 mm
Maximum Blade Angle - Right/Left of Center	30 degrees 30 degrees
Tilt Angle Range +/-	10 degrees 10 degrees
Blade Height	24.4 in 619 mm
Overall Height	25.1 in 637 mm
Length	40.5 in 1028 mm
Weight	1085 lb 492 kg
Cutting Edge Thickness	0.6 in 16 mm
Required Hydraulics	Standard Flow Standard Flow
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Interface Type	Skid Steer Coupler Skid Steer Coupler
