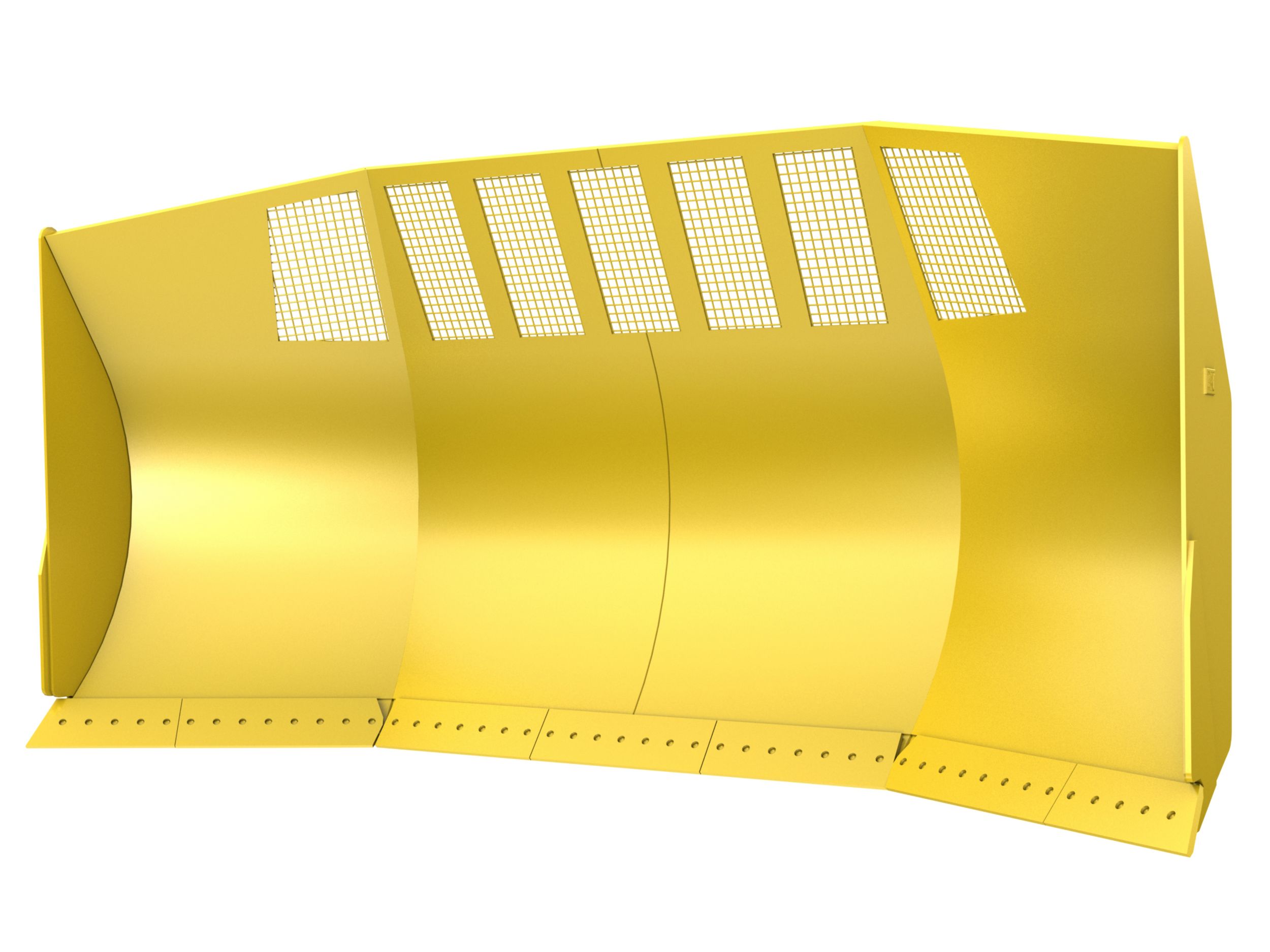

Woodchip U-Blades 45.9 m³ (60.0 yd³)
Request A Price Find DealerKey Specs
- Width
- 215 in
- 5461 mm
- Wing Angle
- 30 °
- 30 °
- Height
- 122 in
- 3099 mm
Overview
Cat Woodchips U-Blades will move more with less effort than using a standard U-blade. The sidebars on the wings are near vertical for penetration into a pile, this lets the operator cut a load loose from a larger mass of wood chips. The side wings are angled in to the center, and the moldboard is curved to push the material to the center of the blade and keep it rolling. The rolling action makes the material easier to push.
Product Specifications for 45.9 m³ (60.0 yd³)
See how 45.9 m³ (60.0 yd³) compares against frequently compared products.
Blades
45.9 m³ (60.0 yd³)
Selected
- Width
- 215 in
- 5461 mm
- Wing Angle
- 30 °
- 30 °
- Height
- 122 in
- 3099 mm
Blades
28.3 m³ (37.0 yd³)
- Width
- 216 in
- 5486 mm
- Wing Angle
- 30 °
- 30 °
- Height
- 92 in
- 2337 mm
Blades
72.6 m³ (95.0 yd³)
- Width
- 265 in
- 6731 mm
- Wing Angle
- 30 °
- 30 °
- Height
- 132 in
- 3353 mm
