Weights and Dimensions
| Height | 148 in 148 in |
| Width | 100.6 in 100.6 in |
| Weight | 13122 lb 13122 lb |
| Length | 383.9 in 383.9 in |
-
person clear
- place Find Dealer
-
personAccountAccount
If you already have an existing account with another Cat App, you can use the same account to sign in here.
One Account. All of Cat.
If you already have an existing account with another Cat App, you can use the same account to sign in here.
Account
If you already have an existing account with another Cat App, you can use the same account to sign in here.
One Account. All of Cat.
If you already have an existing account with another Cat App, you can use the same account to sign in here.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security Settings

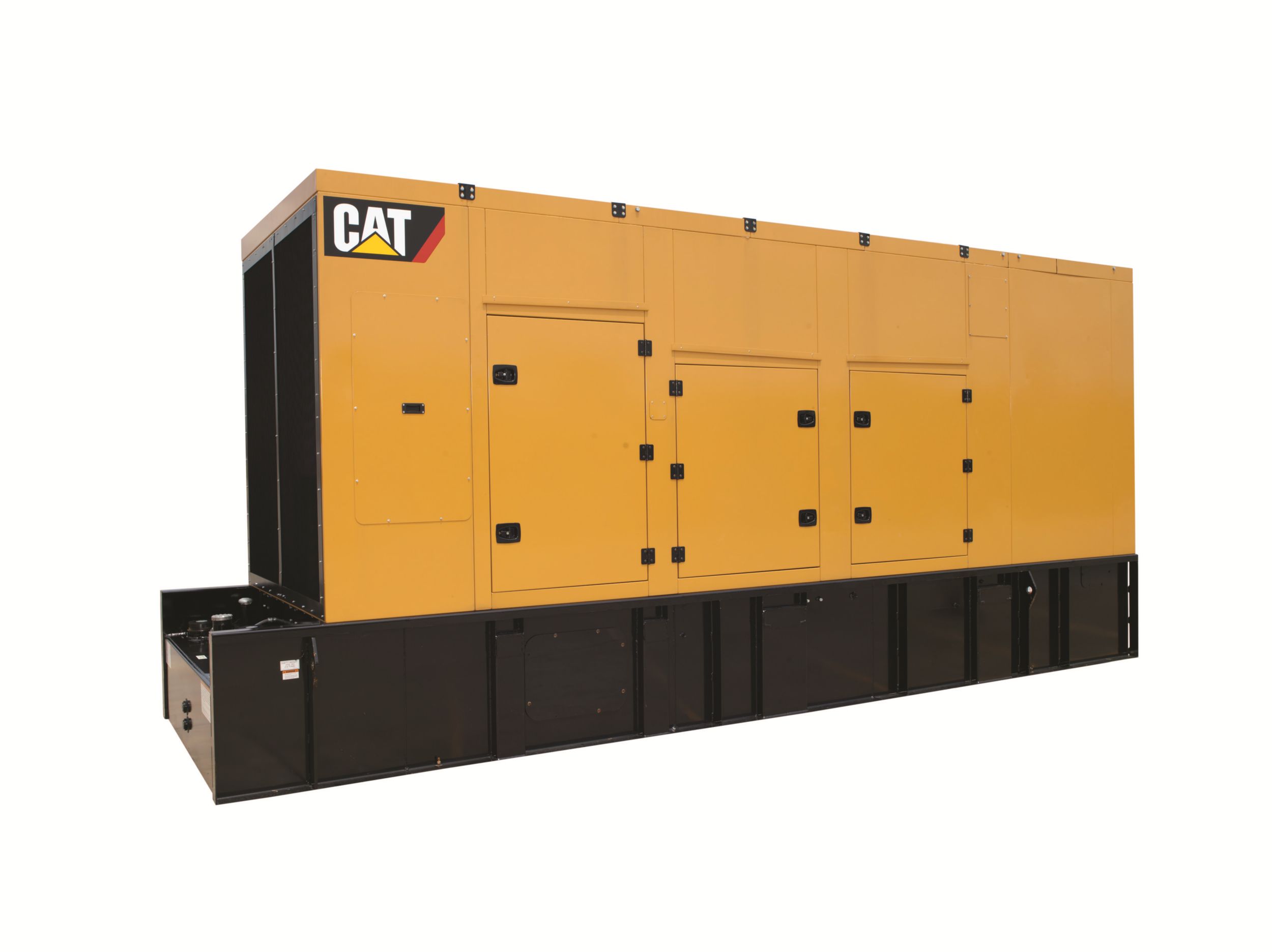

Electric Power: Genset Enclosures C27 and C32 Sound Attenuated Enclosure
Request A Price
Find Dealer
https://www.cat.com/en_US/products/new/equipment/backhoe-loaders.html cat
Key Specs
- Height
- 148 in
- 148 in
- Width
- 100.6 in
- 100.6 in
- Weight
- 13122 lb
- 13122 lb
Features At A Glance
- Environmentally friendly, polyester powder-baked paint in Caterpillar Yellow
- Zinc plated or stainless-steel fasteners
- Pitched roof for improved rain ingress protection
- Critical grade internally mounted muffler/ exhaust system
- Vibration spring isolators
- 75 dBA at 7 m
- Control panel mounted on left side or right side of package
- Large cable entry area for ease of installation
- Left-hand or right-hand bottom entry access to power cable bus or circuit breaker
- Double doors on both sides
- Lube oil and coolant drains piped to exterior of enclosure and terminated drain valves
- Lockable access doors with standard key use
- Cooling fan and battery charging alternator fully guarded
- Oil fill and battery can only be reached via lockable access
- Externally mounted emergency stop button
- Designed for spreader-bar lifting to ensure safety
- Cat® yellow or white paint
- Interior AC lighting system and AC receptacles (interior and exterior)
- Cold-weather bundle, including motorized louvers (powered closed), backdraft dampers, and enclosure space heater
Product Specifications for C27 and C32 Sound Attenuated Enclosure
See how C27 and C32 Sound Attenuated Enclosure compares against frequently compared products.
Electric Power: Genset Enclosures
C27 and C32 Sound Attenuated Enclosure
Selected
- Height
- 148 in
- 148 in
- Width
- 100.6 in
- 100.6 in
- Weight
- 13122 lb
- 13122 lb
Electric Power: Genset Enclosures
C18 Tier 4 Final Sound Attenuated Enclosure
- Height
- 96.4 in - 111.4 in Package Heights
- 96.4 in - 111.4 in Package Heights
- Weight
- 2041 lb
- 2041 lb
- Length
- 228.7 in - 249.4 in Package Lengths
- 228.7 in - 249.4 in Package Lengths
Electric Power: Genset Enclosures
3516C 60Hz Sound Attenuated Enclosure
- Height
- Level 1: 166.6 in Level 2: 197.1 in
- Level 1: 166.6 in Level 2: 197.1 in
- Width
- 105.2 in
- 105.2 in
- Length
- 546 in
- 546 in
