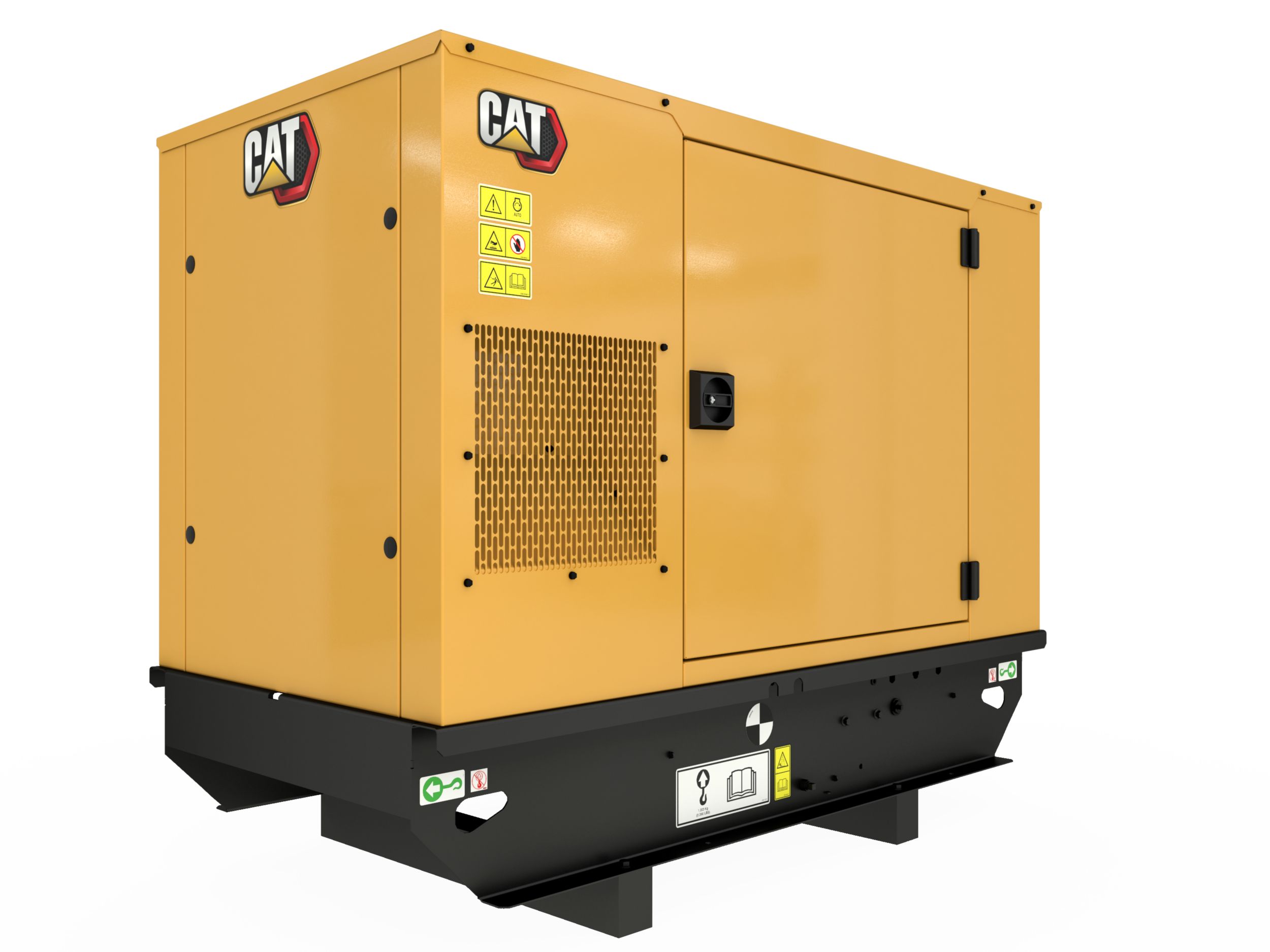

Electric Power: Genset Enclosures 6.8-22 kVA SA Enclosure
Request A Price
Find Dealer
https://www.cat.com/en_US/products/new/equipment/backhoe-loaders.html cat
Key Specs
- Width
- 876 mm
- 876 mm
- Length
- 1704 mm
- 1704 mm
- Height
- 1268 mm
- 1268 mm
Overview
The compact modular design of the 6.8 – 22 kVA SA Enclosure range ensures optimum performance in the harshest of environments. Designed on modular principles, they have interchangeable components permitting on-site repair. Lift off doors and access panels provide optimal service and maintenance access.
Features At A Glance
- Galvanised steel protected by powder coat paint
- Single piece roof structure
- Baseframe extends beyond enclosure protecting against handling damage
- Black finish stainless steel locks and hinges
- Zinc plated / stainless steel fasteners
- Side hinged doors on both sides of the enclosure opening to 180°
- Side hinged doors lift off at 90°
- Removable front and rear access panels
- Coolant drain piped to baseframe, exterior to the enclosure
- Control panel viewing via large viewing window in lockable enclosure door
- Emergency stop push button mounted on enclosure exterior below control panel
- Cooling fan and battery charging alternator fully guarded
- Fuel fill and battery can only be reached via lockable access doors
- Exhaust silencing system totally enclosed for operator safety
- Tested and certified single point lifting facility – Optional
- Drag points on baseframe facilitating handling from both sides
- Optional base feet to aid forklift handling
Product Specifications for 6.8-22 kVA SA Enclosure
See how 6.8-22 kVA SA Enclosure compares against frequently compared products.
Electric Power: Genset Enclosures
6.8-22 kVA SA Enclosure
Selected
- Width
- 876 mm
- 876 mm
- Length
- 1704 mm
- 1704 mm
- Height
- 1268 mm
- 1268 mm
Electric Power: Genset Enclosures
6.8-22 kVA SA Lvl1, Lvl2 & Lvl3 (B Series)
- Height
- 2289 mm
- 2289 mm
- Width
- 1920 mm
- 1920 mm
- Length
- 5320 mm
- 5320 mm
Electric Power: Genset Enclosures
30-220 kVA SA Lvl 1 Enclosure
- Length
- 1863 - 3511 mm
- 1863 - 3511 mm
- Height
- 1348 - 1684 mm
- 1348 - 1684 mm
- Width
- 899 - 1325 mm
- 899 - 1325 mm
