| Machine Class | 24-35 Ton Excavators 24-35 Ton Excavators |
| Weight | 5130 lb 2332 kg |
| Jaw Opening | 126.9 in 3223 mm |
| Inner Wrapper Thickness | 0.8 in 20 mm |
| Outer Wrapper Thickness | 0.8 in 20 mm |
| Wear Plate Thickness | 0.8 in 20 mm |
| Upper Jaw Tine Count | 2 2 |
| Lower Jaw Tine Count | 3 3 |
| Linkage | CB CB |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security
Contractors' Grapples G136 CB-Linkage Contractors' Grapple
Request A Price Find DealerKey Specs
- Machine Class
- 24-35 Ton Excavators
- 24-35 Ton Excavators
- Weight
- 5130 lb
- 2332 kg
- Jaw Opening
- 126.9 in
- 3223 mm
Overview
Cat® Contractors' Grapples are a proven product built for your high-volume material handling needs. Designed for long-lasting durability, Contractors' Grapples are made to help you in the toughest of applications.
Features At A Glance
- Wide surface area for demolition and material handling applications with a rigid, box-type design.
- Penetrate, securely grasp, and retain materials better with two-over-three interlocking tines.
- Keep an eye on your work with long, wide-spaced tines for better visibility.
- Tips, wrapper, and wear strips are made of AR400 steel, for long-lasting, durability in the harshest applications.
- Debris loads and unloads seamlessly without catching due to the tips mounted flush with the wrapper.
- Optimize material flow and penetration into piles with less curvature in the lower jaw.
- Maintain high-volume production when using the grapple pinned to the machine or with a Pin Grabber Coupler.
- Purpose-designed to match their respective machine sizes for maximum performance in break out and lift capacity.
- Share your grapple across similar-sized excavators for maximum utilization with the use of replaceable pins to match different linkages.
- Capacities calculated according to SAE standard J2754, an industry-leading standard for fabricated grapples.
- Optimal for applications such as: structural demolition, material handling and sorting, loading and unloading rock, scrap, pipe, waste material, and other debris.
- No need for added hydraulics or hoses. Contractors' Grapples utilize the bucket linkages for operation.
- Long-lasting, field-serviceable tips have extended service life without extra weight.
- Jaws stay connected when the grapple pin is removed with the advanced modular pin hub system.
- Field-install an extreme duty wear package for extra protection on your grapple.
Product Specifications for G136 CB-Linkage Contractors' Grapple
See how G136 CB-Linkage Contractors' Grapple compares against frequently compared products.
Grapples
G136 CB-Linkage Contractors' Grapple
Selected
- Machine Class
- 24-35 Ton Excavators
- 24-35 Ton Excavators
- Weight
- 5130 lb
- 2332 kg
- Jaw Opening
- 126.9 in
- 3223 mm
Grapples
G126 CB-Linkage Contractors' Grapple
- Machine Class
- 24-35 Ton Excavators
- 24-35 Ton Excavators
- Weight
- 4250 lb
- 1932 kg
- Jaw Opening
- 123.1 in
- 3128 mm
Grapples
G136 DB-Linkage Contractors' Grapple
- Machine Class
- 24-40 Ton Excavators
- 24-40 Ton Excavators
- Weight
- 5130 lb
- 2332 kg
- Jaw Opening
- 126.9 in
- 3223 mm
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos

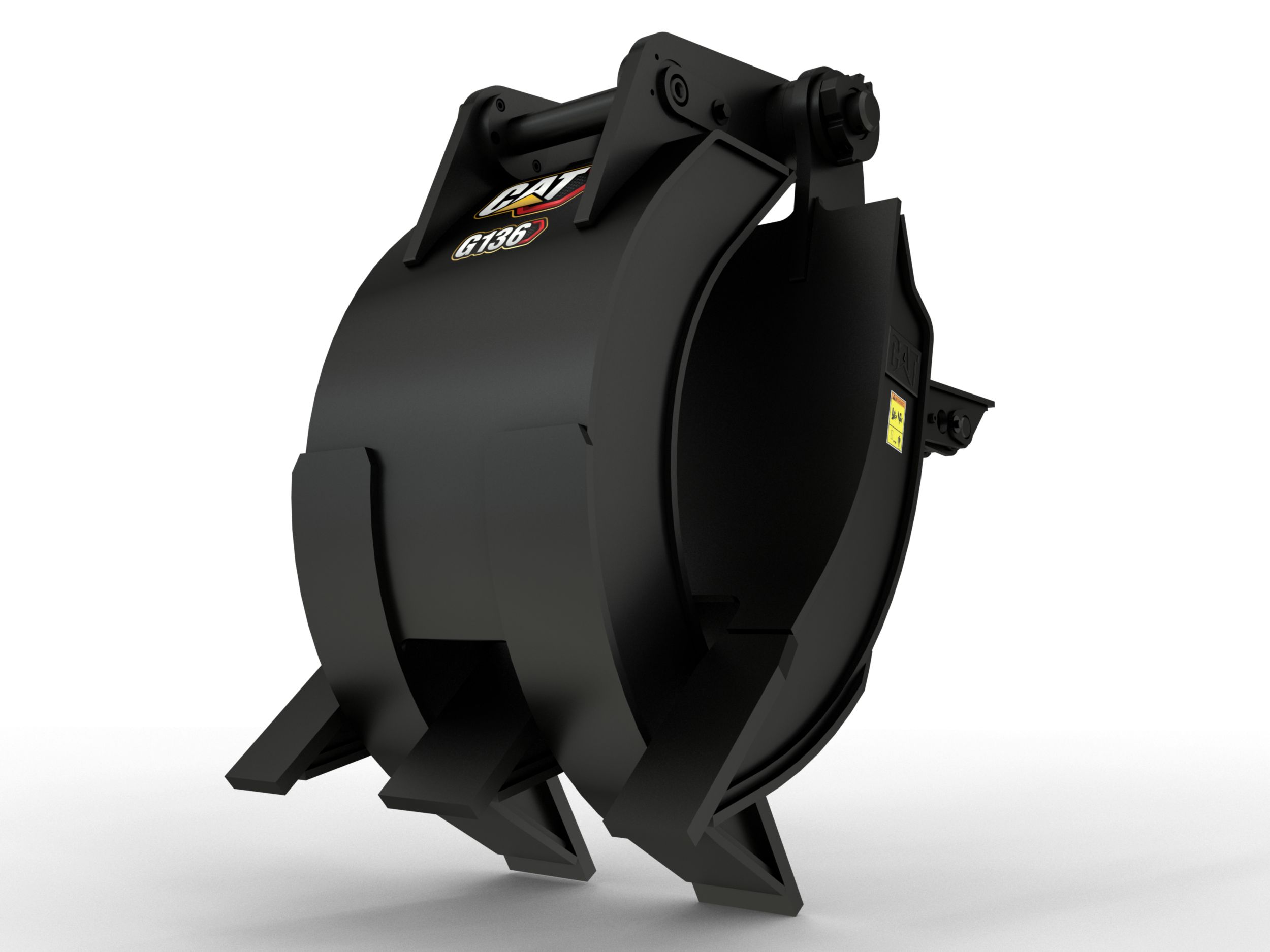

G136 CB-Linkage Contractors' Grapple
