| Rated Capacity | 6.58 yd³ 5.03 m³ |
| Weight | 6174 lb 2800 kg |
| Upper Jaw Width | 62 in 1581 mm |
| Lower Jaw Width | 80 in 2038 mm |
| Maximum Jaw Opening | 124 in 3161 mm |
| Outside Jaw Dimension - Closed | 13 in 338 mm |
| Outside Jaw Dimension - Open | 130 in 3290 mm |
| Tip Radius | 66 in 1679 mm |
| Jaw Depth | 17 in 430 mm |
| Tip Thickness | 0.98 in 25 mm |
| Wear Plate Thickness | 0.47 in 12 mm |
| Wrapper Thickness | 0.63 in 16 mm |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security
Trash Grapples TG-TB
Request A Price Find DealerKey Specs
- Rated Capacity
- 6.58 yd³
- 5.03 m³
- Weight
- 6174 lb
- 2800 kg
- Upper Jaw Width
- 62 in
- 1581 mm
Overview

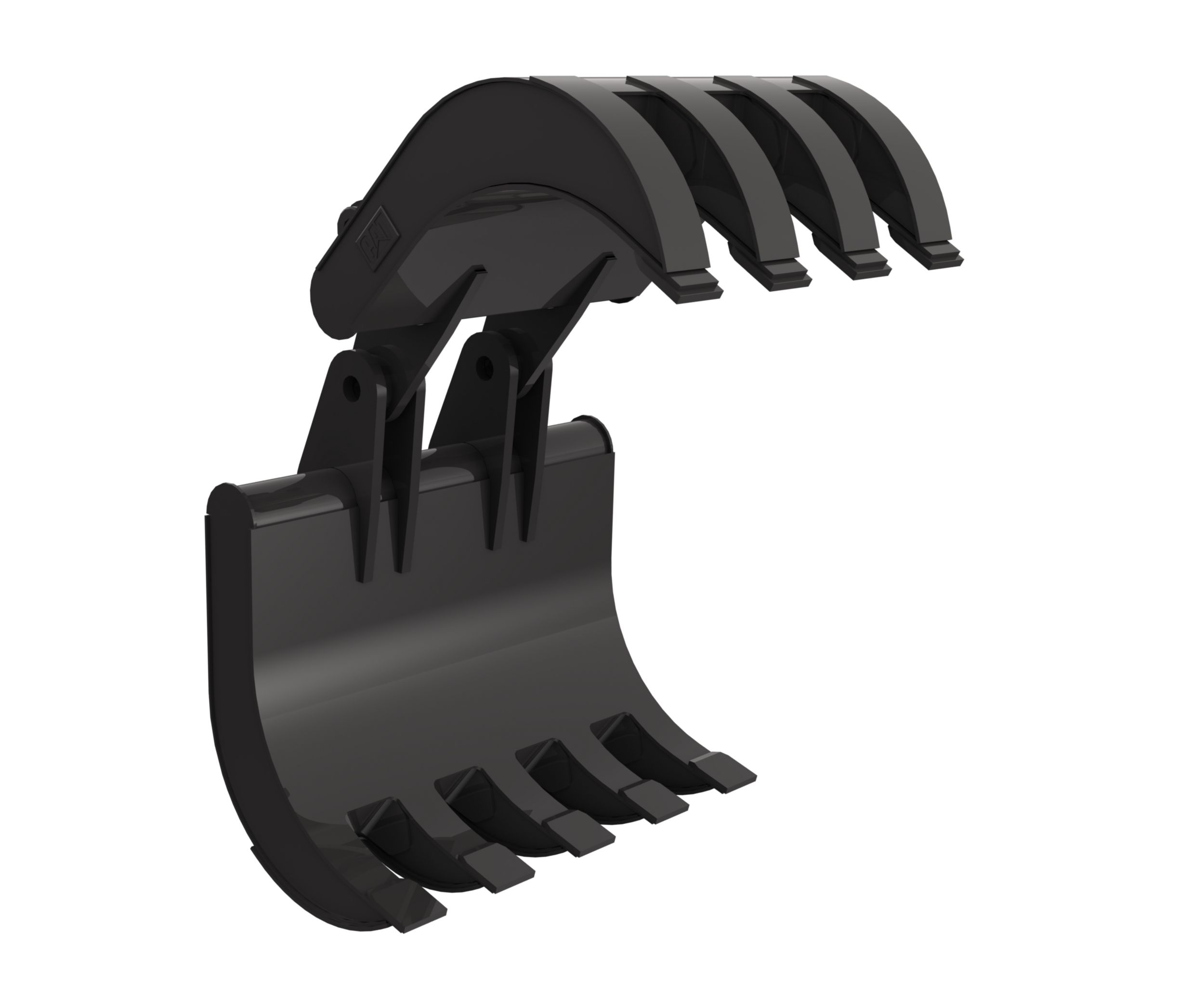

Pin on trash grapple, four tines over five, for 345B hydraulic excavator with F linkage. 7CW.
Product Specifications for TG-TB
See how TG-TB compares against frequently compared products.
Grapples
TG-TB
Selected
- Rated Capacity
- 6.58 yd³
- 5.03 m³
- Weight
- 6174 lb
- 2800 kg
- Upper Jaw Width
- 62 in
- 1581 mm
Grapples
TG-B
- Rated Capacity
- 4.5 yd³
- 3.44 m³
- Weight
- 3069 lb
- 1392 kg
- Upper Jaw Width
- 43 in
- 1100 mm
Grapples
TG-B
- Rated Capacity
- 3.6 yd³
- 2.7 m³
- Weight
- 2840 lb
- 1288 kg
- Upper Jaw Width
- 44 in
- 1118 mm
