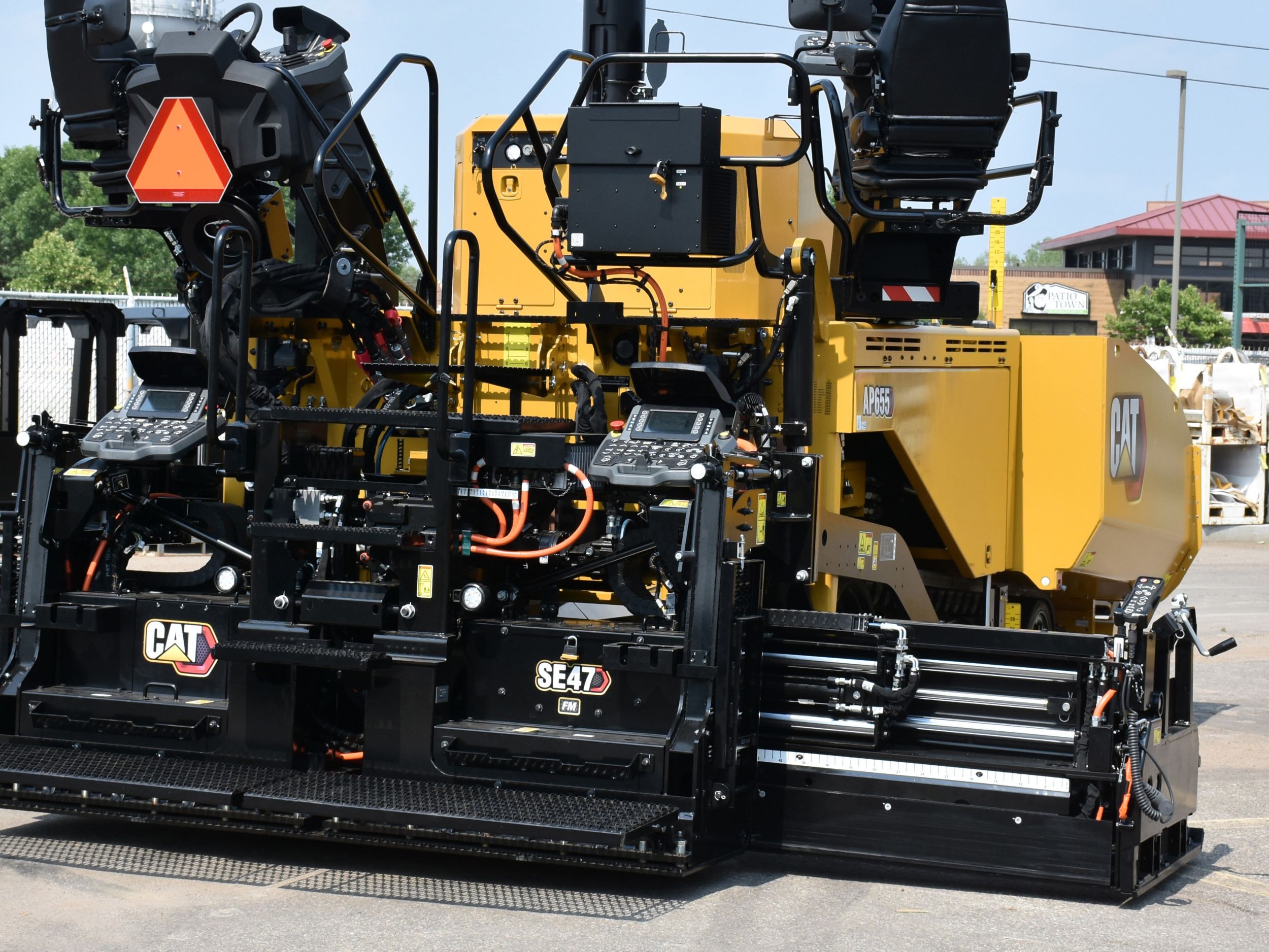

Screeds SE47 FM (411) Vibratory Screed
Request A Price Find DealerKey Specs
- Standard Weight
- 6200 lb
- 2812 kg
- Standard Paving Range
- 2.44 - 4.7 m (8' - 15' 6")
- 2.44 - 4.7 m (8' - 15' 6")
- Maximum Paving Width
- 20.5 ft
- 6.25 m
Overview
Application Versatility
The Cat® SE47 FM screed provides application versatility, easy set-up, and a wide paving range, making it the perfect match for urban streets, parking lots, rural roads and many other mid-sized applications. Front-mounted extenders easily navigate curbs, light poles, turnouts, and other obstacles.
Benefits
High Quaity Results
Front-mounted extenders enable quick width adjustments, while the rigid extenders and optional heated end gates provide tight mat textures and clean joints.
Simple Operation
Simple operation with intuitive, easy-to-use control panels and remote pendent option located on the extenders.
More Versatile
Small footprint and versatile design for urban and highway paving includes berm options
Features At A Glance
- The standard paving range of 2.44 m - 4.7 m (8' - 15' 6") and maximum width of 6.25 m (20' 6") provides a balance between urban and highway paving applications.
- Common applications include parking lots, urban and rural roads, subdivision streets, and highways
- Front-mounted extenders make maneuvering around abstacles easy by providing the ability to retract without first clearing material from the extender
- Power berm options provide the ability to create a 305 mm (12") or 457 mm (18") wide berms with a variable height up to 102 mm (4")
- Trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to improve paving quaility and extend screed plate life
- Extender angle of attack is easily accessible from the top of the extender frame
- Inner and outer strike-off adjustments are connected to provide single point modification that ensures equal adjustment across the width of the screed
- Slope stops help maintain performance
- Screed plate widths of 610 mm (24") on the main and 210 mm (9") on the extenders provide smooth flow
- Heated end gate option improves material flow for enhanced longitudinal joints
- The in-line extension cylinders and rigid frame design reduces deflection in the extenders for better mat quality
- Screed plate heating in as little as 25 minutes to 130º C (266º F)
- Exclusive zone monitoring allows heating to continue in the event of a temperature sensor failure
- U-shaped heating elements combined with zone monitoring helps ensure even heat distribution and smooth asphalt textures
- Operating displays can be tailored to specific language requirements with multiple options available
- Exclusive 2-speed, proportional extender control provides smooth adjustment when transitioning paving widths
- Screed operating consoles are equipped with ratio adjustment for the augers and conveyors, providing the ability to modify material flow
- Power controls for extender slope and height enables operators to quickly manage mat angles and surface textures
- Independent feeder system control includes manual and pause functions for each auger and conveyor
- Emergency engine stop feature
- Simple tow-point and berm attachment adjustments can be easily made with good visibility from the remote position
- Factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
- User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection
- Precise control driven by 10-point auto-calibration, true averaging with 5 transducers in each sensor, and cross-coupling feature that maintains elevation with height adjustment
- Paver and screed service and repair kits include the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
Product Specifications for SE47 FM (411) Vibratory Screed
Operating Specifications
| Standard Paving Range | 2.44 - 4.7 m (8' - 15' 6") 2.44 - 4.7 m (8' - 15' 6") |
| Maximum Paving Width | 20.5 ft 6.25 m |
| Maximum Paving Depth | 10 in 250 mm |
| Heating Time - Maximum Width | 25 minutes 25 minutes |
| Heating Time - Standard Width | 15 minutes 15 minutes |
| Crown Range | -5% to +10% -5% to +10% |
| Vibratory Speed Range | 0 to 3000 vpm 0 to 3000 vpm |
| Extender Height Range | -41 mm to +6.5 mm -41 mm to +6.5 mm |
| Extender Slope Range | 0% to +9% 0% to +9% |
Dimensions
| Minimum Width - Endgates Attached | 118 in 2982 mm |
| Transport Length - Tractor and Screed | 20.9 ft 6375 mm |
| Screed Plates Width, Front to Back, Main Screed | 24 in 616 mm |
| Screed Plates Width, Front to Back, Extenders | 9 in 228 mm |
| Length - Front to Back, Endgates Attached | 86 in 2191 mm |
| Length - Front to Back, Endgates Removed | 59 in 1509 mm |
SE47 FM (411) Vibratory Screed Standard Equipment
Material Delivery
- Thickness screws _ clockwise or counterclockwise
- End gate_manual
Operating Environment
- Level holder
- Lockable storage
- Shovel holder
Power Controls
- Crown
- Slope
- Extender height
Service and Repair
- Service repair kits
Safety
- Horn
SE47 FM (411) Vibratory Screed Optional Equipment
Operating Environment
- Pendent control
- Visor _ LCD display
Technology
- Cat Grade Control
Safety
- Lights_roading
Material Delivery
- Berm attachments
- Cutoff shoe
- Drop arm stabilizer
- End gate_heated
- End gate shoe_safety edge
- ExtensionsExtension _ 100 mm (4") high angle of attack
- Extension _ 305 mm (12")
- Extension _ 457 mm (18")
- Extension _ 610 mm (24")
- Screed plate _ dove tail
- Tapered notch extension with 457 mm (18")
- Vibratory sled _ utilized with tapered notch
