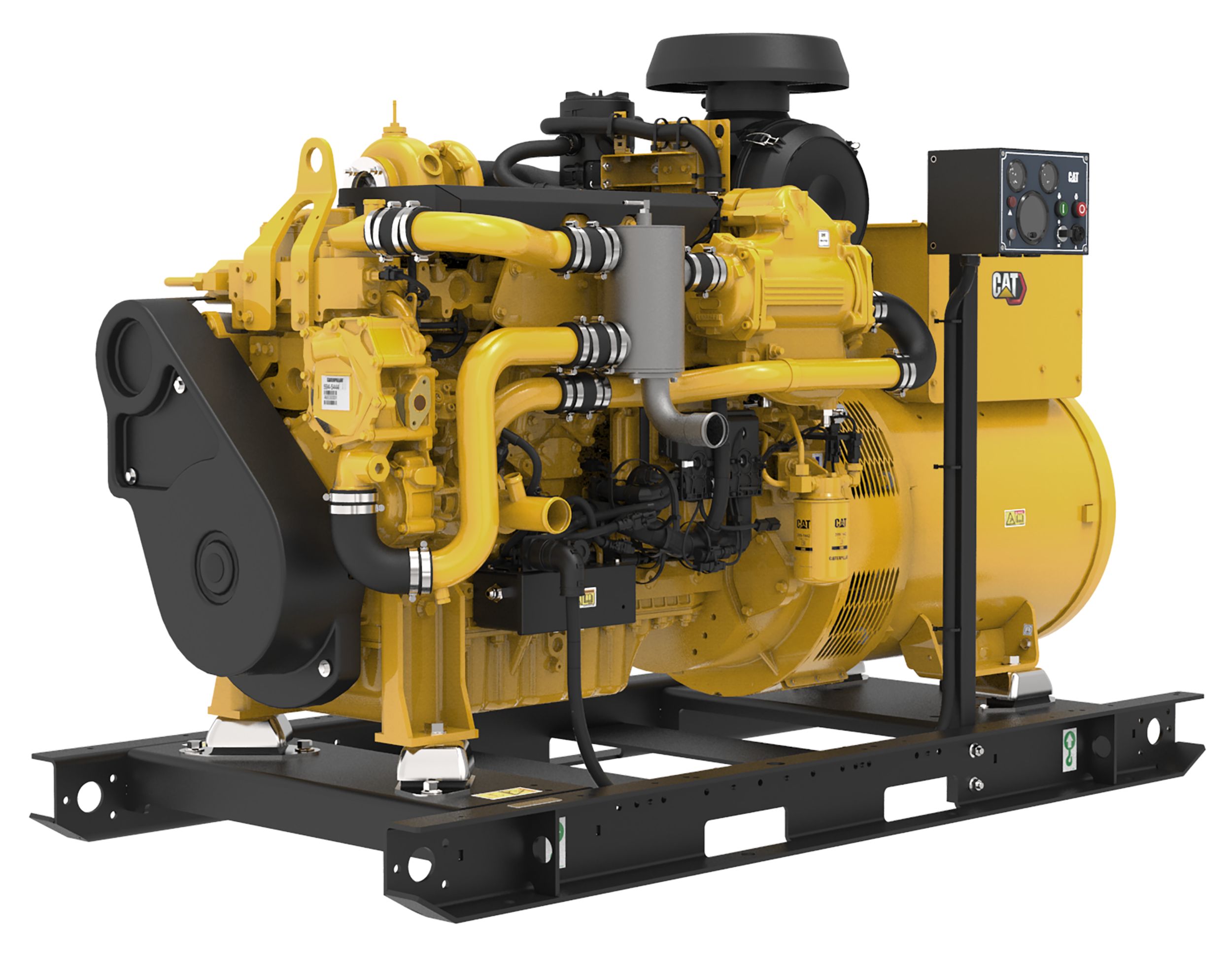

Marine Generator Sets C7.1 (Electronic Control System)
Request A Price Find DealerKey Specs
- Power Range
- 100 - 200 ekW
- 100 - 200 ekW
- Frequency
- 50 / 60
- 50 / 60
- Emissions
- IMO II, IMO III (SCR required) U.S. EPA Tier 3, EU Stage V, China II
- IMO II, IMO III (SCR required) U.S. EPA Tier 3, EU Stage V, China II
Features At A Glance
- Gear Driven Water Pumps
- Automatic Valve Adjustment
- Variety of Different Cooling Systems
- Multiple Control Panel Options
- Engine Mounted Filtration
- Independent Shutdown Sensors and Controller
- Generator Paralleling Droop Kit for Load Sharing
- Streamlined Options for Easy Installation and Maintenance
- Utilizes SCR technology enabling IMO III emissions compliance (optional)
Product Specifications for C7.1 (Electronic Control System)
Generator Set Specifications
| Frequency | 50 / 60 50 / 60 |
| Speed | 1500 rpm / 1800 rpm 1500 rpm / 1800 rpm |
Engine Specifications
| Emissions | IMO II, IMO III (SCR required) U.S. EPA Tier 3, EU Stage V, China II IMO II, IMO III (SCR required) U.S. EPA Tier 3, EU Stage V, China II |
| Configuration | Inline 6, 4-Stroke Cycle Diesel Inline 6, 4-Stroke Cycle Diesel |
| Displacement | 428 in³ 7.01 l |
| Aspiration | Turbocharged / Aftercooled Turbocharged / Aftercooled |
| Governor | Electronic (A5 ECM) Electronic (A5 ECM) |
| Bore | 4.13 in 105 mm |
| Stroke | 5.31 in 135 mm |
| Refill Capacity | Lube Oil System w/oil filter change: 21 L / 5.6 gal Lube Oil System w/oil filter change: 21 L / 5.6 gal |
| Oil Change Interval | 500 hrs 500 hrs |
| Rotation from Flywheel End | Counterclockwise Counterclockwise |
| Cooling | Heat exchanger, Seperate Circuit Keel Cooled, Combined Circuit Keel Cooled, Radiator Cooled Heat exchanger, Seperate Circuit Keel Cooled, Combined Circuit Keel Cooled, Radiator Cooled |
Generator Set Dimensions
| Length | 76.3 in /1,940 mm 76.3 in /1,940 mm |
| Height | 49.7 in / 1,263 mm 49.7 in / 1,263 mm |
| Engine Dry Weight | 3355 lb / 1,522 kg 3355 lb / 1,522 kg |
Generator Set Dimensions and Weights - Dependent on Generator Type
| Width | 38 in / 965 mm 38 in / 965 mm |
C7.1 (Electronic Control System) Standard Equipment
Mounting System
- Front and rear engine mounting brackets
Exhaust System
- Watercooled turbocharger and exhaust manifold
Fuel System
- Common Rail fuel system
- Electric fuel priming pump
General
- Self-tensioning multi-vee belt drive
- Vibration damper and guard
Lube System
- Open crankcase ventilation system
- Integral engine oil cooler
Starting System
- 12 V or 24 V starter motor
Cooling System
- Gear-driven jacket-water pump
- Corrosion resistant sea water aftercooler
- Tube and bundle jacket water heat exchanger and gear-driven sea water pump (rubber impeller)
- Fuel cooler
C7.1 (Electronic Control System) Optional Equipment
Lube System
- Transmission gear oil cooler (engine mounted)
- Left-hand and right-hand oil dipsticks
Fuel System
- SOLAS double wall high pressure fuel lines kit
General
- Glow plugs
Protection System
- Additional engine and transmission sensor packages for on or off vessel monitoring
Cooling System
- Cabin heater (calorifier) connections
- Engine mounted bilge pumps and auxiliary water pumps with electromagnetic clutch
- Jacket water heater
Air Inlet System
- Various 6" water cooled exhaust elbow configurations
Starting System
- Engine mounted secondary alternator - 24V 100 amp or 12V 175 amp
