Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
Features At A Glance
Application
Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
Variable Sweeping Angle
Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.
Unique Suspension
Unique suspension system eliminates the need for support wheels. Brush maintains constant ground pressure through a range of vertical motion from the initial setting.
Parking Supports
Parking supports provide stable and secure parking of the broom when not in use.
Re-designed Leveling Indicator
Leveling indicator allows operator to conveniently see the level of the broom from the cab during operation.
Protected Hydraulic Motors
Hydraulic motors are protected from dust and debris - yet easily accessible if needed.
Optional Water Sprinkler Kit
An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.
Polypropylene and Wire Bristle Options
Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle sections can be converted to all wire or all poly for special applications.
Tool Mounted Operation and Maintenance Manual (OMM) Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

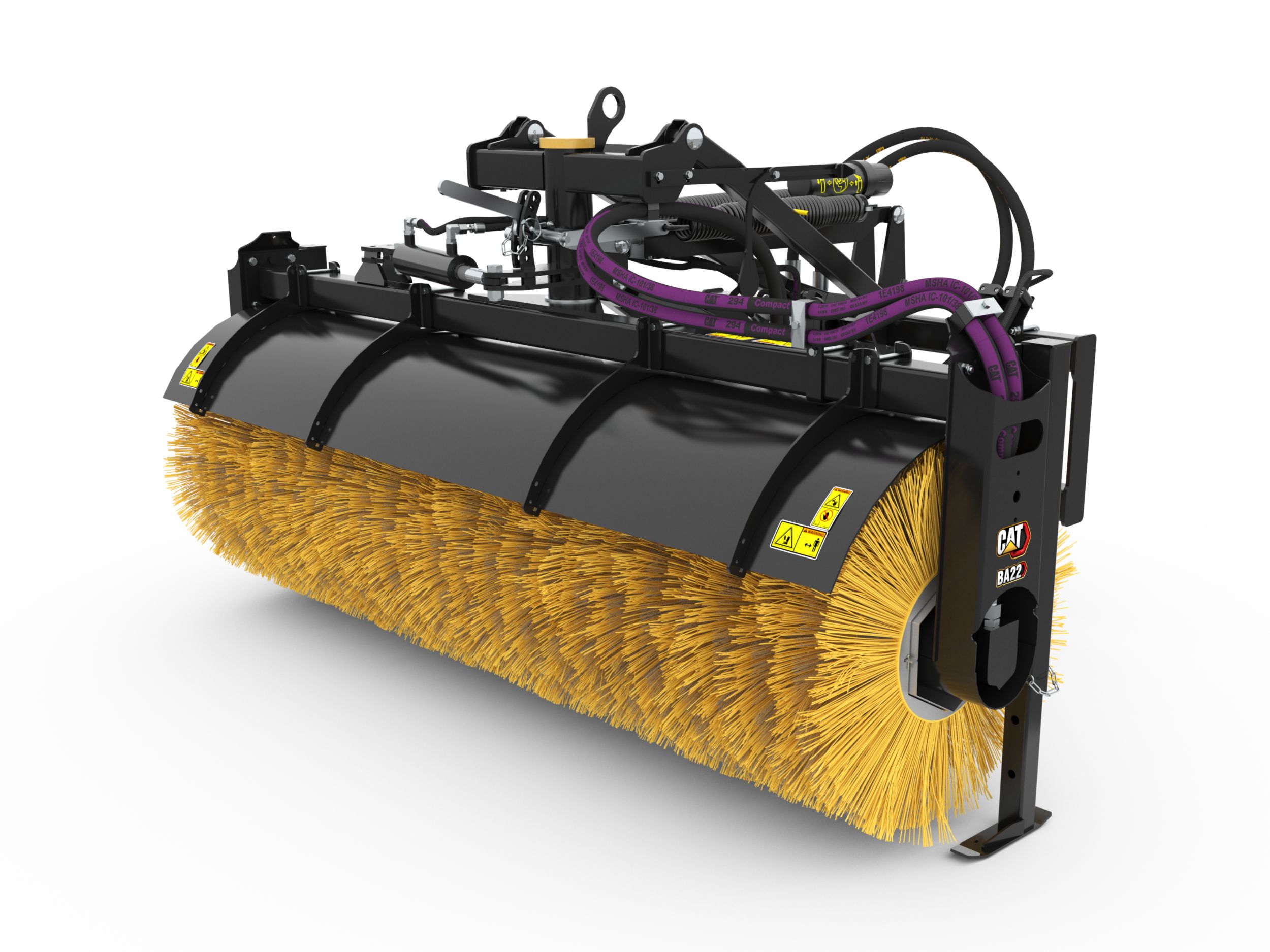

Product Specifications for BA22 Hydraulic, 12V
Overall Width
94.5 in2400 mm
Sweeping Width
86.6 in2200 mm
Brush Diameter
27.6 in700 mm
Required Hydraulics
Standard FlowStandard Flow
Height
51.2 in1300 mm
Length
60.4 in1535 mm
Weight
903.9 lb410 kg
Optimal Hydraulic Flow
40-75 L/min (11-20 gpm)40-75 L/min (11-20 gpm)
Optimal Hydraulic Pressure
150-260 bar (2176-3771 psi)150-260 bar (2176-3771 psi)
