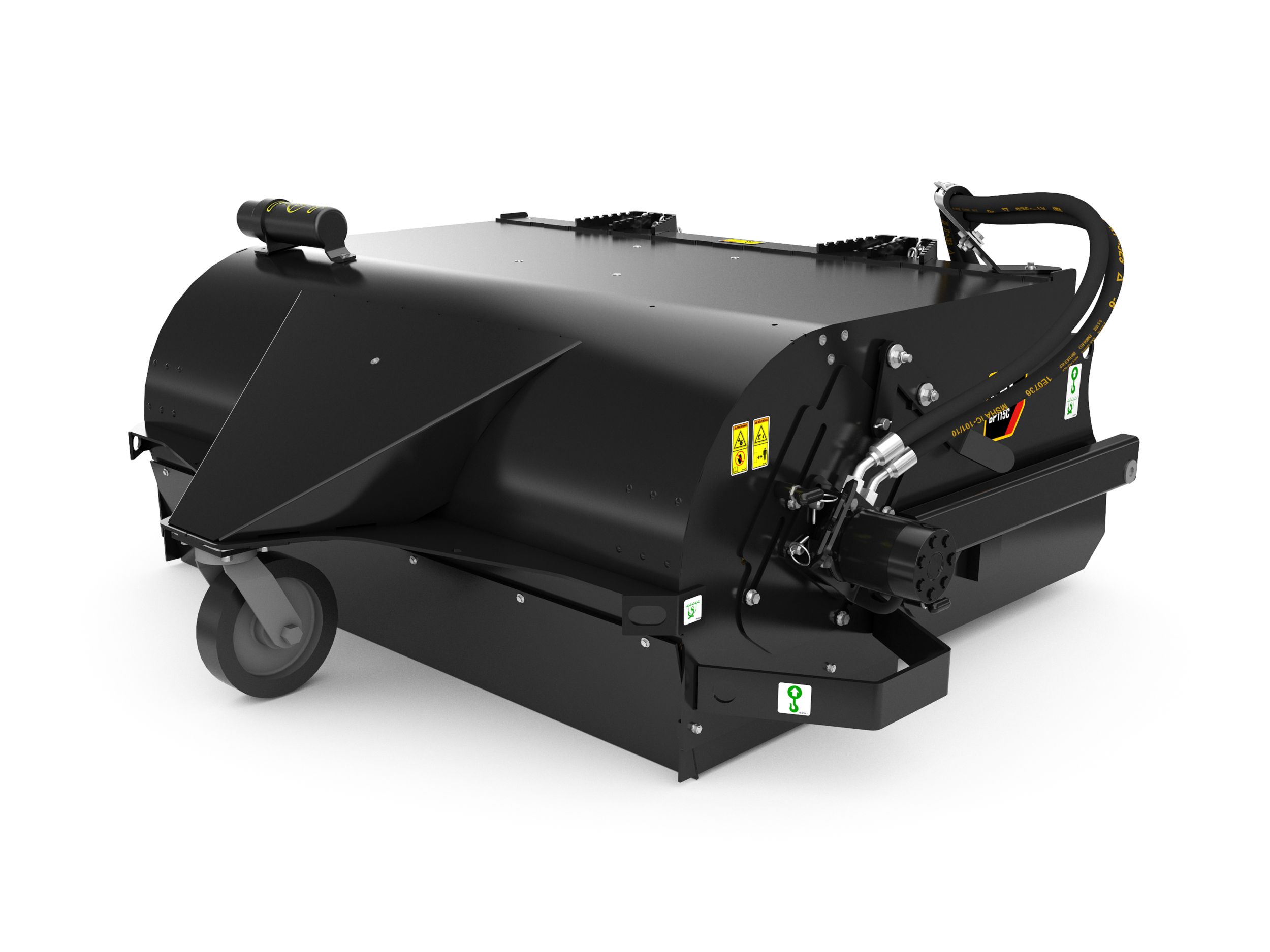

Pickup Brooms BP115C

Request A Price Click for Price

Key Specs

Overall Width
78.3 in
1990 mm
Sweeping Width
60 in
1524 mm
Brush Diameter
26 in
660 mm

Overview

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Product Specifications for BP115C

Overall Width 78.3 in 1990 mm
Sweeping Width 60 in 1524 mm
Brush Diameter 26 in 660 mm
Required Hydraulics Standard Flow Standard Flow
Height 34.3 in 872 mm
Length 72.3 in 1837 mm
Weight 1159.6 lb 526 kg
Required Hydraulic Flow 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Motor Displacement 24.7 in³/rev 405 cm³/rev
Brush Speed at Maximum Flow 199 rpm 199 rpm
Hopper Capacity 0.5 yd³ 0.4 m³
Gutter Brush Weight 90.4 lb 41 kg
Drive Method Direct Drive Direct Drive
