| Overall Width | 78.3 in 2700 mm |
| Sweeping Width | 60 in 2500 mm |
| Brush Diameter | 26 in 700 mm |
| Required Hydraulics | 3rd Function 3rd Function |
| Height | 34.3 in 1300 mm |
| Length | 72.3 in 1830 mm |
| Weight | 1159.6 lb 650 kg |
| Required Hydraulic Flow | 40-150 L/min (11-40 gpm) 40-150 L/min (11-40 gpm) |
| Optimal Hydraulic Pressure | 150-260 bar (2176-3771 psi) 150-260 bar (2176-3771 psi) |
| Motor Displacement | 24.7 in³/rev 195 cm³/rev |
| Brush Speed at Maximum Flow | 385 RPM 385 RPM |
| Hopper Capacity | 0.5 yd³ 0.66 m³ |
| Gutter Brush Weight | 90.4 lb 41 kg |
| Voltage | 12V and 24V 12V and 24V |
| Drive Method | Direct Drive Direct Drive |
| Interface Type | Requires Hook Group Requires Hook Group |

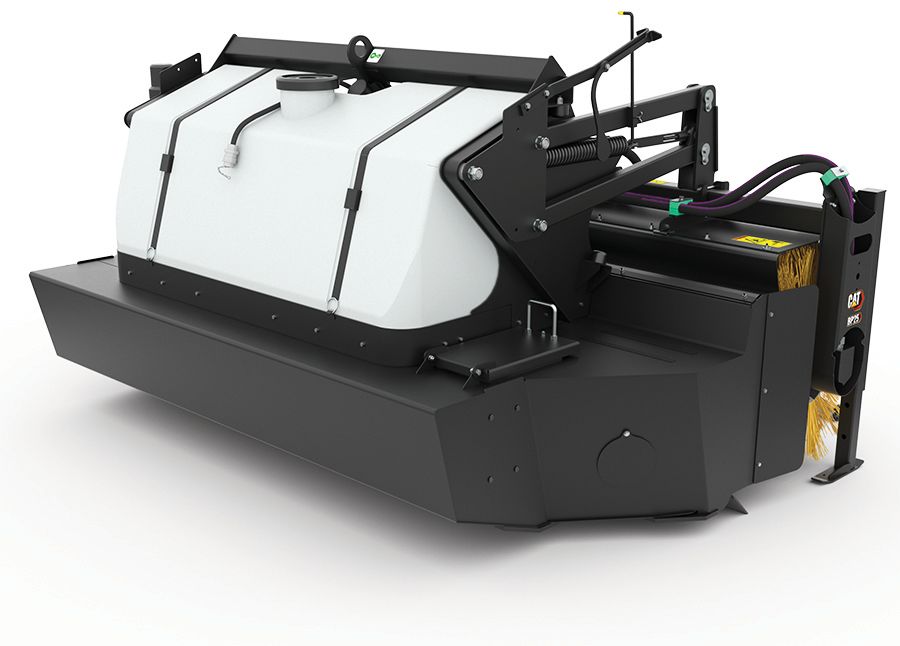

Pickup Brooms BP25
Request A Price Click for PriceKey Specs
- Overall Width
- 78.3 in
- 2700 mm
- Sweeping Width
- 60 in
- 2500 mm
- Brush Diameter
- 26 in
- 700 mm
Features At A Glance
Protected Hydraulic Motors
Parking Supports
Unique Suspension System
Leveling Indicator
Large Hopper
Integrated Water Tank
Water Sprinkler Kit
Tool Mounted Operation and Maintenance Manual (OMM) Holder
Full Set of Polypropylene Bristles
Product Specifications for BP25
See how BP25 compares against frequently compared products.
Brooms
BP25
Selected
- Overall Width
- 78.3 in
- 2700 mm
- Sweeping Width
- 60 in
- 2500 mm
- Brush Diameter
- 26 in
- 700 mm
Brooms
BP118C
- Overall Width
- 90.4 in
- 2295 mm
- Sweeping Width
- 72 in
- 1829 mm
- Brush Diameter
- 26 in
- 660 mm
