| Blows per Minute | 200 to 400 200 to 400 |
| Minimum Operating Weight | 8616 lb 3908 kg |
| Rated Flow - Minimum | 66 gal/min 250 l/min |
| Rated Flow - Maximum | 79 gal/min 300 l/min |
| Minimum Operating Pressure | 2030 psi 14000 kPa |
| Maximum Operating Pressure | 2320 psi 16000 kPa |
| Tool Shaft Diameter | 7.1 in 180 mm |
| Minimum Carrier Weight | 88100 lb 40 t |
| Maximum Carrier Weight | 121200 lb 55 t |
GC Hammers H180 GC S
Request A Price Find DealerKey Specs
- Blows per Minute
- 200 to 400
- 200 to 400
- Minimum Operating Weight
- 8616 lb
- 3908 kg
- Rated Flow - Minimum
- 66 gal/min
- 250 l/min
Overview

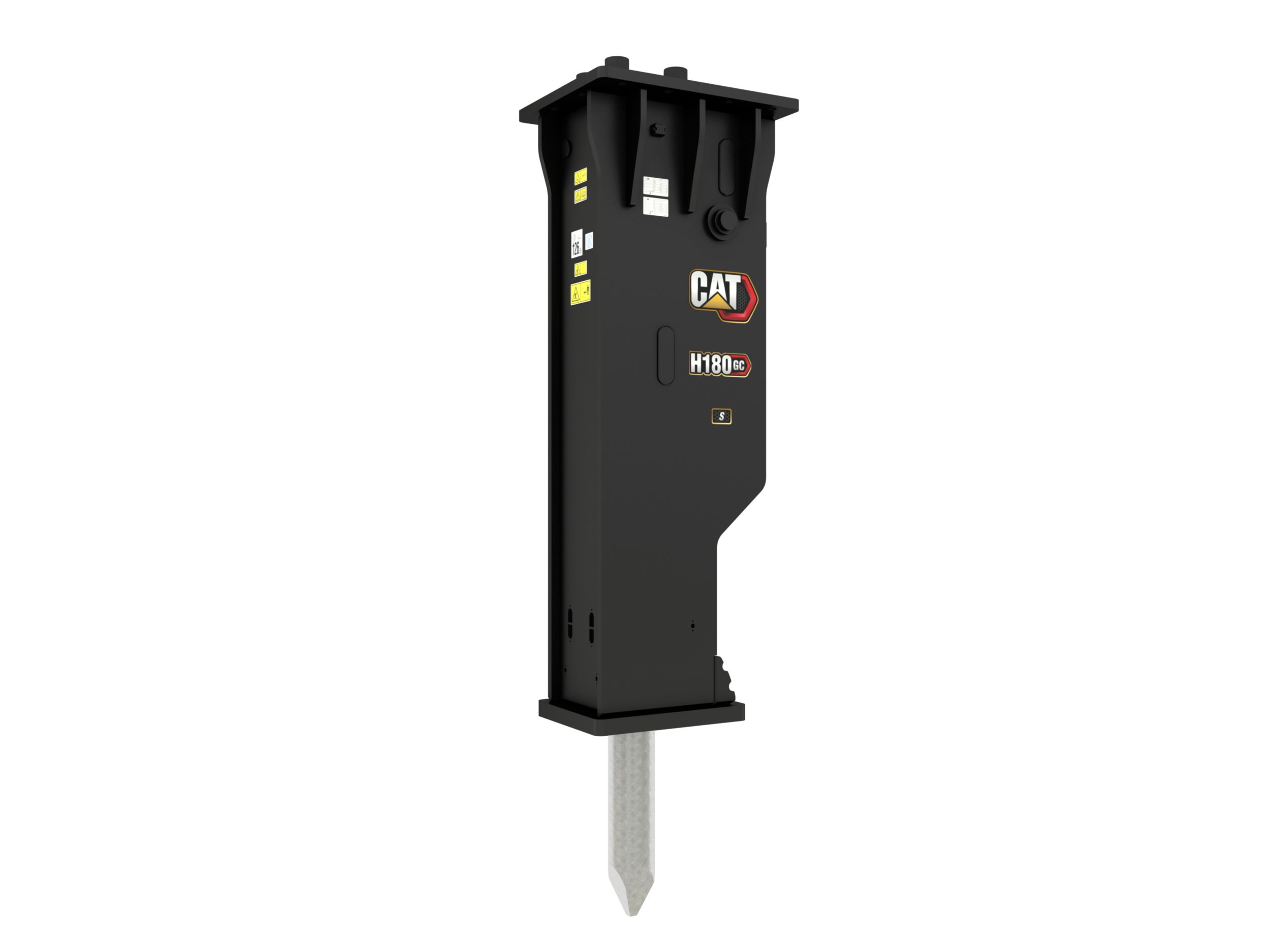

Cat® H180 GC S hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H180 GC S hammers help increase overall productivity and reduce maintenance costs. Cat H180 GC S hammers are a versatile solution for many applications, including road construction, trenching, and demolition.
Features At A Glance
High Performance
- Automatic shutoff offers blank firing protection by stopping the piston when there is no material under the tool to help extend the life of the hammer.
- Manually adjust the piston speed by choosing between high piston speed or maximum power to help increase efficiency and production on the job site.
- The standard silencing feature allows you to use a GC S hammer on job sites in noise sensitive areas like neighborhoods or near hospitals where noise is regulated.
Reliability and Durability
- The internal buffering system helps reduce machine vibration and increase noise suppression.
- Simple hammer design for easy maintenance and faster rebuilds to help lower owning and operating costs.
- Critical hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
Easy to Maintain
- Standard onboard autolube provides continuous greasing as the hammer runs, eliminating the need for manual greasing.
- The slip-fit lower bushing allows for easy replacement in the field, helping reduce service time.
- Verify the gas charge of the hammer without removing it from your machine.
- Quick and easy access to maintenance areas helps make hammer maintenance simple.
Boost Efficiency and Productivity with Integrated Technologies
- Never waste time looking for your attachments again. Cat asset tracking is available on all hammers.
- Track your entire fleet of attachments and machines from one source. Hammers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Hammers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
Product Specifications for H180 GC S
See how H180 GC S compares against frequently compared products.
Hammers
H180 GC S
Selected
- Blows per Minute
- 200 to 400
- 200 to 400
- Minimum Operating Weight
- 8616 lb
- 3908 kg
- Rated Flow - Minimum
- 66 gal/min
- 250 l/min
Hammers
H160 GC
- Impact Energy Class
- 7500 ft-lb
- 10170 J
- Blows per Minute
- 200-450
- 200-450
- Maximum Operating Weight
- 6762.8 lb
- 3074 kg
Hammers
H180 GC
- Impact Energy Class
- 10750 ft-lb
- 14578 J
- Blows per Minute
- 200-450
- 200-450
- Maximum Operating Weight
- 6762.8 lb
- 3074 kg
