| Operating Weight - With Tool | 286.6 lb 130 kg |
| Energy Class | 300.2 ft·lbf 407 J |
| Machine Class | 1-2 Ton Mini Excavator 1-2 Ton Mini Excavator |
| Tool Shaft Diameter | 1.6 in 40 mm |
| Impact Frequency | 600-1800 bpm 600-1800 bpm |
| Minimum Operating Pressure | 1450.4 psi 10000 kPa |
| Minimum Carrier Weight | 2429.5 lb 1102 kg |
| Optimal Hydraulic Flow | 12-35 lpm (3-9 gpm) 12-35 lpm (3-9 gpm) |
| Overall Width | 11.8 in 300 mm |
| Overall Length | 12.2 in 311 mm |
| Overall Height | 33.9 in 860 mm |
| Height - Without Tool | 24.4 in 620 mm |
| Sound Level | 120 dB 120 dB |
| Mounting Bracket Size | Medium Medium |

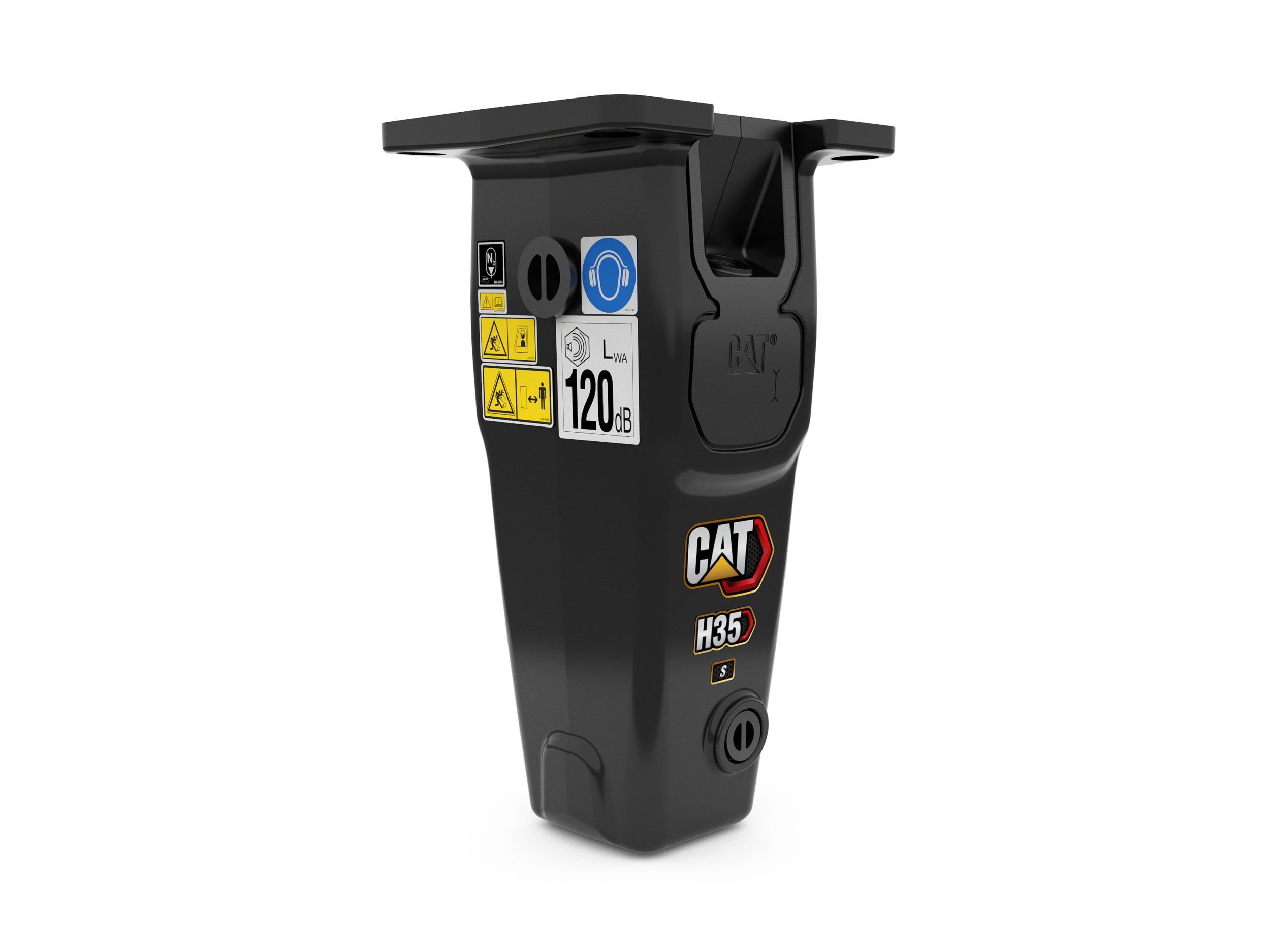

Hammers H35s
Request A Price Click for PriceKey Specs
- Operating Weight - With Tool
- 286.6 lb
- 130 kg
- Energy Class
- 300.2 ft·lbf
- 407 J
- Machine Class
- 1-2 Ton Mini Excavator
- 1-2 Ton Mini Excavator
Features At A Glance
Product Specifications for H35s
See how H35s compares against frequently compared products.
Hammers
H35s
Selected
- Operating Weight - With Tool
- 286.6 lb
- 130 kg
- Energy Class
- 300.2 ft·lbf
- 407 J
- Machine Class
- 1-2 Ton Mini Excavator
- 1-2 Ton Mini Excavator
Hammers
B9s
- Operating Weight - With Tool
- 1142 lb
- 518 kg
- Energy Class
- 958.8 ft·lbf
- 1300 J
- Machine Class
- 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
- 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Hammers
H45s
- Operating Weight - With Tool
- 551.2 lb
- 250 kg
- Energy Class
- 399.8 ft·lbf
- 542 J
- Machine Class
- 1-3 Ton Mini Excavators
- 1-3 Ton Mini Excavators
