| Blows per Minute | 350 to 700 350 to 700 |
| Minimum Operating Weight | 2022 lb 917 kg |
| Minimum Rated Flow | 21 gal/min 80 l/min |
| Maximum Rated Flow | 26 gal/min 100 l/min |
| Minimum Operating Pressure | 2132 psi 14700 kPa |
| Maximum Operating Pressure | 2408 psi 16600 kPa |
| Tool Shaft Diameter | 3.9 in 100 mm |
| Minimum Carrier Weight | 22046 lb 10 t |
| Maximum Carrier Weight | 39680 lb 18 t |

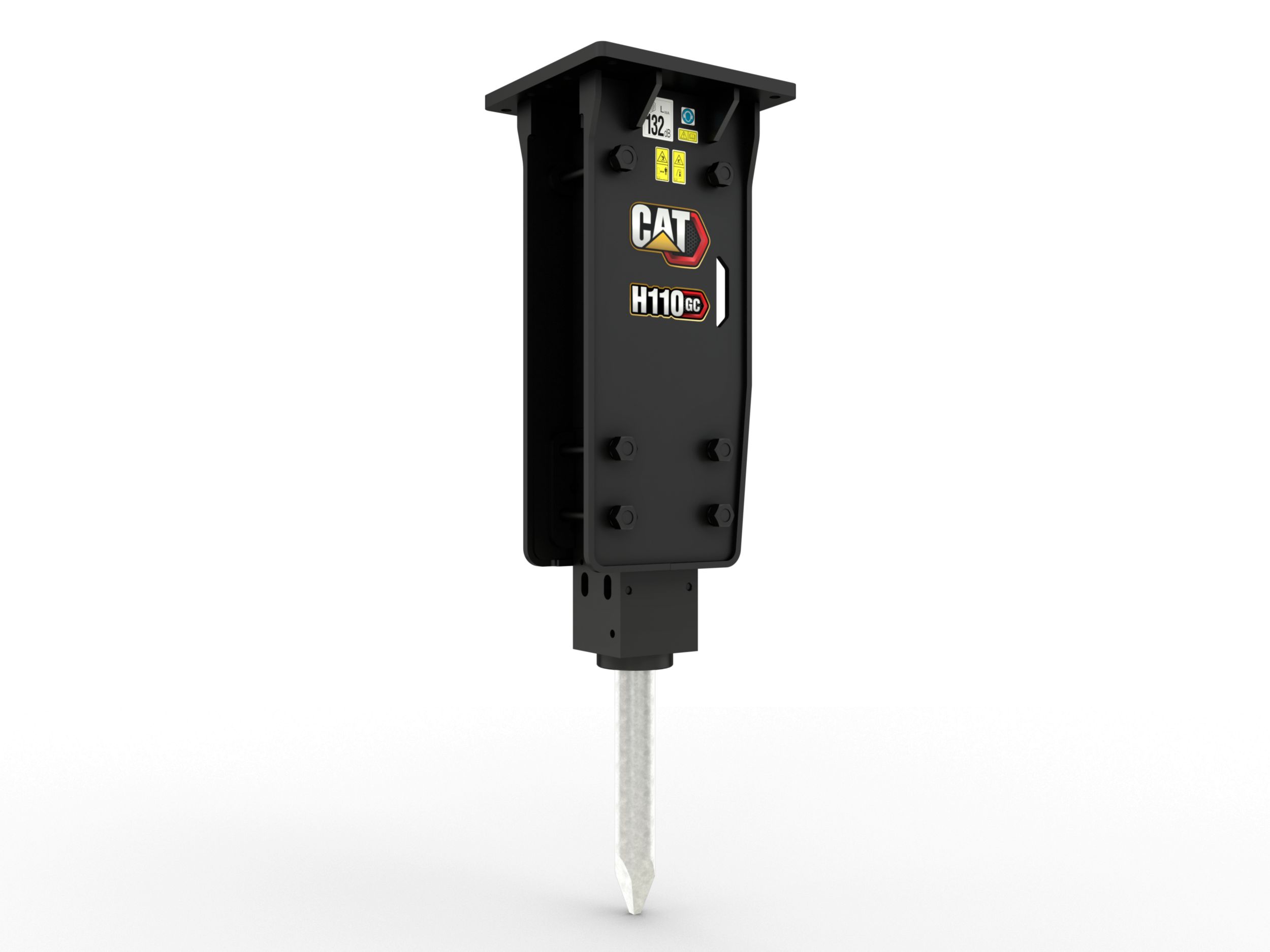

GC Hammers H110 GC
Request A Price Find DealerKey Specs
- Blows per Minute
- 350 to 700
- 350 to 700
- Minimum Operating Weight
- 2022 lb
- 917 kg
- Minimum Rated Flow
- 21 gal/min
- 80 l/min
Overview
Cat® GC Hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat GC Hammers help increase overall productivity and reduce maintenance costs. Cat GC Hammers are a versatile solution for many applications, including road construction, trenching, and demolition.
Features At A Glance
- The large hammer tool diameter has high impact power to help break tough rock and concrete applications on the job site.
- Cat GC Hammers are designed with high impact power and fast impact frequency to help break through material quickly to increase efficiency and production.
- Cat GC Hammers are fully tested and validated with matched machines, resulting in better performance and compatibility.
- The slip-fit and 90-degree rotatable lower bushing allows for easy replacement in the field, helping reduce service time and extend service life.
- Quick and easy access to maintenance areas helps make hammer maintenance simple.
- Daily tool inspection and grease points are accessible from the ground with the hammer still mounted on the machine.
- Reinforced connecting hardware and easy bolt tightening processes help provide strong, durable joints and extend hammer life.
- Power cells are made with high-quality alloy steel and two-stage heat treatment to help increase durability and lower service costs.
- Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
- The Cat hammer lines kit with independent return oil routing helps prevent contamination of the main hydraulic system.
Product Specifications for H110 GC
See how H110 GC compares against frequently compared products.
Hammers
H110 GC
Selected
- Blows per Minute
- 350 to 700
- 350 to 700
- Minimum Operating Weight
- 2022 lb
- 917 kg
- Minimum Rated Flow
- 21 gal/min
- 80 l/min
Hammers
H120 GC
- Blows per Minute
- 350 to 550
- 350 to 550
- Minimum Operating Weight
- 4418 lb
- 2004 kg
- Minimum Rated Flow
- 32 gal/min
- 120 l/min
Hammers
H180 GC
- Blows per Minute
- 200 to 250
- 200 to 250
- Minimum Operating Weight
- 10581 lb
- 4799 kg
- Minimum Rated Flow
- 58 gal/min
- 220 l/min
