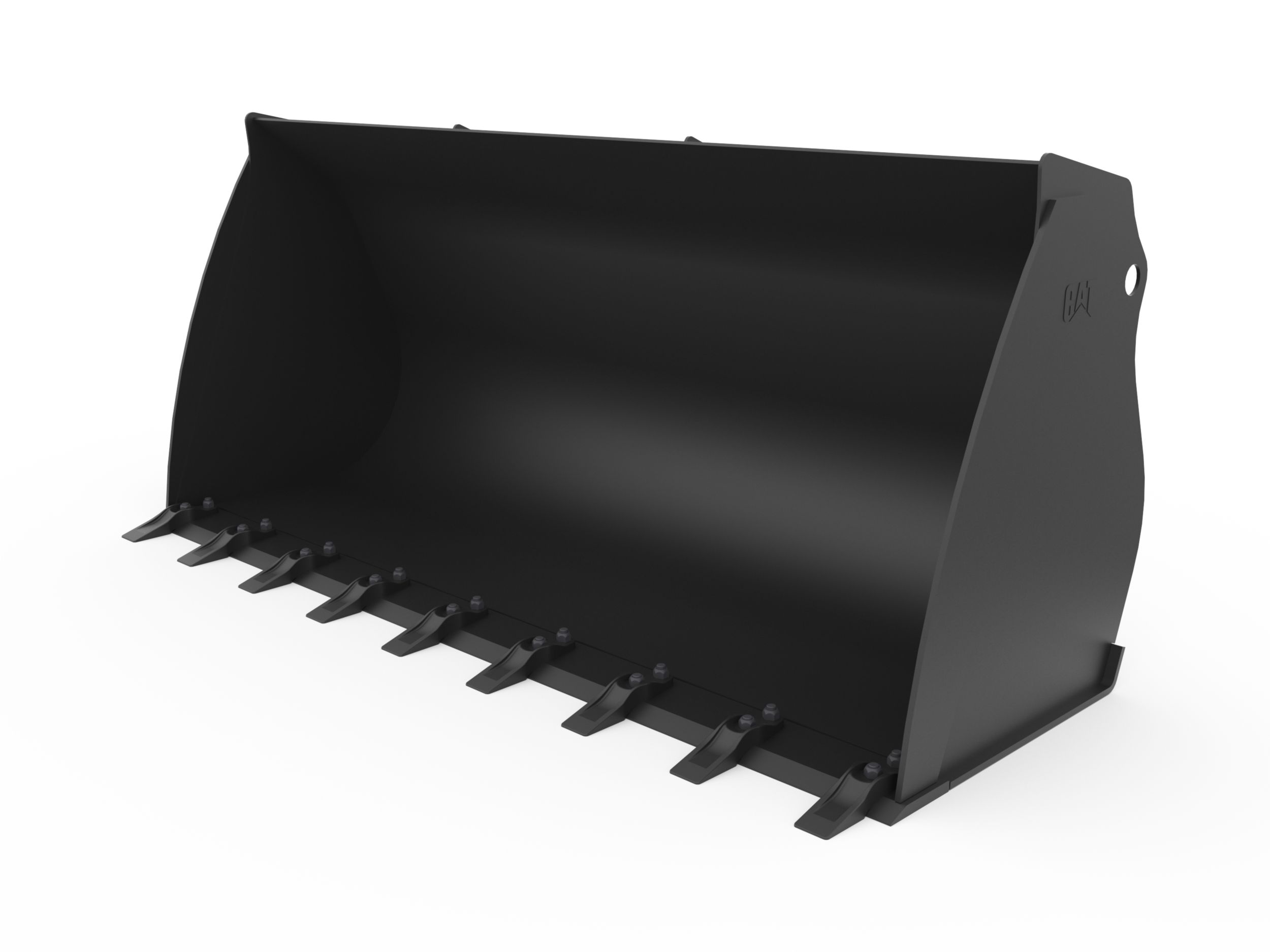

General Purpose Buckets 1.1 m3 (1.4 yd3), Skid Steer Coupler, Bolt-On Teeth

Request A Price Click for Price

Key Specs

Width: 80.2 in; 2036 mm

Weight: 870.8 lb; 395 kg

Height: 36.2 in; 920 mm

1.1 m3 (1.4 yd3), Skid Steer Coupler, Bolt-On Teeth
Change model

Overview

Used for loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.

Features At A Glance

Designed to improve material retention when truck loading or working on rough, uneven ground.

Flat upper torque tube is parallel to cutting edge for better ground reference (which aligns with all other Cat loader buckets). This reduces the cutting edge wear and improves grading capabilities. Edge angle and placement can be easier to gauge from within the cab.

Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.

Buckets are available with bolt-on cutting edges or bolt-on teeth.

Base bucket also available with bolt-on cutting edge and bolt-on teeth.

Product Specifications for 1.1 m3 (1.4 yd3), Skid Steer Coupler, Bolt-On Teeth

Width	80.2 in 2036 mm
Weight	870.8 lb 395 kg
Height	36.2 in 920 mm
Length	39 in 991 mm
Capacity	1.4 yd³ 1.05 m³
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Interface Type	Skid Steer Loader Skid Steer Loader

Product Specifications for 1.1 m3 (1.4 yd3), Skid Steer Coupler, Bolt-On Teeth

Download Print

Width	80.2 in 2036 mm
Weight	870.8 lb 395 kg
Height	36.2 in 920 mm
Length	39 in 991 mm
Capacity	1.4 yd³ 1.05 m³
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Interface Type	Skid Steer Loader Skid Steer Loader
